Toyota Camry

2024-04 → present · chassis AXVH8# · catalogue 2834B0 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

25 part groups · 3 illustrations

Illustrations

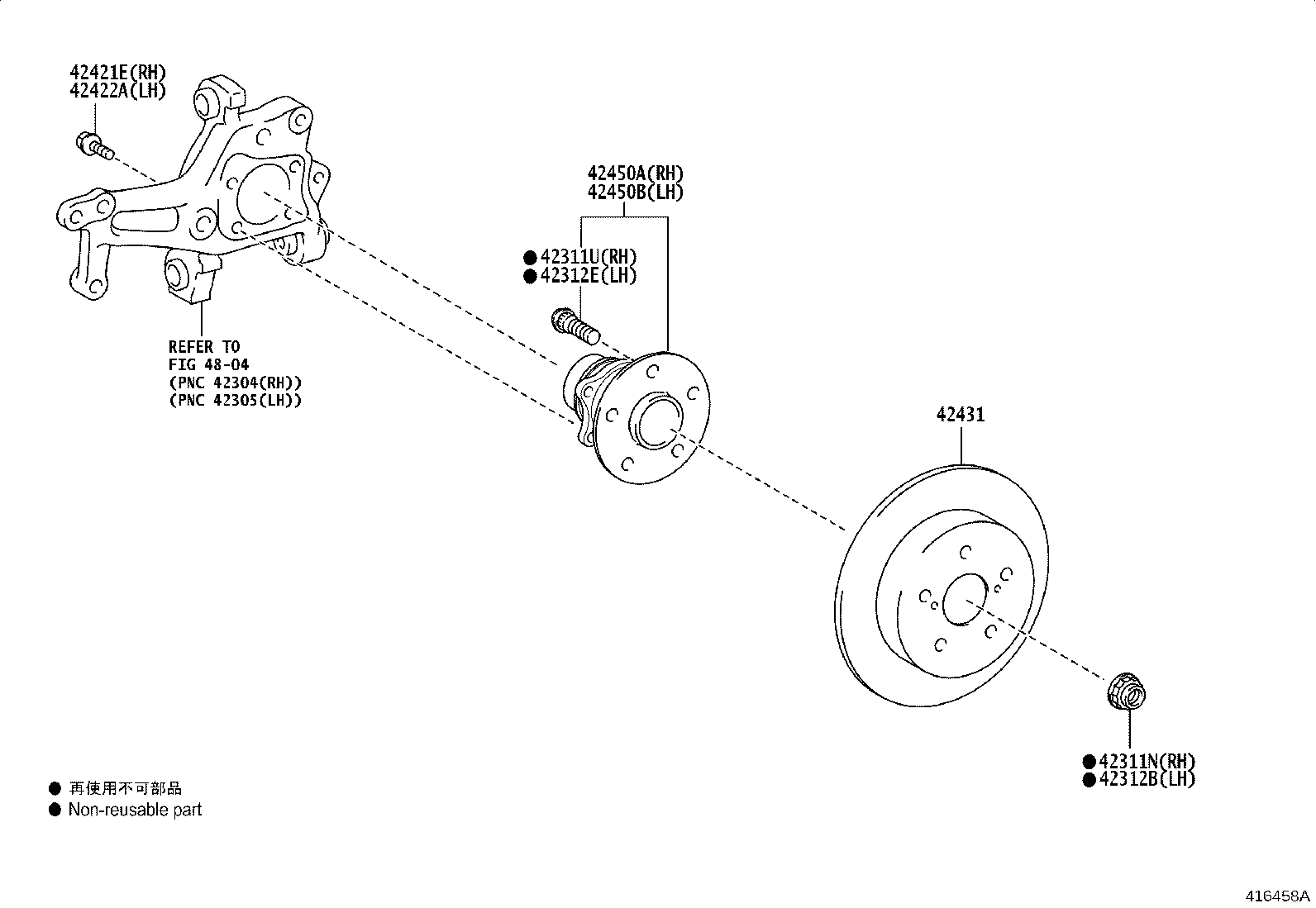

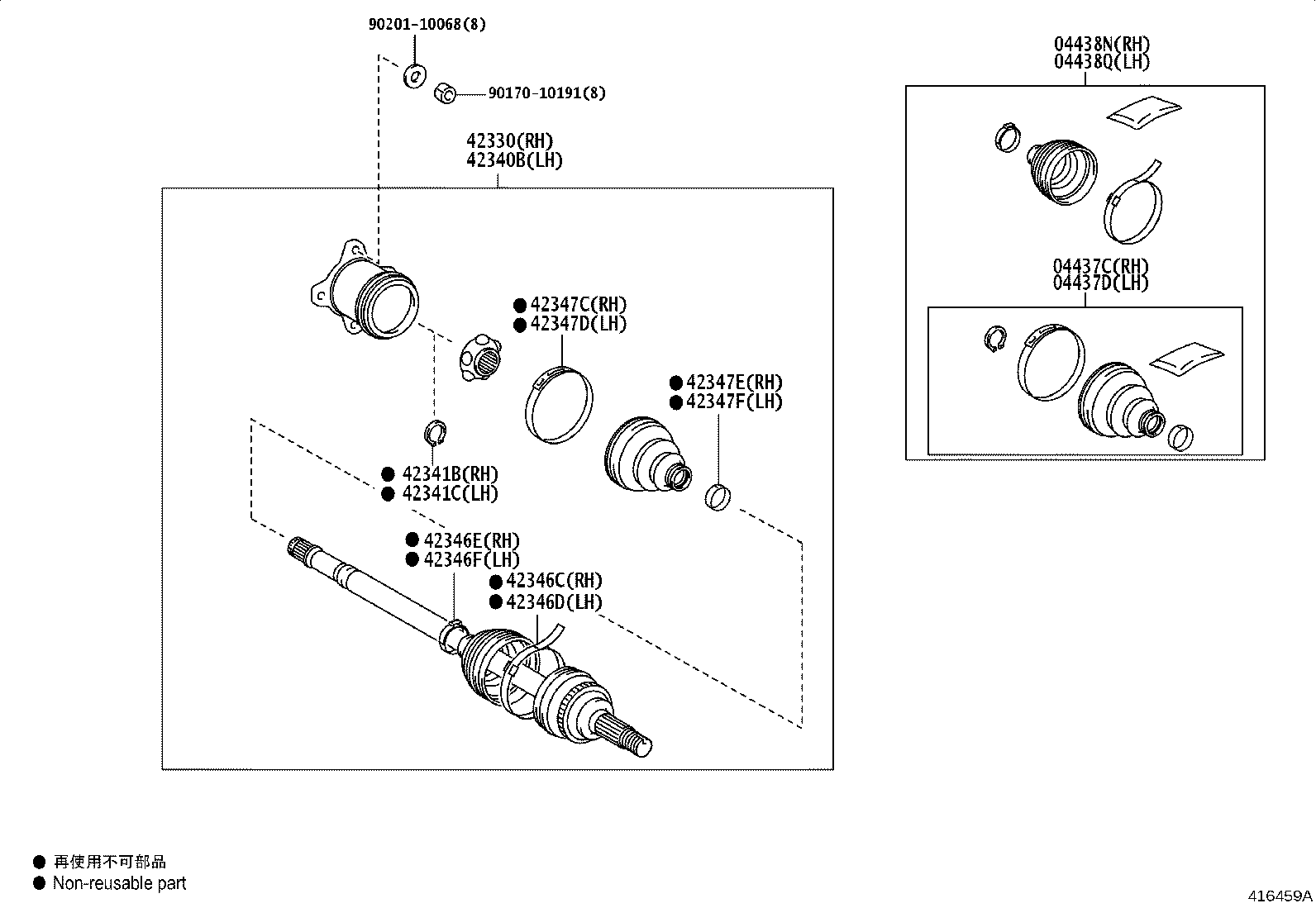

Figure 416457A 416457A 2024-04 → — Figure 416458A 416458A 2024-04 → — Figure 416459A 416459A 2024-04 → —

Part groups

PNCDescription
04437C Boot Kit, Rear Drive Shaft Inboard Joint, RH
04437D Boot Kit, Rear Drive Shaft Inboard Joint, LH
04438N Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
04438Q Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
42311N Nut(FOR REAR AXLE SHAFT RH)
42311U Bolt, Hub(FOR REAR AXLE RH)
42312B Nut(FOR REAR AXLE SHAFT LH)
42312E Bolt, Hub(FOR REAR AXLE LH)
42330 Shaft Assy, Rear Drive, RH
42340B Shaft Assy, Rear Drive, LH
42341B Ring, Snap (FOR REAR DRIVE SHAFT RH)
42341C Ring, Snap (FOR REAR DRIVE SHAFT LH)
42346C Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346D Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42346E Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346F Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42347C Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347D Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42347E Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347F Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
42421E Bolt (FOR REAR AXLE BEARING CASE RH)
42422A Bolt (FOR REAR AXLE BEARING CASE LH)
42431 Disc, Rear
42450A Hub & Bearing Assy, Rear Axle, RH
42450B Hub & Bearing Assy, Rear Axle, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
