Toyota Camry

2024-04 → present · chassis AXVH8# · catalogue 2834B0 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

22 part groups · 2 illustrations

Illustrations

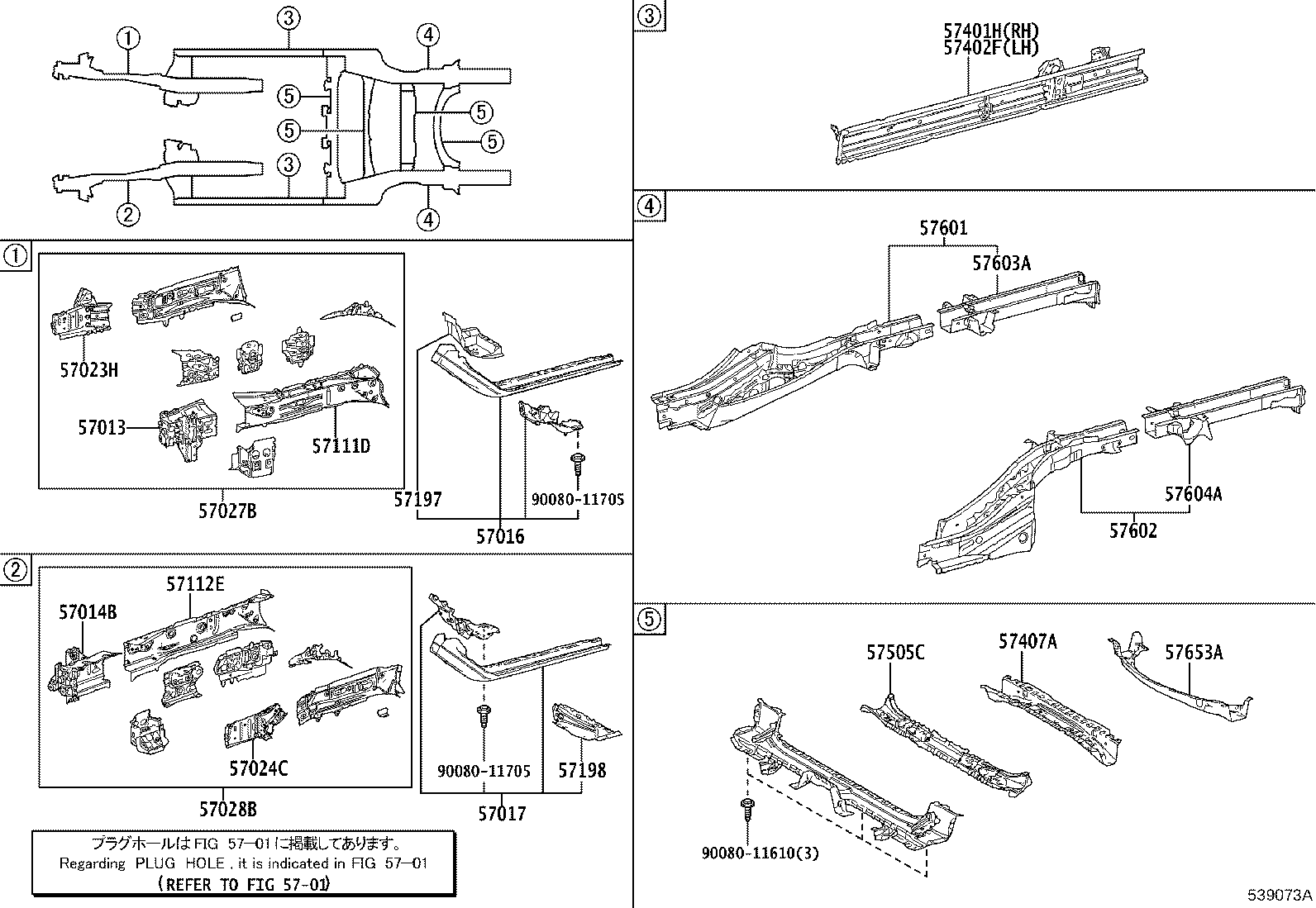

Figure 539072A 539072A 2024-04 → — Figure 539073A 539073A 2024-04 → —

Part groups

PNCDescription
57013 Bracket Sub-assy, Front Side Member, RH
57014B Bracket Sub-assy, Front Side Member, LH
57016 Reinforcement Sub-assy, Front Side Member, RH
57017 Reinforcement Sub-assy, Front Side Member, LH
57023H Bracket Sub-assy, Body Mounting, NO.2 RH
57024C Bracket Sub-assy, Body Mounting, NO.2 LH
57027B Member Sub-assy, Front Side, Inner RH
57028B Member Sub-assy, Front Side, Inner LH
57111D Member, Front Side, Inner RH
57112E Member, Front Side, Inner LH
57197 Box, Torque, Front RH
57198 Box, Torque, Front LH
57401H Member Sub-assy, Floor Side, Inner RH
57402F Member Sub-assy, Floor Side, Inner LH
57407A Member Sub-assy, Center Floor Cross
57505C Reinforcement Sub-assy, Front Floor Under
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57603A Member Sub-assy, Rear Floor Side, Rear RH
57604A Member Sub-assy, Rear Floor Side, Rear LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57653A Member, Rear Floor Cross, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
