Toyota Camry

2024-04 → present · chassis AXVH8# · catalogue 2834B0 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

4 part groups · 2 illustrations

Illustrations

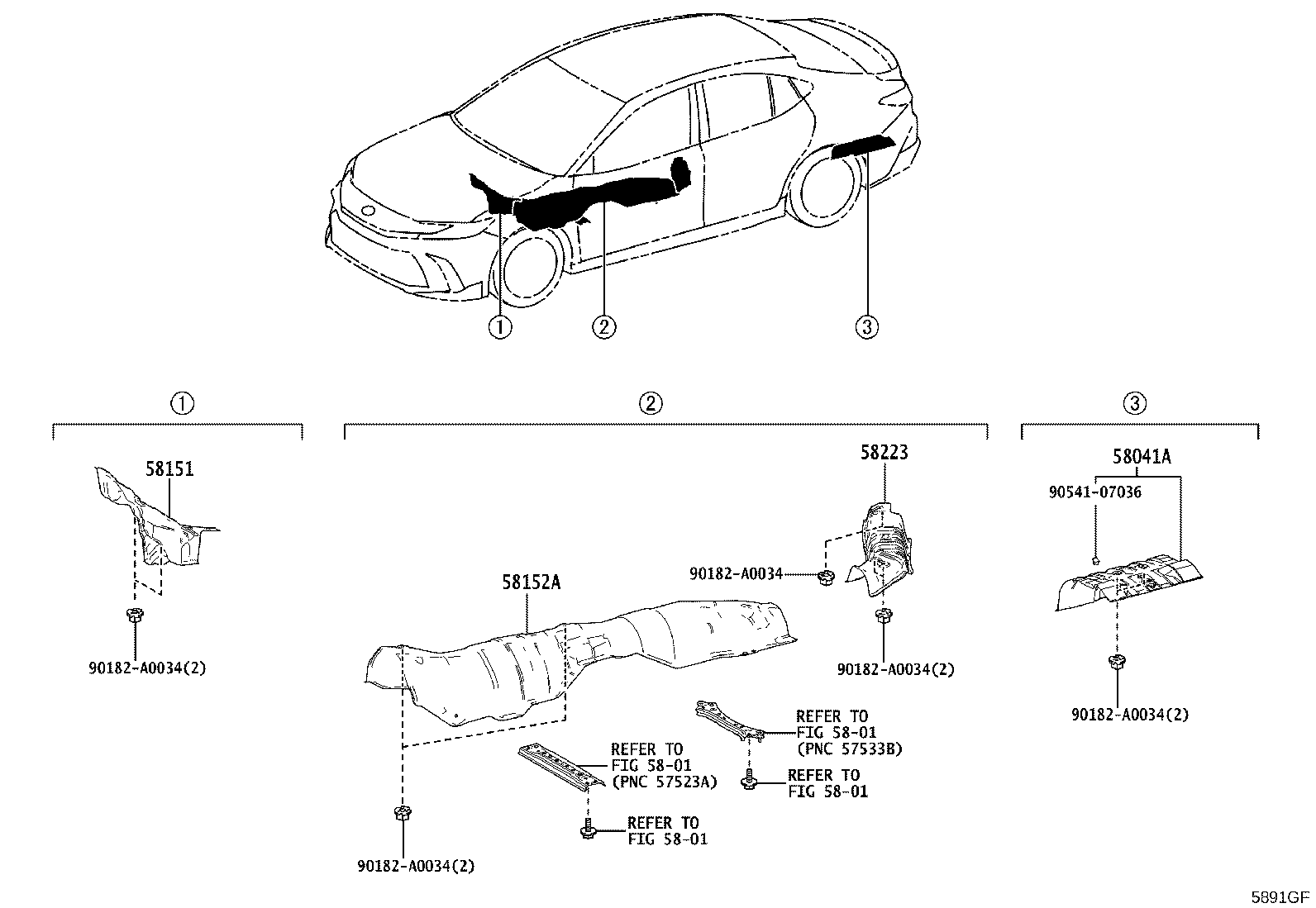

Figure 5891GE 5891GE 2024-04 → — Figure 5891GF 5891GF 2024-04 → —

Part groups

PNCDescription
58041A Insulator Sub-assy, Front Floor Heat, NO.1
58151 Insulator, Front Floor Heat, NO.1
58152A Insulator, Front Floor Heat, NO.1 Lower
58223 Insulator, Center Floor Heat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
