Toyota Camry

2024-04 → present · chassis AXVH8# · catalogue 2834B0 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

25 part groups · 2 illustrations

Illustrations

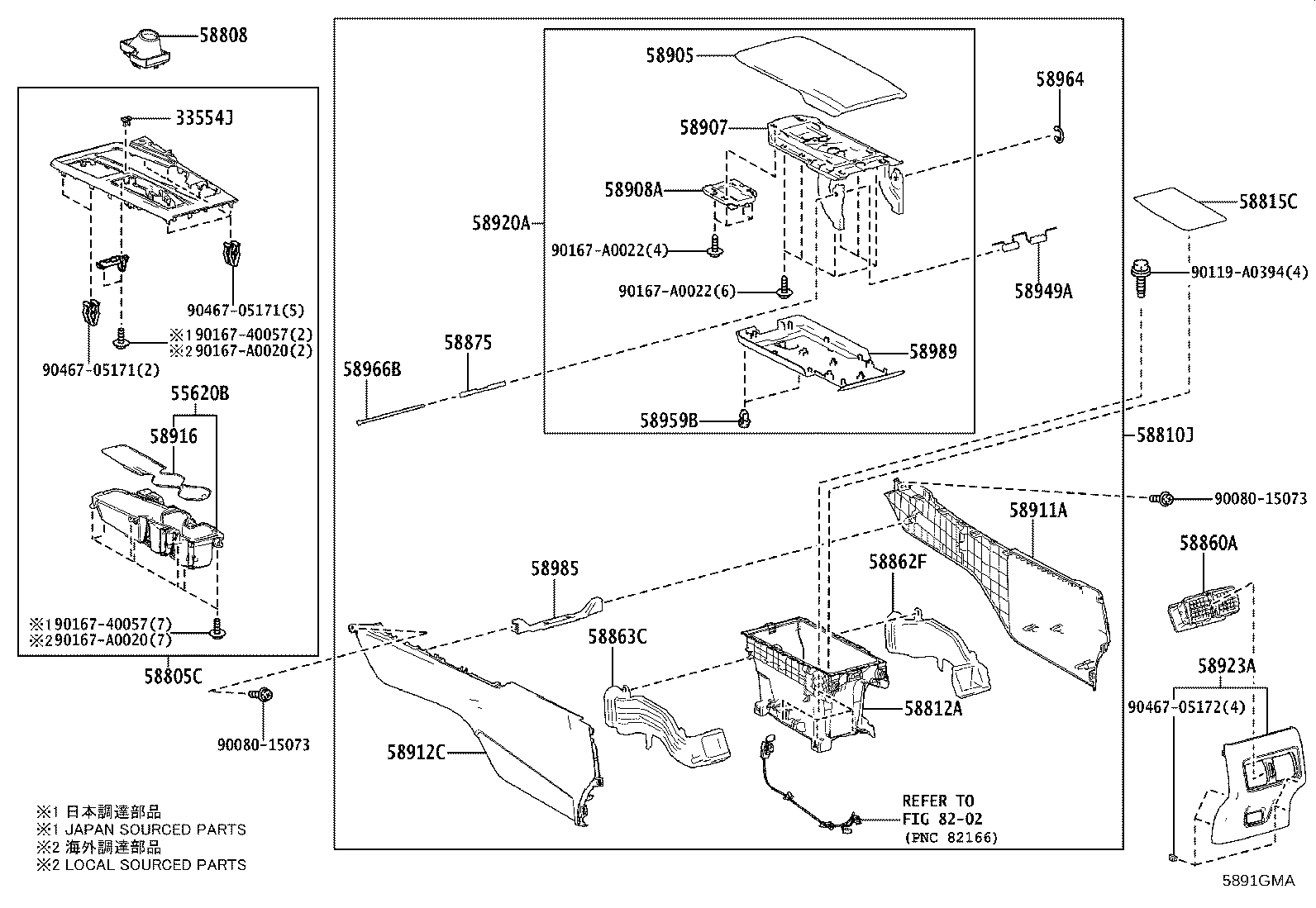

Figure 5891JQ 5891JQ 2024-04 → — Figure 5891GMA 5891GMA 2024-04 → —

Part groups

PNCDescription
33554J Cover, Shift Lock Release Button
55620B Holder, Instrument Panel Cup
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58812A Box, Console, Lower
58815C Carpet, Console Box
58860A Register Assy, Console Box
58862F Duct, Console Box, NO.2
58863C Duct, Console Box, NO.3
58875 Spacer, Console Box
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58911A Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58916 Mat, Box Bottom
58920A Armrest Assy, Rear Console
58923A Panel, Console Rear End
58949A Spring, Console Box Mounting Bracket
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58966B Pin, Console Compartment Door Stopper
58985 Retainer, Console Box
58989 Panel, Console Compartment Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
