Toyota Camry
2024-04 → present · chassis AXVH8# · catalogue 2834B0 · United States
Supported model
Data version 2024-03
Side Member

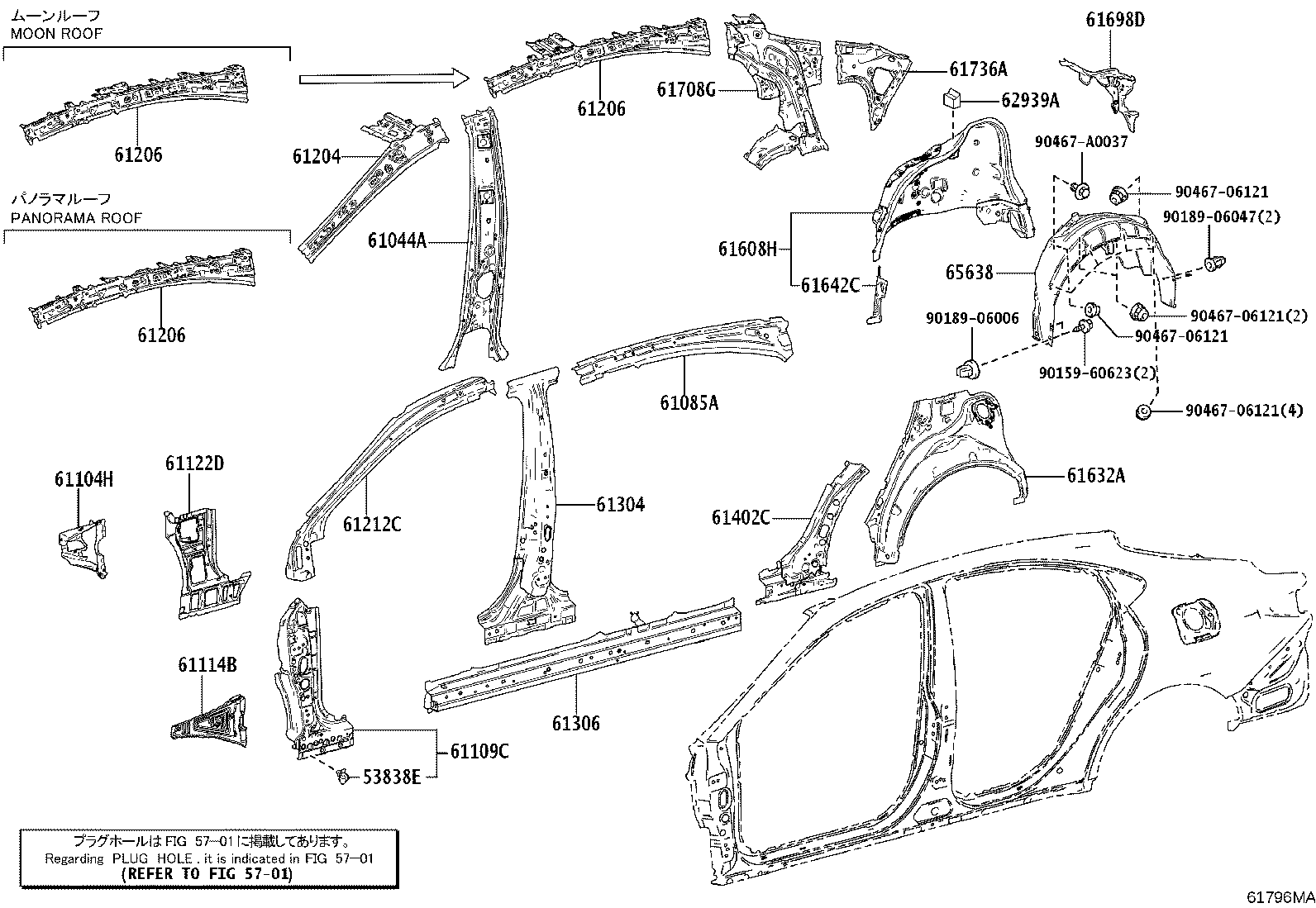

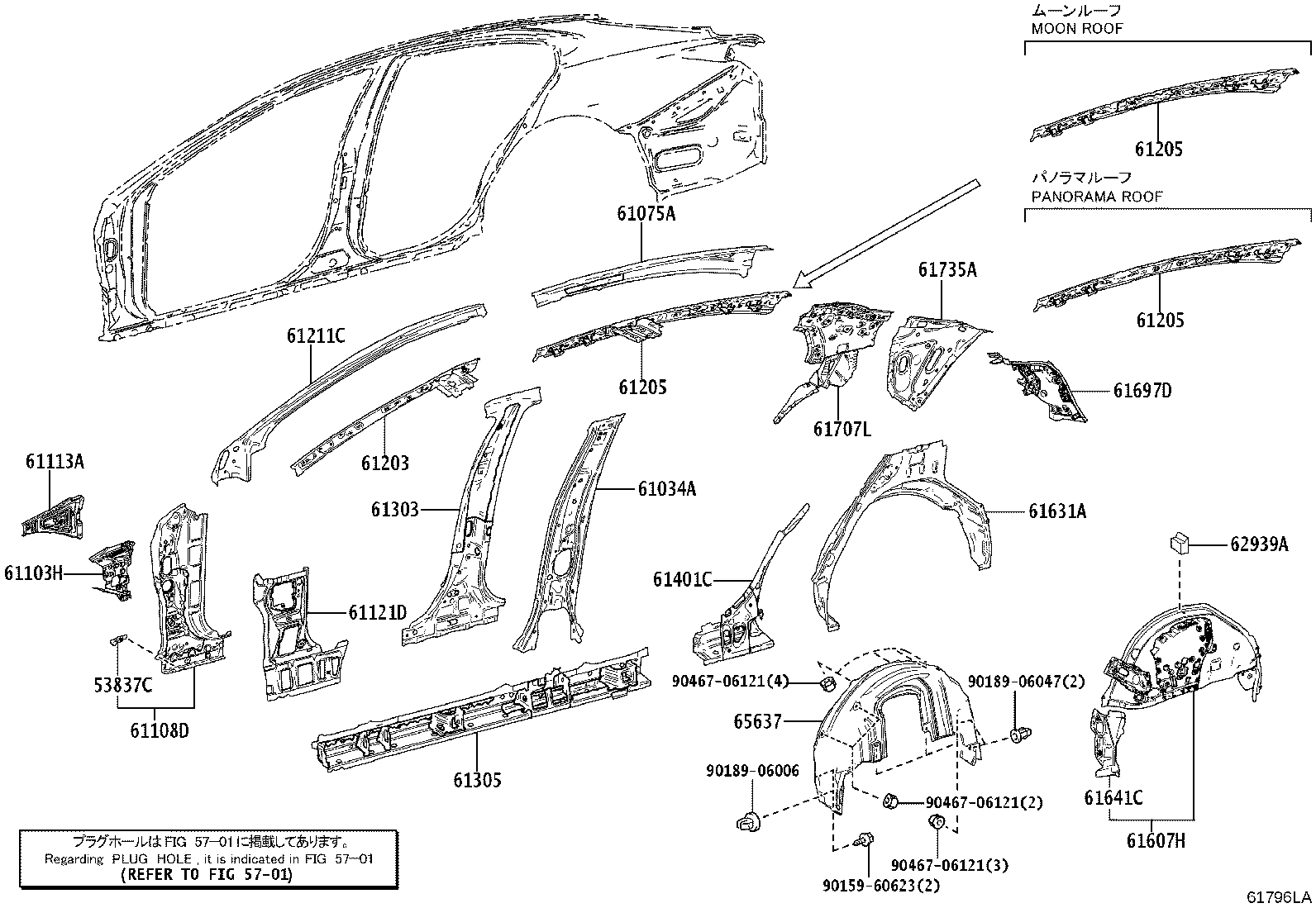

55 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53821B | Bracket, Front Fender, Rear RH |
| 53822B | Bracket, Front Fender, Rear LH |
| 53837C | Bracket, Front Side Panel, NO.2 RH |
| 53838E | Bracket, Front Side Panel, NO.2 LH |
| 58747G | Protector, Quarter Panel, Rear RH |
| 58748C | Protector, Quarter Panel, Rear LH |
| 61034A | Pillar Sub-assy, NO.3 Inner, RH |
| 61044A | Pillar Sub-assy, NO.3 Inner, LH |
| 61075A | Rail Sub-assy, NO.3 Upper Outer, RH |
| 61085A | Rail Sub-assy, NO.3 Upper Outer, LH |
| 61103H | Panel Sub-assy, Side, NO.2 RH |
| 61104H | Panel Sub-assy, Side, NO.2 LH |
| 61108D | Reinforcement Sub-assy, Front Pillar, Lower RH |
| 61109C | Reinforcement Sub-assy, Front Pillar, Lower LH |
| 61113A | Panel, Side, Outer NO.2 RH |
| 61114B | Panel, Side, Outer NO.2 LH |
| 61121D | Panel, Cowl Side, RH |
| 61122D | Panel, Cowl Side, LH |
| 61131 | Pillar, Front Body, Upper Outer RH |
| 61132 | Pillar, Front Body, Upper Outer LH |
| 61203 | Rail Sub-assy, Roof Side, Inner RH |
| 61204 | Rail Sub-assy, Roof Side, Inner LH |
| 61205 | Rail Sub-assy, Roof Side, Inner Rear RH |
| 61206 | Rail Sub-assy, Roof Side, Inner Rear LH |
| 61211C | Rail, Roof Side, RH |
| 61212C | Rail, Roof Side, LH |
| 61213B | Rail, Roof Side, Outer NO.2 RH |
| 61214B | Rail, Roof Side, Outer NO.2 LH |
| 61303 | Reinforce Sub-assy, Center Body Pillar, Upper RH |
| 61304 | Reinforce Sub-assy, Center Body Pillar, Upper LH |
| 61305 | Reinforce Sub-assy, Center Body Pillar, Lower RH |
| 61306 | Reinforce Sub-assy, Center Body Pillar, Lower LH |
| 61311B | Pillar, Center Body, Outer RH |
| 61312B | Pillar, Center Body, Outer LH |
| 61401C | Panel Sub-assy, Rocker, Outer RH |
| 61402C | Panel Sub-assy, Rocker, Outer LH |
| 61601G | Panel Sub-assy, Rear Body Rear Side, RH |
| 61602H | Panel Sub-assy, Rear Body Rear Side, LH |
| 61607H | Panel Sub-assy, Quarter Wheel House, Inner RH |
| 61608H | Panel Sub-assy, Quarter Wheel House, Inner LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61641C | Gusset, Quarter Wheel House, Front RH |
| 61642C | Gusset, Quarter Wheel House, Front LH |
| 61697D | Housing, Quarter Panel End, RH |
| 61698D | Housing, Quarter Panel End, LH |
| 61707L | Panel Sub-assy, Roof Side, Inner Front RH |
| 61708G | Panel Sub-assy, Roof Side, Inner Front LH |
| 61735A | Panel, Roof Side, Inner Rear RH |
| 61736A | Panel, Roof Side, Inner Rear LH |
| 62939A | Silencer, Quarter Vent |
| 65565 | Patch, Side Panel Rear End, RH |
| 65566 | Patch, Side Panel Rear End, LH |
| 65637 | Liner, Rear Wheel House, RH |
| 65638 | Liner, Rear Wheel House, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
