Toyota Camry

2024-04 → present · chassis AXVH8# · catalogue 2834B0 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

11 part groups · 4 illustrations

Illustrations

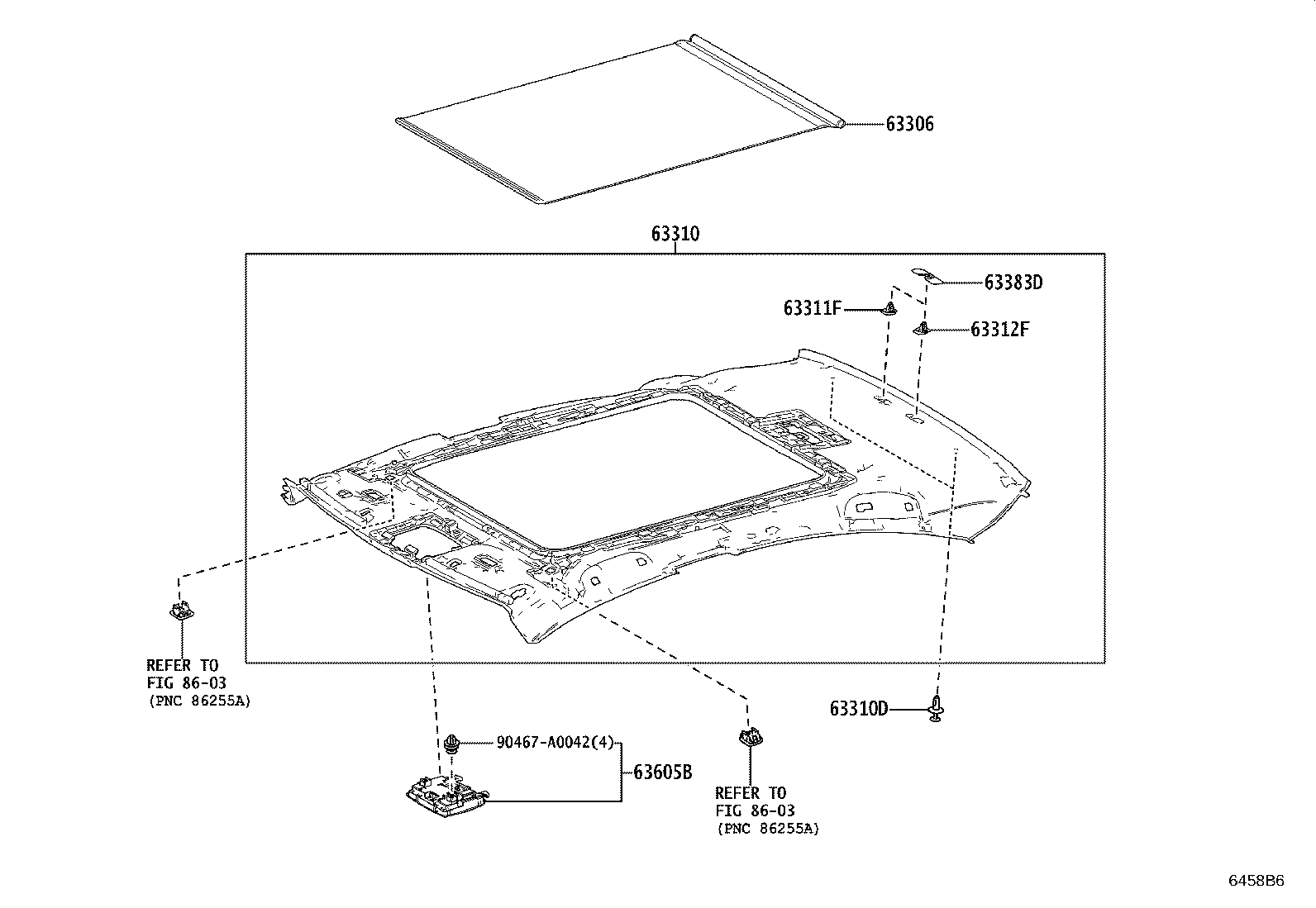

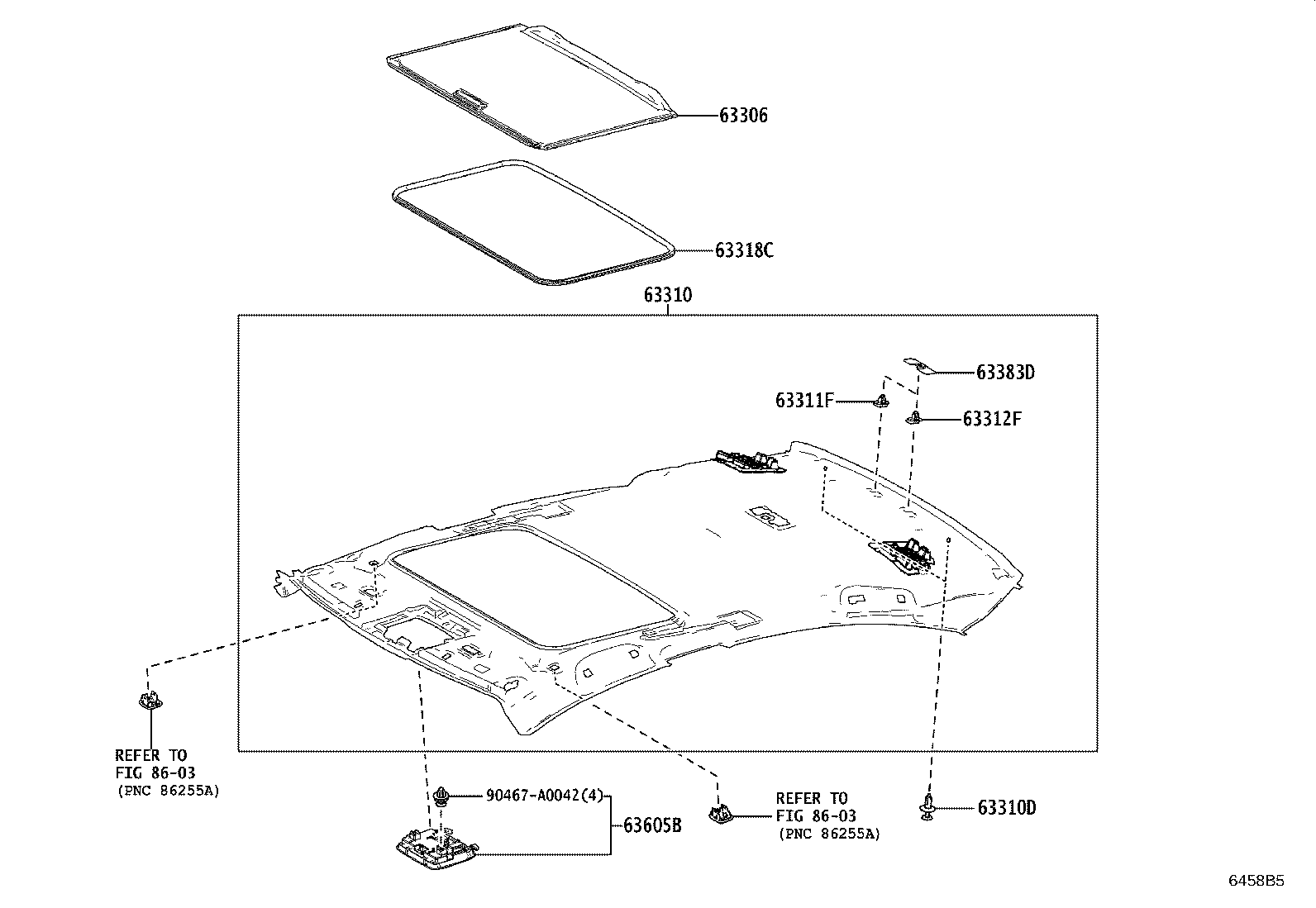

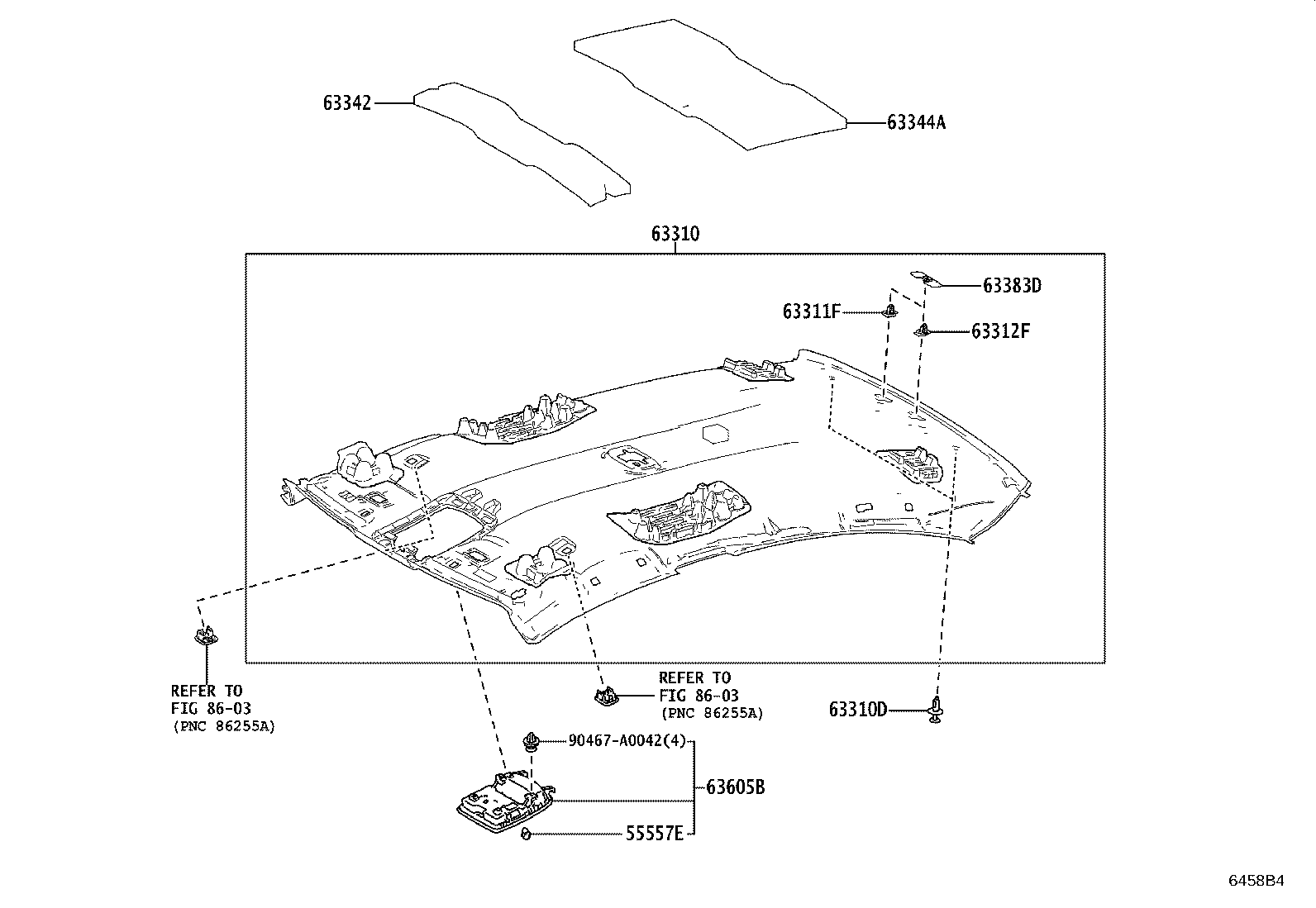

Figure 6458B3 6458B3 2024-04 → — Figure 6458B4 6458B4 2024-04 → — Figure 6458B5 6458B5 2024-04 → — Figure 6458B6 6458B6 2024-04 → —

Part groups

PNCDescription
55557E Cushion, Roof Console Box
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63311F Clip, Roof Headlining, NO.1
63312F Clip, Roof Headlining, NO.2
63318C Moulding, Sun Roof Opening Trim
63342 Pad, Roof Silencer, NO.2
63344A Silencer, Roof, NO.4
63383D Retainer, Roof Headlining, Rear
63605B Box Sub-assy, Roof Console
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
