Toyota Camry
2024-04 → present · chassis AXVH8# · catalogue 2834B0 · United States
Supported model
Data version 2024-03

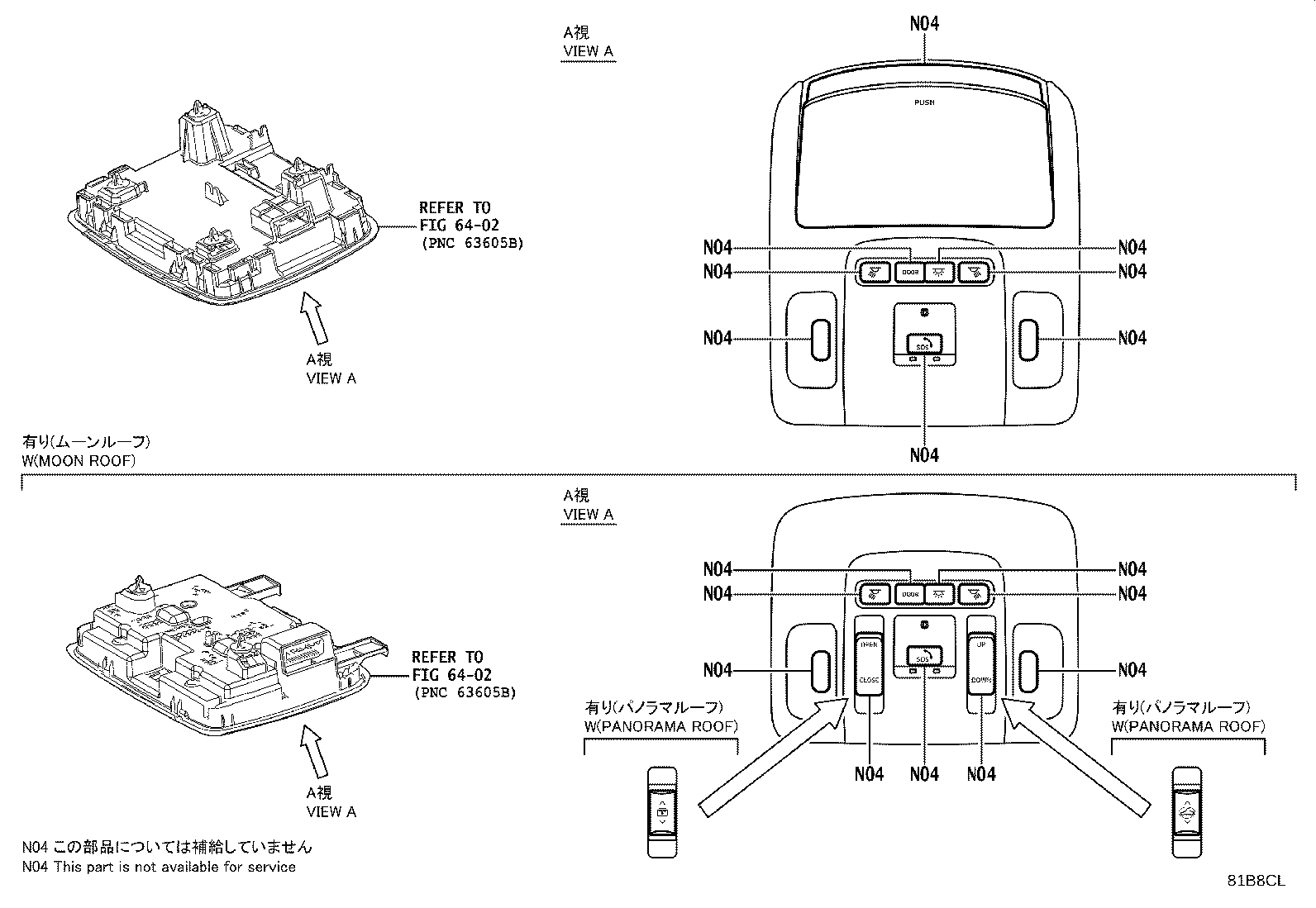

Interior Lamp
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080L | Lamp Assy, Interior Illumination, NO.1 LH |
| 81080M | Lamp Assy, Interior Illumination, NO.1 |
| 81080N | Lamp Assy, Interior Illumination, NO.1 |
| 81080P | Lamp Assy, Interior Illumination, NO.1 RH |
| 81230 | Lamp Assy, Courtesy |
| 81240J | Lamp Assy, Room |
| 81260 | Lamp Assy, Glove Box |
| 81310B | Bulb, Rear Room Lamp |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81360T | Lamp Assy, Spot |
| 81910G | Lens, Reflex Reflector, Front RH |
| 81920B | Lens, Reflex Reflector, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
