Toyota Lexus ES250
1989-06 → 1991-07 · chassis VZV21 · catalogue 284440 · United States
Discontinued model
Data version 1992-04

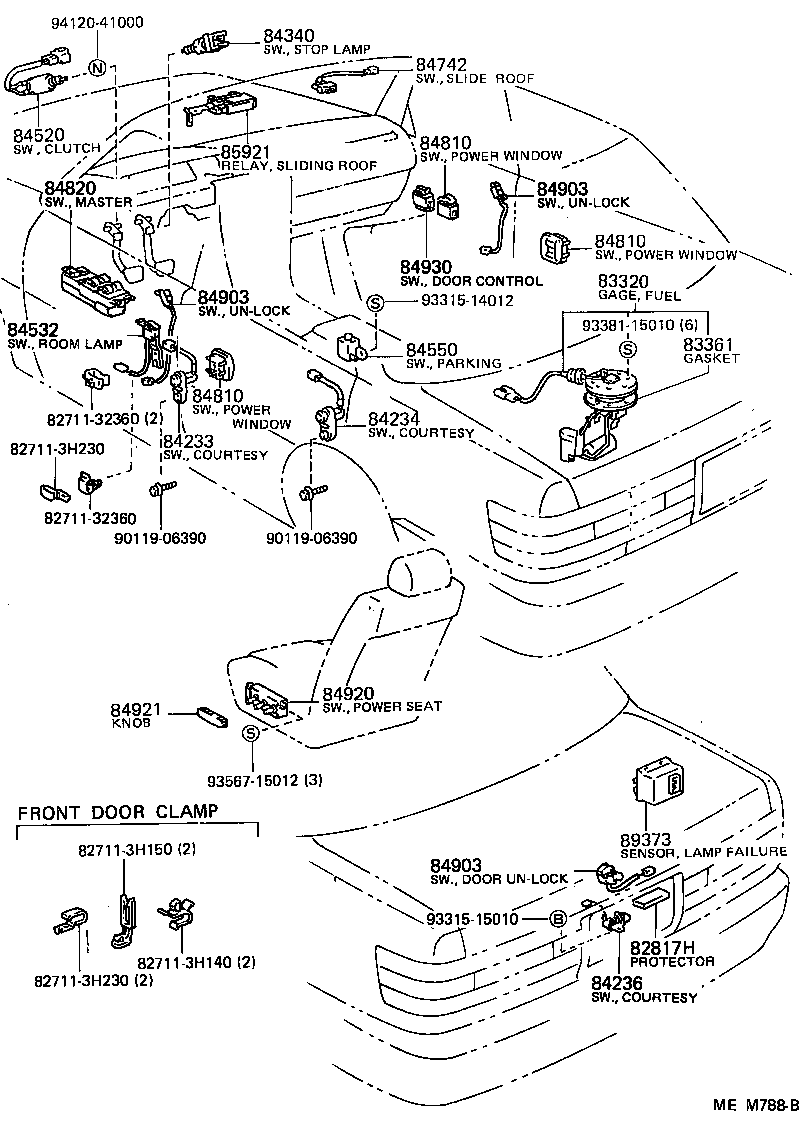

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82817H — Protector, Wiring Harness | ||||
| 82817-32540 |
Protector, Wiring Harness
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-39785 |
Gage Assy, Fuel Sender
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 83361 — Gasket, Fuel Sender Gage | ||||
| 83361-32020 |
Gasket, Fuel Sender Gage
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-32020 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1989-06 → 1990-07
ended
|
VZV21 | — | |
| 84231-32070 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1990-07 → 1991-07
ended
|
VZV21 | — | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84231-12070 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1990-07 → 1991-07
ended
|
VZV21 | — | |
| 84231-24010 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1989-06 → 1990-07
ended
|
VZV21 | — | |
| 84236 — Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84231-32030 |
Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-22100 |
Switch Assy, Stop Lamp
1989-06 → 1990-09
ended
|
VZV21 | — | |
| 84340-30050 |
Switch Assy, Stop Lamp
1990-09 → 1991-07
ended
|
VZV21 | — | |
| 84520 — Switch Assy, Clutch Start | ||||
| 84520-32020 |
Switch Assy, Clutch Start
1989-06 → 1990-03
ended
|
VZV21 5F | — | |
| 84520-32021 |
Switch Assy, Clutch Start
1990-03 → 1991-07
ended
|
VZV21 5F | — | |
| 84532 — Switch, Room Lamp Retainer | ||||
| 84532-32060 |
Switch, Room Lamp Retainer
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84550 — Switch Assy, Parking Brake | ||||
| 84550-12060 |
Switch Assy, Parking Brake
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84742 — Switch, Slide Roof Limit | ||||
| 84742-32010 |
Switch, Slide Roof Limit
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-32060-08 note |
Switch Assy, Power Window Regulator
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84810-32060-B0 note |
Switch Assy, Power Window Regulator
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84810-32060-D0 note |
Switch Assy, Power Window Regulator
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84810-32060-J0 note |
Switch Assy, Power Window Regulator
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84810-50010 note |
Switch Assy, Power Window Regulator
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84820-50010 |
Master Switch Assy, Power Window Regulator
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84903 — Switch Sub-assy, Door Un-lock | ||||
| 84903-32010 note |
Switch Sub-assy, Door Un-lock
1989-06 → 1990-12
ended
|
VZV21 | — | |
| 84903-32011 note |
Switch Sub-assy, Door Un-lock
1990-12 → 1991-07
ended
|
VZV21 | — | |
| 84903-32020 note |
Switch Sub-assy, Door Un-lock
1989-06 → 1990-12
ended
|
VZV21 | — | |
| 84903-32021 note |
Switch Sub-assy, Door Un-lock
1990-12 → 1991-07
ended
|
VZV21 | — | |
| 84903-32030 note |
Switch Sub-assy, Door Un-lock
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84920 — Switch Assy, Power Seat | ||||
| 84922-14020 |
Switch Assy, Power Seat
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84921 — Knob, Power Seat Switch | ||||
| 84921-32010-08 note |
Knob, Power Seat Switch
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84921-32010-B0 note |
Knob, Power Seat Switch
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84921-32010-D0 note |
Knob, Power Seat Switch
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84921-32010-J0 note |
Knob, Power Seat Switch
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 84930 — Switch Assy, Door Control | ||||
| 84930-50010 |
Switch Assy, Door Control
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 85921 — Relay, Sliding Roof Control | ||||
| 85921-32020 |
Relay, Sliding Roof Control
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 89373 — Sensor, Lamp Failure Indicator | ||||
| 89373-14050 |
Sensor, Lamp Failure Indicator
1989-06 → 1991-07
ended
|
VZV21 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
