Toyota Lexus ES250
1989-06 → 1991-07 · chassis VZV21 · catalogue 284440 · United States
Discontinued model
Data version 1992-04

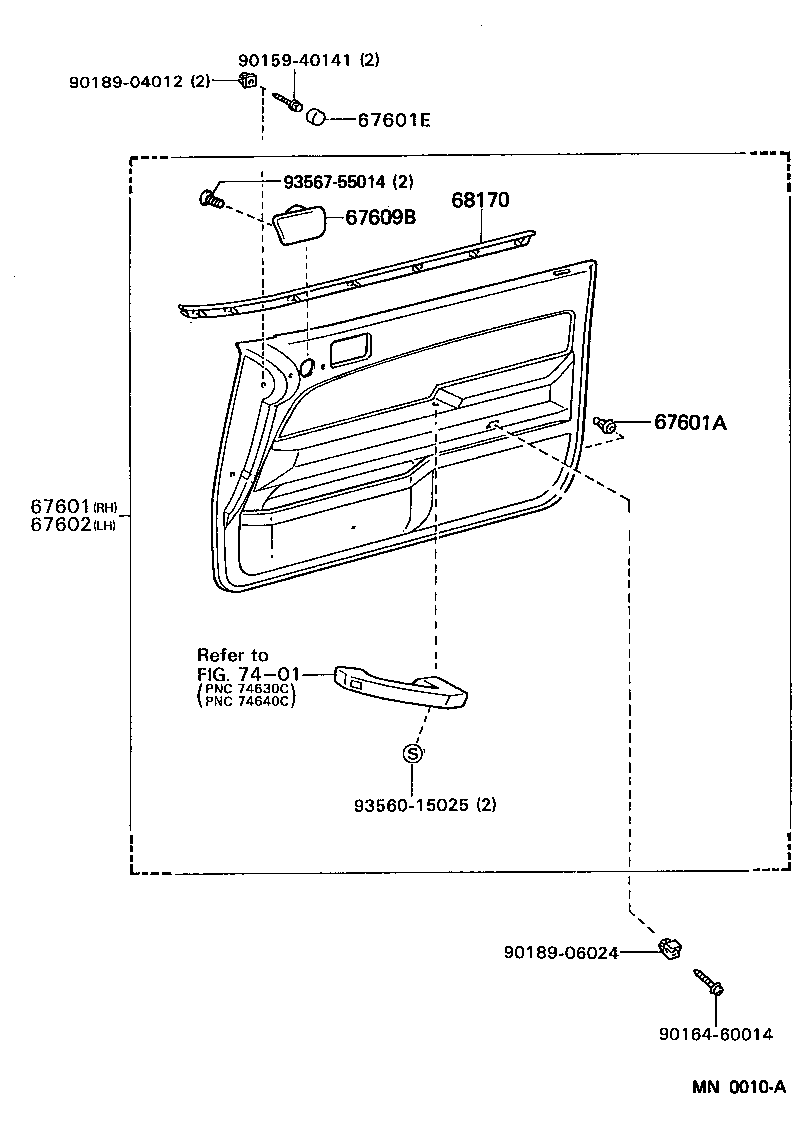

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67601 — Board Sub-assy, Front Door Trim, RH | ||||
| 67650-32510-05 note |
Board Sub-assy, Front Door Trim, RH
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67650-32580-01 note |
Board Sub-assy, Front Door Trim, RH
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67650-32580-02 note |
Board Sub-assy, Front Door Trim, RH
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67650-32580-04 note |
Board Sub-assy, Front Door Trim, RH
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67650-32600-01 note |
Board Sub-assy, Front Door Trim, RH
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67650-32600-02 note |
Board Sub-assy, Front Door Trim, RH
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67650-32600-04 note |
Board Sub-assy, Front Door Trim, RH
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67601A — Retainer(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14040 |
Retainer(FOR FRONT DOOR TRIM BOARD)
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67601E — Cap(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-10002-01 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 90339-10002-08 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 90339-10002-B2 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 90339-10002-D1 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 90339-10002-E2 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 90339-10002-J1 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67602 — Board Sub-assy, Front Door Trim, LH | ||||
| 67620-3H280-05 note |
Board Sub-assy, Front Door Trim, LH
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67620-3H340-01 note |
Board Sub-assy, Front Door Trim, LH
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67620-3H340-02 note |
Board Sub-assy, Front Door Trim, LH
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67620-3H340-04 note |
Board Sub-assy, Front Door Trim, LH
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67620-3H360-01 note |
Board Sub-assy, Front Door Trim, LH
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67620-3H360-02 note |
Board Sub-assy, Front Door Trim, LH
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67620-3H360-04 note |
Board Sub-assy, Front Door Trim, LH
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67609B — Grille Sub-assy, Front Door Speaker | ||||
| 67609-32010-01 note |
Grille Sub-assy, Front Door Speaker
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67609-32010-02 note |
Grille Sub-assy, Front Door Speaker
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67609-32010-04 note |
Grille Sub-assy, Front Door Speaker
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67609-32010-05 note |
Grille Sub-assy, Front Door Speaker
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67709-32010-01 note |
Grille Sub-assy, Front Door Speaker
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67709-32010-02 note |
Grille Sub-assy, Front Door Speaker
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67709-32010-04 note |
Grille Sub-assy, Front Door Speaker
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 67709-32010-05 note |
Grille Sub-assy, Front Door Speaker
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 68170 — Weatherstrip Assy, Front Door Glass, Inner | ||||
| 68170-32060 note |
Weatherstrip Assy, Front Door Glass, Inner
1989-06 → 1991-07
ended
|
VZV21 | — | |
| 68220-32070 note |
Weatherstrip Assy, Front Door Glass, Inner
1989-06 → 1991-07
ended
|
VZV21 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
