Toyota Lexus ES250

1989-06 → 1991-07 · chassis VZV21 · catalogue 284440 · United States

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

15 part groups · 2 illustrations

Illustrations

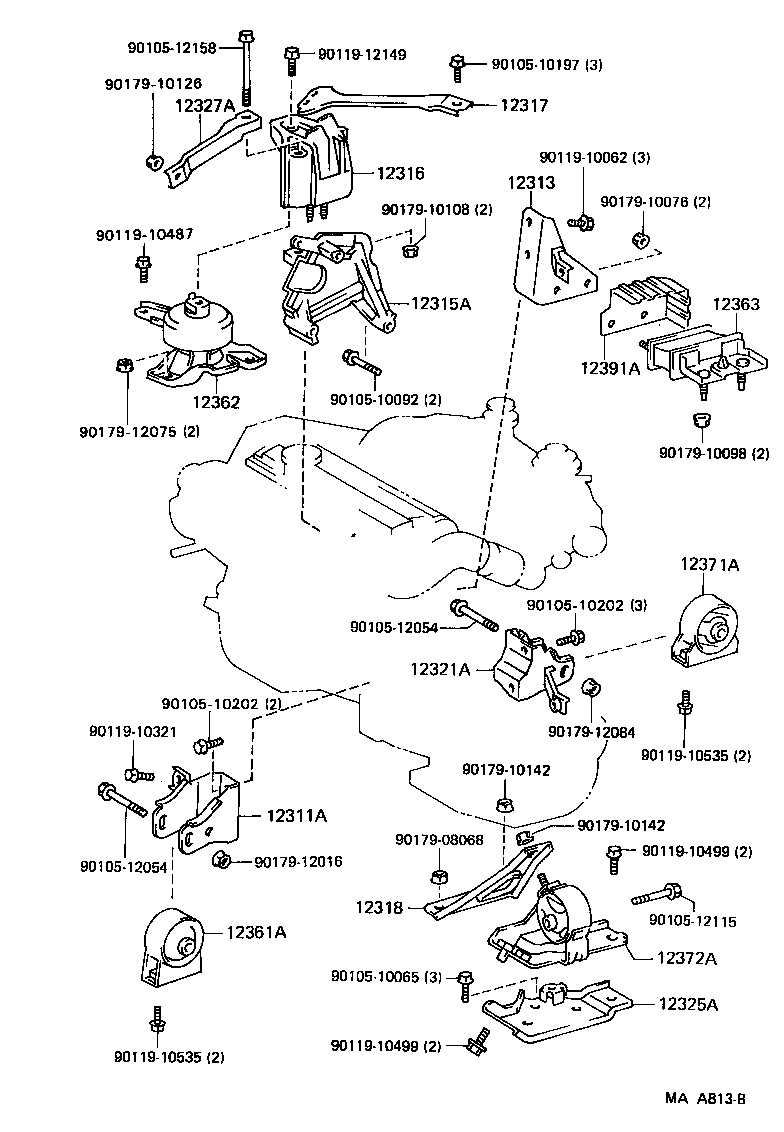

Figure MAA798B MAA798B 1989-06 → — Figure MAA813B MAA813B 1989-06 → —

Part groups

PNCDescription
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12313 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12316 Bracket, Engine Mounting, NO.2 RH
12317 Stay, Engine Mounting, RH
12318 Stay, Engine Mounting, LH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12327A Stay, Engine Mounting, NO.2 RH
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12363 Insulator, Engine Mounting, Center
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12391A Insulator, Engine Mounting, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
