Toyota Lexus ES250

1989-06 → 1991-07 · chassis VZV21 · catalogue 284440 · United States

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

12 part groups · 2 illustrations

Illustrations

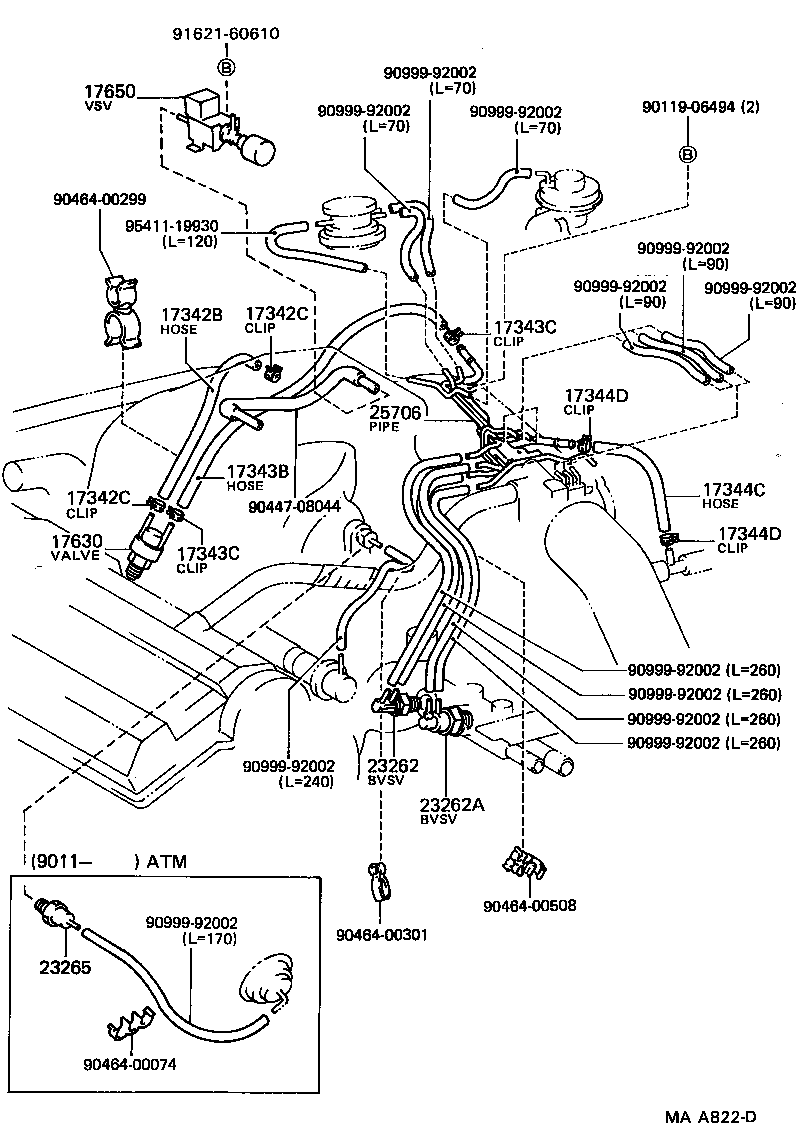

Figure MA9504B MA9504B 1989-06 → — Figure MAA822D MAA822D 1989-06 → —

Part groups

PNCDescription
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23262A Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
