Toyota Lexus ES250
1989-06 → 1991-07 · chassis VZV21 · catalogue 284440 · United States
Discontinued model
Data version 1992-04

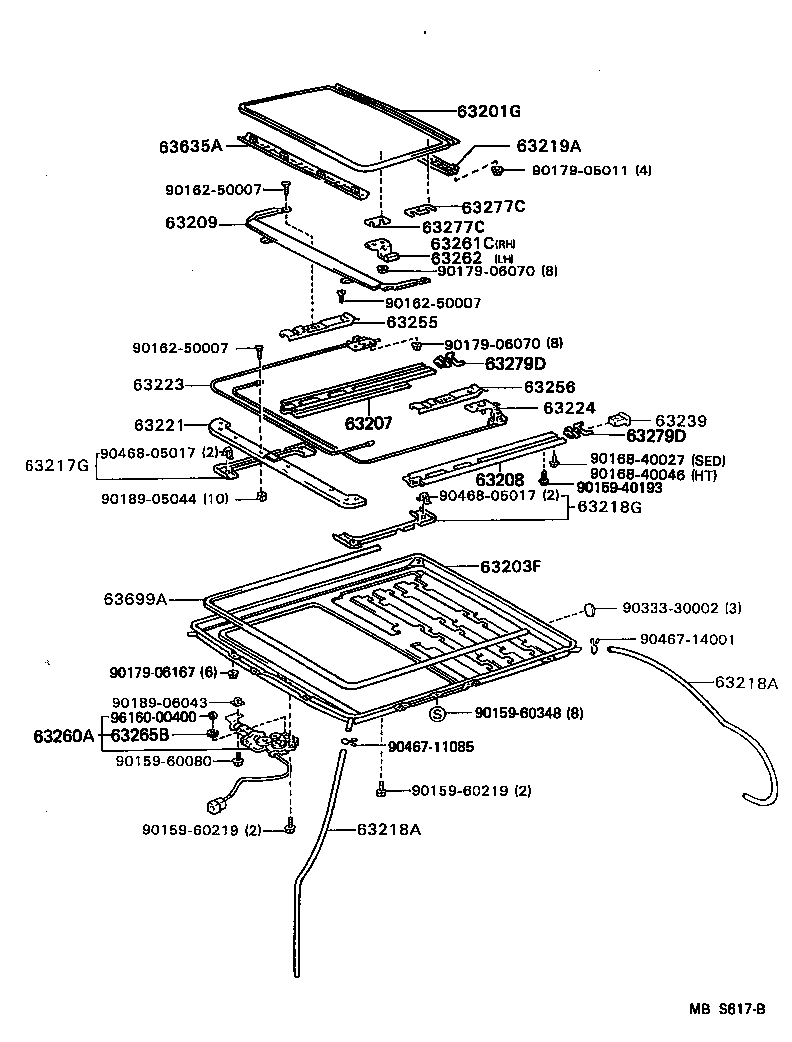

Roof Panel & Back Window Glass
38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04641 | Dam Kit, Back Window Glass |
| 61827B | Plate, Noise Control, NO.4 |
| 62939B | Silencer, Quarter Vent |
| 63102A | Panel Sub-assy, Windshield Header |
| 63111 | Panel, Roof |
| 63133A | Frame, Back Window, Upper |
| 63141H | Reinforcement, Roof Panel, Center |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63161D | Plate, Roof Header Panel, NO.1 |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63219A | Garnish, Sliding Roof, Rear |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63239 | Stopper, Sliding Roof Panel |
| 63255 | Cover, Sliding Roof Guide Rail, RH |
| 63256 | Cover, Sliding Roof Guide Rail, LH |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63261C | Shoe, Sliding Roof, Front RH |
| 63262 | Shoe, Sliding Roof, Front LH |
| 63265B | Gear, Sliding Roof Drive |
| 63277C | Shim, Sliding Roof Panel |
| 63279D | Stopper, Sliding Roof Guide Rail |
| 63344D | Pad, Roof Silencer, NO.4 |
| 63635A | Garnish, Sliding Roof, Front |
| 63699A | Seal, Sliding Roof Guide Rail |
| 64101 | Panel Sub-assy, Upper Back |
| 64166B | Cover, Upper Back Panel Hole, NO.2 |
| 64185A | Damper, Upper Back, NO.1 |
| 64811 | Glass, Back Window |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
