Toyota Lexus ES250

1989-06 → 1991-07 · chassis VZV21 · catalogue 284440 · United States

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 5 illustrations

Illustrations

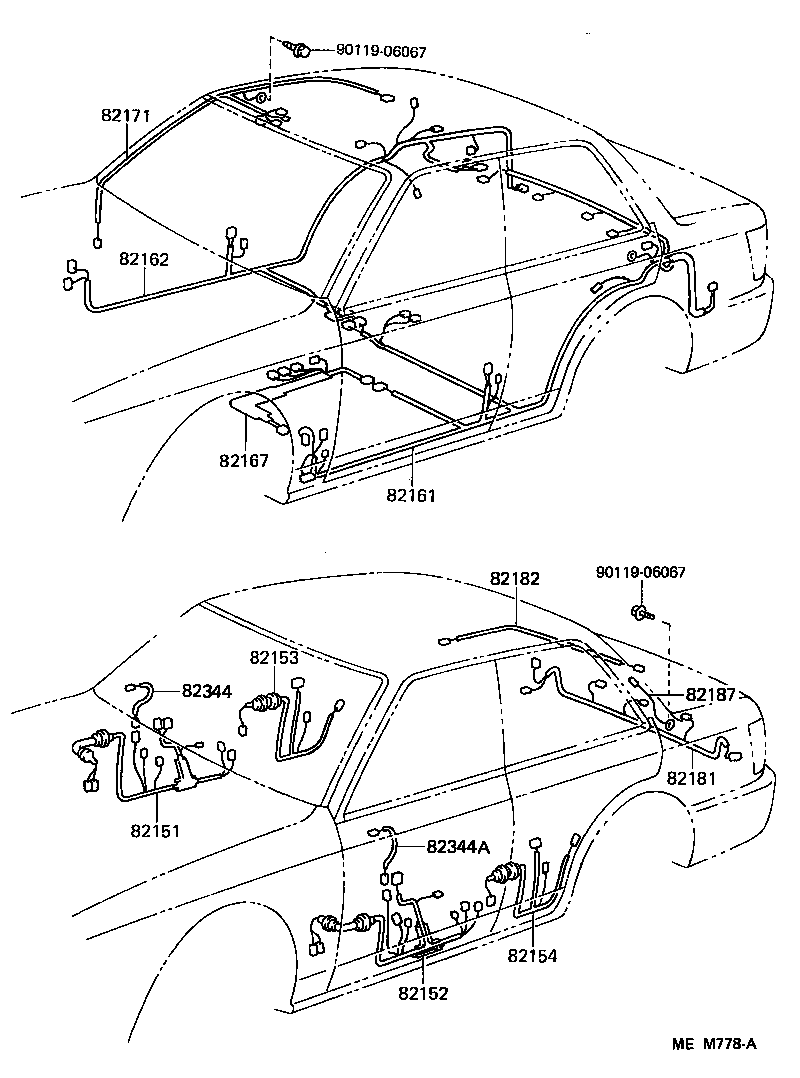

Figure MEM777B MEM777B 1989-06 → — Figure MEM778A MEM778A 1989-06 → — Figure MEM779A MEM779A 1989-06 → — Figure MEN809 MEN809 1989-06 → — Figure MEM780A MEM780A 1989-06 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82219A Wire, Sensor
82344 Wire, Mirror, RH
82344A Wire, Mirror, LH
82345 Diode
82620 Block Assy, Fusible Link
82817 Protector, Wiring Harness, NO.1
82823 Cap, Terminal, NO.1

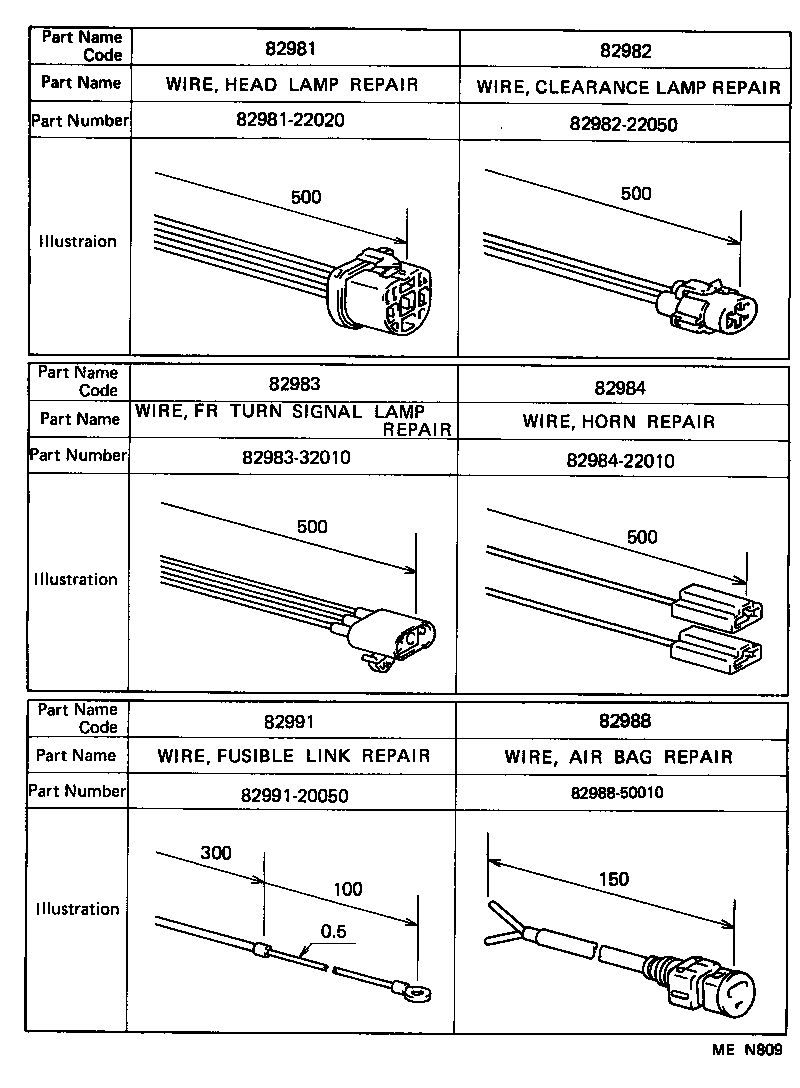

82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82988 Wire, Airbag Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
