Toyota Lexus ES300
1991-07 → 1996-08 · chassis VCV10,MCV10 · catalogue 284450 · United States
Discontinued model
Data version 1997-02

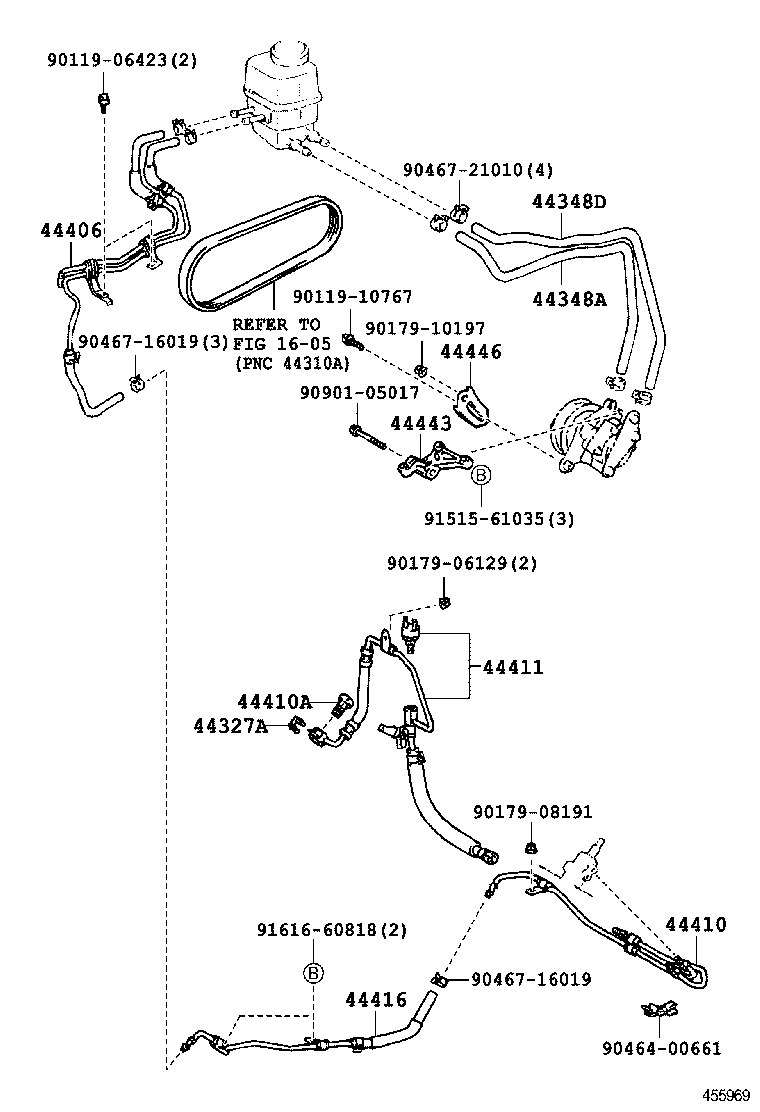

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44327A — Gasket, Pressure Port, NO.1 | ||||
| 44327-12010 |
Gasket, Pressure Port, NO.1
1993-08 → 1996-08
ended
|
MCV10 | — | |
| 44348A — Hose, Oil Reservoir TO Pump, NO.1 | ||||
| 44348-33010 |
Hose, Oil Reservoir TO Pump, NO.1
1991-07 → 1993-08
ended
|
VCV10 | — | |
| 44348-33090 |
Hose, Oil Reservoir TO Pump, NO.1
1993-08 → 1996-08
ended
|
MCV10 | — | |
| 44348D — Hose, Oil Reservoir TO Pump, NO.2 | ||||
| 44348-33020 |
Hose, Oil Reservoir TO Pump, NO.2
1991-07 → 1993-08
ended
|
VCV10 | — | |
| 44348-33100 |
Hose, Oil Reservoir TO Pump, NO.2
1993-08 → 1996-08
ended
|
MCV10 | — | |
| 44406 — Tube Sub-assy, Return | ||||
| 44406-33010 |
Tube Sub-assy, Return
1991-07 → 1992-02
ended
|
VCV10 | — | |
| 44406-33011 |
Tube Sub-assy, Return
1992-02 → 1993-08
ended
|
VCV10 | — | |
| 44406-33012 |
Tube Sub-assy, Return
1993-08 → 1996-08
ended
|
MCV10 | — | |
| 44410 — Tube Assy, Pressure Feed | ||||
| 44410-33020 |
Tube Assy, Pressure Feed
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 44410A — Bolt, Union(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
Bolt, Union(FOR PRESSURE FEED TUBE)
1993-08 → 1995-01
ended
|
MCV10 | — | |
| 96341-41603 |
Bolt, Union(FOR PRESSURE FEED TUBE)
1995-01 → 1996-08
ended
|
MCV10 | — | |
| 44411 — Hose, Pressure Feed | ||||
| 44411-33010 |
Hose, Pressure Feed
1991-07 → 1993-08
ended
|
VCV10 | — | |
| 44411-33040 |
Hose, Pressure Feed
1993-08 → 1996-08
ended
|
MCV10 | — | |
| 44416 — Tube, Return(FOR STEERING GEAR OUTLET) | ||||
| 44416-33010 |
Tube, Return(FOR STEERING GEAR OUTLET)
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 44443 — Bracket, Pump | ||||
| 44443-33010 |
Bracket, Pump
1991-07 → 1993-08
ended
|
VCV10 | — | |
| 44443-33030 |
Bracket, Pump
1993-08 → 1996-08
ended
|
MCV10 | — | |
| 44446 — Strut, Adjusting | ||||
| 44446-32020 |
Strut, Adjusting
1991-07 → 1993-08
ended
|
VCV10 | — | |
| 44446-33010 |
Strut, Adjusting
1993-08 → 1996-08
ended
|
MCV10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
