Toyota Lexus ES300
1991-07 → 1996-08 · chassis VCV10,MCV10 · catalogue 284450 · United States
Discontinued model
Data version 1997-02

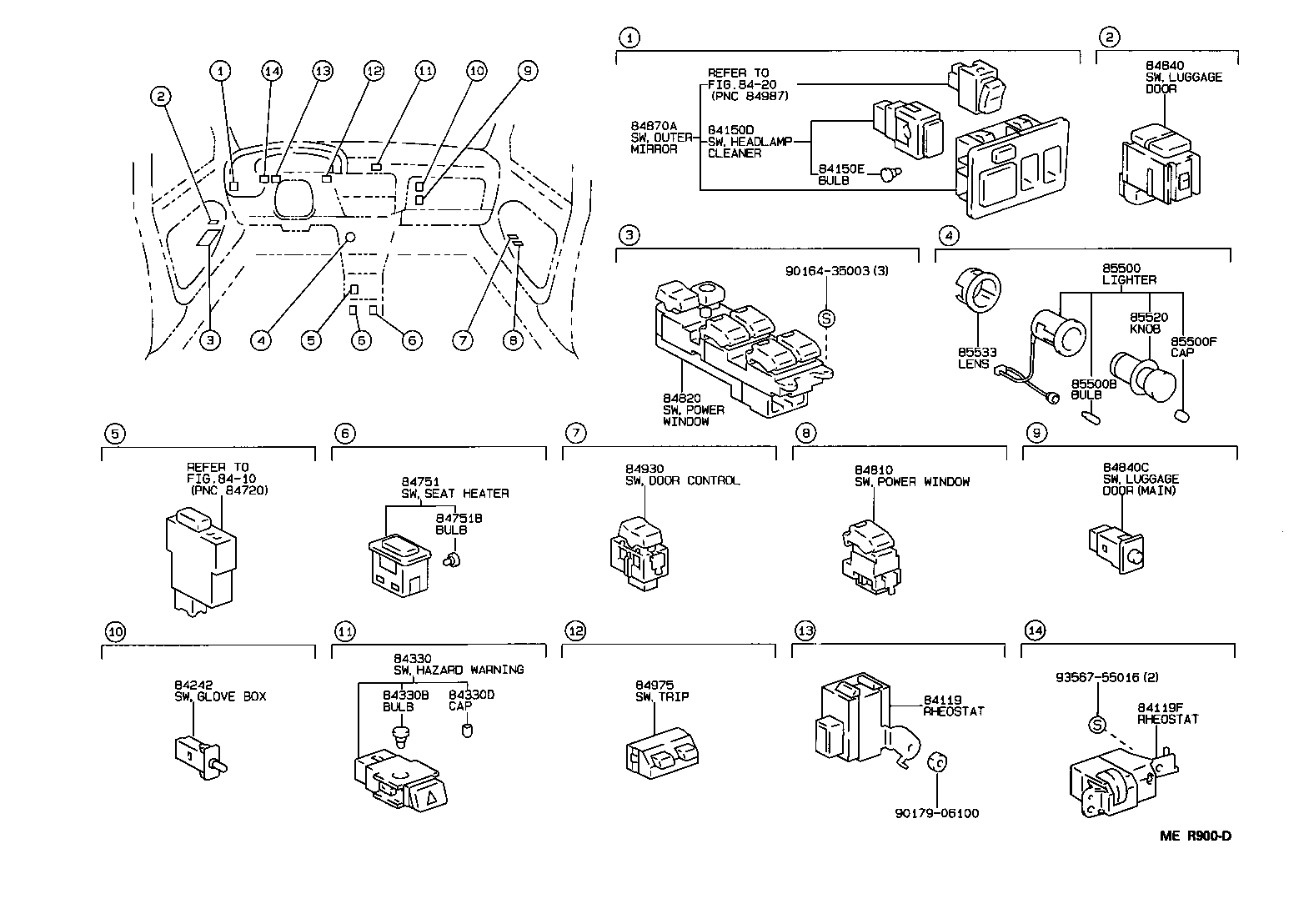

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84119 — Rheostat, Light Control | ||||
| 84119-33010 |
Rheostat, Light Control
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84119F — Rheostat, Light Control (FOR SECURITY) | ||||
| 84119-33020 |
Rheostat, Light Control (FOR SECURITY)
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84150D — Switch Assy, Headlamp Cleaner | ||||
| 84150-33010 |
Switch Assy, Headlamp Cleaner
1991-07 → 1996-08
ended
|
MCV10,VCV10 CND | — | |
| 84150E — Bulb, Headlamp Cleaner Switch | ||||
| 84999-10310 note |
Bulb, Headlamp Cleaner Switch
1991-07 → 1993-08
ended
|
VCV10 CND | — | |
| 84242 — Switch, Glove Box Lamp | ||||
| 84242-20030 |
Switch, Glove Box Lamp
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84330 — Switch Assy, Hazard Warning Signal | ||||
| 84332-33010 |
Switch Assy, Hazard Warning Signal
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84330B — Bulb, Hazard Warning Signal Switch | ||||
| 84999-10320 note |
Bulb, Hazard Warning Signal Switch
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84330D — Cap, Hazard Warning Switch Bulb | ||||
| 84998-10320 |
Cap, Hazard Warning Switch Bulb
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84751 — Switch, Seat Heater | ||||
| 84751-33010-01 note |
Switch, Seat Heater
1991-07 → 1992-01
ended
|
VCV10 | — | |
| 84751-33010-02 note |
Switch, Seat Heater
1991-07 → 1992-01
ended
|
VCV10 | — | |
| 84751-33010-04 note |
Switch, Seat Heater
1991-07 → 1992-01
ended
|
VCV10 | — | |
| 84751-33010-05 note |
Switch, Seat Heater
1991-07 → 1992-01
ended
|
VCV10 | — | |
| 84751-33011-22 note |
Switch, Seat Heater
1992-01 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84751-33011-E0 note |
Switch, Seat Heater
1993-08 → 1996-08
ended
|
MCV10 | — | |
| 84751-33011-E2 note |
Switch, Seat Heater
1992-01 → 1993-08
ended
|
VCV10 | — | |
| 84751-33011-K0 note |
Switch, Seat Heater
1992-01 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84751-33011-W3 note |
Switch, Seat Heater
1992-01 → 1994-08
ended
|
MCV10,VCV10 | — | |
| 84751B — Bulb, Seat Heater Switch | ||||
| 84999-10190 note |
Bulb, Seat Heater Switch
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84999-10220 note |
Bulb, Seat Heater Switch
1992-01 → 1993-08
ended
|
VCV10 | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-33010 |
Switch Assy, Power Window Regulator
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84820-33010 |
Master Switch Assy, Power Window Regulator
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84840 — Switch Assy, Luggage Compartment Door Opening | ||||
| 84840-33010-01 note |
Switch Assy, Luggage Compartment Door Opening
1991-07 → 1994-08
ended
|
MCV10,VCV10 | — | |
| 84840-33010-02 note |
Switch Assy, Luggage Compartment Door Opening
1991-07 → 1994-08
ended
|
MCV10,VCV10 | — | |
| 84840-33010-04 note |
Switch Assy, Luggage Compartment Door Opening
1991-07 → 1994-08
ended
|
MCV10,VCV10 | — | |
| 84840-33010-05 note |
Switch Assy, Luggage Compartment Door Opening
1991-07 → 1993-08
ended
|
VCV10 | — | |
| 84840-33010-22 note |
Switch Assy, Luggage Compartment Door Opening
1994-08 → 1996-08
ended
|
MCV10 | — | |
| 84840-33010-E0 note |
Switch Assy, Luggage Compartment Door Opening
1993-08 → 1996-08
ended
|
MCV10 | — | |
| 84840-33010-K0 note |
Switch Assy, Luggage Compartment Door Opening
1994-08 → 1996-08
ended
|
MCV10 | — | |
| 84840C — Switch Assy, Luggage Door Opening, Cancel | ||||
| 84840-30060 |
Switch Assy, Luggage Door Opening, Cancel
1991-07 → 1993-08
ended
|
VCV10 | — | |
| 84840-33020 |
Switch Assy, Luggage Door Opening, Cancel
1993-08 → 1996-08
ended
|
MCV10 | — | |
| 84870A — Switch Assy, Outer Mirror | ||||
| 84870-33020 |
Switch Assy, Outer Mirror
1991-07 → 1993-08
ended
|
VCV10 | — | |
| 84870-33070 note |
Switch Assy, Outer Mirror
1991-07 → 1993-08
ended
|
VCV10 CND | — | |
| 84870-33110 |
Switch Assy, Outer Mirror
1993-08 → 1996-08
ended
|
MCV10 USA | — | |
| 84870-33120 |
Switch Assy, Outer Mirror
1993-08 → 1996-08
ended
|
MCV10 CND | — | |
| 84930 — Switch Assy, Door Control | ||||
| 84930-33010 |
Switch Assy, Door Control
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84975 — Switch, Trip | ||||
| 84975-33010 |
Switch, Trip
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 85500 — Lighter Assy, Cigarette | ||||
| 85500-33010 |
Lighter Assy, Cigarette
1991-07 → 1994-08
ended
|
MCV10,VCV10 | — | |
| 85500-33011 |
Lighter Assy, Cigarette
1994-08 → 1996-08
ended
|
MCV10 | — | |
| 85500B — Bulb, Cigarette Lighter | ||||
| 90981-11014 note |
Bulb, Cigarette Lighter
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 85500F — Cap, Cigarette Lighter Bulb | ||||
| 84998-10390 |
Cap, Cigarette Lighter Bulb
1994-08 → 1996-08
ended
|
MCV10 | — | |
| 85520 — Knob And Element Assy, Cigarette Lighter | ||||
| 85520-28010 |
Knob And Element Assy, Cigarette Lighter
1994-08 → 1996-08
ended
|
MCV10 | — | |
| 85520-89101 |
Knob And Element Assy, Cigarette Lighter
1991-07 → 1994-08
ended
|
MCV10,VCV10 | — | |
| 85533 — Lens, Cigarette Lighter Indicator | ||||
| 85533-50010 |
Lens, Cigarette Lighter Indicator
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
