Toyota Lexus ES300

1991-07 → 1996-08 · chassis VCV10,MCV10 · catalogue 284450 · United States

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

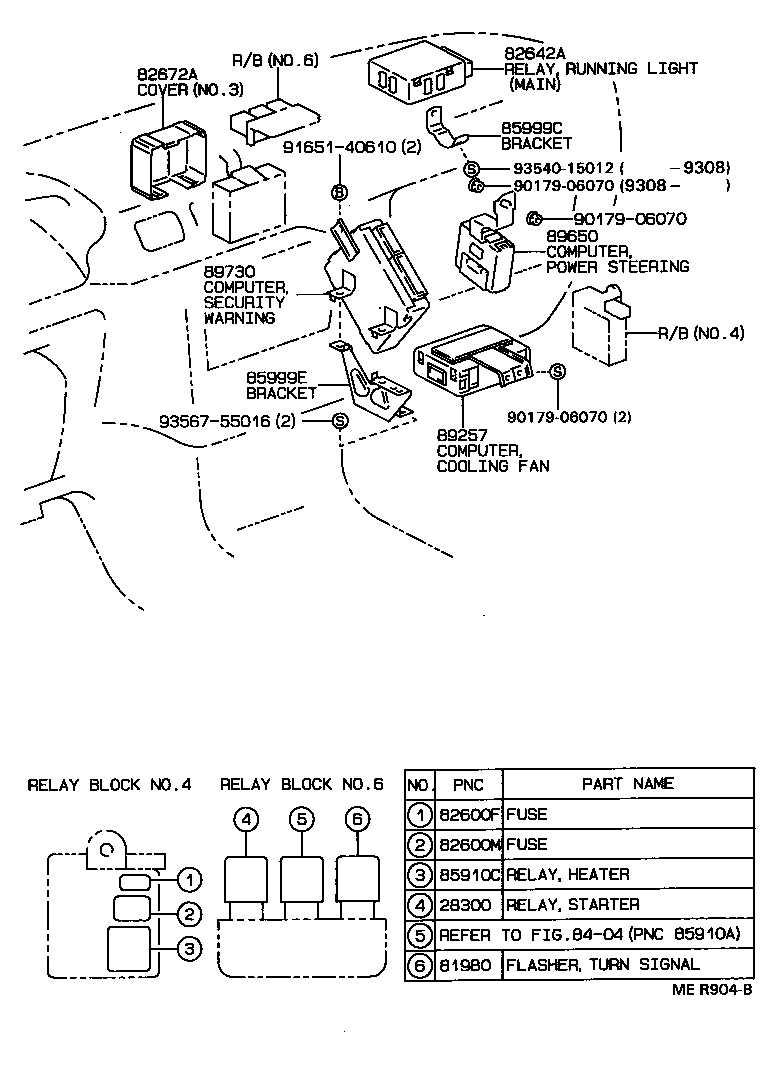

Exploded illustration MER904B 82642A — RELAY, RUNNING LIGHT (3 parts) 82672A — COVER, JUNCTION BLOCK (10 parts) 85999C — BRACKET, RELAY, NO.3 (2 parts) 9165140610 — not listed in this catalogue 9354015012 — not listed in this catalogue 9017906070 — not listed in this catalogue 9017906070 — not listed in this catalogue 89650 — COMPUTER ASSY, POWER STEERING (2 parts) 89730 — COMPUTER ASSY, SECURITY WARNING (2 parts) 85999E — BRACKET, RELAY, NO.5 (1 parts) 9017906070 — not listed in this catalogue 9356755016 — not listed in this catalogue 89257 — COMPUTER, COOLING FAN (2 parts) 82600F — FUSE, FUSE BLOCK (41 parts) 82600M — FUSE, MEDIUM CURRENT (7 parts) 85910C — RELAY ASSY (FOR HEATER BLOWER MOTOR) (1 parts) 28300 — RELAY ASSY, STARTER (2 parts) 8404 — not listed in this catalogue 81980 — FLASHER ASSY, TURN SIGNAL (2 parts)
MER904B · 12 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
75 parts on this figure
Part number Description Fitment Price
28300 — Relay Assy, Starter
28300-10020 Relay Assy, Starter
1993-08 → 1996-08 ended
1MZFE MCV10 —
28300-16010 Relay Assy, Starter
1991-07 → 1993-08 ended
3VZFE VCV10 —
81980 — Flasher Assy, Turn Signal
81980-12070 Flasher Assy, Turn Signal
1993-08 → 1996-08 ended
MCV10 —
81980-50010 Flasher Assy, Turn Signal
1991-07 → 1993-08 ended
VCV10 —
82600F — Fuse, Fuse Block
90080-82012 note Fuse, Fuse Block
1994-07 → 1996-08 ended
MCV10 —
90080-82013 note Fuse, Fuse Block
1994-07 → 1996-08 ended
MCV10 —
90080-82014 note Fuse, Fuse Block
1994-08 → 1996-08 ended
MCV10 —
90080-82014 note Fuse, Fuse Block
1994-07 → 1994-08 ended
MCV10 —
90080-82015 note Fuse, Fuse Block
1994-07 → 1996-08 ended
MCV10 —
90080-82019 note Fuse, Fuse Block
1994-07 → 1994-08 ended
MCV10 —
90982-07011 note Fuse, Fuse Block
1991-07 → 1993-08 ended
VCV10 —
90982-09001 note Fuse, Fuse Block
1994-08 → 1996-08 ended
MCV10 CND —
90982-09002 note Fuse, Fuse Block
1991-07 → 1994-08 ended
MCV10,VCV10 —
90982-09002 note Fuse, Fuse Block
1994-08 → 1996-08 ended
MCV10 —
90982-09002 note Fuse, Fuse Block
1991-07 → 1993-08 ended
VCV10 —
90982-09002 note Fuse, Fuse Block
1991-07 → 1994-07 ended
MCV10 —
90982-09003 note Fuse, Fuse Block
1991-07 → 1994-08 ended
MCV10 —
90982-09003 note Fuse, Fuse Block
1991-07 → 1994-08 ended
MCV10 USA —
90982-09003 note Fuse, Fuse Block
1991-07 → 1996-08 ended
VCV10 CND —
90982-09003 note Fuse, Fuse Block
1991-07 → 1996-08 ended
MCV10 CND —
90982-09003 note Fuse, Fuse Block
1994-08 → 1996-08 ended
MCV10 —
90982-09003 note Fuse, Fuse Block
1991-07 → 1993-08 ended
VCV10 —
90982-09003 note Fuse, Fuse Block
1991-07 → 1996-08 ended
VCV10 USA —
90982-09003 note Fuse, Fuse Block
1992-03 → 1994-07 ended
MCV10,VCV10 —
90982-09004 note Fuse, Fuse Block
1991-07 → 1996-08 ended
VCV10 CND —
90982-09004 note Fuse, Fuse Block
1991-07 → 1996-08 ended
VCV10 —
90982-09004 note Fuse, Fuse Block
1991-07 → 1996-08 ended
MCV10 —
90982-09004 note Fuse, Fuse Block
1991-07 → 1994-08 ended
MCV10;VCV10 USA —
90982-09004 note Fuse, Fuse Block
1991-07 → 1994-08 ended
MCV10,VCV10 —
90982-09005 note Fuse, Fuse Block
1991-07 → 1993-08 ended
VCV10 —
90982-09005 note Fuse, Fuse Block
1993-08 → 1994-07 ended
MCV10 USA —
90982-09005 note Fuse, Fuse Block
1993-08 → 1994-07 ended
MCV10 CND —
90982-09006 note Fuse, Fuse Block
1992-03 → 1994-07 ended
MCV10 CND —
90982-09006 note Fuse, Fuse Block
1992-03 → 1994-07 ended
VCV10;MCV10 USA —
90982-09008 note Fuse, Fuse Block
1993-08 → 1994-08 ended
MCV10 —
90982-09008 note Fuse, Fuse Block
1994-08 → 1996-08 ended
MCV10 —
90982-09009 note Fuse, Fuse Block
1994-08 → 1996-08 ended
MCV10 —
90982-09009 note Fuse, Fuse Block
1993-08 → 1994-08 ended
MCV10 —
90982-09010 note Fuse, Fuse Block
1994-08 → 1996-08 ended
MCV10 —
90982-09010 note Fuse, Fuse Block
1993-08 → 1994-08 ended
MCV10 —
90982-09011 note Fuse, Fuse Block
1994-08 → 1996-08 ended
MCV10 —
90982-09011 note Fuse, Fuse Block
1993-08 → 1994-08 ended
MCV10 —
90982-09013 note Fuse, Fuse Block
1994-08 → 1996-08 ended
MCV10 —
90982-09013 note Fuse, Fuse Block
1993-08 → 1994-08 ended
MCV10 —
90982-10002 note Fuse, Fuse Block
1991-07 → 1994-08 ended
MCV10,VCV10 —
82600M — Fuse, Medium Current
90982-10001 note Fuse, Medium Current
1994-08 → 1996-08 ended
MCV10 —
90982-10001 note Fuse, Medium Current
1994-08 → 1996-08 ended
MCV10 —
90982-10001 note Fuse, Medium Current
1991-07 → 1994-08 ended
VCV10 —
90982-10001 note Fuse, Medium Current
1991-07 → 1994-08 ended
MCV10,VCV10 —
90982-10002 note Fuse, Medium Current
1991-07 → 1994-08 ended
MCV10,VCV10 —
90982-10002 note Fuse, Medium Current
1993-08 → 1996-08 ended
MCV10 —
90982-10002 note Fuse, Medium Current
1994-08 → 1996-08 ended
MCV10 —
82642A — Relay, Running Light
82642-33010 note Relay, Running Light
1991-07 → 1996-08 ended
MCV10,VCV10 CND —
90987-02006 note Relay, Running Light
1991-07 → 1996-08 ended
MCV10,VCV10 CND —
90987-04002 note Relay, Running Light
1991-07 → 1996-08 ended
MCV10,VCV10 CND —
82672A — Cover, Junction Block
82672-33010 note Cover, Junction Block
1991-07 → 1993-08 ended
VCV10 USA —
82672-33020 note Cover, Junction Block
1991-07 → 1993-08 ended
VCV10 CND —
82672-33040 note Cover, Junction Block
1991-07 → 1996-08 ended
MCV10,VCV10 —
82672-33050 note Cover, Junction Block
1991-07 → 1996-08 ended
MCV10,VCV10 —
82672-33080 note Cover, Junction Block
1993-08 → 1994-08 ended
MCV10 USA —
82672-33081 note Cover, Junction Block
1994-08 → 1996-08 ended
MCV10 USA —
82672-33090 note Cover, Junction Block
1993-08 → 1994-08 ended
MCV10 CND —
82672-33091 note Cover, Junction Block
1994-08 → 1996-08 ended
MCV10 CND —
82674-33010 note Cover, Junction Block
1991-07 → 1993-08 ended
VCV10 —
82674-33020 note Cover, Junction Block
1993-08 → 1996-08 ended
MCV10 —
85910C — Relay Assy (FOR HEATER BLOWER MOTOR)
90987-04002 Relay Assy (FOR HEATER BLOWER MOTOR)
1991-07 → 1996-08 ended
MCV10,VCV10 —
85999C — Bracket, Relay, NO.3
85999-33080 Bracket, Relay, NO.3
1991-07 → 1993-08 ended
VCV10 CND —
85999-33120 Bracket, Relay, NO.3
1993-08 → 1996-08 ended
MCV10 CND —
85999E — Bracket, Relay, NO.5
85999-33010 Bracket, Relay, NO.5
1991-07 → 1993-08 ended
VCV10 —
89257 — Computer, Cooling Fan
89257-33020 Computer, Cooling Fan
1991-07 → 1993-08 ended
VCV10 —
89257-33030 Computer, Cooling Fan
1993-08 → 1996-08 ended
MCV10 —
89650 — Computer Assy, Power Steering
89650-33010 Computer Assy, Power Steering
1991-07 → 1993-08 ended
VCV10 —
89650-33011 Computer Assy, Power Steering
1993-08 → 1996-08 ended
MCV10 —
89730 — Computer Assy, Security Warning
89730-33010 Computer Assy, Security Warning
1991-07 → 1993-08 ended
VCV10 —
89730-33050 Computer Assy, Security Warning
1993-08 → 1996-08 ended
MCV10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
