Toyota Lexus ES300
1991-07 → 1996-08 · chassis VCV10,MCV10 · catalogue 284450 · United States
Discontinued model
Data version 1997-02

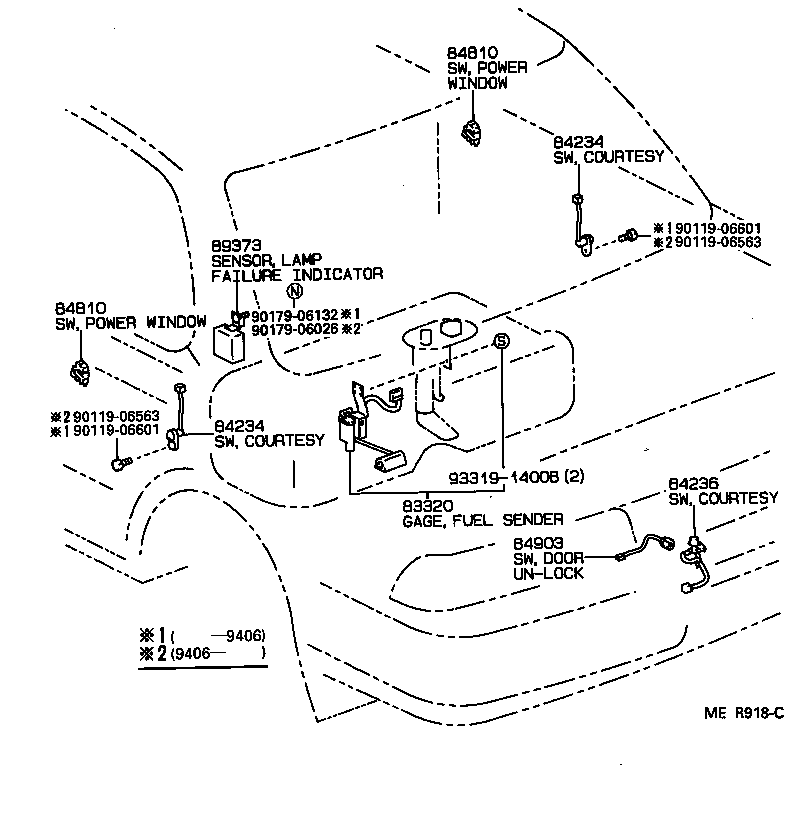

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-80204 |
Gage Assy, Fuel Sender
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84231-32050 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84236 — Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84231-32060 |
Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-33010 |
Switch Assy, Power Window Regulator
1991-07 → 1996-08
ended
|
MCV10,VCV10 | — | |
| 84903 — Switch Sub-assy, Door Un-lock | ||||
| 84903-33010 note |
Switch Sub-assy, Door Un-lock
1991-07 → 1996-08
ended
|
MCV10 | — | |
| 84903-33010 note |
Switch Sub-assy, Door Un-lock
1991-07 → 1996-08
ended
|
VCV10 | — | |
| 84903-33020 note |
Switch Sub-assy, Door Un-lock
1991-07 → 1996-08
ended
|
MCV10 | — | |
| 84903-33020 note |
Switch Sub-assy, Door Un-lock
1991-07 → 1996-08
ended
|
VCV10 | — | |
| 84903-33030 note |
Switch Sub-assy, Door Un-lock
1991-07 → 1996-08
ended
|
MCV10 | — | |
| 84903-33030 note |
Switch Sub-assy, Door Un-lock
1991-07 → 1996-08
ended
|
VCV10 | — | |
| 89373 — Sensor, Lamp Failure Indicator | ||||
| 89370-33010 |
Sensor, Lamp Failure Indicator
1991-07 → 1994-08
ended
|
MCV10,VCV10 | — | |
| 89370-33050 |
Sensor, Lamp Failure Indicator
1994-08 → 1996-08
ended
|
MCV10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
