Toyota Lexus ES300

1991-07 → 1996-08 · chassis VCV10,MCV10 · catalogue 284450 · United States

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration NE1915 8310120080 — not listed in this catalogue 83100B — BULB, COMBINATION METER, NO.1 (14 parts) 8311924570 — not listed in this catalogue 83100B — BULB, COMBINATION METER, NO.1 (14 parts) 8310124010 — not listed in this catalogue 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (13 parts) 8310930070 — not listed in this catalogue 83100B — BULB, COMBINATION METER, NO.1 (14 parts) 8310114040 — not listed in this catalogue 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (13 parts) 8311932010 — not listed in this catalogue 83100B — BULB, COMBINATION METER, NO.1 (14 parts) 8310132020 — not listed in this catalogue 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (13 parts) 9098111018 — not listed in this catalogue 83100B — BULB, COMBINATION METER, NO.1 (14 parts) 8310114040 — not listed in this catalogue 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (13 parts)

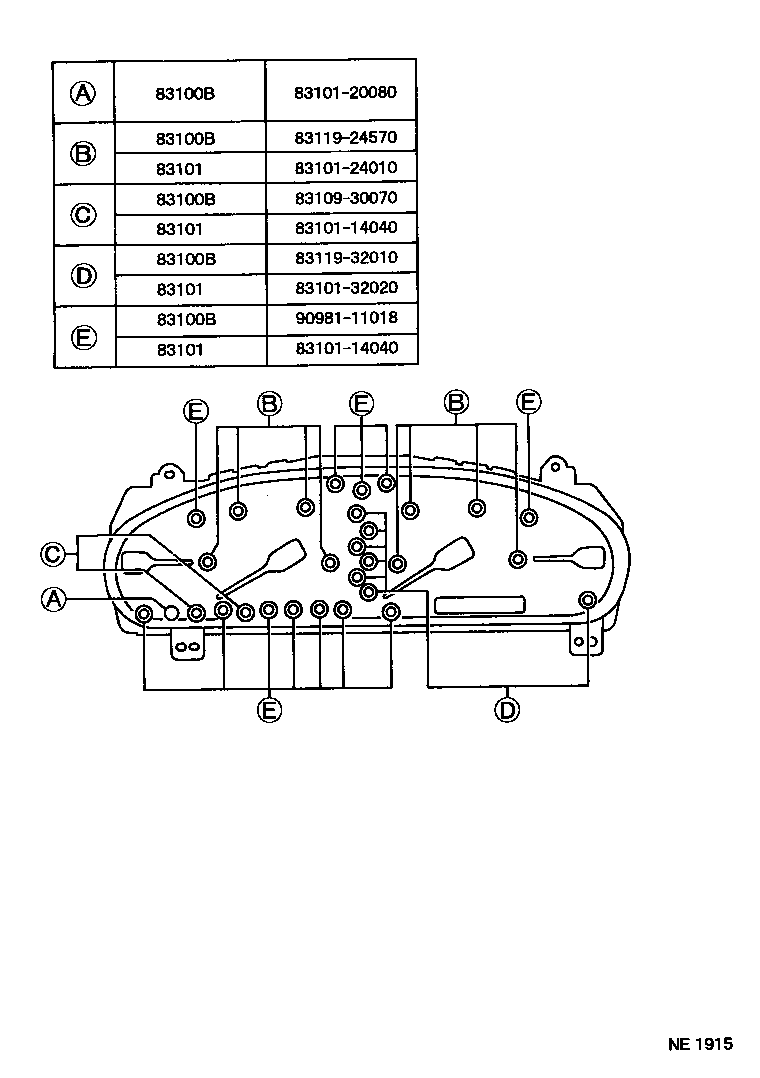

NE1915 · 9 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
27 parts on this figure
Part number Description Fitment Price
83100B — Bulb, Combination Meter, NO.1
83101-20080 note Bulb, Combination Meter, NO.1
1991-07 → 1996-08 ended
MCV10,VCV10 —
83109-30070 note Bulb, Combination Meter, NO.1
1991-07 → 1993-05 ended
VCV10 —
83109-30070 note Bulb, Combination Meter, NO.1
1993-05 → 1996-08 ended
MCV10,VCV10 —
83119-24570 note Bulb, Combination Meter, NO.1
1991-07 → 1996-08 ended
MCV10,VCV10 —
83119-32010 note Bulb, Combination Meter, NO.1
1991-07 → 1993-08 ended
VCV10 MTM —
83119-32010 note Bulb, Combination Meter, NO.1
1991-07 → 1993-08 ended
VCV10 ATM —
83119-32010 note Bulb, Combination Meter, NO.1
1993-08 → 1996-08 ended
MCV10 —
83119-50050 note Bulb, Combination Meter, NO.1
1991-07 → 1994-08 ended
MCV10,VCV10 ATM —
90981-11018 note Bulb, Combination Meter, NO.1
1991-07 → 1993-05 ended
VCV10 MTM —
90981-11018 note Bulb, Combination Meter, NO.1
1993-08 → 1996-08 ended
MCV10 CND —
90981-11018 note Bulb, Combination Meter, NO.1
1993-08 → 1996-08 ended
MCV10 USA —
90981-11018 note Bulb, Combination Meter, NO.1
1993-05 → 1993-08 ended
VCV10 ATM —
90981-11018 note Bulb, Combination Meter, NO.1
1993-05 → 1993-08 ended
VCV10 MTM —
90981-11018 note Bulb, Combination Meter, NO.1
1991-07 → 1993-05 ended
VCV10 ATM —
83101 — Socket Sub-assy, Combination Meter Bulb
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1991-07 → 1993-05 ended
VCV10 MTM —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1991-07 → 1993-05 ended
VCV10 ATM —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1993-05 → 1993-08 ended
VCV10 MTM —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1993-05 → 1993-08 ended
VCV10 ATM —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1993-08 → 1996-08 ended
MCV10 USA —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1993-08 → 1996-08 ended
MCV10 CND —
83101-24010 note Socket Sub-assy, Combination Meter Bulb
1991-07 → 1996-08 ended
MCV10,VCV10 —
83101-30050 note Socket Sub-assy, Combination Meter Bulb
1991-07 → 1993-05 ended
VCV10 —
83101-30050 note Socket Sub-assy, Combination Meter Bulb
1993-05 → 1993-08 ended
VCV10 —
83101-32020 note Socket Sub-assy, Combination Meter Bulb
1991-07 → 1993-08 ended
VCV10 MTM —
83101-32020 note Socket Sub-assy, Combination Meter Bulb
1991-07 → 1994-08 ended
MCV10 USA —
83101-32020 note Socket Sub-assy, Combination Meter Bulb
1991-07 → 1994-08 ended
MCV10 CND;VCV10 ATM —
83101-32020 note Socket Sub-assy, Combination Meter Bulb
1994-08 → 1996-08 ended
MCV10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
