Toyota Lexus ES300

1991-07 → 1996-08 · chassis VCV10,MCV10 · catalogue 284450 · United States

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

13 part groups · 2 illustrations

Illustrations

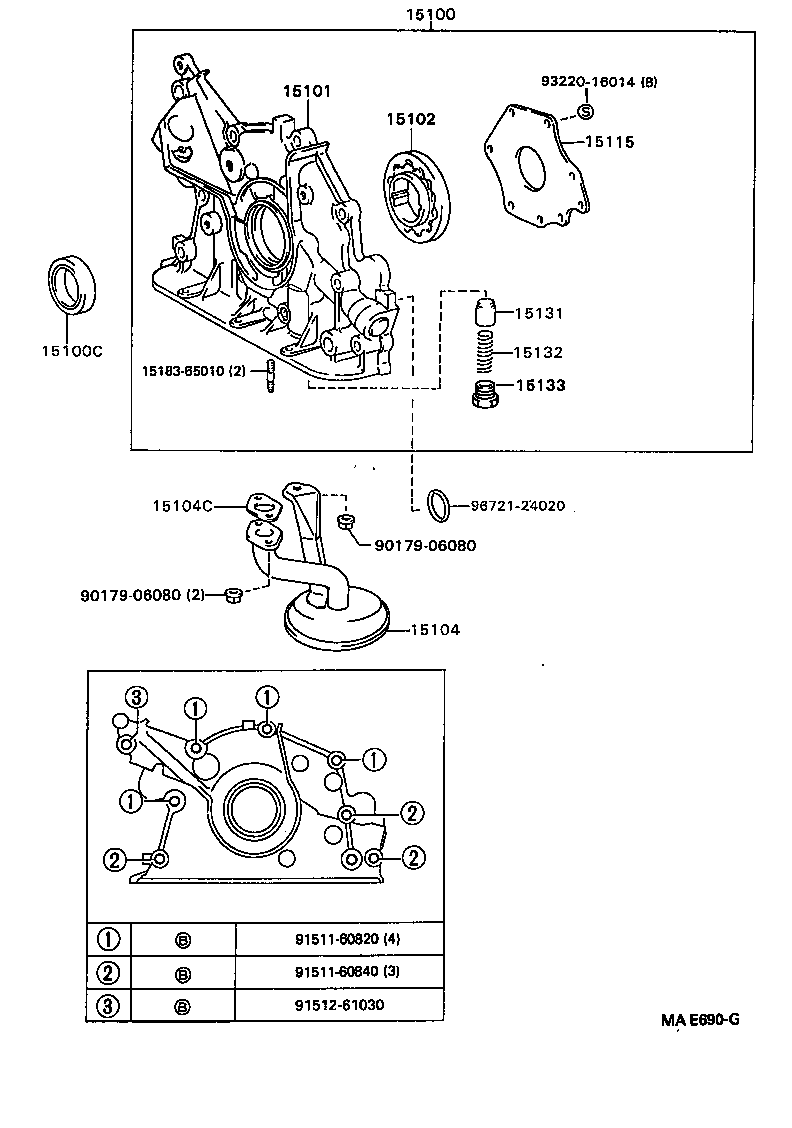

Figure MAG652C MAG652C 1993-08 → — Figure MAE690G MAE690G 1991-07 → 1993-08

Part groups

PNCDescription
11324A Plate, Timing Belt
15100 Pump Assy, Oil
15100C Seal(FOR OIL PUMP)
15100R Sensor, Crank Position
15101 Body Sub-assy, Oil Pump
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104C Gasket(FOR OIL STRAINER)
15115 Cover, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
