Toyota Lexus ES300

1991-07 → 1996-08 · chassis VCV10,MCV10 · catalogue 284450 · United States

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

26 part groups · 6 illustrations

Illustrations

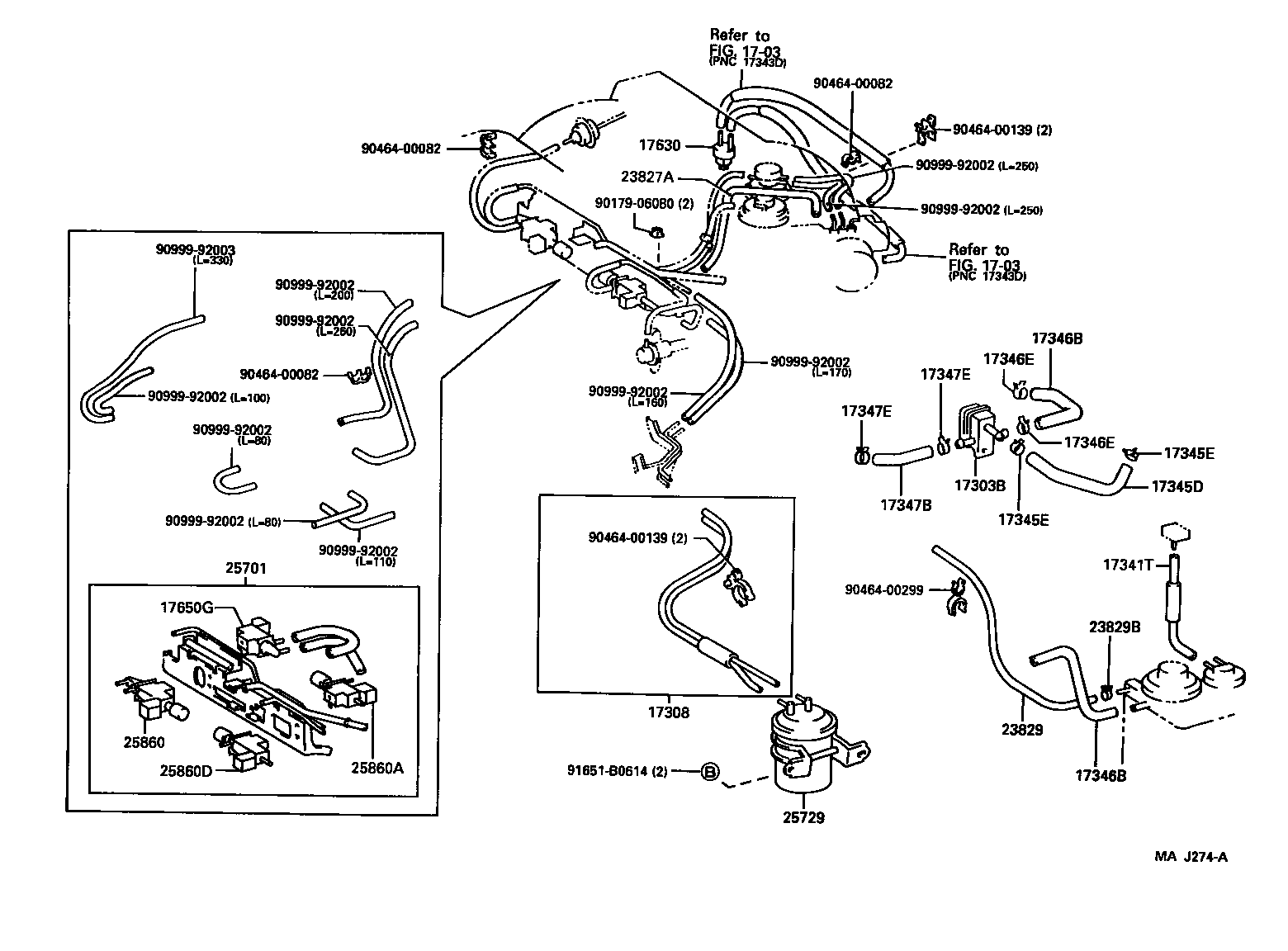

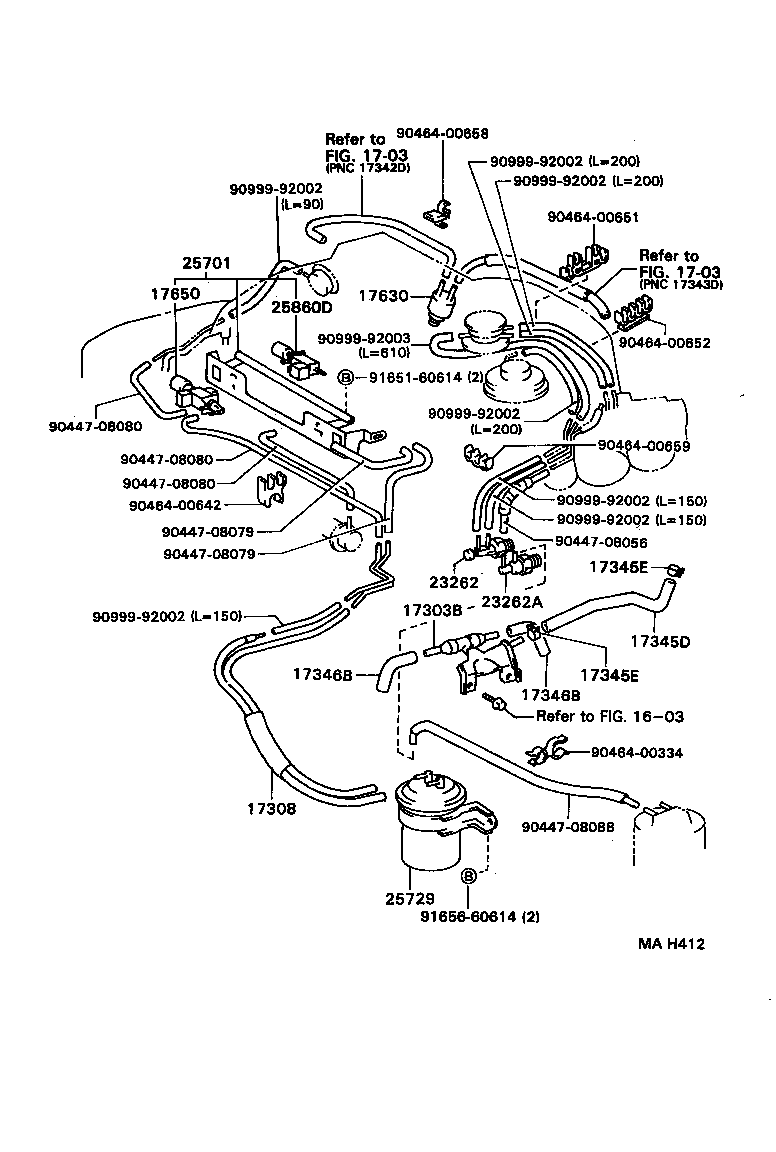

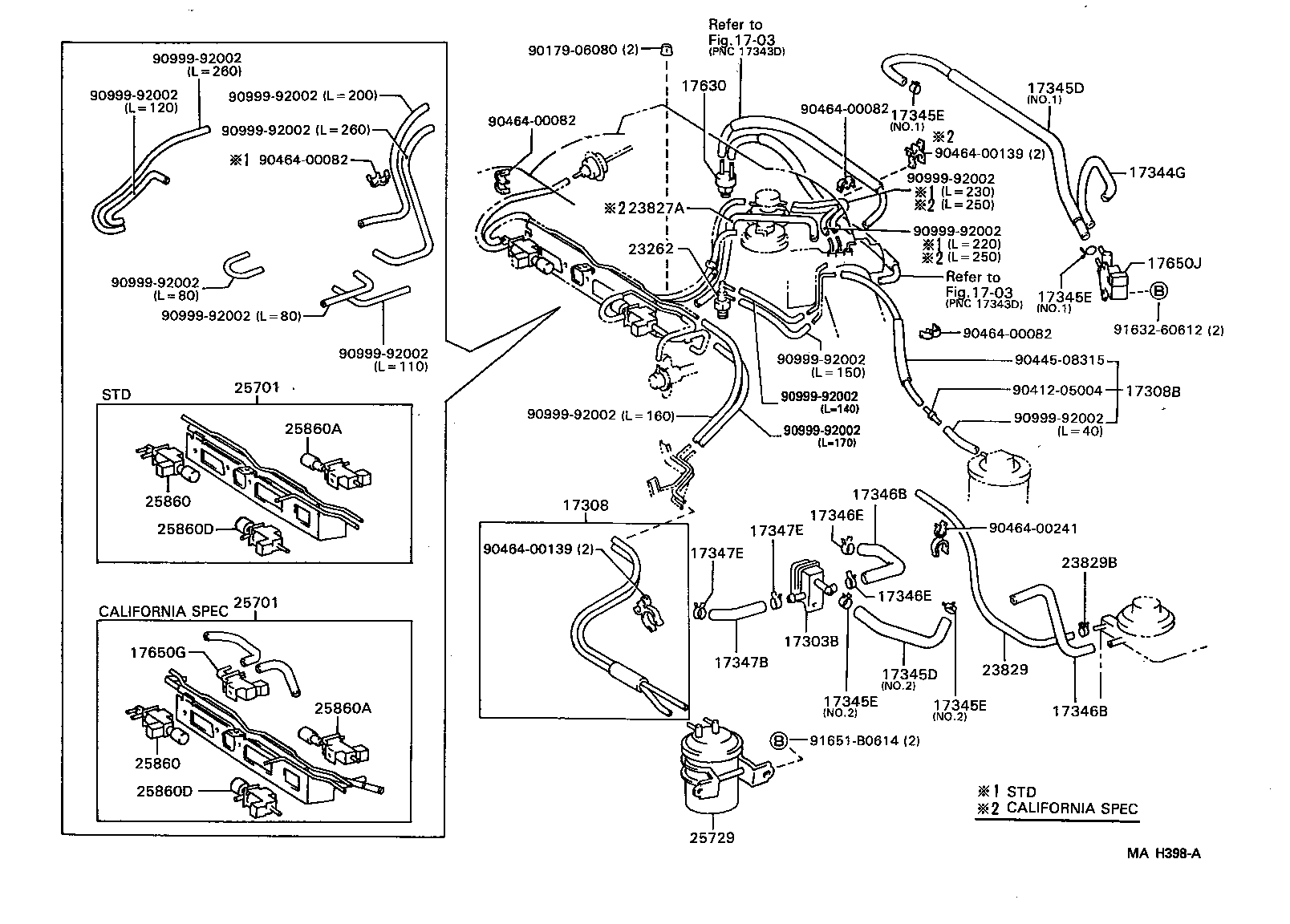

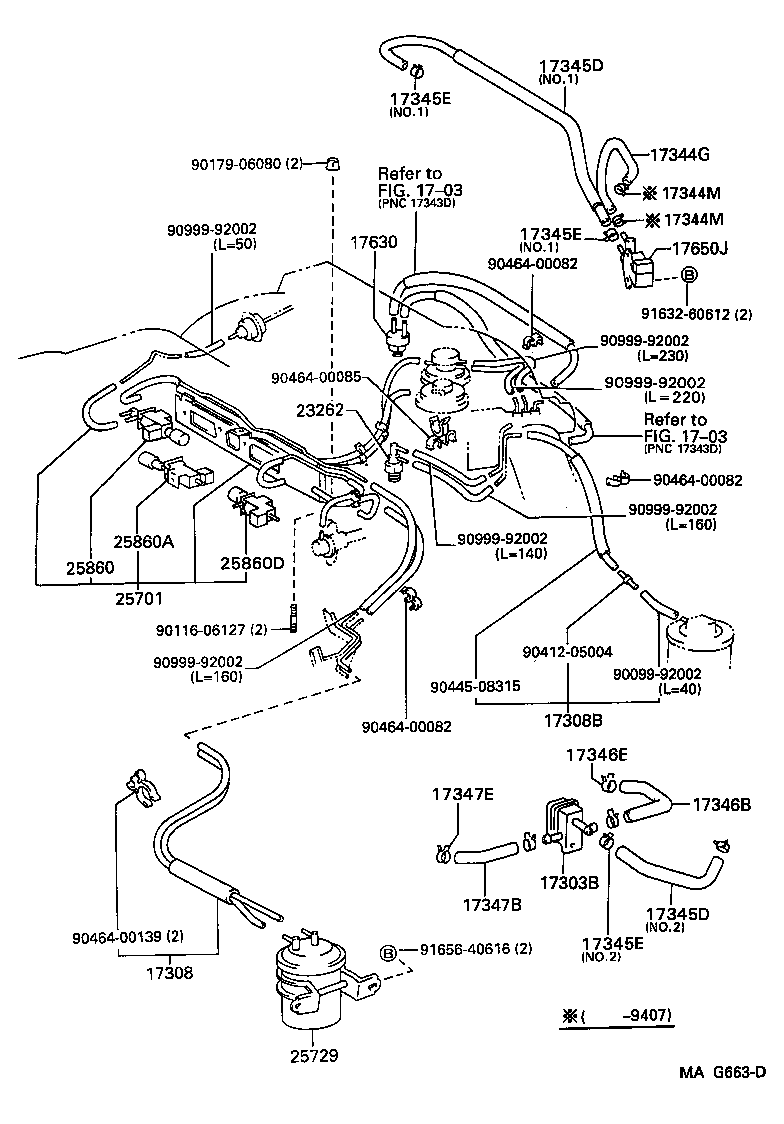

Figure MA9504B MA9504B 1991-07 → — Figure MAG663D MAG663D 1993-08 → 1994-08 Figure MAH398A MAH398A 1994-08 → 1995-08 Figure MAJ274A MAJ274A 1995-08 → — Figure MA9504B MA9504B 1991-07 → — Figure MAH412 MAH412 1991-07 → 1993-08

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17308B Hose Sub-assy, Vacuum
17341T Hose, Air, NO.1
17344G Hose, Air, NO.4
17344M Clip(FOR AIR HOSE, NO.4)
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17346B Hose, Air, NO.6
17346E Clip(FOR AIR HOSE NO.6)
17347B Hose, Air, NO.7
17347E Clip(FOR AIR HOSE NO.7)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650G Valve, Duty Vacuum Switching
17650J Valve, Solenoid W/Adjust Screw
23262 Valve, Bimetal Vacuum Switching, NO.1
23262A Valve, Bimetal Vacuum Switching, NO.2
23827A Hose, Fuel Vapor Feed, NO.2
23829 Hose, Fuel Vapor Feed, NO.3
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25701 Valve Set, Emission Control
25729 Tank, Vacuum Surge W/Bracket
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
