Toyota Lexus ES300
1991-07 → 1996-08 · chassis VCV10,MCV10 · catalogue 284450 · United States
Discontinued model
Data version 1997-02

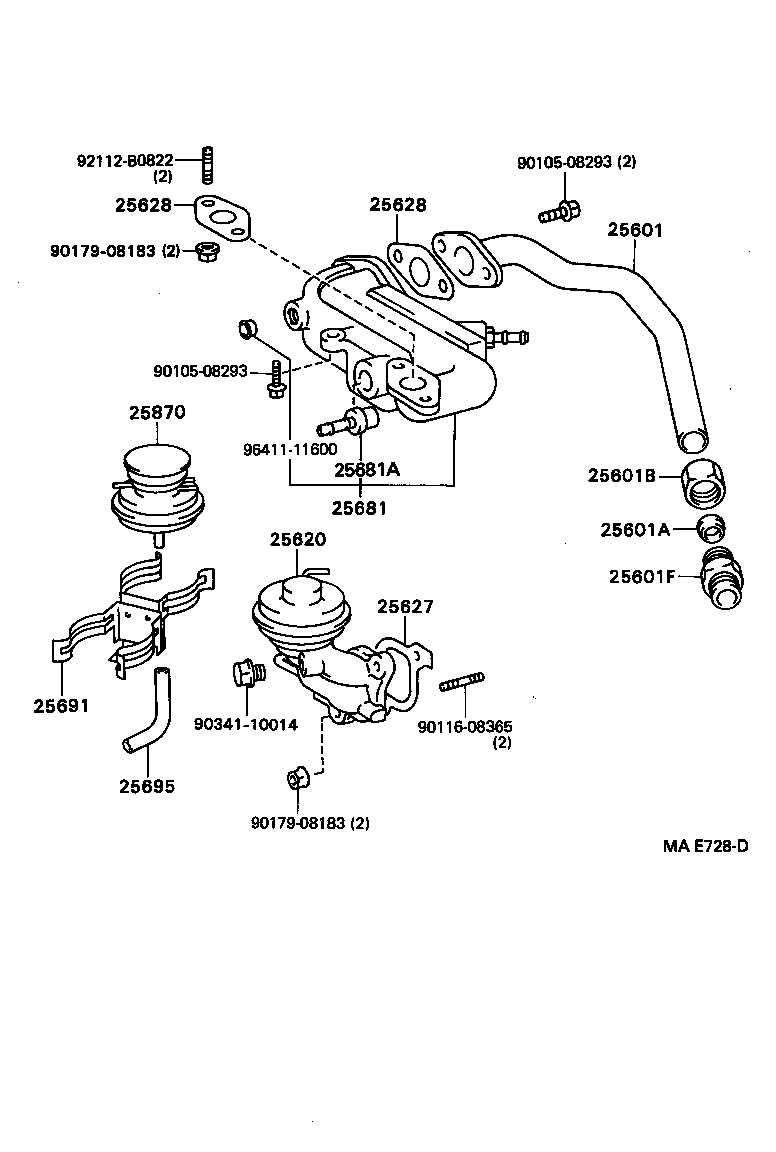

Exhaust Gas Recirculation System
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601A | Sleeve, Ball, Egr Pipe, NO.1 |
| 25601B | Nut, Union, Egr Pipe, NO.1 |
| 25601F | Union(FOR EGR PIPE, NO.1) |
| 25602 | Pipe Sub-assy, Egr, NO.2 |
| 25620 | Valve Assy, Egr |
| 25627 | Gasket, Egr Valve |
| 25627C | Gasket(FOR EGR PIPE NO.2) |
| 25628 | Gasket, Egr Inlet |
| 25681 | Cooler, Egr, NO.1 |
| 25681A | Union( FOR EGR COOLER) |
| 25685 | Gasket, Egr Cooler, NO.1 |
| 25691 | Bracket, Egr Vacuum Modulator |
| 25695 | Hose, Egr Vacuum Modulator |
| 25870 | Valve Assy, Egr Vacuum Modulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
