Toyota Lexus ES300
1991-07 → 1996-08 · chassis VCV10,MCV10 · catalogue 284450 · United States
Discontinued model
Data version 1997-02

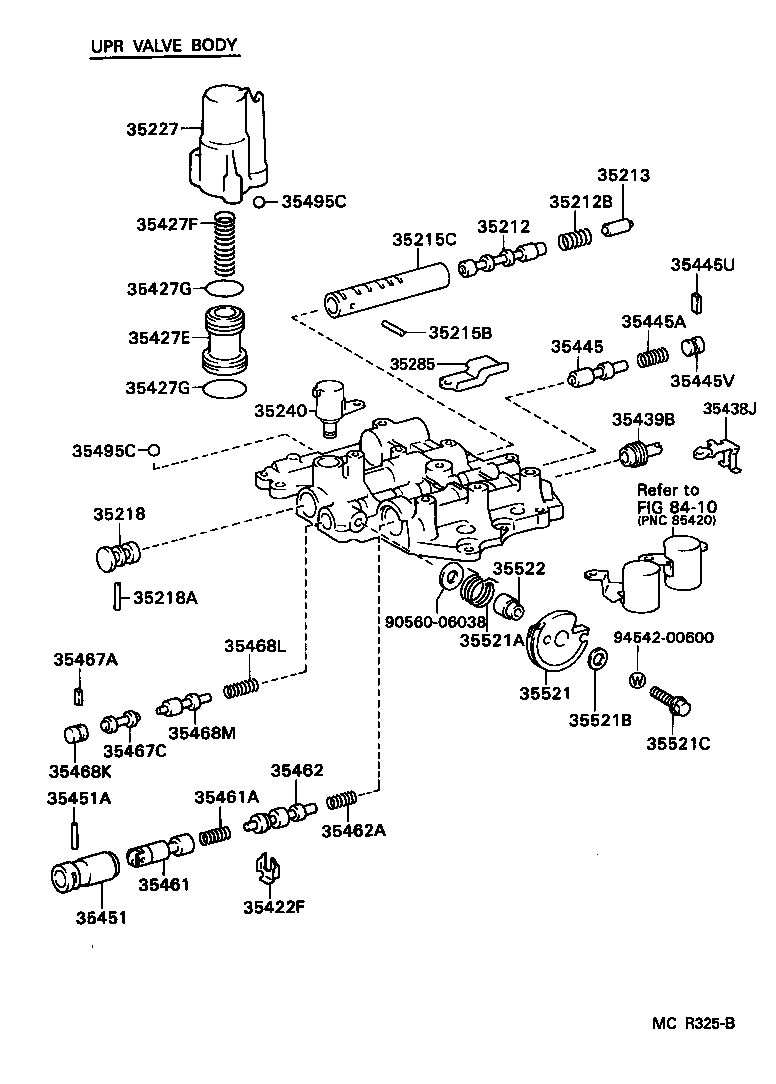

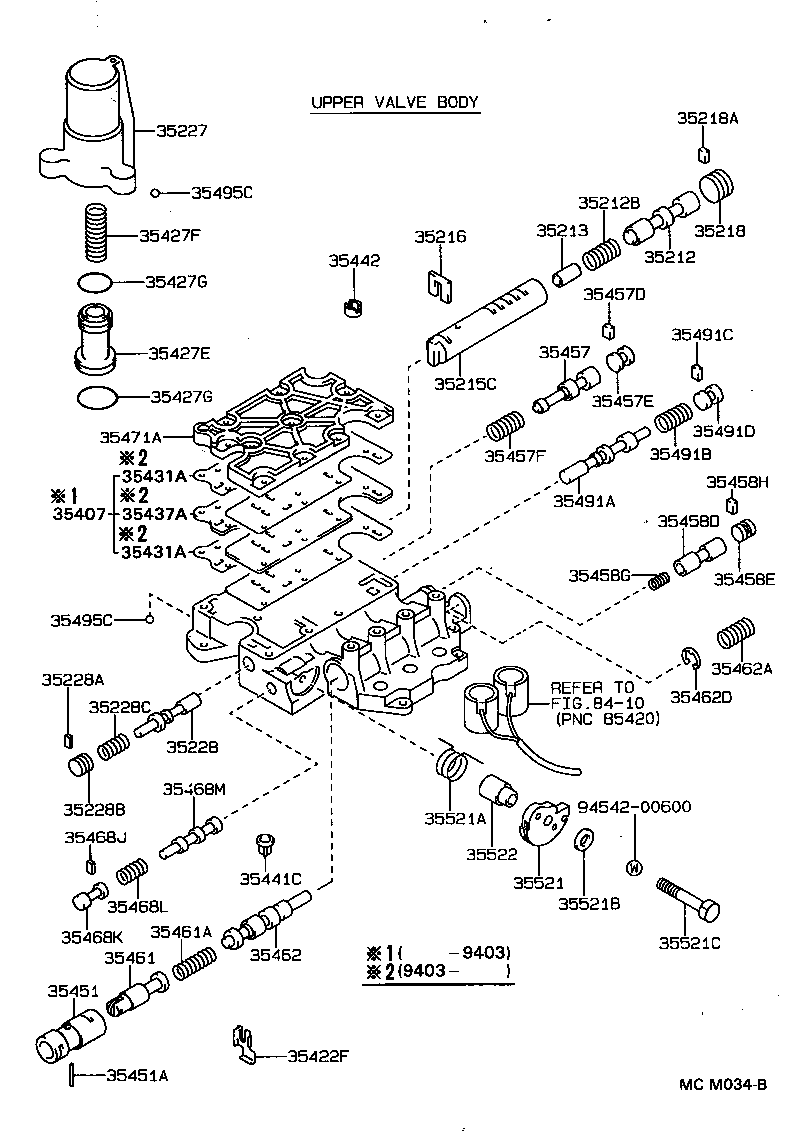

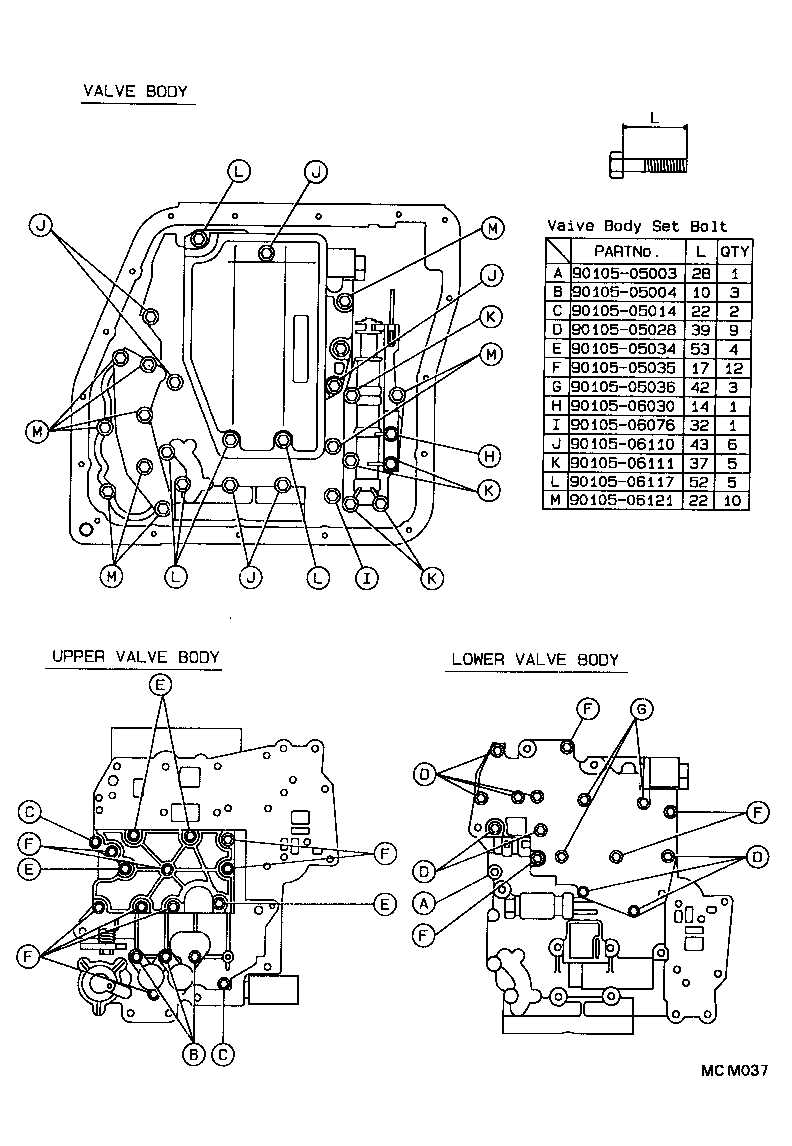

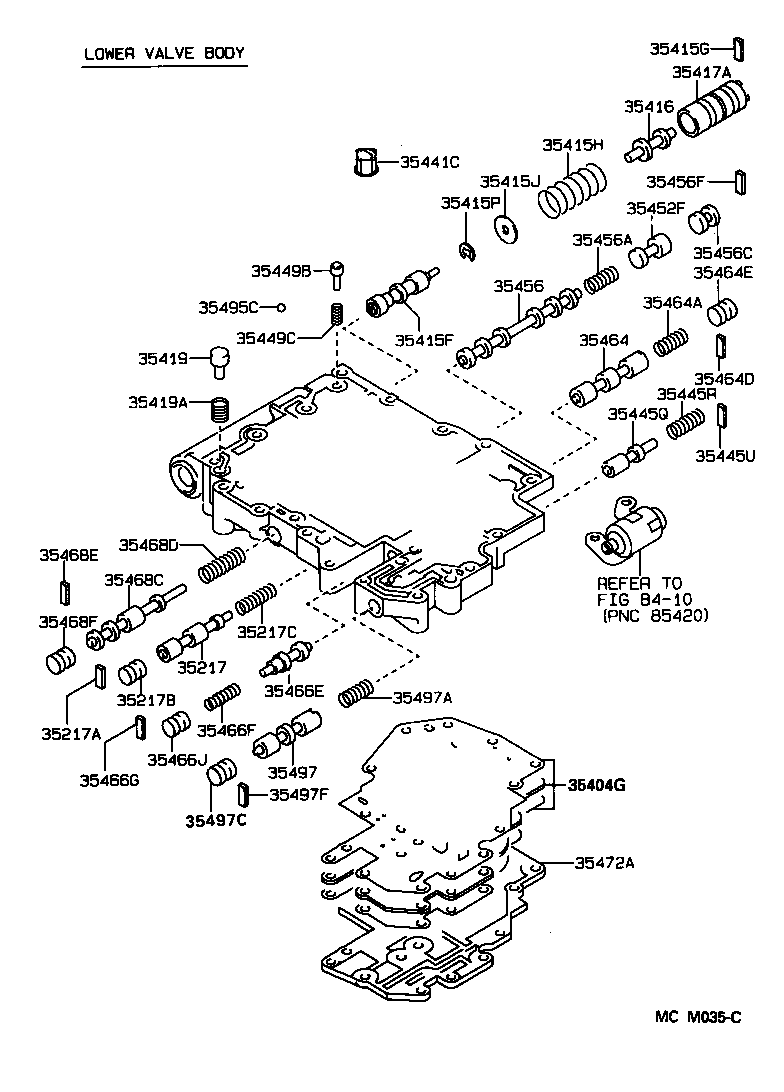

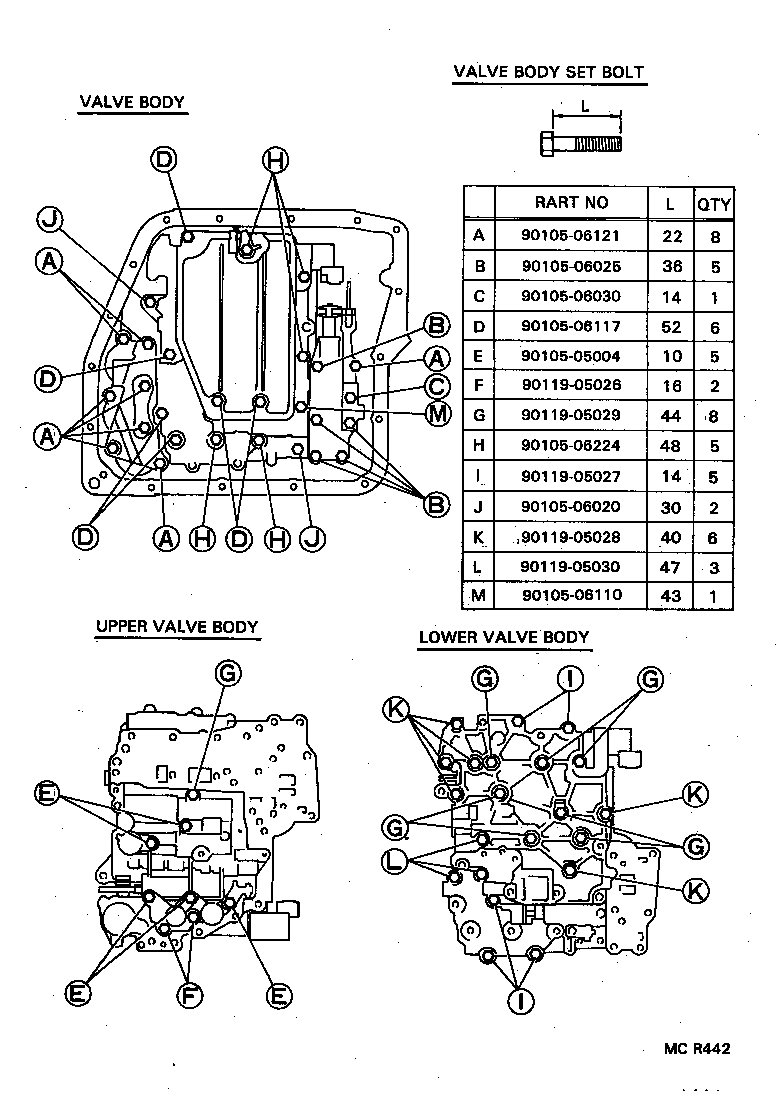

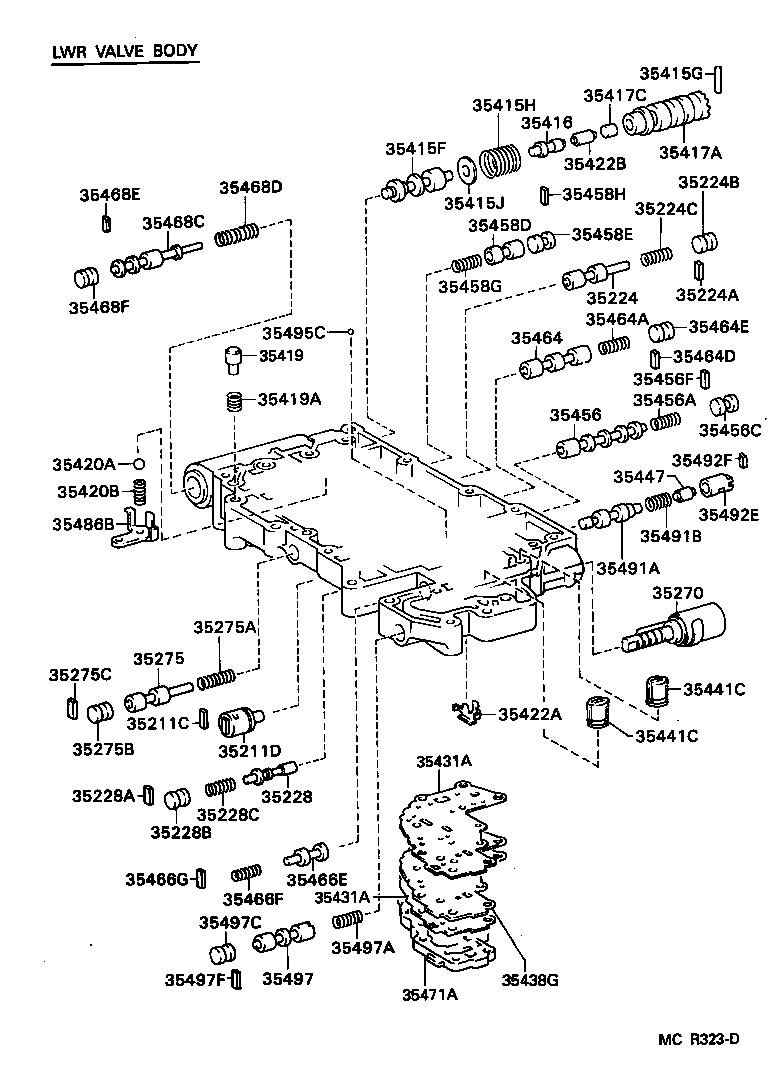

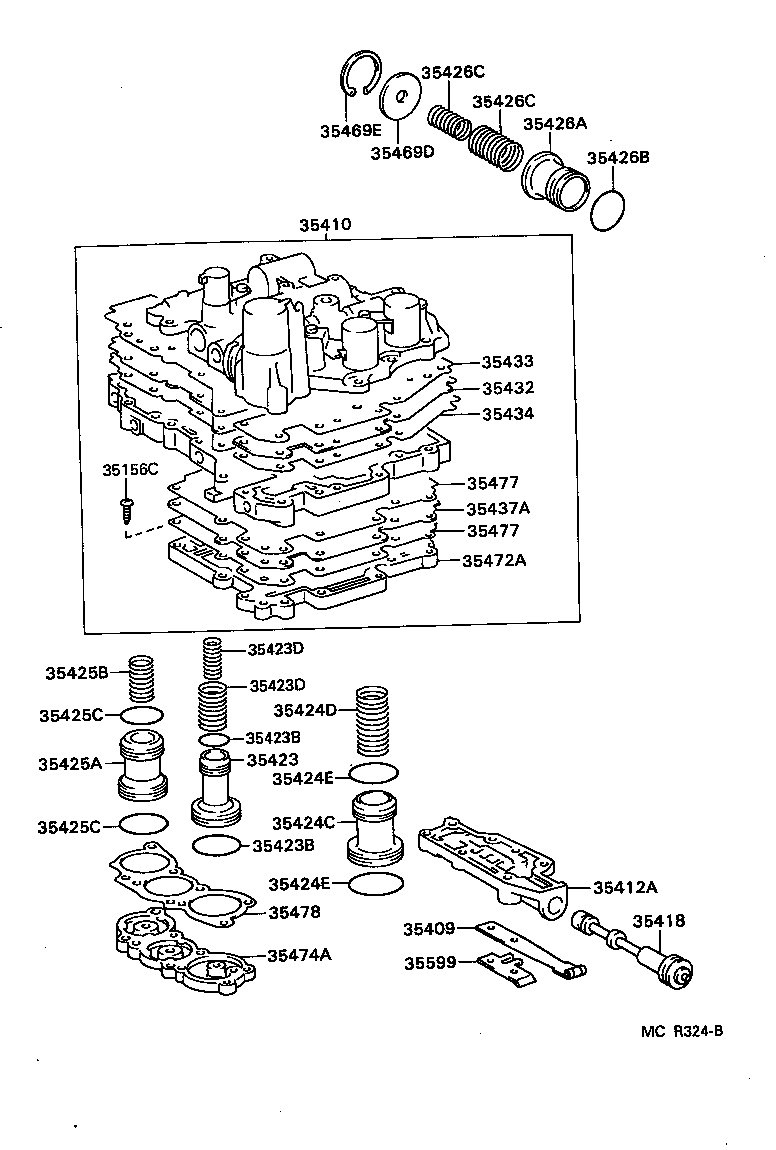

Valve Body & Oil Strainer (ATM)
163 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 35156C | Screw(FOR TRANSMISSION CASE NO.2 PLATE) |
| 35211C | Key, Straight (FOR LOCK UP SIGNAL VALVE) |
| 35211D | Sleeve, Lock UP Control Valve |
| 35212 | Valve, Lock UP Relay |
| 35212B | Spring, Compression (FOR LOCK UP RELAY VALVE) |
| 35213 | Valve, Lock UP Relay Control |
| 35215B | Pin, Straight (FOR LOCK UP RELAY VALVE SLEEVE) |
| 35215C | Sleeve, Lock UP Relay Valve, NO.1 |
| 35216 | Stopper, Valve Sleeve |
| 35217 | Valve, Accumulator Control, NO.2 |
| 35217A | Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.2) |
| 35217B | Plug (FOR ACCUMULATOR CONTROL VALVE NO.2) |
| 35217C | Spring, Compression |
| 35218 | Plug, Lock UP Relay Valve |
| 35218A | Key, Straight (FOR LOCK UP RELAY VALVE PLUG) |
| 35224 | Valve, Reverse Control |
| 35224A | Key, Straight (FOR REVERSE CONTROL VALVE) |
| 35224B | Plug (FOR REVERSE CONTROL VALVE) |
| 35224C | Spring, Compression (FOR REVERSE CONTROL VALVE) |
| 35227 | Cylinder, B-0 Accumulator |
| 35228 | Valve, 2ND Modulator |
| 35228A | Key, Straight (FOR 2ND MODULATOR VALVE) |
| 35228B | Plug (FOR 2ND MODULATOR VALVE) |
| 35228C | Spring, Compression (FOR 2ND MODULATOR VALVE) |
| 35240 | Solenoid Assy, Automatic Transmission 3Way |
| 35270 | Solenoid Assy, Shift Control |
| 35275 | Valve, Solenoid Modulator |
| 35275A | Spring, Compression (FOR SOLENOID MODULATOR VALVE) |
| 35275B | Plug (FOR SOLENOID MODULATOR VALVE) |
| 35275C | Key, Straight |
| 35285 | Plate, Solenoid Lock |
| 35330 | Strainer Assy, Valve Body Oil |
| 35339 | Gasket, Oil Strainer |
| 35404G | Plate Sub-assy, Valve Body, NO.2 |
| 35406 | Plate Sub-assy, Valve Body |
| 35407 | Plate Sub-assy, Valve Body Cover |
| 35409 | Spring Sub-assy, Manual Detent |
| 35410 | Body Assy, Transmission Valve |
| 35412A | Body, Manual Valve |
| 35415F | Valve, Primary Regulator |
| 35415G | Key, Straight (FOR PRIMARY REGULATOR VALVE) |
| 35415H | Spring, Compression (FOR PRIMARY REGULATOR VALVE) |
| 35415J | Washer (FOR PRIMARY REGULATOR VALVE) |
| 35415P | Ring, E (FOR PRIMARY REGULATOR VALVE) |
| 35416 | Plunger, Primary Regulator Valve, NO.1 |
| 35417A | Sleeve, Primary Regulator Valve |
| 35417C | Plug(FOR PRIMARY REGULATOR VALVE) |
| 35418 | Valve, Manual |
| 35419 | Valve, Check, NO.1 |
| 35419A | Spring, Compression (FOR CHECK VALVE) |
| 35420A | Ball (FOR PRESSURE RELIEF) |
| 35420B | Spring (FOR PRESSURE RELIEF) |
| 35422A | ST0PPER, Valve Vibrating |
| 35422B | Plunger, Primary Regulator Valve, NO.2 |
| 35422F | Stopper, Valve Vibrating |
| 35423 | Piston, B-2 Accumulator |
| 35423A | Spring, Compression (FOR B-2 ACCUMULATOR PISTON) |
| 35423B | Ring, O (FOR B-2 ACCUMULATOR PISTON) |
| 35423D | Spring, Compression (FOR B-2 ACCMULATOR PISTON) |
| 35424C | Piston, C-1 Accumulator |
| 35424D | Spring, Compression (FOR C-1 ACCUMULATOR PISTON) |
| 35424E | Ring, O (FOR C-1 ACCUMULATOR PISTON) |
| 35425A | Piston, C-2 Accumulator |
| 35425B | Spring, Compression (FOR C-2 ACCUMULATOR PISTON) |
| 35425C | Ring, O (FOR C-2 ACCUMULATOR PISTON) |
| 35426A | Piston, C-0 Accumulator |
| 35426B | Ring, O (FOR C-0 ACCUMULATOR PISTON) |
| 35426C | Spring, Compression (FOR C-0 ACCUMULATOR PISTON) |
| 35427E | Piston, B-0 Accumulator |
| 35427F | Spring, Compression (FOR B-0 ACCUMULATOR PISTON) |
| 35427G | Ring, O (FOR B-0 ACCUMULATOR PISTON) |
| 35431A | Gasket, Upper Valve Body Cover |
| 35432 | Plate, Valve Body, NO.1 |
| 35433 | Gasket, Valve Body, NO.1 |
| 35434 | Gasket, Valve Body, NO.2 |
| 35437A | Plate, Upper Valve Body Cover |
| 35438G | Plate, Valve Body, NO.2 |
| 35438J | Seat, Throttle Valve Spring |
| 35439B | Screw, Throttle Valve |
| 35441C | Strainer, Solenoid Oil |
| 35442 | Strainer, Throttle Modulator Oil |
| 35445 | Valve, Low Modulator |
| 35445A | Spring, Compression (FOR LOW MODULATOR VALVE) |
| 35445Q | Valve, Low Coast Modulator |
| 35445R | Spring, Compression (FOR LOW COAST MODULATOR VALVE) |
| 35445U | Key, Straight (FOR LOW COAST MODULATOR VALVE) |
| 35445V | Plug (FOR LOW COAST MODULATOR VALVE) |
| 35447 | Plunger, Accumulator Control Valve |
| 35449B | Valve, Pressure Relief |
| 35449C | Spring, Compression (FOR VALVE PRESSURE RELIEF) |
| 35451 | Sleeve, Throttle Valve |
| 35451A | Pin, Straight (FOR THROTTLE VALVE SLEEVE) |
| 35452F | Plug, 2-3 Shift Valve |
| 35456 | Valve, 2-3 Shift |
| 35456A | Spring, Compression (FOR 2-3 SHIFT VALVE) |
| 35456C | Plug (FOR 2-3 SHIFT VALVE) |
| 35456F | Key, Straight (FOR 2-3 SHIFT VALVE) |
| 35457 | Valve, Throttle Modulator |
| 35457D | Key, Straight (FOR THROTTLE MODULATOR VALVE) |
| 35457E | Plug (FOR THROTTLE MODULATOR VALVE) |
| 35457F | Spring, Compression (FOR THROTTLE MODULATOR VALVE) |
| 35458D | Valve, Cut Back |
| 35458E | Plug (FOR CUT BACK VALVE) |
| 35458G | Spring, Compression (FOR CUT BACK VALVE) |
| 35458H | Key, Straight (FOR CUT BACK VALVE) |
| 35461 | Plug, Down Shift |
| 35461A | Spring, Compression (FOR DOWN SHIFT PLUG) |
| 35462 | Valve, Throttle |
| 35462A | Spring, Compression (FOR THROTTLE VALVE) |
| 35462D | Ring, E (FOR THROTTLE VALVE) |
| 35464 | Valve, 1-2 Shift |
| 35464A | Spring, Compression (FOR 1-2 SHIFT VALVE) |
| 35464D | Key, Straight (FOR 1-2 SHIFT VALVE) |
| 35464E | Plug (FOR 1-2 SHIFT VALVE) |
| 35466E | Valve, 2ND Lock |
| 35466F | Spring, Compression (FOR 2ND LOCK VALVE) |
| 35466G | Key, Straight (FOR 2ND LOCK VALVE) |
| 35466J | Plug (FOR 2ND LOCK VALVE) |
| 35467A | Key, Straight (FOR INTERMEDIATE SHIFT VALVE) |
| 35467C | Plunger, Orifice Control Valve |
| 35468C | Valve, Secondary Regulator |
| 35468D | Spring, Compression (FOR SECONDARY REGULATOR VALVE) |
| 35468E | Key, Straight (FOR SECONDARY REGULATOR VALVE) |
| 35468F | Plug (FOR SECONDARY REGULATOR VALVE) |
| 35468J | Key, Straight (FOR B-1 ORIFICE CONTROL VALVE) |
| 35468K | Plug (FOR B-1 ORIFICE CONTROL VALVE) |
| 35468L | Spring, Compression (FOR B-1 ORIFICE CONTROL VALVE) |
| 35468M | Valve, B-1 Orifice Control |
| 35469D | Spacer (FOR C-0 ACCUMULATOR PISTON) |
| 35469E | Ring, Snap (FOR C-0 ACCUMULATOR PISTON SPACER) |
| 35471A | Cover, Upper Valve Body |
| 35472A | Cover, Lower Valve Body |
| 35474A | Cover, Accumulator |
| 35477 | Gasket, Valve Body Cover |
| 35478 | Gasket, Accumulator Cover |
| 35486B | Seat, Pressure Relief Valve Spring |
| 35491A | Valve, Accumulator Control, NO.1 |
| 35491B | Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1) |
| 35491C | Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1) |
| 35491D | Plug (FOR ACCUMULATOR CONTROL VALVE NO.1) |
| 35492E | Sleeve, Accumulator Control Valve |
| 35492F | Key, Straight (FOR COVER DRIVE EXHAUST VALVE) |
| 35495C | Ball, Check, NO.1 |
| 35497 | Valve, 3-4 Shift |
| 35497A | Spring, Compression (FOR 3-4 SHIFT VALVE) |
| 35497C | Plug (FOR 3-4 SHIFT VALVE) |
| 35497F | Key, Straight (FOR 3-4 SHIFT VALVE) |
| 35521 | Cam, Throttle Valve |
| 35521A | Spring (FOR THROTTLE VALVE CAM RETURN) |
| 35521B | Washer (FOR THROTTLE VALVE CAM SET) |
| 35521C | Bolt (FOR THROTTLE VALVE CAM SET) |
| 35522 | Pin, Throttle Valve Cam |
| 35599 | Cover, Manual Detent Spring |
| 35843A | Tube, Transfer Lubrication Apply |
| 35844A | Tube, Accumulator Back Pressure, NO.1 |
| 35845 | Tube, RR Clutch Accumulator |
| 35846 | Tube, Brake Accumulator |
| 35848 | Tube, Forward Clutch Accumulator |
| 35862 | Bracket, Accumulator Apply Tube |
| 35882B | Tube, Rear Servo Apply |
| 35894 | Support, Accumulator Tube |
| 35897A | Tube, 1ST & Reverse Brake, NO.1 |
| 35898A | Tube, Accumulator Back Pressure, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
