Toyota Lexus ES300
1991-07 → 1996-08 · chassis VCV10,MCV10 · catalogue 284450 · United States
Discontinued model
Data version 1997-02

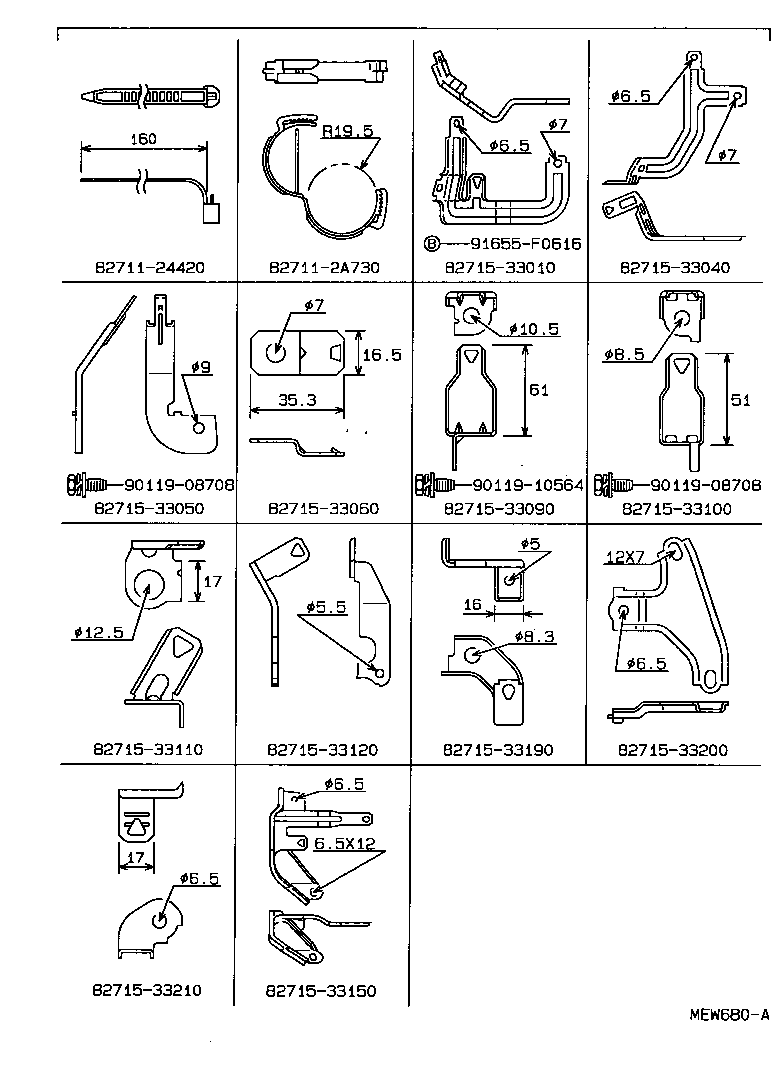

Wiring & Clamp
39 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|

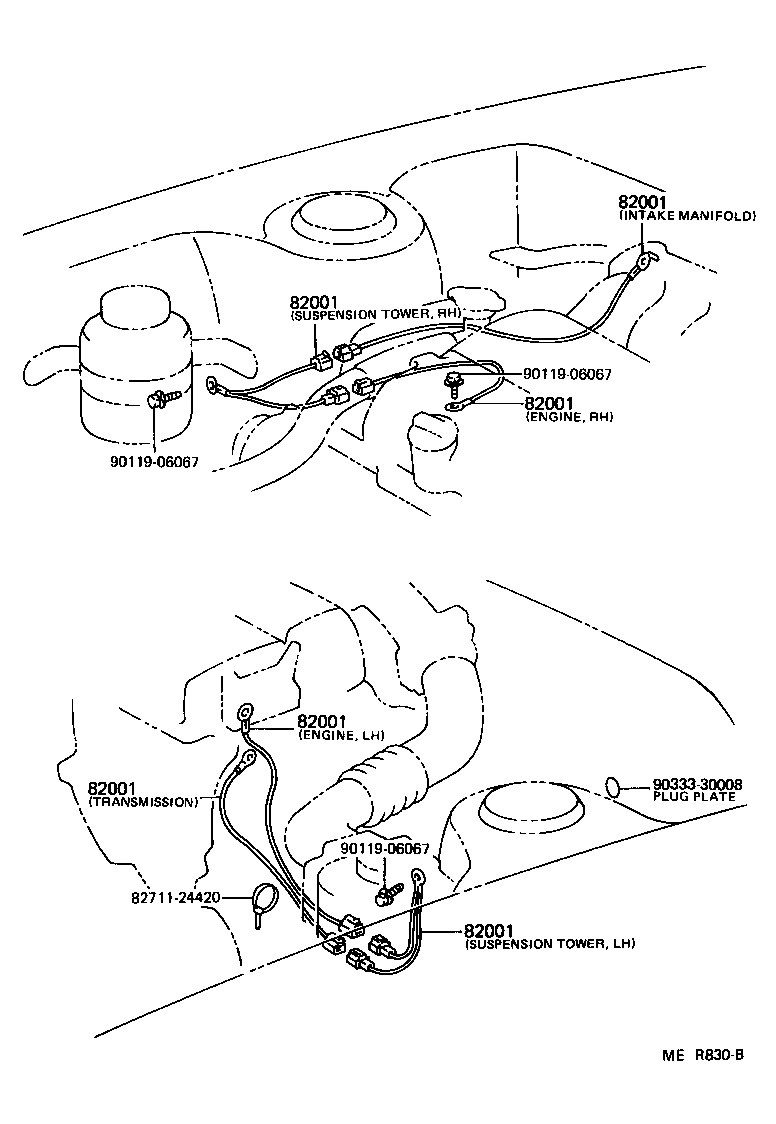

| 82001 | Cable, Bond, NO.1 |
| 82111 | Wire, Engine Room Main |

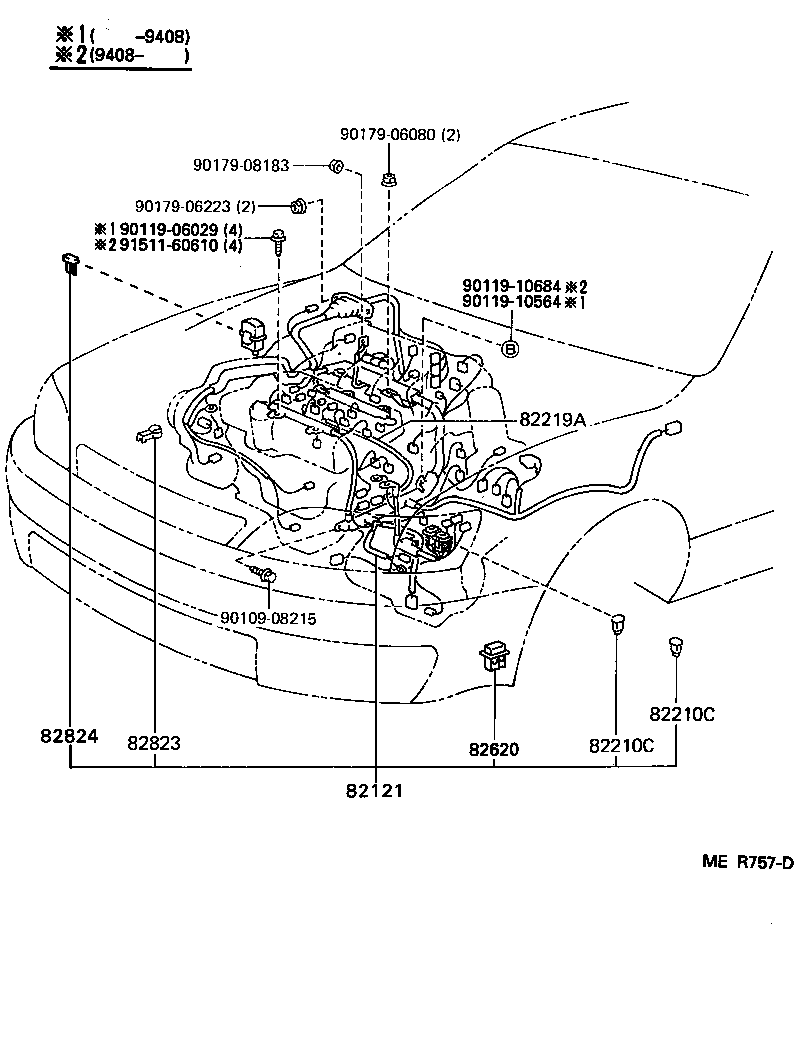

| 82121 | Wire, Engine |
| 82123 | Wire, Engine, NO.3 |

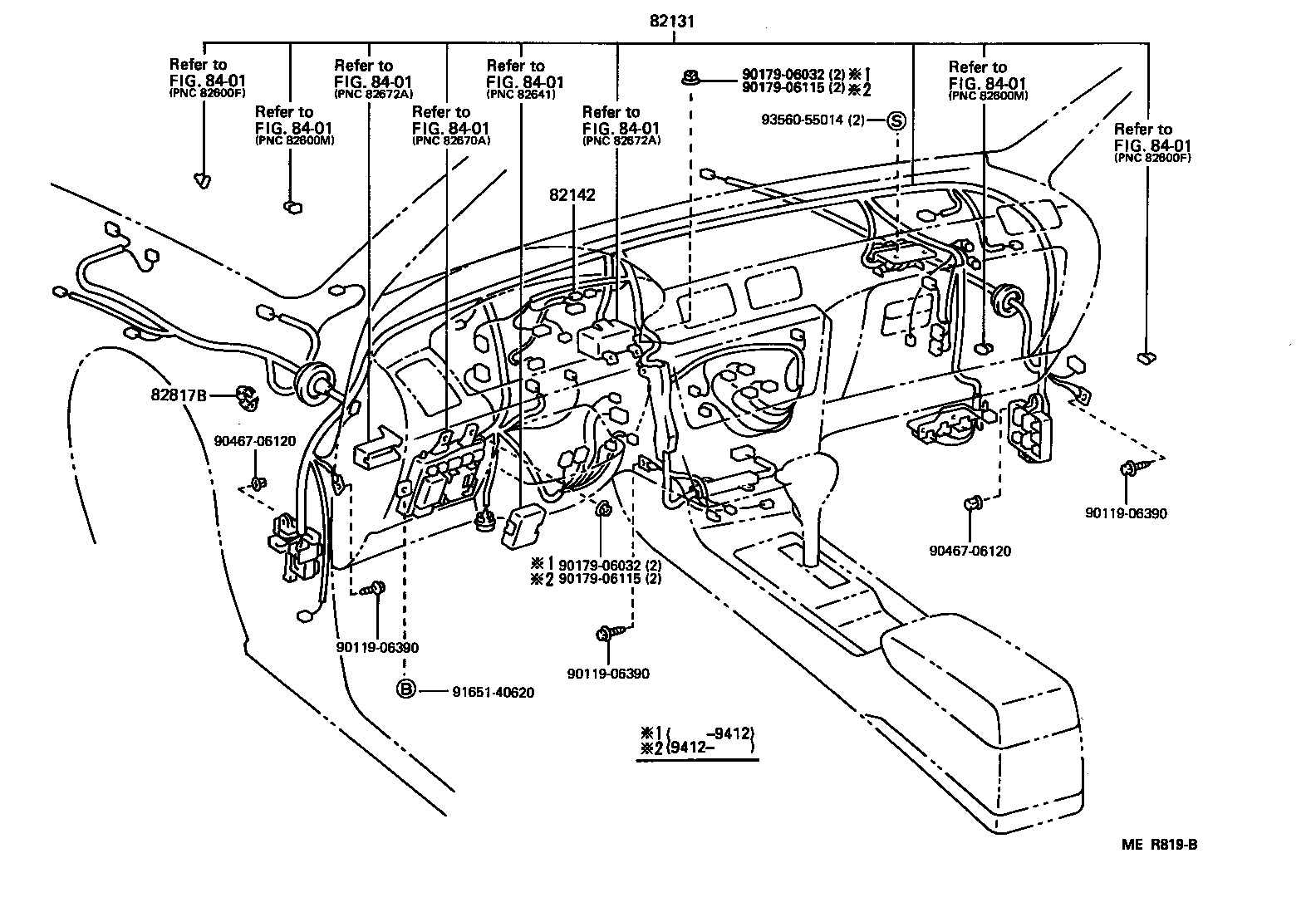

| 82131 | Wire, Cowl |

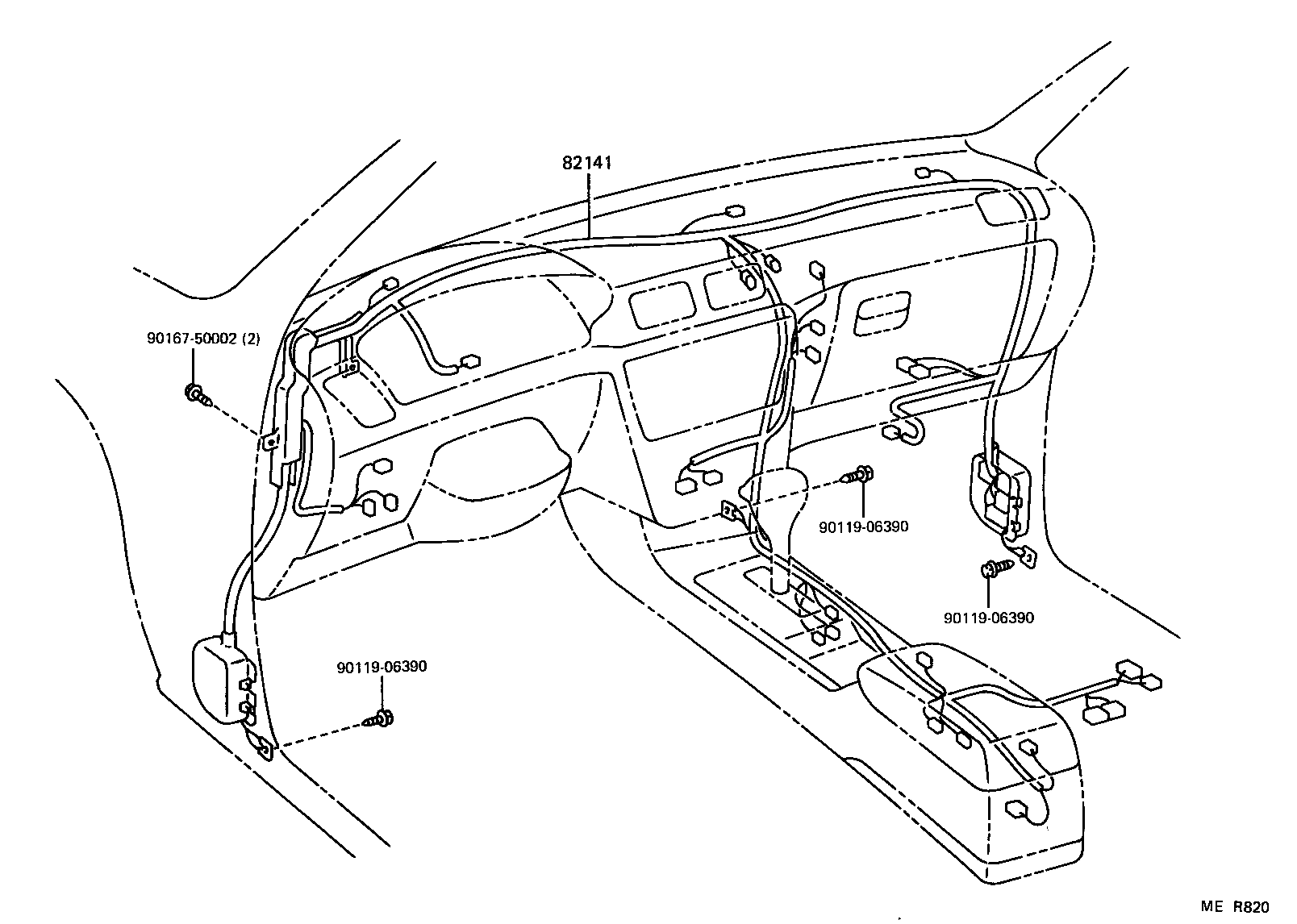

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |

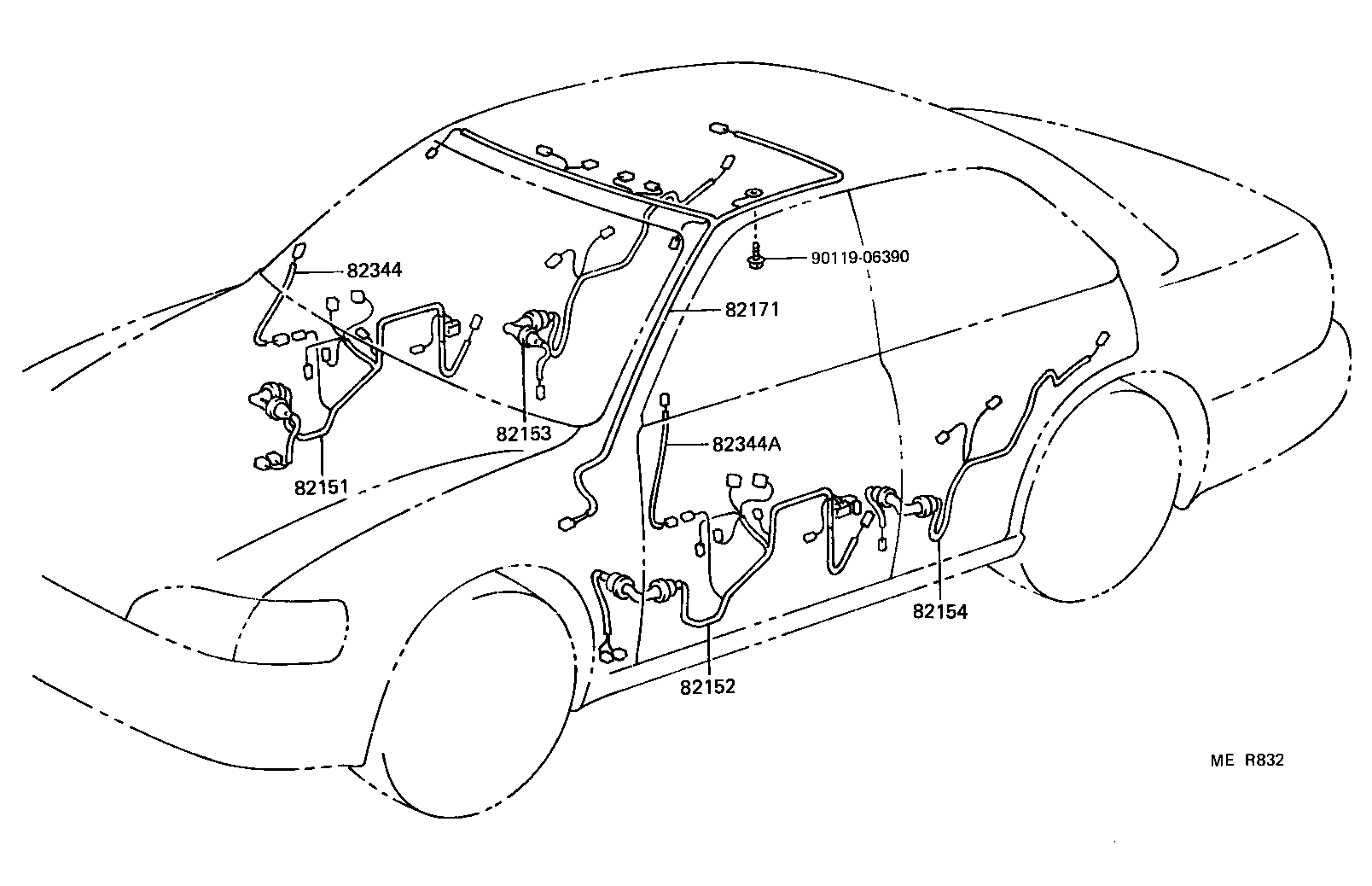

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

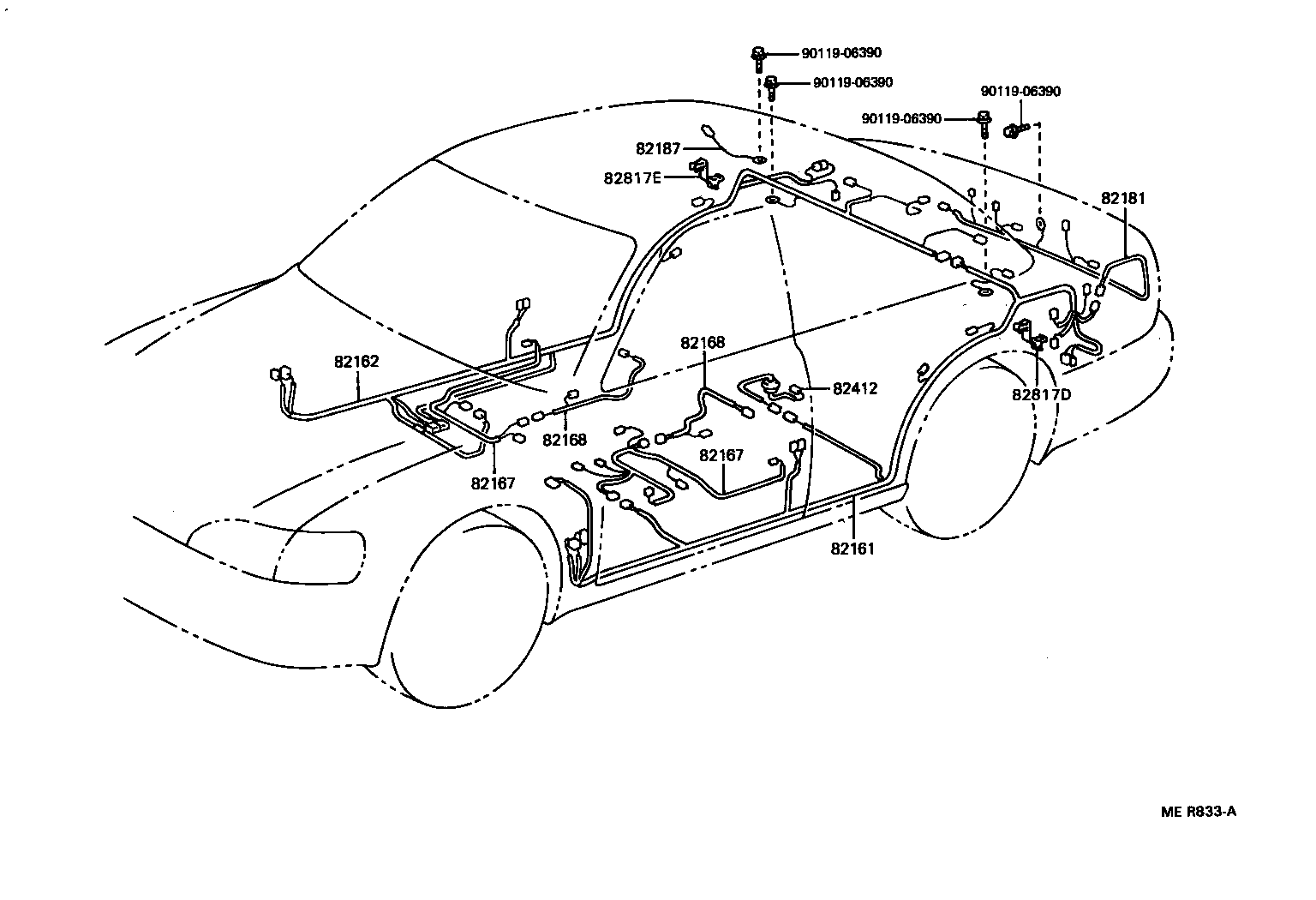

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82167 | Wire, Seat, NO.1 |
| 82168 | Wire, Seat, NO.2 |
| 82171 | Wire, Roof, NO.1 |
| 82181 | Wire, Luggage Room, NO.1 |
| 82187 | Wire, Rear Window, NO.2 |
| 82210C | Fusible Link |
| 82219A | Wire, Sensor |
| 82241C | Wire, Relay |
| 82344 | Wire, Mirror, RH |
| 82344A | Wire, Mirror, LH |
| 82412 | Wire, Fuel Gage |
| 82620 | Block Assy, Fusible Link |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82823 | Cap, Terminal, NO.1 |
| 82823A | Cap, Terminal, NO.2 |
| 82824 | Connector, Wiring Harness |

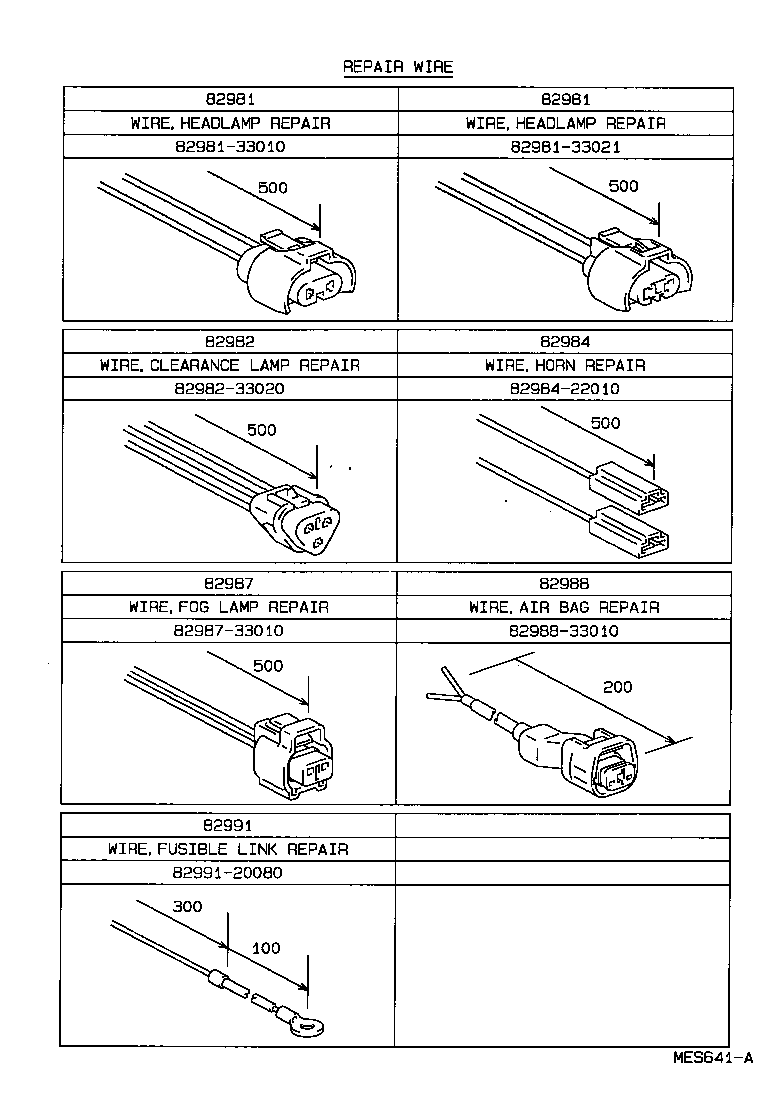

| 82981 | Wire, Headlamp Repair |
| 82982 | Wire, Clearance Lamp Repair |
| 82984 | Wire, Horn Repair |
| 82987 | Wire, Fog Lamp Repair |
| 82988 | Wire, Airbag Repair |
| 82991 | Wire, Fusible Link Repair |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
