Toyota Lexus ES300
1991-07 → 1996-08 · chassis VCV10,MCV10 · catalogue 284450 · United States
Discontinued model
Data version 1997-02
Electronic Fuel Injection System

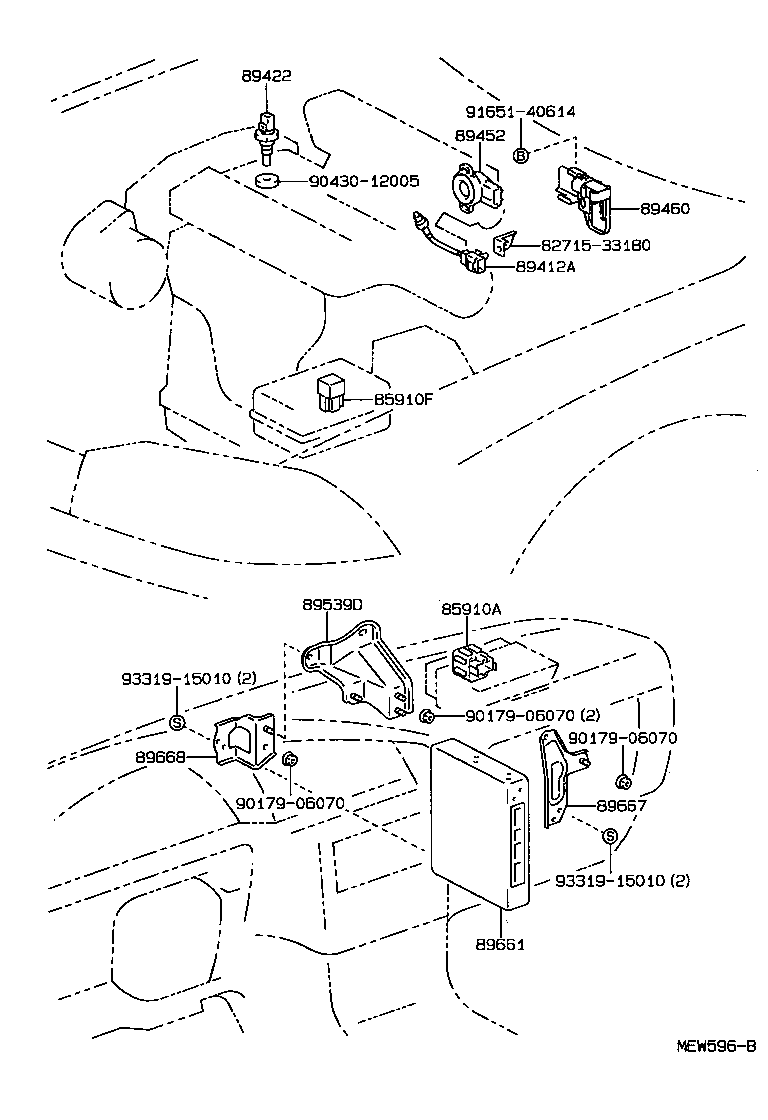

11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85910F | Relay, Computer (FOR EFI) |
| 89412A | Sensor, E.G.R Gas Temperature |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89460 | Sensor Assy, Vapor Pressure |
| 89462 | Switch, Start Injector Time |
| 89539D | Bracket, Computer |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
