Toyota Lexus ES300

1991-07 → 1996-08 · chassis VCV10,MCV10 · catalogue 284450 · United States

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

7 part groups · 2 illustrations

Illustrations

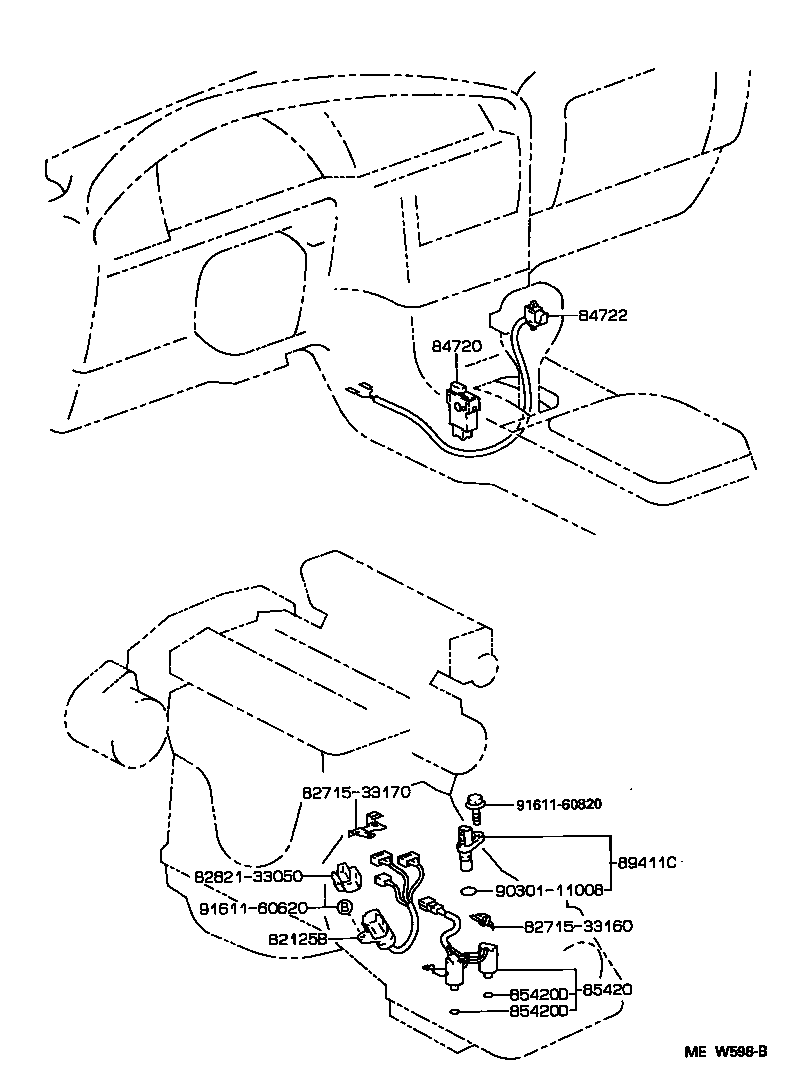

Figure MER803 MER803 1991-07 → 1993-08 Figure MEW598B MEW598B 1993-08 → 1996-08

Part groups

PNCDescription
82125B Wire, Transmission
84720 Switch Assy, Pattern Select
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
