Heating & Air Conditioning - Control & Air Duct

18 part groups · 3 illustrations

Illustrations

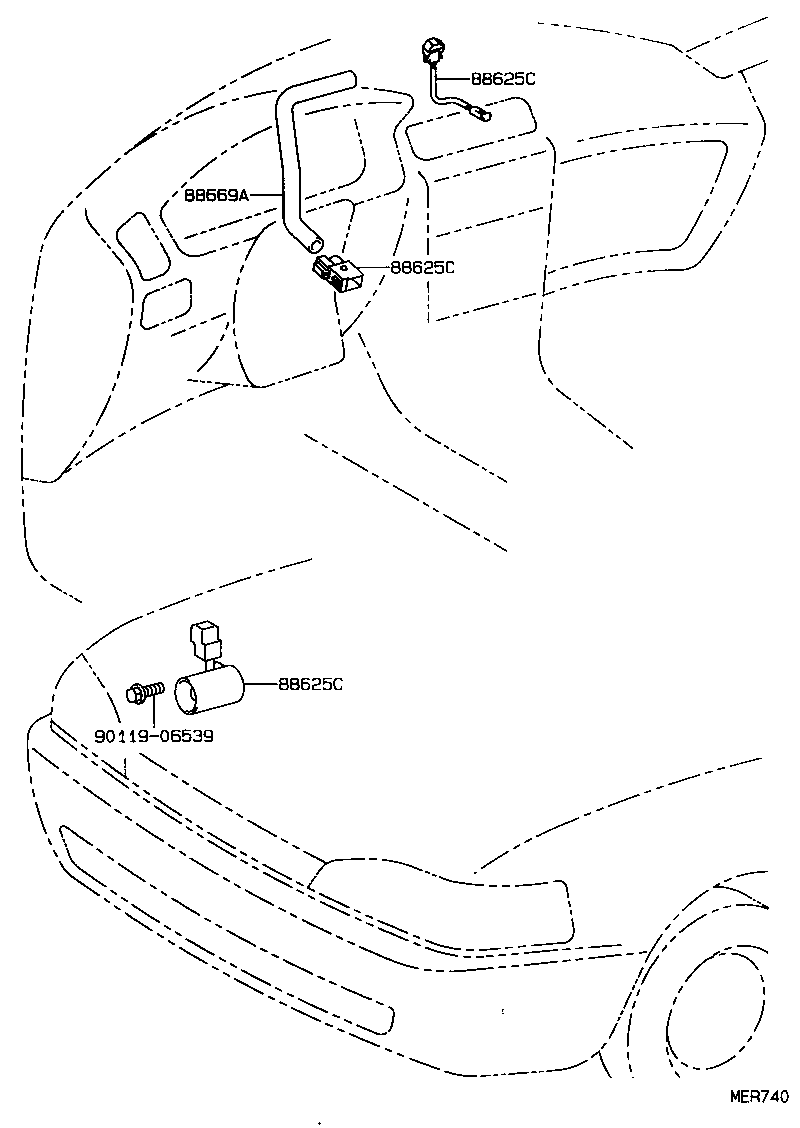

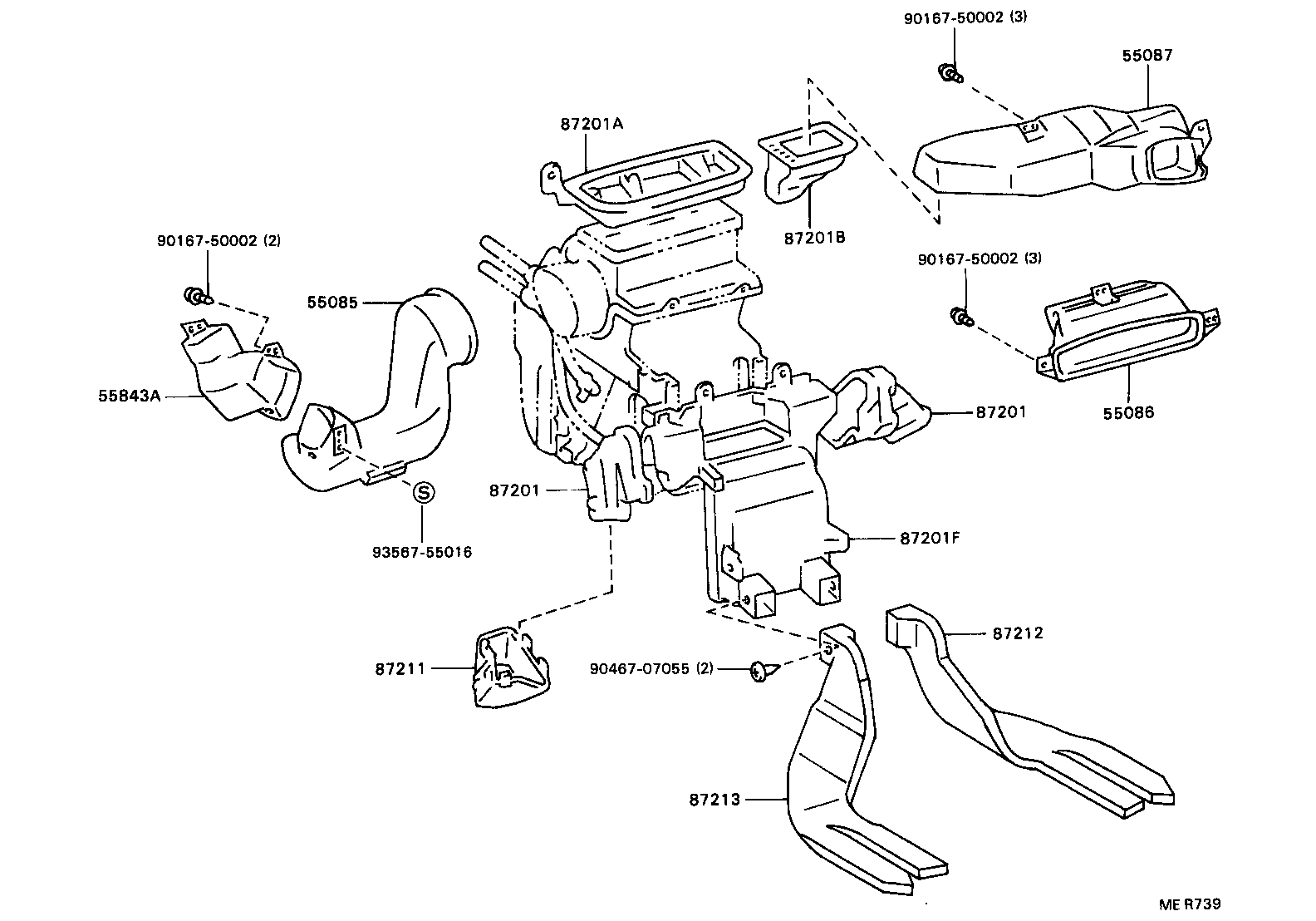

Figure MER736C MER736C 1991-07 → 1996-08 Figure MER740 MER740 1991-07 → 1996-08 Figure MER739 MER739 1991-07 → 1996-08

Part groups

PNCDescription
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55087 Duct Sub-assy, Heater TO Register, NO.4
55843A Duct, Heater TO Register, NO.1
55900B Bulb, Air Conditioner Control
55902B Control Sub-assy, Heater
87201 Duct Sub-assy, Air, NO.1
87201A Duct Sub-assy, Air
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
88484 Wire, Cooler, NO.1
88601A Switch Sub-assy, Cooler Control
88625C Thermistor, Cooler
88650M Computer Assy, Air Conditioner
88669A Hose (FOR COOLER THERMISTOR)
