Toyota Lexus ES300
1996-08 → 2001-07 · chassis MCV20 · catalogue 284460 · United States
Discontinued model
Data version 2001-11

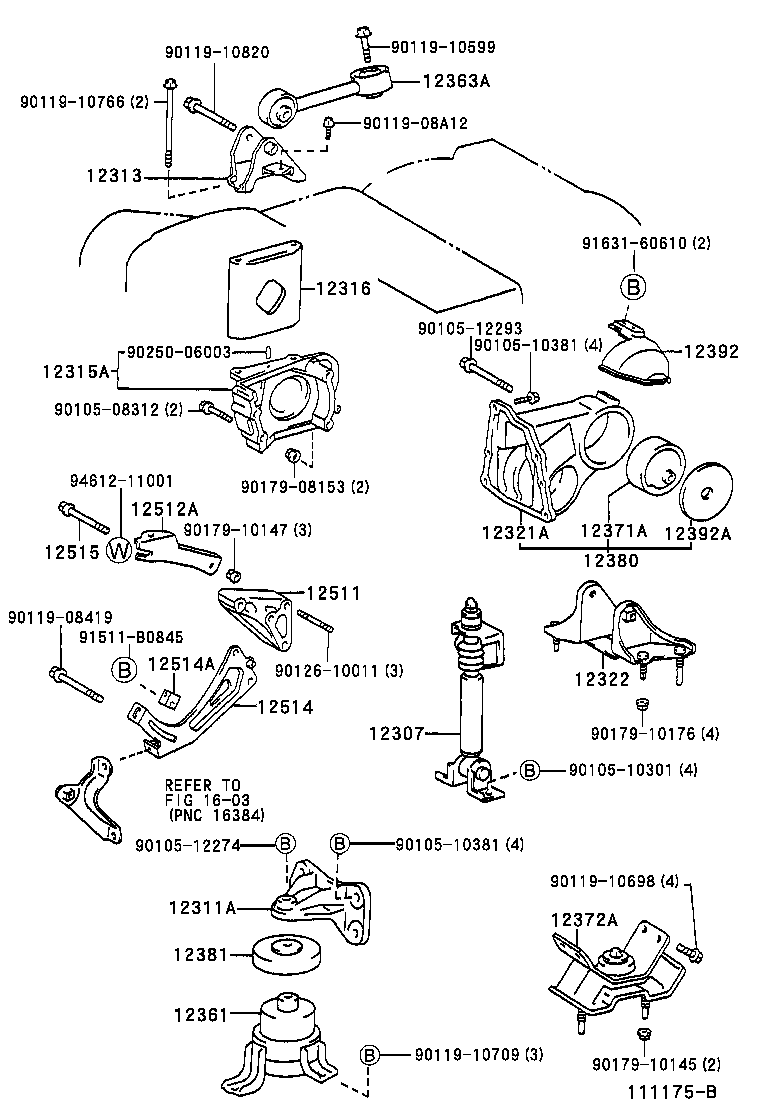

Mounting
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12307 | Absorber Sub-assy, Engine Mounting |
| 12311A | Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE) |
| 12313 | Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE) |
| 12315A | Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) |
| 12316 | Bracket, Engine Mounting, NO.2 RH |
| 12317 | Stay, Engine Mounting, RH |
| 12321A | Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE) |
| 12322 | Bracket, Engine Mounting, Rear NO.2 |
| 12361 | Insulator, Engine Mounting, Front |
| 12363A | Rod, Engine Moving Control |
| 12371A | Insulator, Engine Mounting, Rear |
| 12372A | Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 12380 | Insulator Assy, Engine Mounting, Rear |
| 12381 | Stabilizer, Engine Mounting |
| 12392 | Insulator, Engine Mounting Heat, Front LH |
| 12392A | Insulator, Engine Mounting Heat, Rear |
| 12511 | Bracket, Alternator, NO.1 |
| 12512A | Bracket, Alternator, NO.2 |
| 12514 | Bar, Alternator Belt Adjusting |
| 12514A | Slider, Fan Belt Adjusting |
| 12515 | Bolt, Alternator Through |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
