Toyota Lexus ES300
1996-08 → 2001-07 · chassis MCV20 · catalogue 284460 · United States
Discontinued model
Data version 2001-11
Manifold
26 part groups · 4 illustrations
Part groups

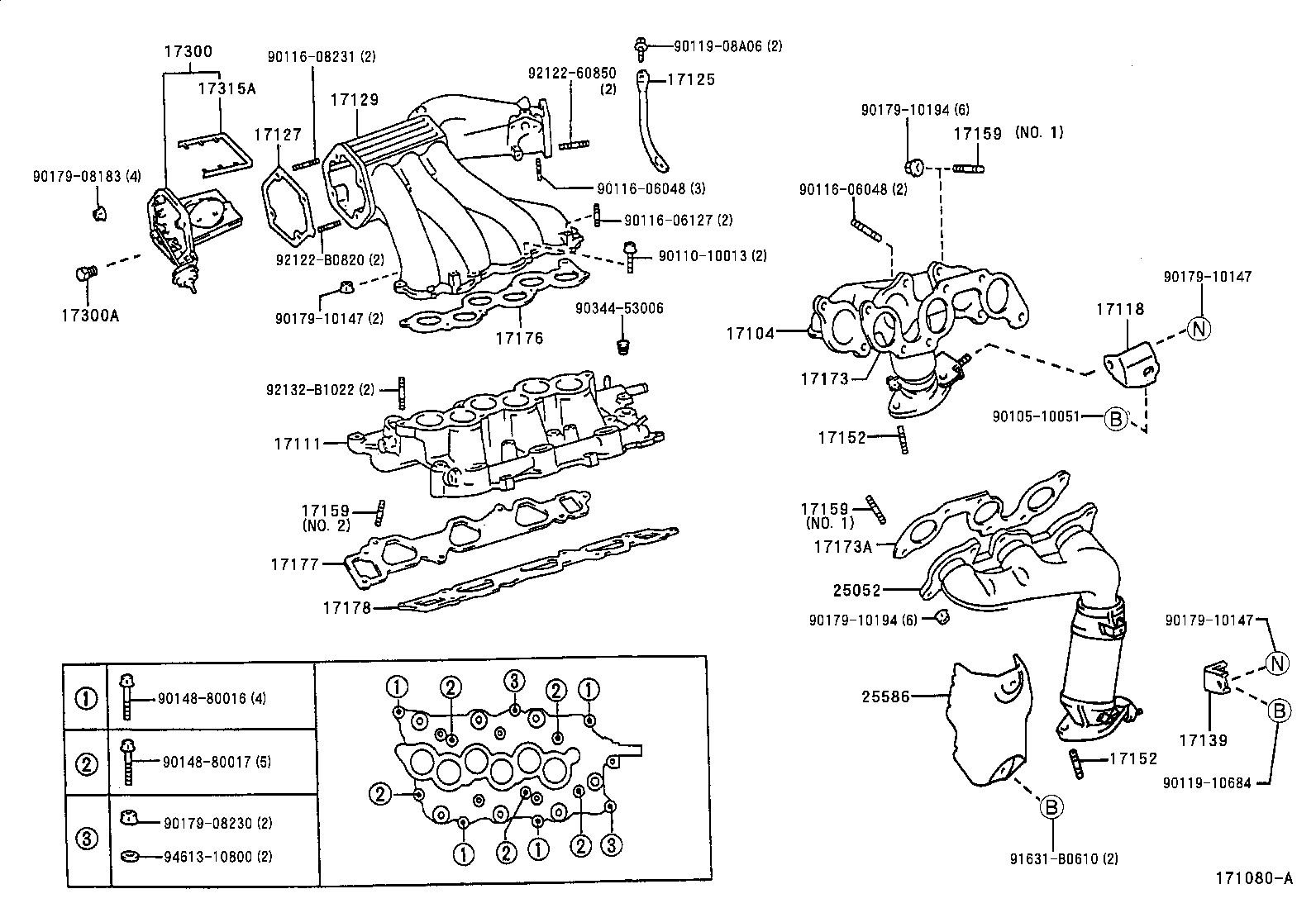

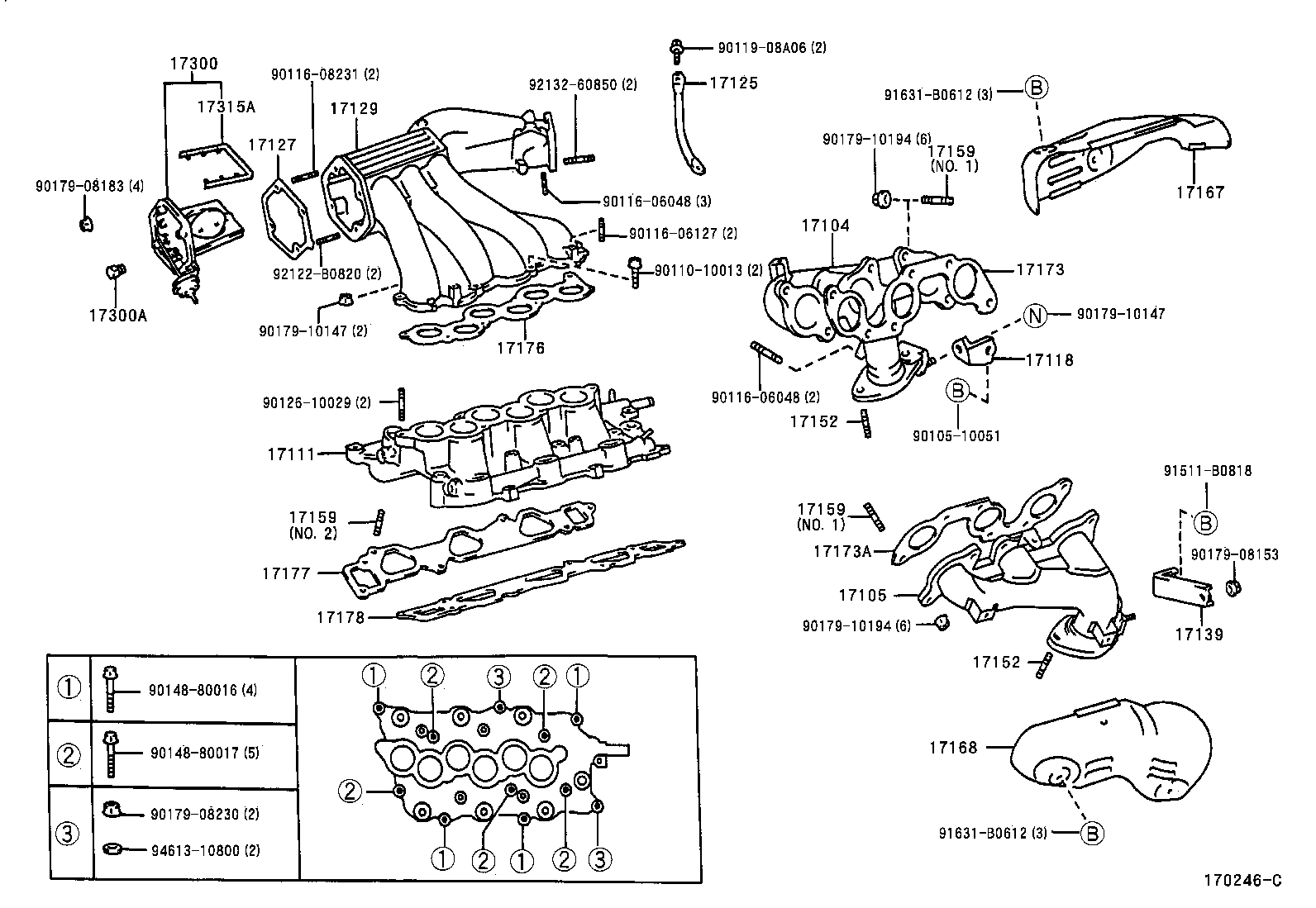

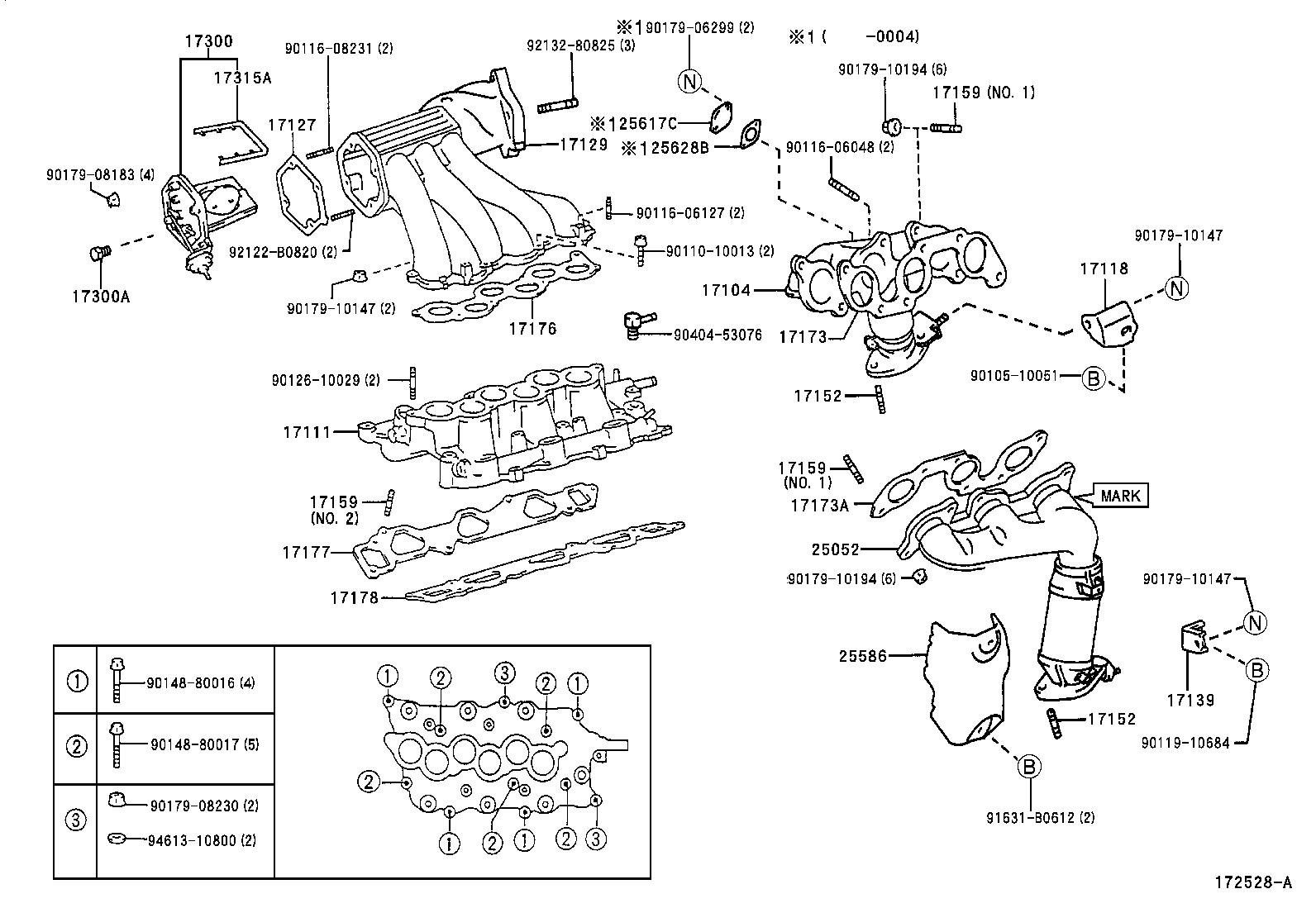

| PNC | Description |
|---|---|
| 17104 | Manifold Sub-assy, Exhaust, RH |
| 17104A | Bolt(FOR FRONT PIPE & STAY) |
| 17105 | Manifold Sub-assy, Exhaust, LH |
| 17111 | Manifold, Intake |
| 17118 | Stay, Manifold |
| 17125 | Stay, Surge Tank, NO.1 |
| 17127 | Gasket, Surge Tank Cover |
| 17129 | Tank, Intake Air Surge |
| 17139 | Stay, Manifold, NO.2 |
| 17148 | Plate, Exhaust Manifold(FOR EGR INLET) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17173A | Gasket, Exhaust Manifold TO Head, LH |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17178 | Gasket, Intake Manifold TO Head, NO.2 |
| 17300 | Valve Assy, Intake Air Control |
| 17300A | Plug, W/Head Taper Screw(FOR AIR CONTROL VALVE) |
| 17315A | Gasket, Intake Air Control Valve |
| 25052 | Converter Sub-assy, Exhaust Manifold, NO.2 |
| 25586 | Insulator, Manifold Converter, NO.1 |
| 25617C | Plate, Egr Hole Cover |
| 25628B | Gasket, Egr Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
