Toyota Lexus ES300
1996-08 → 2001-07 · chassis MCV20 · catalogue 284460 · United States
Discontinued model
Data version 2001-11

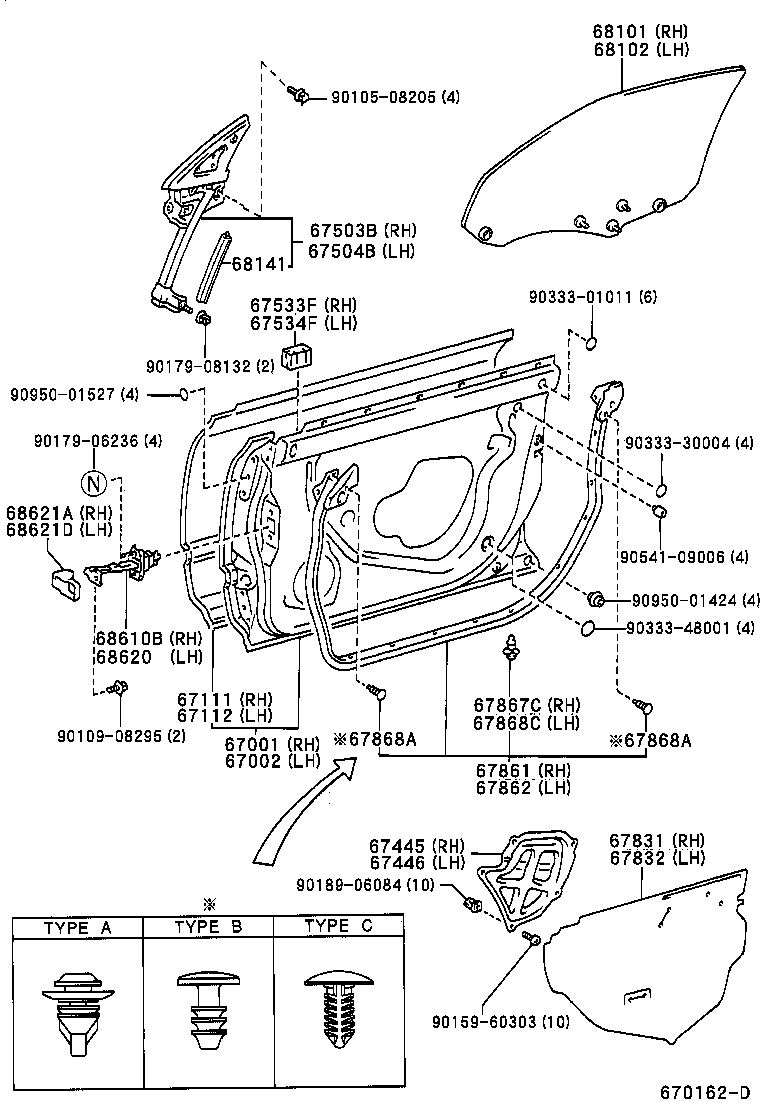

Front Door Panel & Glass
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67445 | Plate, Front Door Window Opening, Inner RH |
| 67446 | Plate, Front Door Window Opening, Inner LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67503B | Bracket Sub-assy, Front Door Mirror, RH |
| 67504B | Bracket Sub-assy, Front Door Mirror, LH |
| 67533F | Pad, Front Door Lower Frame Garnish, RH |
| 67534F | Pad, Front Door Lower Frame Garnish, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601G | Plug, Hole(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868A | Clip, Door Glass Weatherstrip(FOR FRONT DOOR) |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141 | Run, Front Door Glass |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 68621A | Cover, Front Door Check, RH |
| 68621D | Cover, Front Door Check, LH |
| 74293 | Plate, Front Door Armrest, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
