Toyota Lexus ES300
1996-08 → 2001-07 · chassis MCV20 · catalogue 284460 · United States
Discontinued model
Data version 2001-11

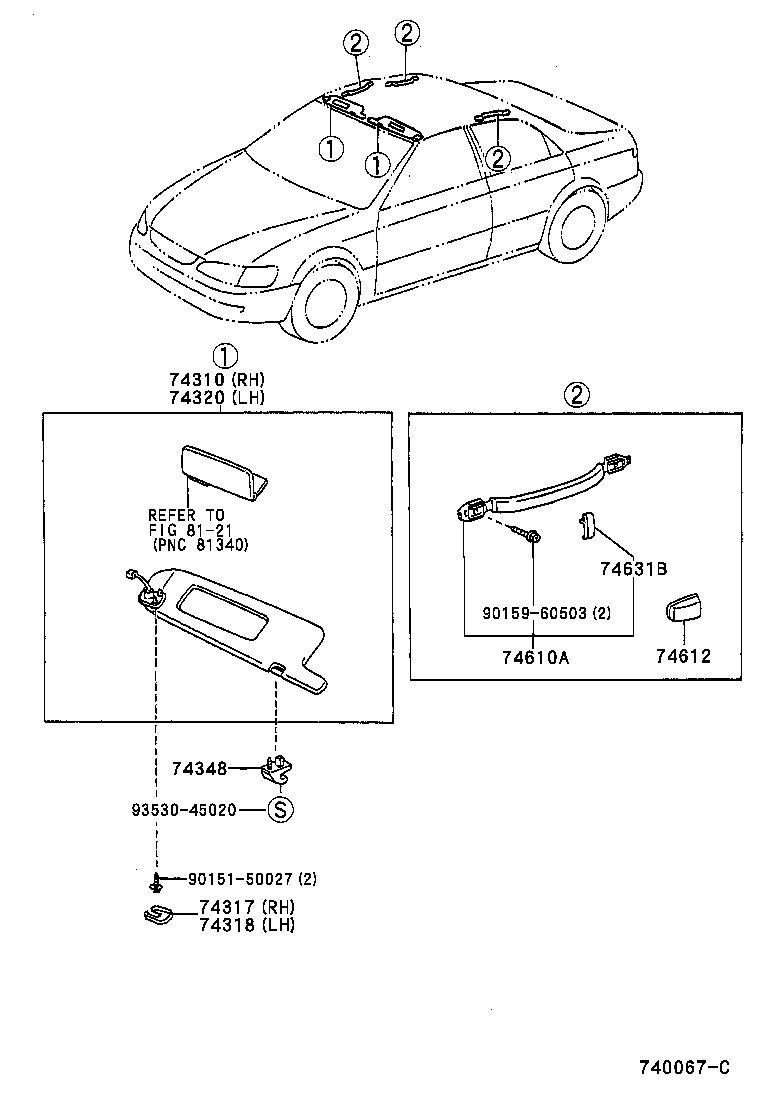

Armrest & Visor
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74230A | Panel Assy, Front Door Armrest Base, RH |
| 74240A | Panel Assy, Front Door Armrest Base, LH |
| 74270 | Panel Assy, Rear Door Armrest Base, RH |
| 74280 | Panel Assy, Rear Door Armrest Base, LH |
| 74310 | Visor Assy, RH |
| 74317 | Cover, Visor Bracket, RH |
| 74318 | Cover, Visor Bracket, LH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74610A | Grip Sub-assy, Assist |
| 74612 | Cover, Assist Grip |
| 74631B | Hook, Coat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
