Toyota Lexus ES300

1996-08 → 2001-07 · chassis MCV20 · catalogue 284460 · United States

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

38 part groups · 8 illustrations

Illustrations

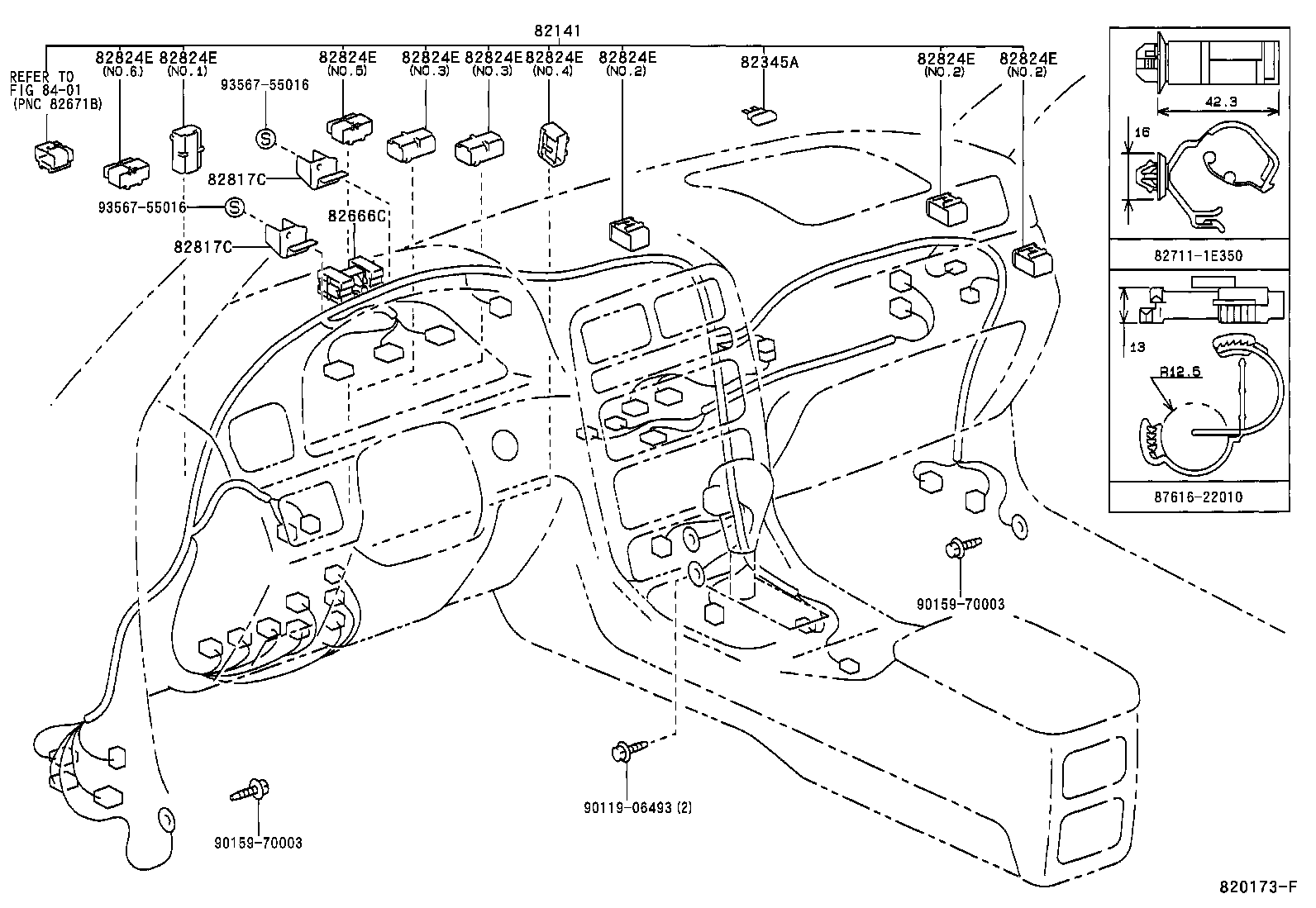

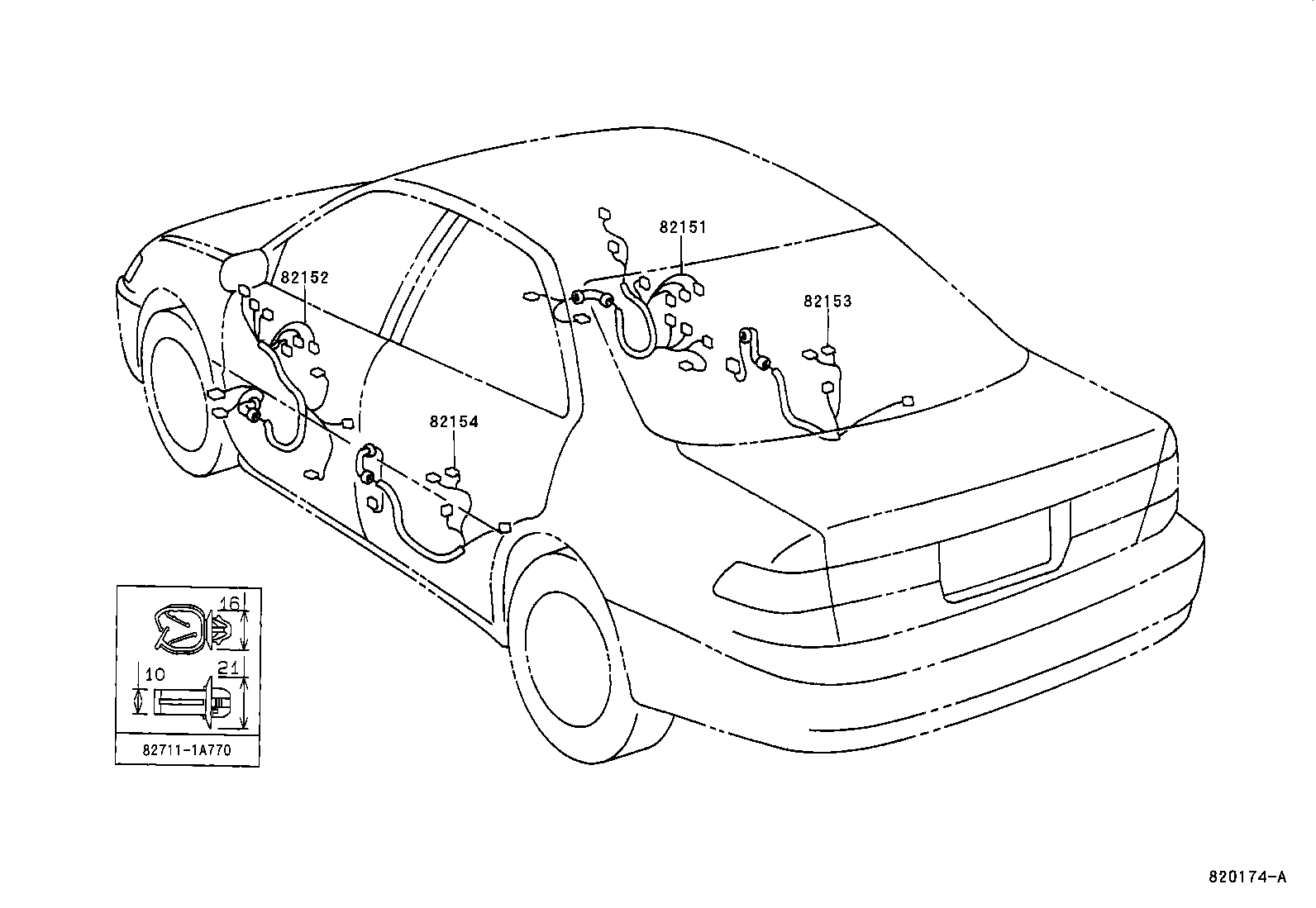

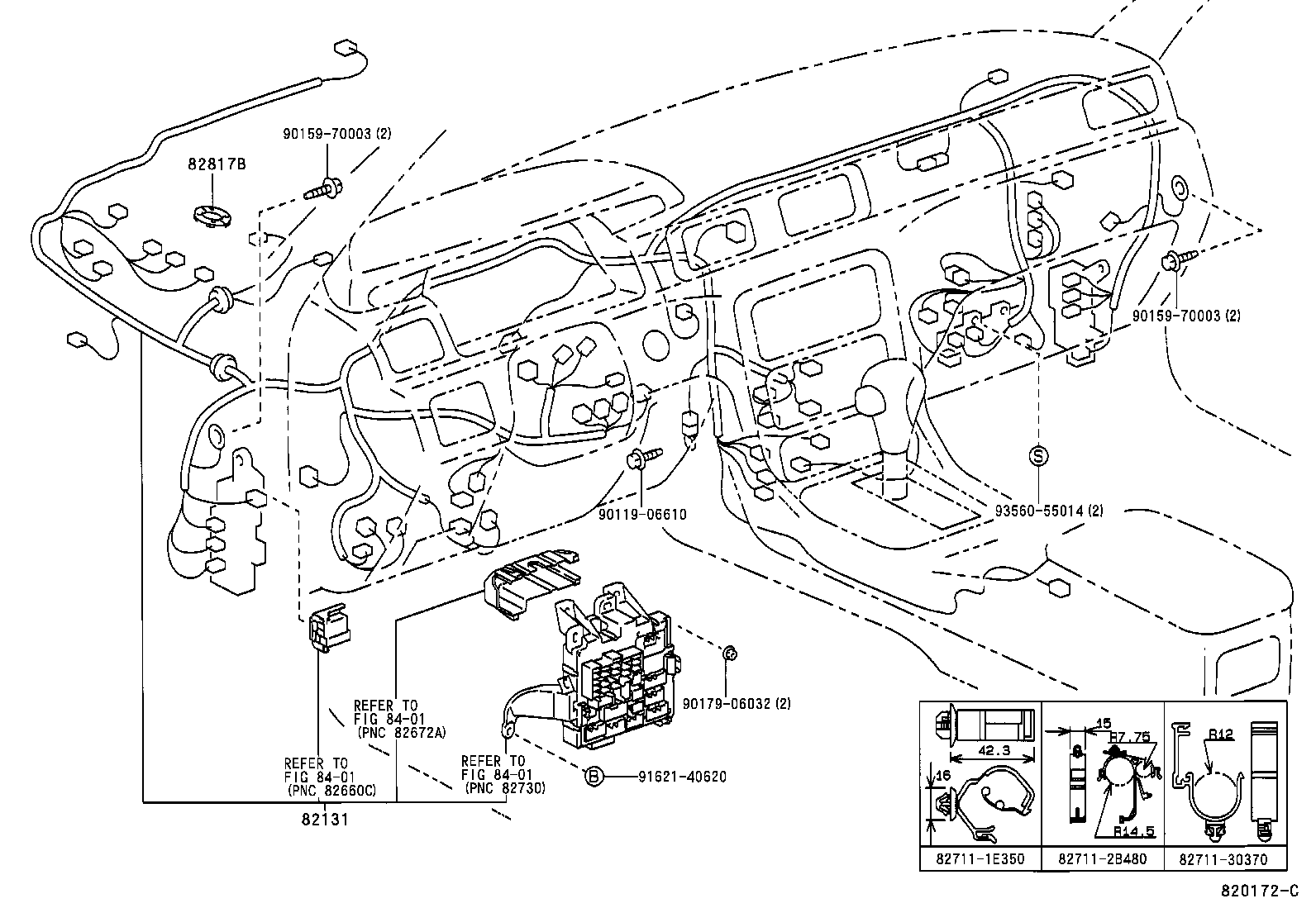

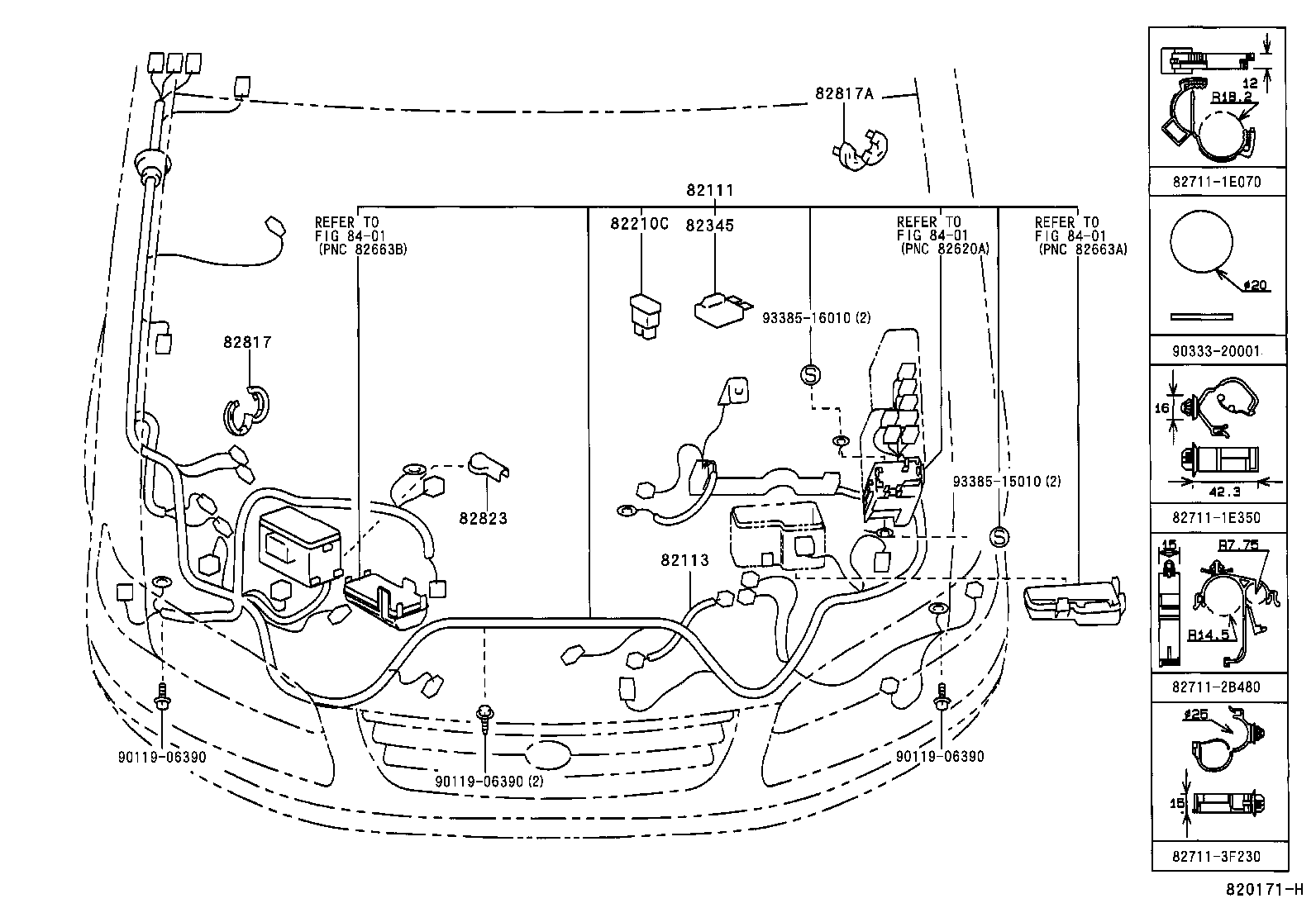

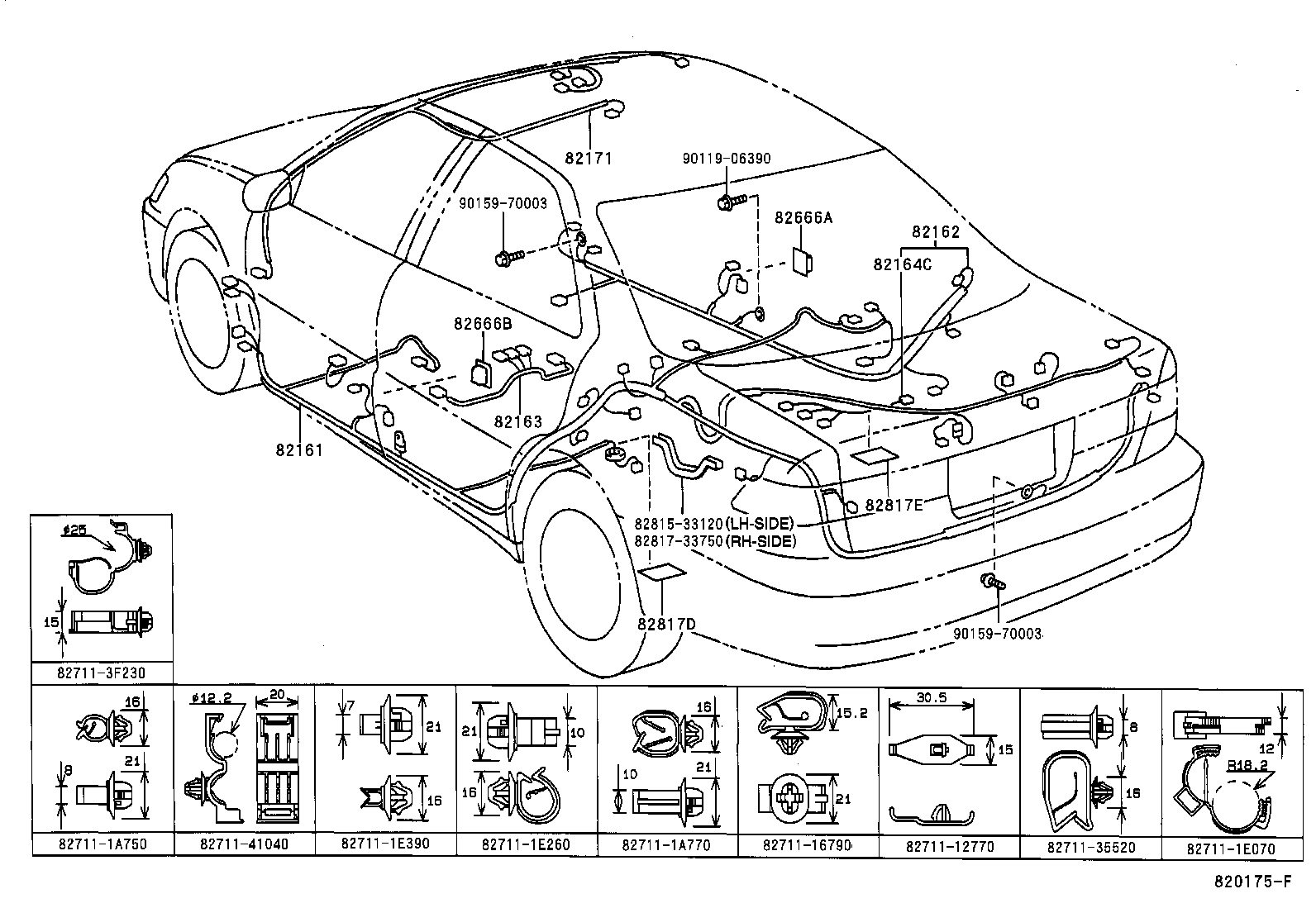

Figure 820170I 820170I 1996-08 → — Figure 820171H 820171H 1996-08 → — Figure 820172C 820172C 1996-08 → — Figure 820173F 820173F 1996-08 → — Figure 820174A 820174A 1996-08 → — Figure 820175F 820175F 1996-08 → — Figure 820176A 820176A 1996-08 → — Figure 820177A 820177A 1996-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82001G Cable, Bond, NO.4
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164C Wire, Floor, NO.4
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82210C Fusible Link
82219A Wire, Sensor
82345 Diode
82345A Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82823 Cap, Terminal, NO.1
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
