Toyota Lexus ES300

1996-08 → 2001-07 · chassis MCV20 · catalogue 284460 · United States

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

10 part groups · 3 illustrations

Illustrations

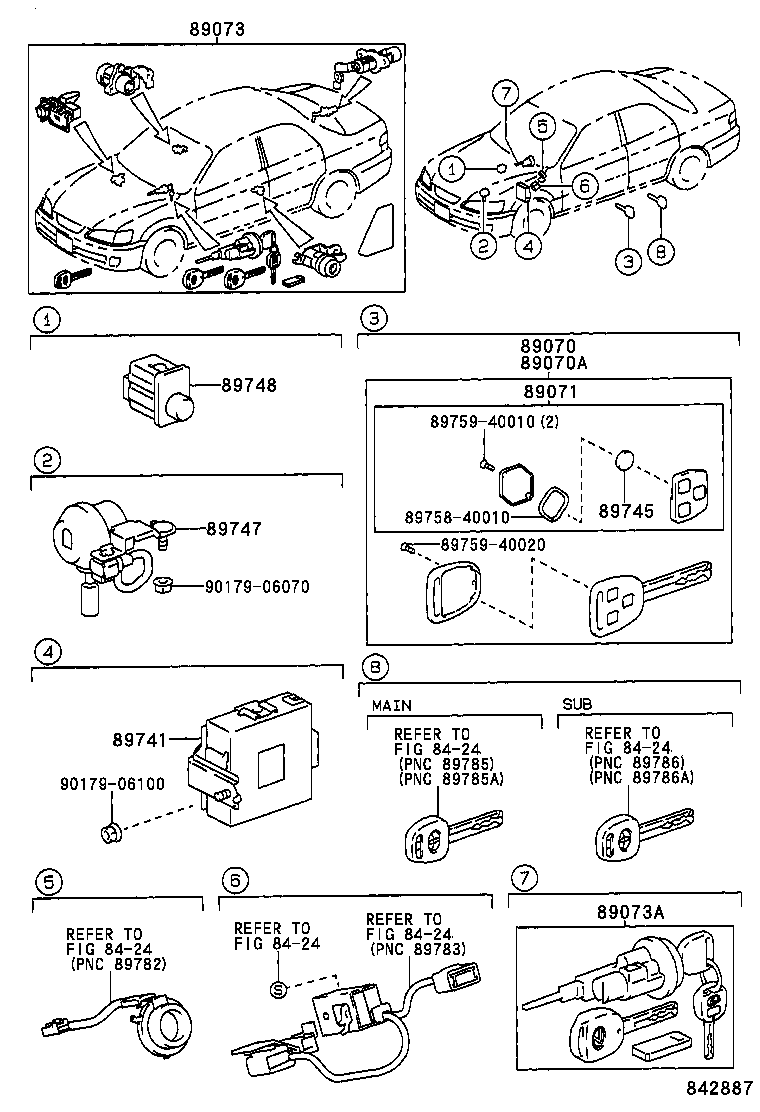

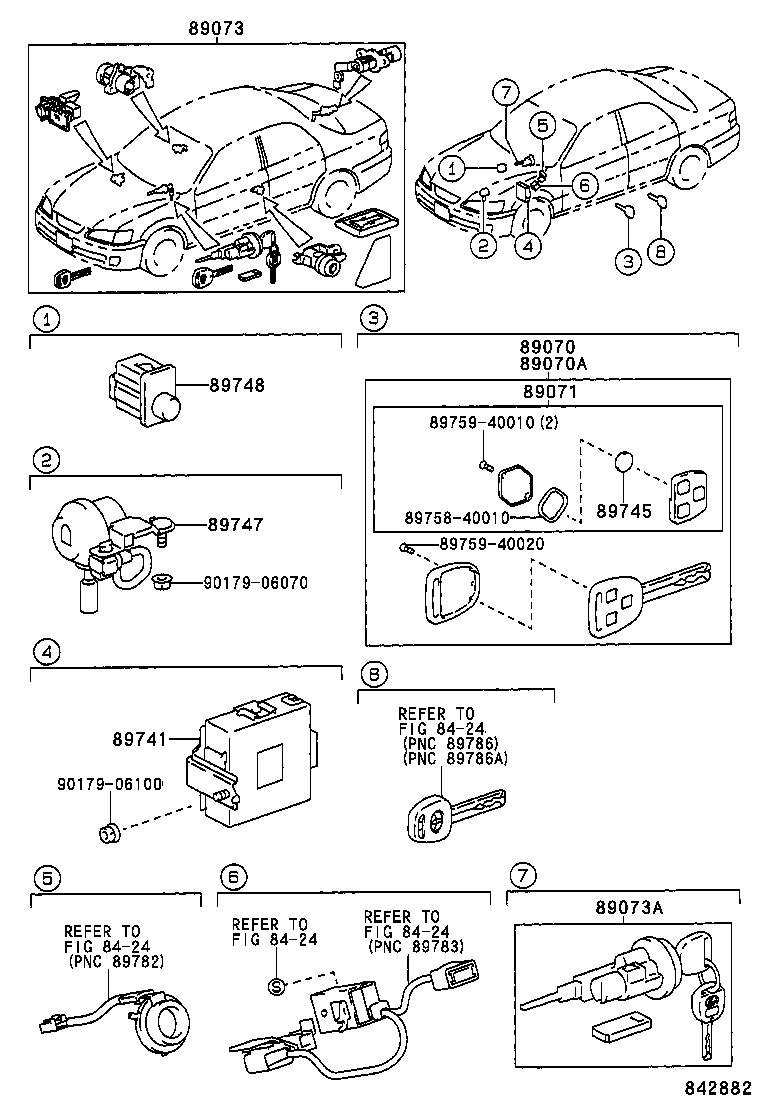

Figure 840323 840323 1996-08 → 1999-08 Figure 842882 842882 1999-08 → — Figure 842887 842887 1999-08 → —

Part groups

PNCDescription
89070 Transmitter Assy, Door Control
89070A Transmitter, Door Control (CUT KEY)
89071 Module Set, Transmitter Sub-assy, Door Control
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89073A Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY)
89741 Receiver, Door Control
89742 Transmitter, Door Control
89745 Battery, Transmitter
89747 Buzzer, Wireless Door Lock
89748 Controller, Wireless Door Lock Buzzer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
