Toyota Lexus ES300
1996-08 → 2001-07 · chassis MCV20 · catalogue 284460 · United States
Discontinued model
Data version 2001-11
Telephone & Mayday
11 part groups · 3 illustrations

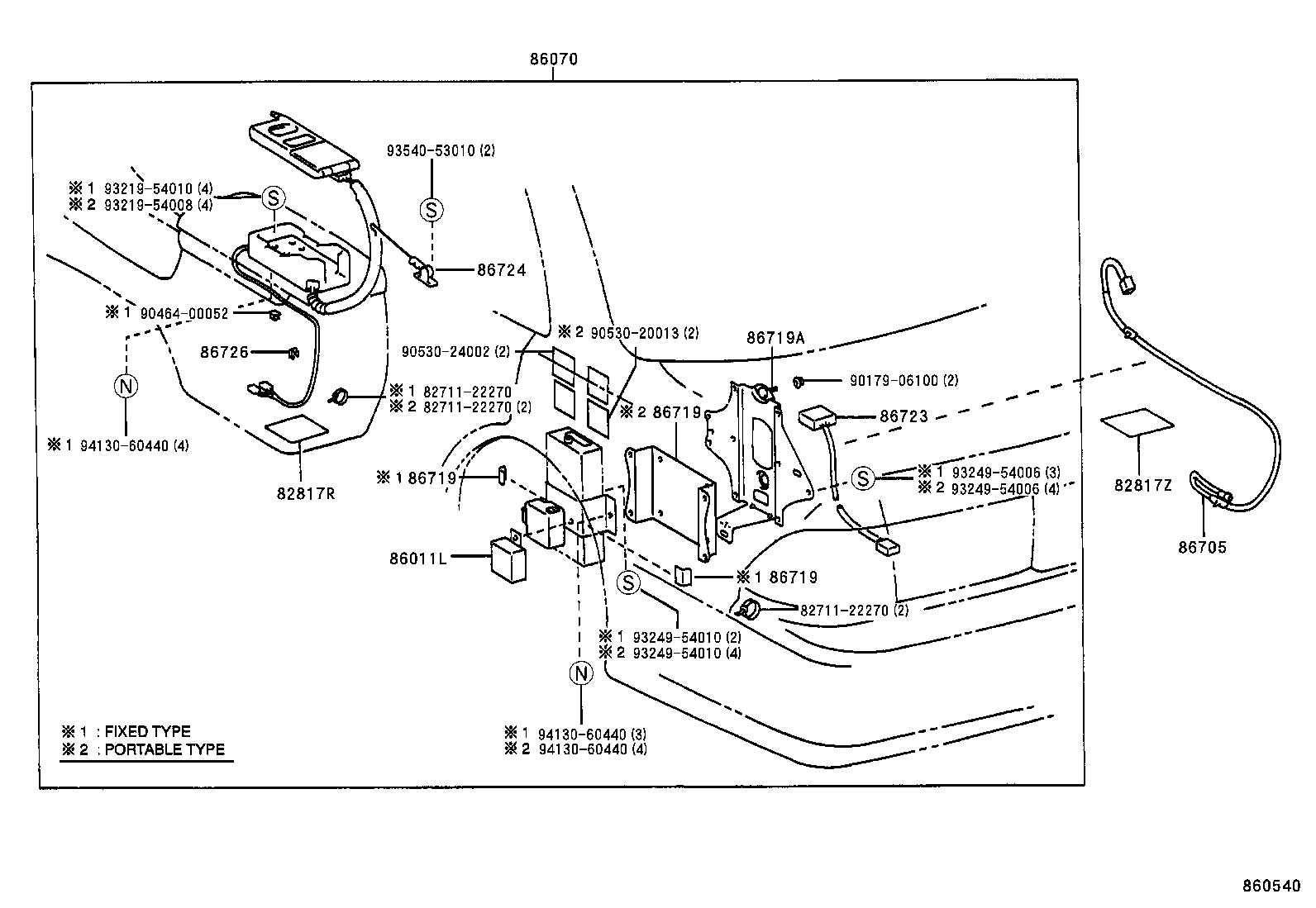

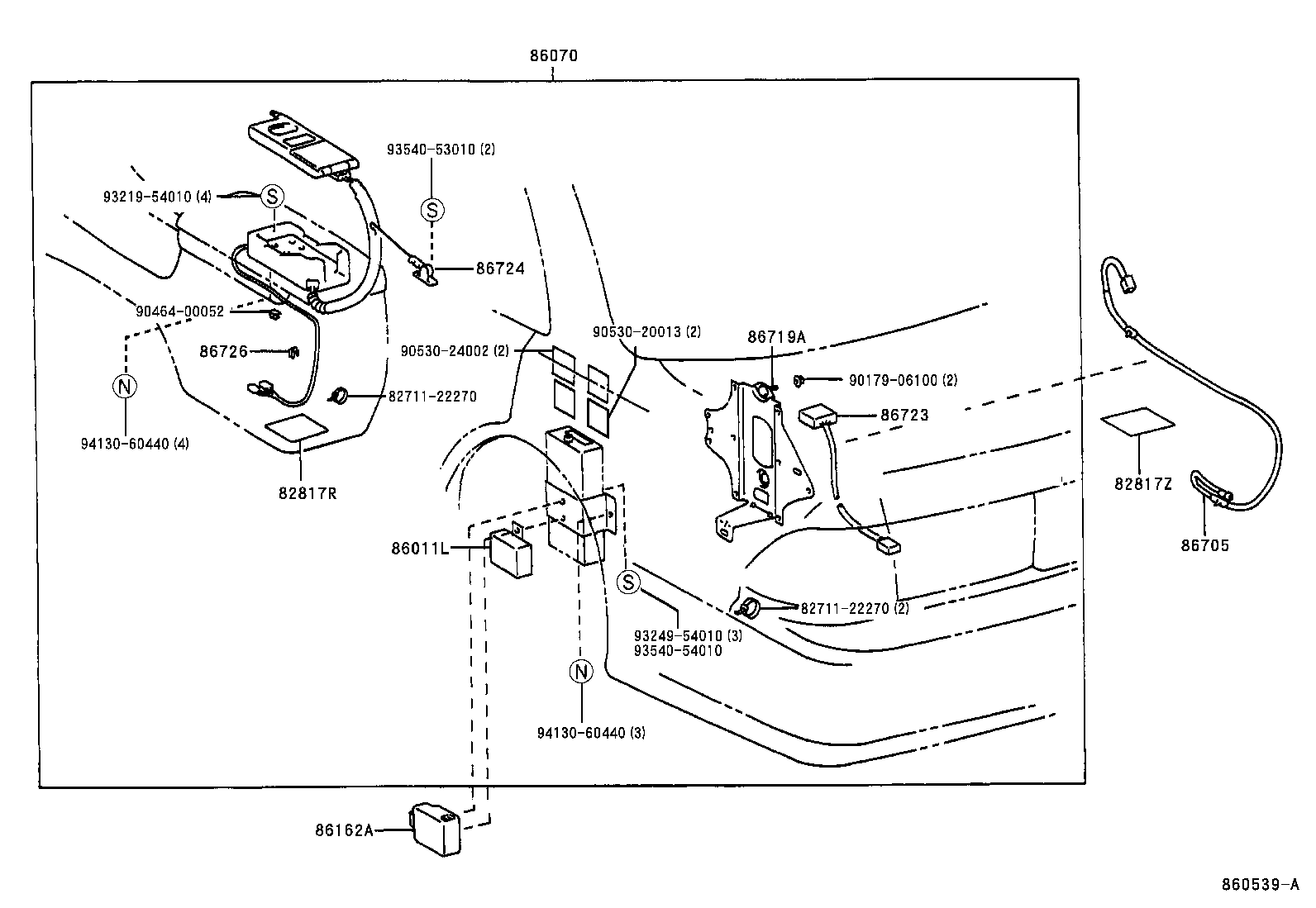

Part groups
| PNC | Description |
|---|---|
| 82817R | Protector, Wiring Harness, NO.16 |
| 82817Z | Protector, Wiring Harness, NO.2 |
| 86011L | Filter, Noise |
| 86070 | Mobilephone & Accessory Assy |
| 86162A | Relay, Speaker |
| 86705 | Cord Sub-assy, Telephone Antenna |
| 86719 | Bracket, Telephone |
| 86719A | Bracket, Telephone NO.1 |
| 86723 | Wire, Mobilephone |
| 86724 | Guide, Curl Cord |
| 86726 | Cover, Mobilephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
