Heating & Air Conditioning - Cooler Piping

14 part groups · 3 illustrations

Illustrations

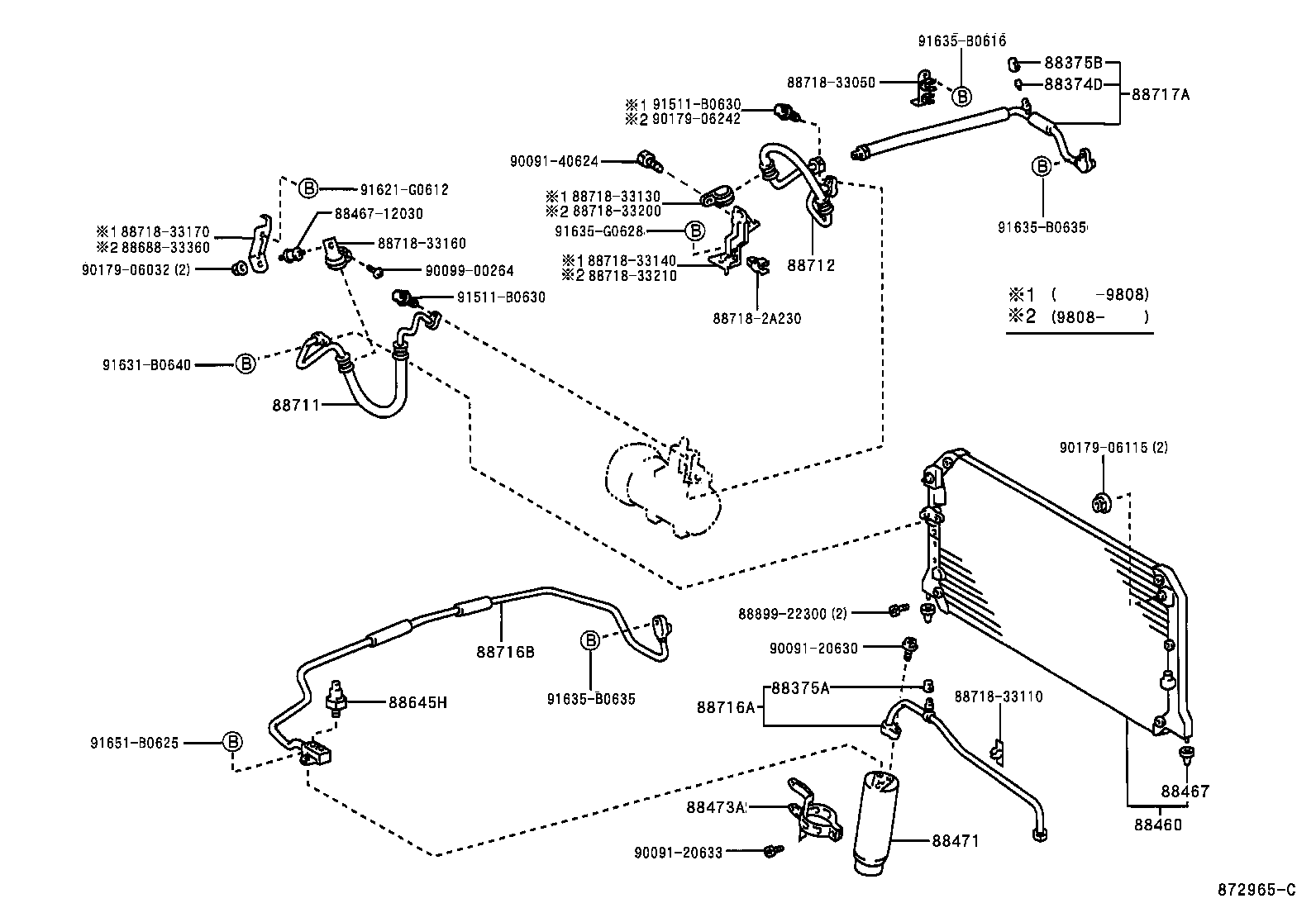

Figure 870651H 870651H 1996-08 → 1997-05 Figure 872965C 872965C 1997-05 → — Figure 871341A 871341A 1996-08 → —

Part groups

PNCDescription
88374D Valve, Service NO.3
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88469E Collar, Condenser Bracket, NO.2
88471 Tank, Receiver Air Conditioner
88473A Holder, Receiver
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88717A Pipe, Cooler Refrigerant Suction, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
