Toyota Camry (JPP)
2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States
Discontinued model
Data version 2006-08

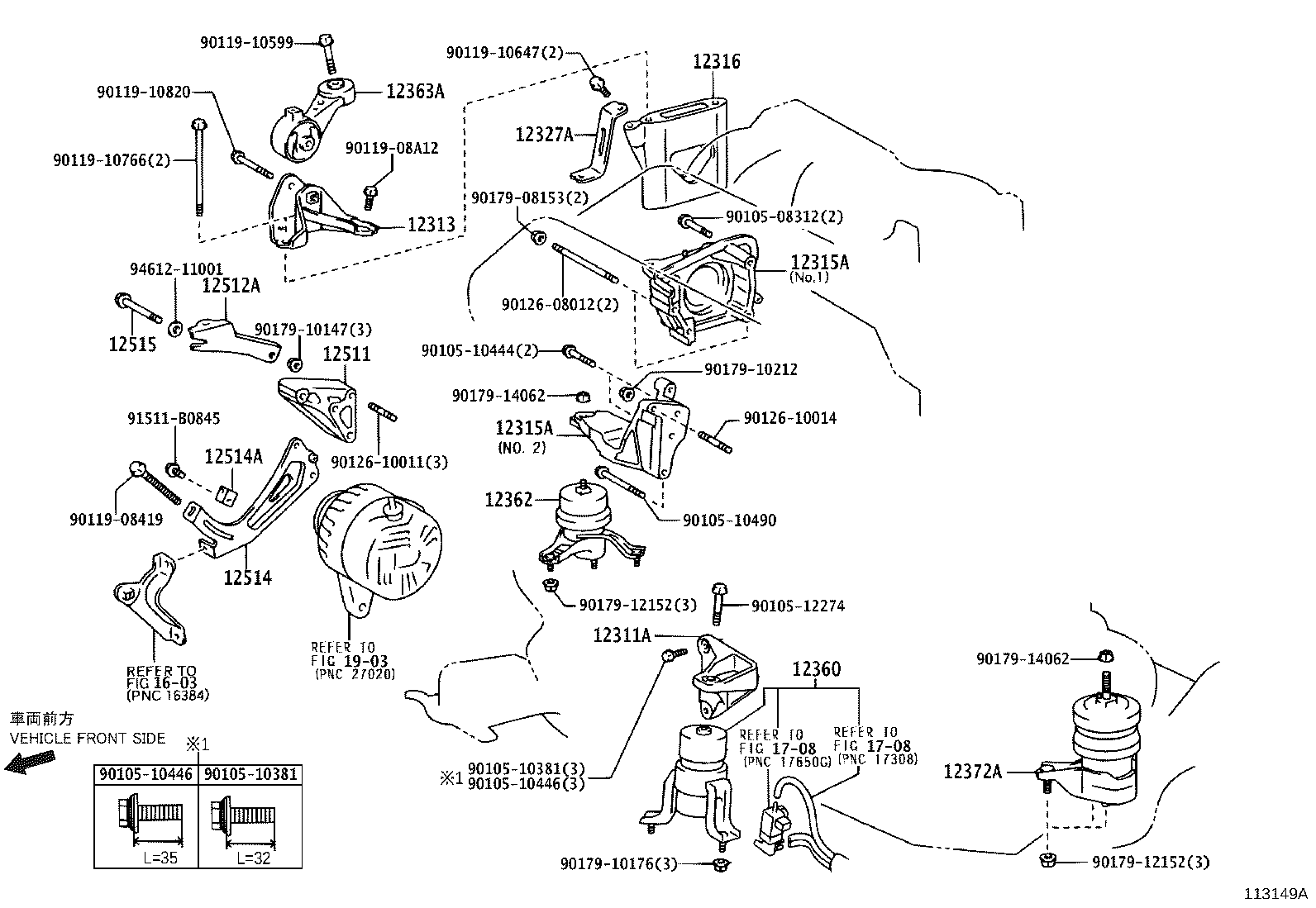

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12311A — Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE) | ||||
| 12311-20060 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2001-07 → 2003-07
ended
|
1MZFE MCV30 JPP | — | |
| 12311-20060 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2003-07 → 2004-06
ended
|
1MZFE MCV30 JPP | — | |
| 12311-20070 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2003-07 → 2004-06
ended
|
3MZFE MCV31 JPP | — | |
| 12311-28080 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2001-07 → 2004-06
ended
|
2AZFE ACV30 JPP | — | |
| 12311-20060 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2004-06 → —
|
1MZFE MCV30 JPP | — | |
| 12311-20070 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2004-06 → —
|
3MZFE MCV31 JPP | — | |
| 12311-28080 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2004-06 → —
|
2AZFE ACV30 JPP | — | |
| 12313 — Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE) | ||||
| 12313-20060 |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2001-07 → 2003-07
ended
|
1MZFE MCV30 JPP | — | |
| 12313-20060 |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2003-07 → 2004-06
ended
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12313-28020 |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2001-07 → 2004-06
ended
|
2AZFE ACV30 JPP | — | |
| 12313-20060 |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2004-06 → —
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12313-28020 |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2004-06 → —
|
2AZFE ACV30 JPP | — | |
| 12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-0A010 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2001-07 → 2003-01
ended
|
1MZFE MCV30 JPP | — | |
| 12315-0A010 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2003-01 → 2003-07
ended
|
1MZFE MCV30 JPP | — | |
| 12315-20020 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2003-07 → 2004-06
ended
|
3MZFE MCV31 JPP | — | |
| 12315-20020 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2003-01 → 2003-07
ended
|
1MZFE MCV30 JPP SE | — | |
| 12315-20020 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2003-01 → 2004-06
ended
|
1MZFE MCV30 JPP (LE,XLE) | — | |
| 12315-20030 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2001-07 → 2003-07
ended
|
1MZFE MCV30 JPP 5FC | — | |
| 12315-20030 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2001-07 → 2003-01
ended
|
1MZFE MCV30 JPP | — | |
| 12315-20040 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2003-07 → 2004-06
ended
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12315-28010 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2001-07 → 2004-06
ended
|
2AZFE ACV30 JPP | — | |
| 12315-20020 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2004-06 → —
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12315-20040 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2004-06 → —
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12315-28010 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2004-06 → —
|
2AZFE ACV30 JPP | — | |
| 12316 — Bracket, Engine Mounting, NO.2 RH | ||||
| 12316-20020 |
Bracket, Engine Mounting, NO.2 RH
2001-07 → 2003-07
ended
|
1MZFE MCV30 JPP | — | |
| 12316-20020 |
Bracket, Engine Mounting, NO.2 RH
2003-07 → 2004-06
ended
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12316-28060 |
Bracket, Engine Mounting, NO.2 RH
2001-07 → 2004-06
ended
|
2AZFE ACV30 JPP | — | |
| 12316-20020 |
Bracket, Engine Mounting, NO.2 RH
2004-06 → —
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12316-28060 |
Bracket, Engine Mounting, NO.2 RH
2004-06 → 2005-10
ended
|
2AZFE ACV30 JPP | — | |
| 12316-28061 |
Bracket, Engine Mounting, NO.2 RH
2005-10 → —
|
2AZFE ACV30 JPP | — | |
| 12327A — Stay, Engine Mounting, NO.2 RH | ||||
| 12327-20020 |
Stay, Engine Mounting, NO.2 RH
2003-07 → 2004-06
ended
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12327-20020 |
Stay, Engine Mounting, NO.2 RH
2001-07 → 2003-07
ended
|
1MZFE MCV30 JPP | — | |
| 12327-28030 |
Stay, Engine Mounting, NO.2 RH
2001-07 → 2004-06
ended
|
2AZFE ACV30 JPP | — | |
| 12327-20020 |
Stay, Engine Mounting, NO.2 RH
2004-06 → —
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12327-28030 |
Stay, Engine Mounting, NO.2 RH
2004-06 → —
|
2AZFE ACV30 JPP | — | |
| 12360 — Insulator Assy, Engine Mounting, Front | ||||
| 12360-20090 |
Insulator Assy, Engine Mounting, Front
2003-01 → 2003-07
ended
|
1MZFE MCV30 JPP | — | |
| 12360-20090 |
Insulator Assy, Engine Mounting, Front
2003-07 → 2004-06
ended
|
1MZFE MCV30 JPP | — | |
| 12360-20130 |
Insulator Assy, Engine Mounting, Front
2003-07 → 2004-06
ended
|
3MZFE MCV31 JPP | — | |
| 12360-20090 |
Insulator Assy, Engine Mounting, Front
2004-06 → —
|
1MZFE MCV30 JPP | — | |
| 12360-20130 |
Insulator Assy, Engine Mounting, Front
2004-06 → —
|
3MZFE MCV31 JPP | — | |
| 12362 — Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-20010 |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2001-07 → 2003-07
ended
|
1MZFE MCV30 JPP | — | |
| 12362-20070 |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2003-07 → 2004-06
ended
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12362-28100 |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2001-07 → 2004-06
ended
|
2AZFE ACV30 JPP | — | |
| 12362-20070 |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2004-06 → —
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12362-28100 |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2004-06 → —
|
2AZFE ACV30 JPP | — | |
| 12363A — Rod, Engine Moving Control | ||||
| 12363-20100 |
Rod, Engine Moving Control
2001-07 → 2003-07
ended
|
1MZFE MCV30 JPP | — | |
| 12363-20100 |
Rod, Engine Moving Control
2003-07 → 2004-06
ended
|
1MZFE MCV30 JPP | — | |
| 12363-20120 |
Rod, Engine Moving Control
2003-07 → 2004-06
ended
|
3MZFE MCV31 JPP | — | |
| 12363-28060 |
Rod, Engine Moving Control
2001-07 → 2004-06
ended
|
2AZFE ACV30 JPP | — | |
| 12363-20100 |
Rod, Engine Moving Control
2004-06 → 2004-09
ended
|
1MZFE MCV30 JPP | — | |
| 12363-20120 |
Rod, Engine Moving Control
2004-09 → —
|
1MZFE MCV30 JPP | — | |
| 12363-20120 |
Rod, Engine Moving Control
2004-06 → —
|
3MZFE MCV31 JPP | — | |
| 12363-28060 |
Rod, Engine Moving Control
2004-06 → —
|
2AZFE ACV30 JPP | — | |
| 12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) | ||||
| 12306-28040 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2001-07 → 2004-06
ended
|
2AZFE ACV30 JPP 5F | — | |
| 12372-20060 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2001-07 → 2003-07
ended
|
1MZFE MCV30 JPP | — | |
| 12372-20060 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2003-07 → 2004-06
ended
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12372-28020 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2001-07 → 2004-06
ended
|
2AZFE ACV30 JPP 4FC | — | |
| 12306-28040 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2004-06 → —
|
2AZFE ACV30 JPP 5F | — | |
| 12372-20060 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2004-06 → —
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12372-28020 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2004-06 → —
|
2AZFE ACV30 JPP 5FC | — | |
| 12511 — Bracket, Alternator, NO.1 | ||||
| 12511-20020 |
Bracket, Alternator, NO.1
2001-07 → 2004-06
ended
|
3MZFE MCV31 JPP;1MZFE MCV30 +3 | — | |
| 12511-20020 |
Bracket, Alternator, NO.1
2001-07 → 2003-07
ended
|
1MZFE MCV30 JPP SE +1 | — | |
| 12511-20020 |
Bracket, Alternator, NO.1
2001-07 → 2003-01
ended
|
1MZFE MCV30 JPP | — | |
| 12511-20020 |
Bracket, Alternator, NO.1
2004-06 → —
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12512A — Bracket, Alternator, NO.2 | ||||
| 12512-20020 |
Bracket, Alternator, NO.2
2001-07 → 2003-01
ended
|
1MZFE MCV30 JPP | — | |
| 12512-20020 |
Bracket, Alternator, NO.2
2001-07 → 2003-07
ended
|
1MZFE MCV30 JPP SE +1 | — | |
| 12512-20020 |
Bracket, Alternator, NO.2
2001-07 → 2004-06
ended
|
3MZFE MCV31 JPP;1MZFE MCV30 +3 | — | |
| 12512-20020 |
Bracket, Alternator, NO.2
2004-06 → —
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12514 — Bar, Alternator Belt Adjusting | ||||
| 12514-0A010 |
Bar, Alternator Belt Adjusting
2001-07 → 2003-01
ended
|
1MZFE MCV30 JPP | — | |
| 12514-0A010 note |
Bar, Alternator Belt Adjusting
2003-01 → 2003-07
ended
|
1MZFE MCV30 JPP | — | |
| 12514-20010 note |
Bar, Alternator Belt Adjusting
2003-01 → 2004-06
ended
|
1MZFE MCV30 JPP (LE,XLE) | — | |
| 12514-20010 |
Bar, Alternator Belt Adjusting
2003-07 → 2004-06
ended
|
3MZFE MCV31 JPP | — | |
| 12514-20010 note |
Bar, Alternator Belt Adjusting
2003-01 → 2003-07
ended
|
1MZFE MCV30 JPP SE | — | |
| 12514-20010 |
Bar, Alternator Belt Adjusting
2004-06 → —
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12514A — Slider, Fan Belt Adjusting | ||||
| 16385-20010 |
Slider, Fan Belt Adjusting
2001-07 → 2004-06
ended
|
1MZFE,3MZFE MCV3# JPP | — | |
| 16385-20010 |
Slider, Fan Belt Adjusting
2004-06 → —
|
1MZFE,3MZFE MCV3# JPP | — | |
| 12515 — Bolt, Alternator Through | ||||
| 12515-0A010 |
Bolt, Alternator Through
2001-07 → 2003-01
ended
|
1MZFE MCV30 JPP | — | |
| 12515-0A010 note |
Bolt, Alternator Through
2003-01 → 2003-07
ended
|
1MZFE MCV30 JPP | — | |
| 12515-20010 note |
Bolt, Alternator Through
2003-01 → 2004-06
ended
|
1MZFE MCV30 JPP | — | |
| 12515-20010 |
Bolt, Alternator Through
2003-07 → 2004-06
ended
|
3MZFE MCV31 JPP | — | |
| 12515-20010 |
Bolt, Alternator Through
2004-06 → —
|
1MZFE,3MZFE MCV3# JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
