Toyota Camry (JPP)

2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

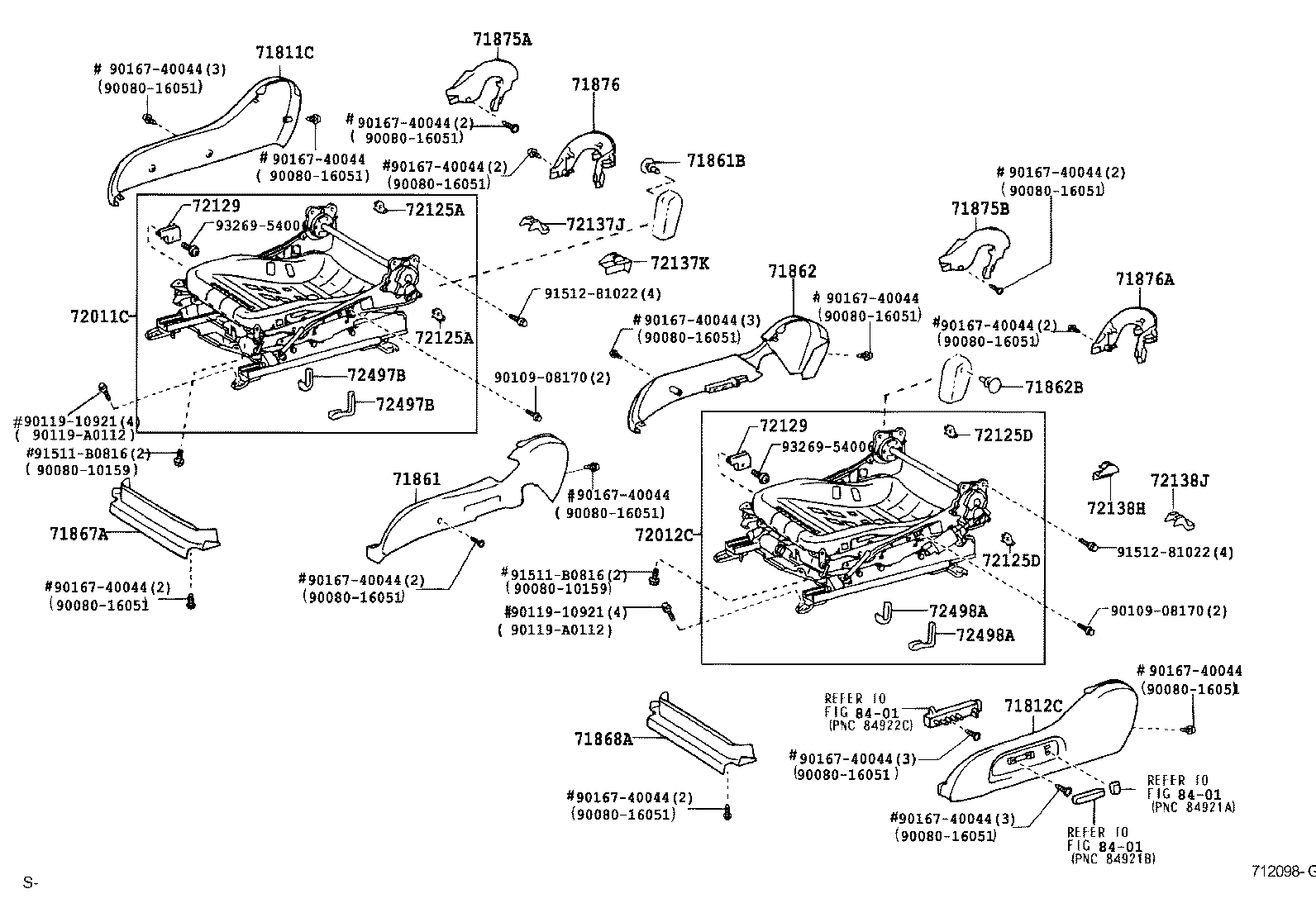

Exploded illustration 712098G 9016740044 — not listed in this catalogue 9008016051 — not listed in this catalogue 71811C — COVER, RECLINING ADJUSTER, RH (10 parts) 9016740044 — not listed in this catalogue 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (2 parts) 9326954006 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9008016051 — not listed in this catalogue 72125A — COVER, SEAT TRACK, UPPER REAR (4 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (15 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (15 parts) 72137J — COVER, FRONT SEAT TRACK, RH REAR OUTER (12 parts) 72137K — COVER, FRONT SEAT TRACK, RH REAR INNER (12 parts) 9151281022 — not listed in this catalogue 71861B — CLIP(FOR FRONT SEAT SHIELD, RH) (2 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (18 parts) 71875B — COVER, RECLINING ADJUSTER INSIDE, RH (18 parts) 9016740044 — not listed in this catalogue 9008016051 — not listed in this catalogue 71876A — COVER, RECLINING ADJUSTER INSIDE, LH (18 parts) 71862B — CLIP(FOR FRONT SEAT SHIELD, LH) (3 parts) 9008016051 — not listed in this catalogue 9008016051 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 72138J — COVER, FRONT SEAT TRACK, LH REAR OUTER (15 parts) 72138H — COVER, FRONT SEAT TRACK, LH REAR INNER (15 parts) 9151281022 — not listed in this catalogue 72125D — COVER, SEAT TRACK, UPPER REAR NO.2 (2 parts) 72125D — COVER, SEAT TRACK, UPPER REAR NO.2 (2 parts) 72498A — COVER, VERTICAL ADJUSTER BRACKET, LH (2 parts) 72498A — COVER, VERTICAL ADJUSTER BRACKET, LH (2 parts) 9010908170 — not listed in this catalogue 71812C — COVER, RECLINING ADJUSTER, LH (12 parts) 9016740044 — not listed in this catalogue 9008016051 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 9016740044 — not listed in this catalogue 9008016051 — not listed in this catalogue 9008016051 — not listed in this catalogue 9016740044 — not listed in this catalogue 8401 — not listed in this catalogue 9016740044 — not listed in this catalogue 9008016051 — not listed in this catalogue 71868A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH (9 parts) 9011910921 — not listed in this catalogue 91511B0816 — not listed in this catalogue 9008010159 — not listed in this catalogue 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (15 parts) 9008016051 — not listed in this catalogue 9016740044 — not listed in this catalogue 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (6 parts) 9008016051 — not listed in this catalogue 9016740044 — not listed in this catalogue 91511B0816 — not listed in this catalogue 9008010159 — not listed in this catalogue 9011910921 — not listed in this catalogue 72011C — ADJUSTER SUB-ASSY, FRONT SEAT, RH (2 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (4 parts) 72497B — COVER, VERTICAL ADJUSTER BRACKET, RH (2 parts) 72497B — COVER, VERTICAL ADJUSTER BRACKET, RH (2 parts) 9010908170 — not listed in this catalogue 9016740044 — not listed in this catalogue 9008016051 — not listed in this catalogue 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (2 parts) 9326954006 — not listed in this catalogue 72012C — ADJUSTER SUB-ASSY, FRONT SEAT, LH (2 parts) 9016740044 — not listed in this catalogue
712098G · 28 callouts, 42 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
211 parts on this figure
Part number Description Fitment Price
71811C — Cover, Reclining Adjuster, RH
71811-12370-B0 note Cover, Reclining Adjuster, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71811-12370-B1 note Cover, Reclining Adjuster, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71811-12370-E0 note Cover, Reclining Adjuster, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71811-33110-B0 note Cover, Reclining Adjuster, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71811-33110-B1 note Cover, Reclining Adjuster, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71811-33110-E0 note Cover, Reclining Adjuster, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71811-33130-B0 note Cover, Reclining Adjuster, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71811-33130-E0 note Cover, Reclining Adjuster, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71811-33140-B0 note Cover, Reclining Adjuster, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71811-33140-E0 note Cover, Reclining Adjuster, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71812C — Cover, Reclining Adjuster, LH
71812-12370-B0 note Cover, Reclining Adjuster, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP LE —
71812-12370-B1 note Cover, Reclining Adjuster, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71812-12370-E0 note Cover, Reclining Adjuster, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,SE) —
71812-33160-B0 note Cover, Reclining Adjuster, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP LE —
71812-33160-B1 note Cover, Reclining Adjuster, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71812-33160-E0 note Cover, Reclining Adjuster, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,SE) —
71812-33170-B0 note Cover, Reclining Adjuster, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71812-33170-B1 note Cover, Reclining Adjuster, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71812-33170-E0 note Cover, Reclining Adjuster, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71812-33180-B0 note Cover, Reclining Adjuster, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71812-33180-B1 note Cover, Reclining Adjuster, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71812-33180-E0 note Cover, Reclining Adjuster, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71861 — Shield, Front Seat Cushion, Inner RH
71861-12240-B0 note Shield, Front Seat Cushion, Inner RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71861-12240-B1 note Shield, Front Seat Cushion, Inner RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71861-12240-E0 note Shield, Front Seat Cushion, Inner RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71861-33030-B0 note Shield, Front Seat Cushion, Inner RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71861-33030-E0 note Shield, Front Seat Cushion, Inner RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71861-33040-B1 note Shield, Front Seat Cushion, Inner RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71861-33040-E0 note Shield, Front Seat Cushion, Inner RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71861-33050-B0 note Shield, Front Seat Cushion, Inner RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71861-33050-B1 note Shield, Front Seat Cushion, Inner RH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71861-33050-E0 note Shield, Front Seat Cushion, Inner RH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71861-33040-B1 note Shield, Front Seat Cushion, Inner RH
2004-06 → —
ACV30,MCV30 JPP XLE —
71861-33040-E0 note Shield, Front Seat Cushion, Inner RH
2004-06 → —
ACV30,MCV30 JPP XLE —
71861-33050-B0 note Shield, Front Seat Cushion, Inner RH
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71861-33050-B1 note Shield, Front Seat Cushion, Inner RH
2004-06 → —
ACV30,MCV31 JPP SE —
71861-33050-E0 note Shield, Front Seat Cushion, Inner RH
2004-06 → —
ACV30,MCV3# JPP —
71861B — Clip(FOR FRONT SEAT SHIELD, RH)
90467-05098-B0 note Clip(FOR FRONT SEAT SHIELD, RH)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
90467-05098-E0 note Clip(FOR FRONT SEAT SHIELD, RH)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71862 — Shield, Front Seat Cushion, Inner LH
71862-12250-B0 note Shield, Front Seat Cushion, Inner LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP LE —
71862-12250-B1 note Shield, Front Seat Cushion, Inner LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71862-12250-E0 note Shield, Front Seat Cushion, Inner LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,SE) —
71862-33040-B0 note Shield, Front Seat Cushion, Inner LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71862-33040-B1 note Shield, Front Seat Cushion, Inner LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71862-33040-E0 note Shield, Front Seat Cushion, Inner LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71862-33050-B1 note Shield, Front Seat Cushion, Inner LH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71862-33050-B2 note Shield, Front Seat Cushion, Inner LH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71862-33050-E0 note Shield, Front Seat Cushion, Inner LH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71862-33060-B0 note Shield, Front Seat Cushion, Inner LH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP LE —
71862-33060-B1 note Shield, Front Seat Cushion, Inner LH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71862-33060-E0 note Shield, Front Seat Cushion, Inner LH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP (LE,SE) —
71862-33050-B1 note Shield, Front Seat Cushion, Inner LH
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71862-33050-B2 note Shield, Front Seat Cushion, Inner LH
2004-06 → —
ACV30,MCV31 JPP SE —
71862-33050-E0 note Shield, Front Seat Cushion, Inner LH
2004-06 → —
ACV30,MCV3# JPP —
71862-33060-B0 note Shield, Front Seat Cushion, Inner LH
2004-06 → —
ACV30 JPP LE —
71862-33060-B1 note Shield, Front Seat Cushion, Inner LH
2004-06 → —
ACV30 JPP SE 5F —
71862-33060-E0 note Shield, Front Seat Cushion, Inner LH
2004-06 → —
ACV30 JPP 5F;ACV30 JPP +2 —
71862B — Clip(FOR FRONT SEAT SHIELD, LH)
90467-05098-22 note Clip(FOR FRONT SEAT SHIELD, LH)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
90467-05098-B0 note Clip(FOR FRONT SEAT SHIELD, LH)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
90467-05098-E0 note Clip(FOR FRONT SEAT SHIELD, LH)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-33030-B0 note Shield, Front Seat Cushion, Inner NO.1 RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71867-33030-E0 note Shield, Front Seat Cushion, Inner NO.1 RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71867-33040-B1 note Shield, Front Seat Cushion, Inner NO.1 RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71867-33040-E0 note Shield, Front Seat Cushion, Inner NO.1 RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71867-33040-B1 note Shield, Front Seat Cushion, Inner NO.1 RH
2004-06 → —
ACV30,MCV30 JPP XLE —
71867-33040-E0 note Shield, Front Seat Cushion, Inner NO.1 RH
2004-06 → —
ACV30,MCV30 JPP XLE —
71868A — Shield, Front Seat Cushion, Inner NO.1 LH
71867-33030-B0 note Shield, Front Seat Cushion, Inner NO.1 LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71867-33030-B1 note Shield, Front Seat Cushion, Inner NO.1 LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71867-33030-E0 note Shield, Front Seat Cushion, Inner NO.1 LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71868-33040-B1 note Shield, Front Seat Cushion, Inner NO.1 LH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71868-33040-B2 note Shield, Front Seat Cushion, Inner NO.1 LH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71868-33040-E0 note Shield, Front Seat Cushion, Inner NO.1 LH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71868-33040-B1 note Shield, Front Seat Cushion, Inner NO.1 LH
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71868-33040-B2 note Shield, Front Seat Cushion, Inner NO.1 LH
2004-06 → —
ACV30,MCV31 JPP SE —
71868-33040-E0 note Shield, Front Seat Cushion, Inner NO.1 LH
2004-06 → —
ACV30,MCV3# JPP —
71875A — Cover, Reclining Adjuster Inside, RH
71875-33030-B0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71875-33030-E0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71875-47020-B0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71875-47020-B1 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71875-47020-E0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71875-52030-B0 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71875-52030-B3 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71875-52030-E1 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71875-58030-B0 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71875-58030-E0 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71875-52030-B0 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30,MCV31 JPP SE —
71875-52030-B3 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71875-52030-E1 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30,MCV3# JPP —
71875-58030-B0 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30,MCV30 JPP XLE —
71875-58030-E0 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30,MCV30 JPP XLE —
71875B — Cover, Reclining Adjuster Inside, RH
71875-33030-B0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71875-33030-B1 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71875-33030-E0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71875-47020-B0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP LE —
71875-47020-B1 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71875-47020-E0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,SE) —
71875-52030-B0 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71875-52030-B3 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP LE —
71875-52030-E1 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP (LE,SE) —
71876-60170-B0 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71876-60170-B2 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71876-60170-E0 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71875-52030-B0 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30 JPP SE 5F —
71875-52030-B3 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30 JPP LE —
71875-52030-E1 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30 JPP 5F;ACV30 JPP +2 —
71876-60170-B0 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30,MCV31 JPP SE —
71876-60170-B2 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71876-60170-E0 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30,MCV3# JPP —
71876 — Cover, Reclining Adjuster Inside, LH
71875-60150-B2 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71875-60150-E0 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71876-33040-B0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71876-33040-E0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71876-47020-B0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71876-47020-B1 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71876-47020-E0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71876-52030-B0 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71876-52030-B3 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71876-52030-E1 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71875-60150-B2 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30,MCV30 JPP XLE —
71875-60150-E0 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30,MCV30 JPP XLE —
71876-52030-B0 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30,MCV31 JPP SE —
71876-52030-B3 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71876-52030-E1 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30,MCV3# JPP —
71876A — Cover, Reclining Adjuster Inside, LH
71876-33040-B0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71876-33040-B1 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71876-33040-E0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71876-47020-B0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP LE —
71876-47020-B1 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71876-47020-E0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,SE) —
71876-52030-B0 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71876-52030-B3 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP LE —
71876-52030-E1 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP (LE,SE) —
71876-60150-B0 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71876-60150-B2 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71876-60150-E0 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71876-52030-B0 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30 JPP SE 5F —
71876-52030-B3 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30 JPP LE —
71876-52030-E1 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30 JPP 5F;ACV30 JPP +2 —
71876-60150-B0 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30,MCV31 JPP SE —
71876-60150-B2 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71876-60150-E0 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30,MCV3# JPP —
72011C — Adjuster Sub-assy, Front Seat, RH
72010-33120 note Adjuster Sub-assy, Front Seat, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
72010-33250 Adjuster Sub-assy, Front Seat, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
72012C — Adjuster Sub-assy, Front Seat, LH
72020-33210 note Adjuster Sub-assy, Front Seat, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
72020-33220 Adjuster Sub-assy, Front Seat, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,SE) —
72125A — Cover, Seat Track, Upper Rear
72125-13040 Cover, Seat Track, Upper Rear
2001-07 → 2003-07 ended
ACV30,MCV30 JPP LE —
72125-13040 note Cover, Seat Track, Upper Rear
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
72125-33020 note Cover, Seat Track, Upper Rear
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
72125-33030 note Cover, Seat Track, Upper Rear
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
72125D — Cover, Seat Track, Upper Rear NO.2
72125-33020 note Cover, Seat Track, Upper Rear NO.2
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
72125-33030 note Cover, Seat Track, Upper Rear NO.2
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
72129 — Protector, Seat Track Lower Rail, NO.1
72129-33040 Protector, Seat Track Lower Rail, NO.1
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,SE) —
72129-33050 note Protector, Seat Track Lower Rail, NO.1
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
72137J — Cover, Front Seat Track, RH Rear Outer
72137-33030-B0 note Cover, Front Seat Track, RH Rear Outer
2001-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
72137-33030-B1 note Cover, Front Seat Track, RH Rear Outer
2001-07 → 2004-06 ended
ACV30,MCV3# JPP SE —
72137-33030-E0 note Cover, Front Seat Track, RH Rear Outer
2001-07 → 2004-06 ended
ACV30,MCV3# JPP —
72137-33040-B0 note Cover, Front Seat Track, RH Rear Outer
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
72137-33040-E0 note Cover, Front Seat Track, RH Rear Outer
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
72137-33080-B0 note Cover, Front Seat Track, RH Rear Outer
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
72137-33080-E0 note Cover, Front Seat Track, RH Rear Outer
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
72137-33030-B0 note Cover, Front Seat Track, RH Rear Outer
2004-06 → 2006-01 ended
ACV30,MCV30 JPP (LE,XLE) —
72137-33030-B1 note Cover, Front Seat Track, RH Rear Outer
2004-06 → 2006-01 ended
ACV30,MCV31 JPP SE —
72137-33030-E0 note Cover, Front Seat Track, RH Rear Outer
2004-06 → 2006-01 ended
ACV30,MCV3# JPP —
72137-33080-B0 note Cover, Front Seat Track, RH Rear Outer
2004-06 → 2006-01 ended
ACV30,MCV30 JPP XLE —
72137-33080-E0 note Cover, Front Seat Track, RH Rear Outer
2004-06 → 2006-01 ended
ACV30,MCV30 JPP XLE —
72137K — Cover, Front Seat Track, RH Rear Inner
72157-33040-B0 note Cover, Front Seat Track, RH Rear Inner
2001-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
72157-33040-B1 note Cover, Front Seat Track, RH Rear Inner
2001-07 → 2004-06 ended
ACV30,MCV3# JPP SE —
72157-33040-E0 note Cover, Front Seat Track, RH Rear Inner
2001-07 → 2004-06 ended
ACV30,MCV3# JPP —
72157-33050-B0 note Cover, Front Seat Track, RH Rear Inner
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
72157-33050-E0 note Cover, Front Seat Track, RH Rear Inner
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
72157-33090-B0 note Cover, Front Seat Track, RH Rear Inner
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
72157-33090-E0 note Cover, Front Seat Track, RH Rear Inner
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
72157-33040-B0 note Cover, Front Seat Track, RH Rear Inner
2004-06 → 2006-01 ended
ACV30,MCV30 JPP (LE,XLE) —
72157-33040-B1 note Cover, Front Seat Track, RH Rear Inner
2004-06 → 2006-01 ended
ACV30,MCV31 JPP SE —
72157-33040-E0 note Cover, Front Seat Track, RH Rear Inner
2004-06 → 2006-01 ended
ACV30,MCV3# JPP —
72157-33090-B0 note Cover, Front Seat Track, RH Rear Inner
2004-06 → 2006-01 ended
ACV30,MCV30 JPP XLE —
72157-33090-E0 note Cover, Front Seat Track, RH Rear Inner
2004-06 → 2006-01 ended
ACV30,MCV30 JPP XLE —
72138H — Cover, Front Seat Track, LH Rear Inner
72158-33040-B0 note Cover, Front Seat Track, LH Rear Inner
2001-07 → 2004-06 ended
ACV30,MCV30 JPP LE —
72158-33040-B1 note Cover, Front Seat Track, LH Rear Inner
2001-07 → 2004-06 ended
ACV30,MCV3# JPP SE —
72158-33040-E0 note Cover, Front Seat Track, LH Rear Inner
2001-07 → 2004-06 ended
ACV30,MCV3# JPP (LE,SE) —
72158-33060-B0 note Cover, Front Seat Track, LH Rear Inner
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
72158-33060-B1 note Cover, Front Seat Track, LH Rear Inner
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
72158-33060-E0 note Cover, Front Seat Track, LH Rear Inner
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
72158-33110-B0 note Cover, Front Seat Track, LH Rear Inner
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
72158-33110-B1 note Cover, Front Seat Track, LH Rear Inner
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
72158-33110-E0 note Cover, Front Seat Track, LH Rear Inner
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
72158-33040-B0 note Cover, Front Seat Track, LH Rear Inner
2004-06 → 2006-01 ended
ACV30 JPP LE —
72158-33040-B1 note Cover, Front Seat Track, LH Rear Inner
2004-06 → 2006-01 ended
ACV30 JPP SE 5F —
72158-33040-E0 note Cover, Front Seat Track, LH Rear Inner
2004-06 → 2006-01 ended
ACV30 JPP 5F;ACV30 JPP +2 —
72158-33110-B0 note Cover, Front Seat Track, LH Rear Inner
2004-06 → 2006-01 ended
ACV30,MCV30 JPP (LE,XLE) —
72158-33110-B1 note Cover, Front Seat Track, LH Rear Inner
2004-06 → 2006-01 ended
ACV30,MCV31 JPP SE —
72158-33110-E0 note Cover, Front Seat Track, LH Rear Inner
2004-06 → 2006-01 ended
ACV30,MCV3# JPP —
72138J — Cover, Front Seat Track, LH Rear Outer
72137-33030-B0 note Cover, Front Seat Track, LH Rear Outer
2001-07 → 2004-06 ended
ACV30,MCV30 JPP LE —
72137-33030-B1 note Cover, Front Seat Track, LH Rear Outer
2001-07 → 2004-06 ended
ACV30,MCV3# JPP SE —
72137-33030-E0 note Cover, Front Seat Track, LH Rear Outer
2001-07 → 2004-06 ended
ACV30,MCV3# JPP (LE,SE) —
72137-33040-B0 note Cover, Front Seat Track, LH Rear Outer
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
72137-33040-B1 note Cover, Front Seat Track, LH Rear Outer
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
72137-33040-E0 note Cover, Front Seat Track, LH Rear Outer
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
72138-33060-B0 note Cover, Front Seat Track, LH Rear Outer
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
72138-33060-B1 note Cover, Front Seat Track, LH Rear Outer
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
72138-33060-E0 note Cover, Front Seat Track, LH Rear Outer
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
72137-33030-B0 note Cover, Front Seat Track, LH Rear Outer
2004-06 → 2006-01 ended
ACV30 JPP LE —
72137-33030-B1 note Cover, Front Seat Track, LH Rear Outer
2004-06 → 2006-01 ended
ACV30 JPP SE 5F —
72137-33030-E0 note Cover, Front Seat Track, LH Rear Outer
2004-06 → 2006-01 ended
ACV30 JPP 5F;ACV30 JPP +2 —
72138-33060-B0 note Cover, Front Seat Track, LH Rear Outer
2004-06 → 2006-01 ended
ACV30,MCV30 JPP (LE,XLE) —
72138-33060-B1 note Cover, Front Seat Track, LH Rear Outer
2004-06 → 2006-01 ended
ACV30,MCV31 JPP SE —
72138-33060-E0 note Cover, Front Seat Track, LH Rear Outer
2004-06 → 2006-01 ended
ACV30,MCV3# JPP —
72497B — Cover, Vertical Adjuster Bracket, RH
72498-33010 note Cover, Vertical Adjuster Bracket, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
72498-33020 note Cover, Vertical Adjuster Bracket, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
72498A — Cover, Vertical Adjuster Bracket, LH
72498-33010 note Cover, Vertical Adjuster Bracket, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
72498-33020 note Cover, Vertical Adjuster Bracket, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
