Toyota Camry (JPP)

2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

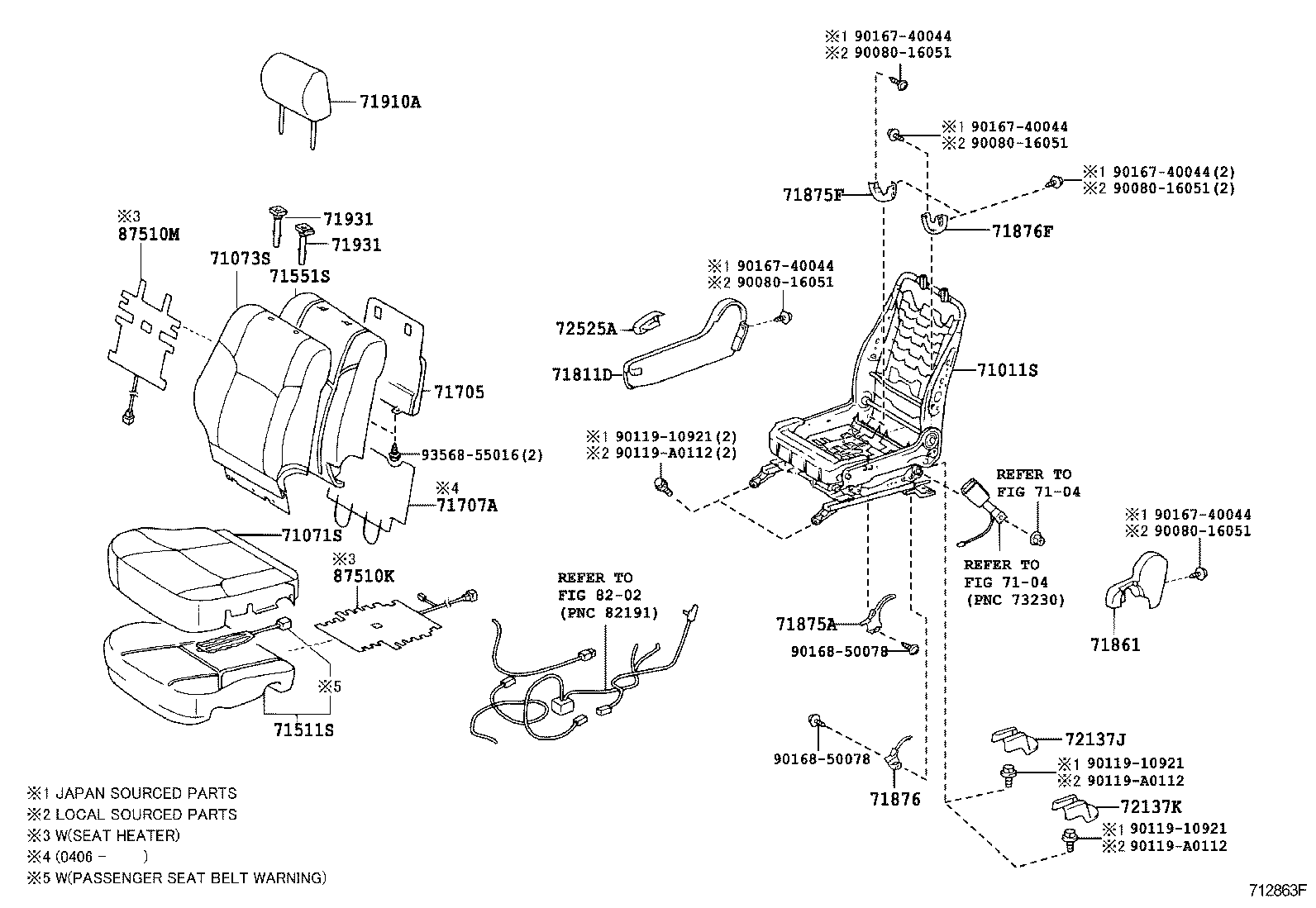

Exploded illustration 712863F 71811D — SHIELD, FRONT SEAT CUSHION, RH (10 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (7 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (15 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (9 parts) 87510K — HEATER ASSY, FRONT SEAT CUSHION, RH (3 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (61 parts) 87510M — HEATER ASSY, FRONT SEATBACK, RH (4 parts) 9016740044 — not listed in this catalogue 9008016051 — not listed in this catalogue 9008016051 — not listed in this catalogue 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (108 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (12 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (12 parts) 71910A — HEADREST ASSY, FRONT SEAT (18 parts) 71705 — BOARD SUB-ASSY, FRONT SEATBACK, RH (17 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (4 parts) 9356855016 — not listed in this catalogue 71707A — COVER SUB-ASSY, FRONT SEATBACK BOARD (10 parts) 9011910921 — not listed in this catalogue 9011910921 — not listed in this catalogue 72137J — COVER, FRONT SEAT TRACK, RH REAR OUTER (12 parts) 72137K — COVER, FRONT SEAT TRACK, RH REAR INNER (12 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (15 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (15 parts) 90119A0112 — not listed in this catalogue 71875F — COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) (4 parts) 71876F — COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) (4 parts) 90119A0112 — not listed in this catalogue 71011S — FRAME SUB-ASSY, FRONT SEAT CUSHION, RH (6 parts) 9016850078 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016850078 — not listed in this catalogue 9008016051 — not listed in this catalogue 9008016051 — not listed in this catalogue 9008016051 — not listed in this catalogue 9011910921 — not listed in this catalogue 90119A0112 — not listed in this catalogue 9016740044 — not listed in this catalogue 8202 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue
712863F · 21 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
346 parts on this figure
Part number Description Fitment Price
71011S — Frame Sub-assy, Front Seat Cushion, RH
71011-33020 Frame Sub-assy, Front Seat Cushion, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71110-33010 Frame Sub-assy, Front Seat Cushion, RH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71110-33030 note Frame Sub-assy, Front Seat Cushion, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71110-33011 Frame Sub-assy, Front Seat Cushion, RH
2004-06 → —
ACV30,MCV3# JPP —
71110-33030 note Frame Sub-assy, Front Seat Cushion, RH
2004-06 → 2005-03 ended
ACV30,MCV30 JPP XLE —
71110-33031 note Frame Sub-assy, Front Seat Cushion, RH
2005-03 → —
ACV30,MCV30 JPP XLE —
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-33390-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71071-33390-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71071-33790-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP (LE,XLE) —
71071-33790-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP (LE,XLE) —
71071-33791-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71071-33791-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71071-33800-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP (LE,XLE) —
71071-33800-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP (LE,XLE) —
71071-33801-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71071-33801-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71071-33811-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-01 → 2003-07 ended
MCV30 JPP XLE —
71071-33811-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP XLE 4FC —
71071-33811-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP XLE 4FC —
71071-33811-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-01 → 2003-07 ended
MCV30 JPP XLE —
71071-33830-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71071-33830-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71071-33840-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE 4FC —
71071-33840-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-01 → 2003-07 ended
MCV30 JPP XLE —
71071-33840-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE 4FC —
71071-33840-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-01 → 2003-07 ended
MCV30 JPP XLE —
71071-33860-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71071-33860-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71071-33870-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71071-33870-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71071-33880-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71071-33880-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71071-33890-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71071-33890-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71071-33A30-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-03 ended
ACV30 JPP LE 4FC —
71071-33A90-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71071-33A90-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71071-3T050-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71071-3T050-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71071-3T080-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71071-3T080-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71071-3T090-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71071-3T090-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71071-3T100-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71071-3T100-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71071-3T110-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71071-3T110-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71071-3T120-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71071-3T120-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71071-3T190-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-01 → 2003-07 ended
MCV30 JPP XLE —
71071-3T190-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE 4FC —
71071-3T190-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE 4FC —
71071-3T190-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-01 → 2003-07 ended
MCV30 JPP XLE —
71071-33A90-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV31 JPP SE —
71071-33A90-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV31 JPP SE —
71071-33B50-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71071-33B50-E2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71071-33B60-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71071-33B60-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71071-33B70-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-09 → —
ACV30,MCV31 JPP SE —
71071-33B70-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-09 → —
ACV30,MCV31 JPP SE —
71071-33C10-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71071-33C10-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71071-33C30-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-09 → —
ACV30,MCV31 JPP SE —
71071-33C30-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-09 → —
ACV30,MCV31 JPP SE —
71071-33C80-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71071-33C80-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-33A00-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71073-33A00-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71073-33A10-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71073-33A10-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71073-33A20-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71073-33A20-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71073-33A30-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71073-33A30-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71073-33A40-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71073-33A40-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71073-33A50-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71073-33A50-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71073-33A60-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71073-33A60-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71073-33A70-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71073-33A70-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71073-33C10-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71073-33C10-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71073-33C20-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71073-33C20-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71073-33C30-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-03 ended
ACV30 JPP LE 4FC —
71073-33C40-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-03 ended
ACV30 JPP LE 4FC —
71073-33D20-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71073-33D20-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71073-33D30-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71073-33D30-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71073-3T050-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71073-3T050-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71073-3T290-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP LE —
71073-3T290-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP LE —
71073-3T291-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP LE —
71073-3T291-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP LE —
71073-3T300-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP LE —
71073-3T300-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP LE —
71073-3T301-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP LE —
71073-3T301-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP LE —
71073-3T310-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71073-3T310-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71073-3T320-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71073-3T320-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71073-3T330-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-3T330-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-3T340-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-3T340-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-3T350-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-3T350-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-3T360-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-3T360-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-3T390-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP XLE —
71073-3T390-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP XLE —
71073-3T391-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP XLE 4FC —
71073-3T391-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-01 → 2003-07 ended
MCV30 JPP XLE —
71073-3T391-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-01 → 2003-07 ended
MCV30 JPP XLE —
71073-3T391-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP XLE 4FC —
71073-3T400-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP XLE —
71073-3T400-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP XLE —
71073-3T401-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71073-3T401-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71073-3T410-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71073-3T410-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71073-3T420-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71073-3T420-E2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71073-3T430-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP (LE,XLE) —
71073-3T430-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP (LE,XLE) —
71073-3T431-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71073-3T431-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71073-3T440-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP (LE,XLE) —
71073-3T440-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2002-10 ended
ACV30,MCV30 JPP (LE,XLE) —
71073-3T441-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71073-3T441-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2002-10 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71073-3T450-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-3T450-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-3T460-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-3T460-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-3T490-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71073-3T490-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71073-3T570-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-3T570-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-3T580-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-3T580-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71073-33B50-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71073-33B50-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71073-33B60-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71073-33B60-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71073-33D20-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV31 JPP SE —
71073-33D20-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV31 JPP SE —
71073-33D30-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV31 JPP SE —
71073-33D30-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV31 JPP SE —
71073-33E30-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71073-33E30-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71073-33E40-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71073-33E40-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71073-33E70-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71073-33E70-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71073-33E80-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71073-33E80-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71073-33E90-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-09 → —
ACV30,MCV31 JPP SE —
71073-33E90-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-09 → —
ACV30,MCV31 JPP SE —
71073-33F00-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-09 → —
ACV30,MCV31 JPP SE —
71073-33F00-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-09 → —
ACV30,MCV31 JPP SE —
71073-33G00-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71073-33G00-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71073-33G10-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71073-33G10-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71073-33G20-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-09 → —
ACV30,MCV31 JPP SE —
71073-33G20-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-09 → —
ACV30,MCV31 JPP SE —
71073-33G30-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-09 → —
ACV30,MCV31 JPP SE —
71073-33G30-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-09 → —
ACV30,MCV31 JPP SE —
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71502-33020 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (SE,XLE) —
71502-33030 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71511-33120 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71511-33130 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71511-33140 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71511-33130 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV3# JPP —
71511-33140 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV30 JPP XLE —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-33090 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71551-33110 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (SE,XLE) —
71551-33140 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71551-33140 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2004-06 → —
ACV30,MCV3# JPP —
71705 — Board Sub-assy, Front Seatback, RH
71705-33280-B2 note Board Sub-assy, Front Seatback, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71705-33280-B3 note Board Sub-assy, Front Seatback, RH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71705-33280-E2 note Board Sub-assy, Front Seatback, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71705-33280-E3 note Board Sub-assy, Front Seatback, RH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71705-33330-B0 note Board Sub-assy, Front Seatback, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71705-33330-E0 note Board Sub-assy, Front Seatback, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71705-33370-E0 note Board Sub-assy, Front Seatback, RH
2003-07 → 2004-03 ended
ACV30 JPP LE 4FC —
71705-33380-B0 note Board Sub-assy, Front Seatback, RH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71705-33380-E0 note Board Sub-assy, Front Seatback, RH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71705-33280-B5 note Board Sub-assy, Front Seatback, RH
2004-06 → —
ACV30,MCV30 JPP XLE —
71705-33280-B6 note Board Sub-assy, Front Seatback, RH
2004-09 → —
ACV30,MCV31 JPP SE —
71705-33280-E4 note Board Sub-assy, Front Seatback, RH
2004-06 → —
ACV30,MCV30 JPP XLE —
71705-33280-E4 note Board Sub-assy, Front Seatback, RH
2004-09 → —
ACV30,MCV31 JPP SE —
71705-33380-B1 note Board Sub-assy, Front Seatback, RH
2004-06 → —
ACV30,MCV31 JPP SE —
71705-33380-E1 note Board Sub-assy, Front Seatback, RH
2004-06 → —
ACV30,MCV31 JPP SE —
71705-33460-B1 note Board Sub-assy, Front Seatback, RH
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71705-33460-E1 note Board Sub-assy, Front Seatback, RH
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71707A — Cover Sub-assy, Front Seatback Board
71707-33010-B0 note Cover Sub-assy, Front Seatback Board
2004-06 → —
ACV30,MCV30 JPP XLE —
71707-33010-B1 note Cover Sub-assy, Front Seatback Board
2004-06 → —
ACV30,MCV31 JPP SE —
71707-33010-E2 note Cover Sub-assy, Front Seatback Board
2004-06 → —
ACV30,MCV31 JPP SE —
71707-33010-E2 note Cover Sub-assy, Front Seatback Board
2004-06 → —
ACV30,MCV30 JPP XLE —
71707-33020-B0 note Cover Sub-assy, Front Seatback Board
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71707-33020-E0 note Cover Sub-assy, Front Seatback Board
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71707-33030-B0 note Cover Sub-assy, Front Seatback Board
2004-06 → —
ACV30,MCV30 JPP XLE —
71707-33030-E0 note Cover Sub-assy, Front Seatback Board
2004-06 → —
ACV30,MCV30 JPP XLE —
71707-33040-B1 note Cover Sub-assy, Front Seatback Board
2004-09 → —
ACV30,MCV31 JPP SE —
71707-33040-E0 note Cover Sub-assy, Front Seatback Board
2004-09 → —
ACV30,MCV31 JPP SE —
71811D — Shield, Front Seat Cushion, RH
71811-33170-B1 note Shield, Front Seat Cushion, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71811-33170-E0 note Shield, Front Seat Cushion, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71811-33180-B0 note Shield, Front Seat Cushion, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71811-33180-B1 note Shield, Front Seat Cushion, RH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71811-33180-E0 note Shield, Front Seat Cushion, RH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71811-33170-B1 note Shield, Front Seat Cushion, RH
2004-06 → —
ACV30,MCV30 JPP XLE —
71811-33170-E0 note Shield, Front Seat Cushion, RH
2004-06 → —
ACV30,MCV30 JPP XLE —
71811-33180-B0 note Shield, Front Seat Cushion, RH
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71811-33180-B1 note Shield, Front Seat Cushion, RH
2004-06 → —
ACV30,MCV31 JPP SE —
71811-33180-E0 note Shield, Front Seat Cushion, RH
2004-06 → —
ACV30,MCV3# JPP —
71861 — Shield, Front Seat Cushion, Inner RH
71861-12240-B0 note Shield, Front Seat Cushion, Inner RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71861-12240-B1 note Shield, Front Seat Cushion, Inner RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71861-12240-E0 note Shield, Front Seat Cushion, Inner RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71861-33030-B0 note Shield, Front Seat Cushion, Inner RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71861-33030-E0 note Shield, Front Seat Cushion, Inner RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71861-33040-B1 note Shield, Front Seat Cushion, Inner RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71861-33040-E0 note Shield, Front Seat Cushion, Inner RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71861-33050-B0 note Shield, Front Seat Cushion, Inner RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71861-33050-B1 note Shield, Front Seat Cushion, Inner RH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71861-33050-E0 note Shield, Front Seat Cushion, Inner RH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71861-33040-B1 note Shield, Front Seat Cushion, Inner RH
2004-06 → —
ACV30,MCV30 JPP XLE —
71861-33040-E0 note Shield, Front Seat Cushion, Inner RH
2004-06 → —
ACV30,MCV30 JPP XLE —
71861-33050-B0 note Shield, Front Seat Cushion, Inner RH
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71861-33050-B1 note Shield, Front Seat Cushion, Inner RH
2004-06 → —
ACV30,MCV31 JPP SE —
71861-33050-E0 note Shield, Front Seat Cushion, Inner RH
2004-06 → —
ACV30,MCV3# JPP —
71875A — Cover, Reclining Adjuster Inside, RH
71875-33030-B0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71875-33030-E0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71875-47020-B0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71875-47020-B1 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71875-47020-E0 note Cover, Reclining Adjuster Inside, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71875-52030-B0 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71875-52030-B3 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71875-52030-E1 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71875-58030-B0 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71875-58030-E0 note Cover, Reclining Adjuster Inside, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71875-52030-B0 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30,MCV31 JPP SE —
71875-52030-B3 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71875-52030-E1 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30,MCV3# JPP —
71875-58030-B0 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30,MCV30 JPP XLE —
71875-58030-E0 note Cover, Reclining Adjuster Inside, RH
2004-06 → —
ACV30,MCV30 JPP XLE —
71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875-58050 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71875-58060-E0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71875-58050 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2004-06 → —
ACV30,MCV30 JPP XLE —
71875-58060 Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2004-06 → —
ACV30,MCV3# JPP —
71876 — Cover, Reclining Adjuster Inside, LH
71875-60150-B2 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71875-60150-E0 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71876-33040-B0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71876-33040-E0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
71876-47020-B0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
71876-47020-B1 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
71876-47020-E0 note Cover, Reclining Adjuster Inside, LH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
71876-52030-B0 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
71876-52030-B3 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71876-52030-E1 note Cover, Reclining Adjuster Inside, LH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71875-60150-B2 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30,MCV30 JPP XLE —
71875-60150-E0 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30,MCV30 JPP XLE —
71876-52030-B0 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30,MCV31 JPP SE —
71876-52030-B3 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71876-52030-E1 note Cover, Reclining Adjuster Inside, LH
2004-06 → —
ACV30,MCV3# JPP —
71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876-58050 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71876-58060-E0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
71876-58050 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2004-06 → —
ACV30,MCV30 JPP XLE —
71876-58060 Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2004-06 → —
ACV30,MCV3# JPP —
71910A — Headrest Assy, Front Seat
71910-33420-B0 note Headrest Assy, Front Seat
2001-07 → 2002-10 ended
ACV30,MCV30 JPP (LE,XLE) —
71910-33420-E0 note Headrest Assy, Front Seat
2001-07 → 2002-10 ended
ACV30,MCV30 JPP (LE,XLE) —
71910-33421-B0 note Headrest Assy, Front Seat
2002-10 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71910-33421-E0 note Headrest Assy, Front Seat
2002-10 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71910-33430-B0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
71910-33430-B1 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
ACV30,MCV3# JPP SE —
71910-33430-E0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
ACV30,MCV3# JPP (SE,XLE) —
71910-33440-B0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
ACV30,MCV3# JPP SE —
71910-33440-E0 note Headrest Assy, Front Seat
2001-07 → 2004-06 ended
ACV30,MCV3# JPP SE —
71910-33450-E0 note Headrest Assy, Front Seat
2003-07 → 2004-03 ended
ACV30 JPP LE 4FC —
71910-33500-B0 note Headrest Assy, Front Seat
2004-09 → —
ACV30,MCV31 JPP SE —
71910-33500-B1 note Headrest Assy, Front Seat
2004-06 → —
ACV30,MCV30 JPP XLE —
71910-33500-E0 note Headrest Assy, Front Seat
2004-09 → —
ACV30,MCV31 JPP SE —
71910-33500-E0 note Headrest Assy, Front Seat
2004-06 → —
ACV30,MCV30 JPP XLE —
71910-33510-B0 note Headrest Assy, Front Seat
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71910-33510-E0 note Headrest Assy, Front Seat
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71910-33520-B0 note Headrest Assy, Front Seat
2004-06 → —
ACV30,MCV31 JPP SE —
71910-33520-E0 note Headrest Assy, Front Seat
2004-06 → —
ACV30,MCV31 JPP SE —
71931 — Support, Front Seat Headrest
71930-42020-B3 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71930-42020-B4 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
ACV30,MCV3# JPP SE —
71930-42020-E0 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
ACV30,MCV3# JPP —
71931-42020-B3 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
71931-42020-B4 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
ACV30,MCV3# JPP SE —
71931-42020-E0 note Support, Front Seat Headrest
2001-07 → 2004-06 ended
ACV30,MCV3# JPP —
71930-42020-B3 note Support, Front Seat Headrest
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71930-42020-B4 note Support, Front Seat Headrest
2004-06 → —
ACV30,MCV31 JPP SE —
71930-42020-E0 note Support, Front Seat Headrest
2004-06 → —
ACV30,MCV3# JPP —
71931-42020-B3 note Support, Front Seat Headrest
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
71931-42020-B4 note Support, Front Seat Headrest
2004-06 → —
ACV30,MCV31 JPP SE —
71931-42020-E0 note Support, Front Seat Headrest
2004-06 → —
ACV30,MCV3# JPP —
72137J — Cover, Front Seat Track, RH Rear Outer
72137-33030-B0 note Cover, Front Seat Track, RH Rear Outer
2001-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
72137-33030-B1 note Cover, Front Seat Track, RH Rear Outer
2001-07 → 2004-06 ended
ACV30,MCV3# JPP SE —
72137-33030-E0 note Cover, Front Seat Track, RH Rear Outer
2001-07 → 2004-06 ended
ACV30,MCV3# JPP —
72137-33040-B0 note Cover, Front Seat Track, RH Rear Outer
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
72137-33040-E0 note Cover, Front Seat Track, RH Rear Outer
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
72137-33080-B0 note Cover, Front Seat Track, RH Rear Outer
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
72137-33080-E0 note Cover, Front Seat Track, RH Rear Outer
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
72137-33030-B0 note Cover, Front Seat Track, RH Rear Outer
2004-06 → 2006-01 ended
ACV30,MCV30 JPP (LE,XLE) —
72137-33030-B1 note Cover, Front Seat Track, RH Rear Outer
2004-06 → 2006-01 ended
ACV30,MCV31 JPP SE —
72137-33030-E0 note Cover, Front Seat Track, RH Rear Outer
2004-06 → 2006-01 ended
ACV30,MCV3# JPP —
72137-33080-B0 note Cover, Front Seat Track, RH Rear Outer
2004-06 → 2006-01 ended
ACV30,MCV30 JPP XLE —
72137-33080-E0 note Cover, Front Seat Track, RH Rear Outer
2004-06 → 2006-01 ended
ACV30,MCV30 JPP XLE —
72137K — Cover, Front Seat Track, RH Rear Inner
72157-33040-B0 note Cover, Front Seat Track, RH Rear Inner
2001-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
72157-33040-B1 note Cover, Front Seat Track, RH Rear Inner
2001-07 → 2004-06 ended
ACV30,MCV3# JPP SE —
72157-33040-E0 note Cover, Front Seat Track, RH Rear Inner
2001-07 → 2004-06 ended
ACV30,MCV3# JPP —
72157-33050-B0 note Cover, Front Seat Track, RH Rear Inner
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
72157-33050-E0 note Cover, Front Seat Track, RH Rear Inner
2001-07 → 2003-07 ended
ACV30,MCV30 JPP XLE —
72157-33090-B0 note Cover, Front Seat Track, RH Rear Inner
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
72157-33090-E0 note Cover, Front Seat Track, RH Rear Inner
2003-07 → 2004-06 ended
ACV30,MCV30 JPP XLE —
72157-33040-B0 note Cover, Front Seat Track, RH Rear Inner
2004-06 → 2006-01 ended
ACV30,MCV30 JPP (LE,XLE) —
72157-33040-B1 note Cover, Front Seat Track, RH Rear Inner
2004-06 → 2006-01 ended
ACV30,MCV31 JPP SE —
72157-33040-E0 note Cover, Front Seat Track, RH Rear Inner
2004-06 → 2006-01 ended
ACV30,MCV3# JPP —
72157-33090-B0 note Cover, Front Seat Track, RH Rear Inner
2004-06 → 2006-01 ended
ACV30,MCV30 JPP XLE —
72157-33090-E0 note Cover, Front Seat Track, RH Rear Inner
2004-06 → 2006-01 ended
ACV30,MCV30 JPP XLE —
72525A — Handle, Reclining Adjuster Release, RH
72525-47020-B0 note Handle, Reclining Adjuster Release, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (LE,XLE) —
72525-47020-B1 note Handle, Reclining Adjuster Release, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP SE —
72525-47020-E0 note Handle, Reclining Adjuster Release, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP —
72525-58030-B0 note Handle, Reclining Adjuster Release, RH
2003-07 → 2004-06 ended
ACV30,MCV31 JPP SE —
72525-58030-B3 note Handle, Reclining Adjuster Release, RH
2003-07 → 2004-06 ended
ACV30,MCV30 JPP (LE,XLE) —
72525-58030-E1 note Handle, Reclining Adjuster Release, RH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP —
72525-58030-B0 note Handle, Reclining Adjuster Release, RH
2004-06 → —
ACV30,MCV31 JPP SE —
72525-58030-B3 note Handle, Reclining Adjuster Release, RH
2004-06 → —
ACV30,MCV30 JPP (LE,XLE) —
72525-58030-E1 note Handle, Reclining Adjuster Release, RH
2004-06 → —
ACV30,MCV3# JPP —
87510K — Heater Assy, Front Seat Cushion, RH
87510-06010 Heater Assy, Front Seat Cushion, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (SE,XLE) —
87510-06030 Heater Assy, Front Seat Cushion, RH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP (SE,XLE) —
87510-06030 Heater Assy, Front Seat Cushion, RH
2004-06 → —
ACV30,MCV3# JPP (SE,XLE) —
87510M — Heater Assy, Front Seatback, RH
87510-06020 Heater Assy, Front Seatback, RH
2001-07 → 2003-07 ended
ACV30,MCV30 JPP (SE,XLE) —
87530-06010 Heater Assy, Front Seatback, RH
2003-07 → 2004-06 ended
ACV30,MCV3# JPP (SE,XLE) —
87530-06010 Heater Assy, Front Seatback, RH
2004-06 → —
ACV30,MCV31 JPP SE —
87530-06010 Heater Assy, Front Seatback, RH
2004-06 → —
ACV30,MCV30 JPP XLE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
