Toyota Camry (JPP)
2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States
Discontinued model
Data version 2006-08

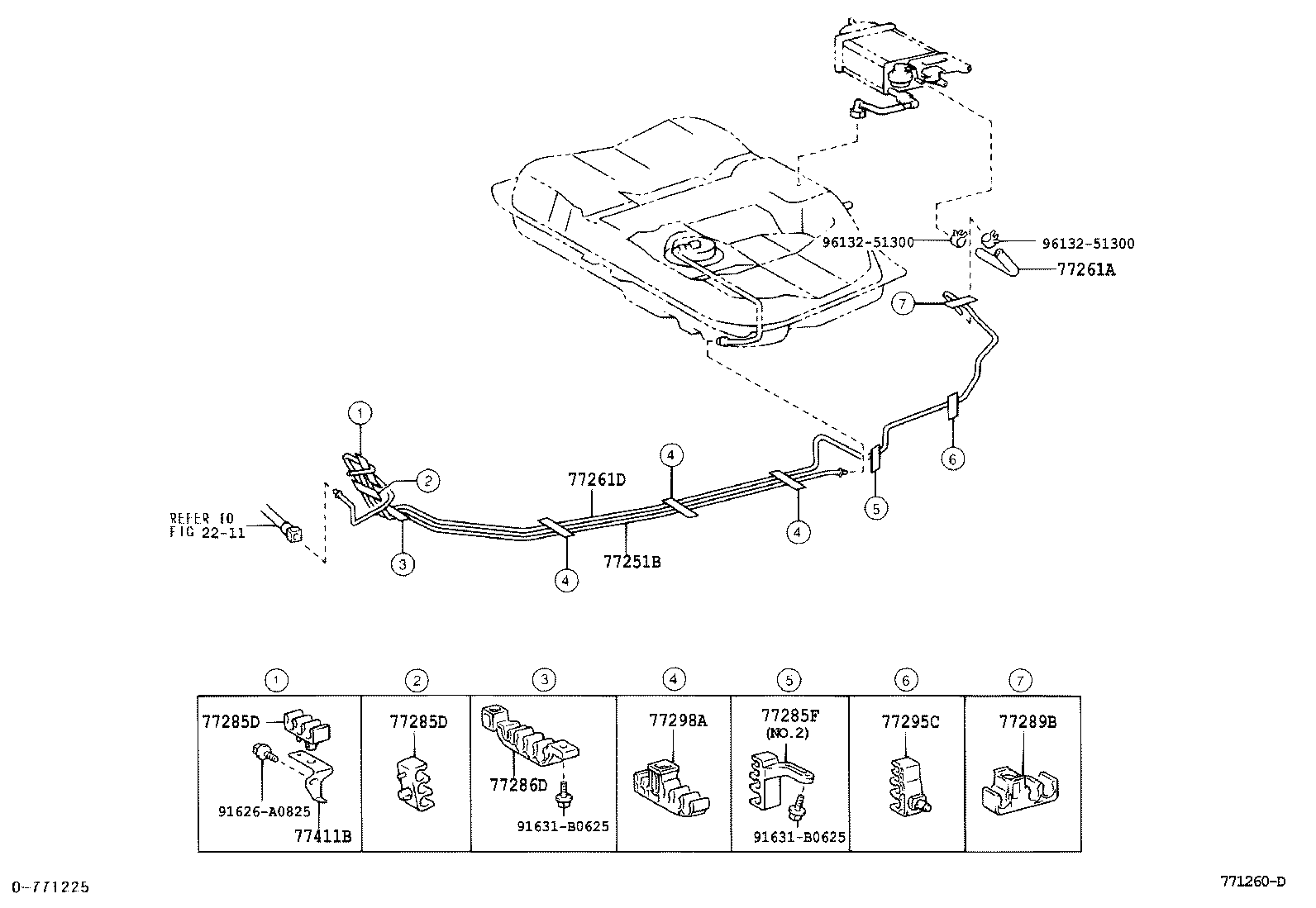

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77251B — Tube, Fuel Main | ||||
| 77251-33120 |
Tube, Fuel Main
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 77251-33120 |
Tube, Fuel Main
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 77261A — Hose, Fuel, NO.1 (FOR FUEL EMISSION TUBE) | ||||
| 95333-08020 note |
Hose, Fuel, NO.1 (FOR FUEL EMISSION TUBE)
2001-07 → 2003-07
ended
|
ACV30,MCV30 JPP | — | |
| 95333-08020 note |
Hose, Fuel, NO.1 (FOR FUEL EMISSION TUBE)
2002-12 → 2004-06
ended
|
ACV30,MCV31 JPP ATM | — | |
| 95333-08020 note |
Hose, Fuel, NO.1 (FOR FUEL EMISSION TUBE)
2003-07 → 2004-06
ended
|
ACV30,MCV30 JPP (5F,5FC) | — | |
| 95333-08020 note |
Hose, Fuel, NO.1 (FOR FUEL EMISSION TUBE)
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 77261D — Tube, Fuel Tank TO Canister | ||||
| 77261-33110 |
Tube, Fuel Tank TO Canister
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 77261-33110 |
Tube, Fuel Tank TO Canister
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 77285D — Clamp, Fuel Tube, NO.1 | ||||
| 77285-33060 |
Clamp, Fuel Tube, NO.1
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 77285-33060 |
Clamp, Fuel Tube, NO.1
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 77285F — Clamp, Fuel Tube, NO.1 | ||||
| 77285-33070 note |
Clamp, Fuel Tube, NO.1
2002-12 → 2004-06
ended
|
ACV30 JPP 4FC | — | |
| 77285-33070 note |
Clamp, Fuel Tube, NO.1
2003-07 → 2004-06
ended
|
ACV30,MCV3# JPP (5F,5FC) | — | |
| 77299-33040 note |
Clamp, Fuel Tube, NO.1
2003-07 → 2004-06
ended
|
ACV30,MCV3# JPP (5F,5FC) | — | |
| 77299-33040 |
Clamp, Fuel Tube, NO.1
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 77285-33070 note |
Clamp, Fuel Tube, NO.1
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 77299-33040 note |
Clamp, Fuel Tube, NO.1
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 77286D — Clamp, Fuel Tube, NO.2 | ||||
| 77286-33040 |
Clamp, Fuel Tube, NO.2
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 77286-33040 |
Clamp, Fuel Tube, NO.2
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 77289B — Clamp, Fuel Tube, NO.3 | ||||
| 77289-33050 |
Clamp, Fuel Tube, NO.3
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 77289-33050 |
Clamp, Fuel Tube, NO.3
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 77295C — Grommet, Fuel Tube | ||||
| 77295-33020 |
Grommet, Fuel Tube
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 77295-33020 |
Grommet, Fuel Tube
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 77298A — Clamp, Fuel Tube, NO.4 | ||||
| 77298-20080 |
Clamp, Fuel Tube, NO.4
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 77298-20080 |
Clamp, Fuel Tube, NO.4
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 77411B — Support, Fuel Tube Grommet, NO.1 | ||||
| 77412-33040 |
Support, Fuel Tube Grommet, NO.1
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 77412-33040 |
Support, Fuel Tube Grommet, NO.1
2004-06 → —
|
ACV30,MCV3# JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
