Toyota Camry (JPP)
2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States
Discontinued model
Data version 2006-08

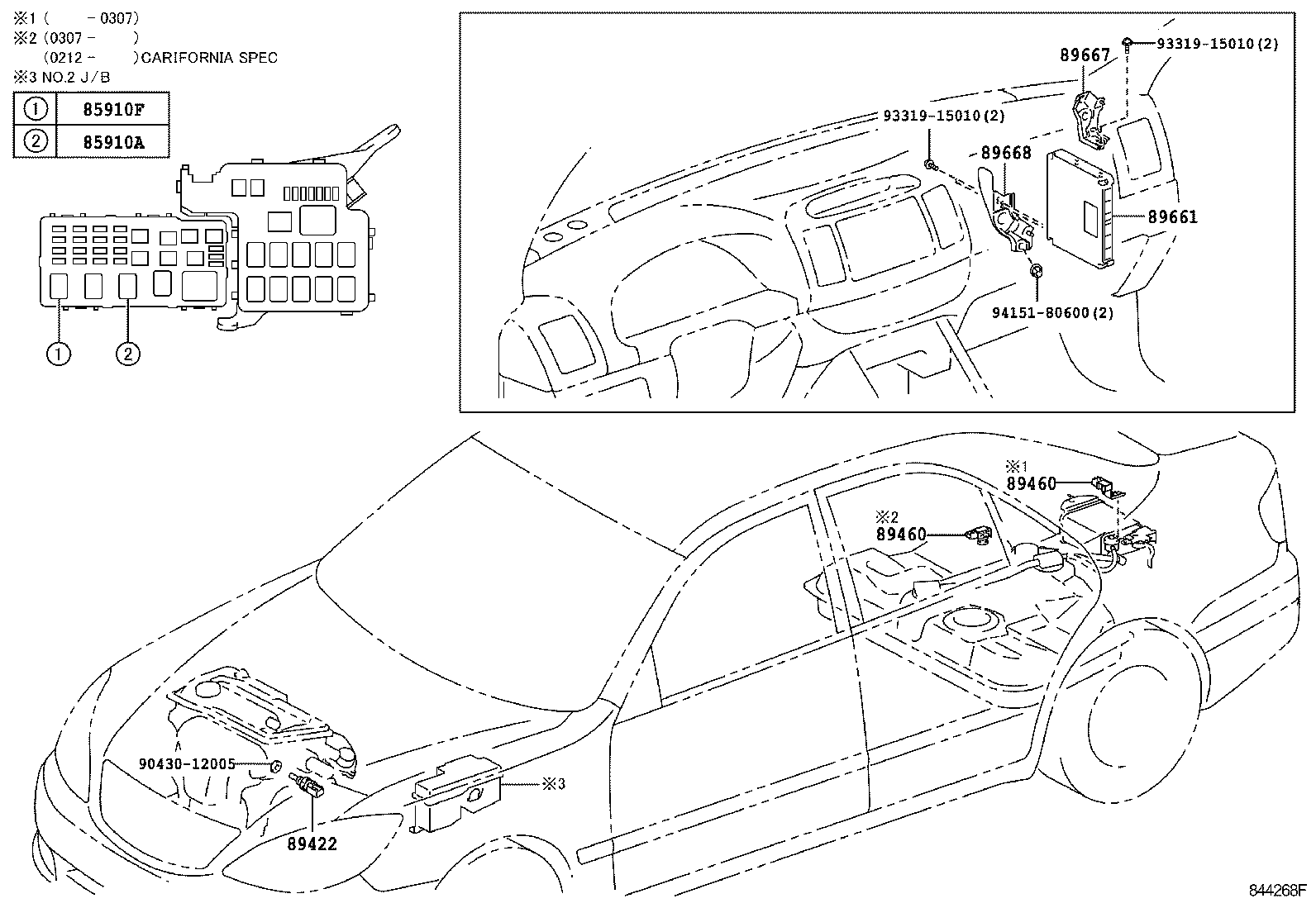

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85910A — Relay Assy, Circuit Opening (FOR EFI) | ||||
| 90987-02012 |
Relay Assy, Circuit Opening (FOR EFI)
2001-07 → 2003-03
ended
|
ACV30,MCV30 JPP | — | |
| 90987-02027 |
Relay Assy, Circuit Opening (FOR EFI)
2003-03 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 90987-02027 |
Relay Assy, Circuit Opening (FOR EFI)
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 85910F — Relay, Computer (FOR EFI) | ||||
| 90987-02012 |
Relay, Computer (FOR EFI)
2001-07 → 2003-03
ended
|
ACV30,MCV30 JPP | — | |
| 90987-02027 |
Relay, Computer (FOR EFI)
2003-03 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 90987-02027 |
Relay, Computer (FOR EFI)
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 89422 — Sensor, Water Temperature (FOR E.F.I.) | ||||
| 89422-06010 note |
Sensor, Water Temperature (FOR E.F.I.)
2002-08 → 2004-06
ended
|
ACV30 JPP | — | |
| 89422-16010 |
Sensor, Water Temperature (FOR E.F.I.)
2001-07 → 2002-08
ended
|
ACV30 JPP | — | |
| 89422-33020 note |
Sensor, Water Temperature (FOR E.F.I.)
2001-07 → 2004-06
ended
|
MCV3# JPP | — | |
| 89422-33030 note |
Sensor, Water Temperature (FOR E.F.I.)
2002-08 → 2004-06
ended
|
ACV30 JPP | — | |
| 89422-35010 note |
Sensor, Water Temperature (FOR E.F.I.)
2001-07 → 2004-06
ended
|
MCV3# JPP | — | |
| 89422-06010 note |
Sensor, Water Temperature (FOR E.F.I.)
2004-06 → —
|
ACV30 JPP | — | |
| 89422-33020 note |
Sensor, Water Temperature (FOR E.F.I.)
2004-06 → —
|
MCV3# JPP | — | |
| 89422-33030 note |
Sensor, Water Temperature (FOR E.F.I.)
2004-06 → —
|
ACV30 JPP | — | |
| 89422-35010 note |
Sensor, Water Temperature (FOR E.F.I.)
2004-06 → —
|
MCV3# JPP | — | |
| 89460 — Sensor Assy, Vapor Pressure | ||||
| 89460-07030 note |
Sensor Assy, Vapor Pressure
2001-07 → 2003-07
ended
|
ACV30,MCV30 JPP | — | |
| 89460-33010 note |
Sensor Assy, Vapor Pressure
2001-07 → 2003-07
ended
|
ACV30,MCV30 JPP | — | |
| 89461-33020 note |
Sensor Assy, Vapor Pressure
2002-12 → 2004-06
ended
|
ACV30 JPP 4FC | — | |
| 89461-35010 |
Sensor Assy, Vapor Pressure
2003-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 89461-33020 note |
Sensor Assy, Vapor Pressure
2004-06 → —
|
ACV30 JPP 5FC | — | |
| 89461-35010 |
Sensor Assy, Vapor Pressure
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 89661 — Computer, Engine Control | ||||
| 89661-06A00 note |
Computer, Engine Control
2003-07 → 2003-12
ended
|
ACV30 JPP 4FC | — | |
| 89661-06A01 note |
Computer, Engine Control
2003-12 → 2004-01
ended
|
ACV30 JPP 4FC | — | |
| 89661-06A02 note |
Computer, Engine Control
2004-02 → 2004-06
ended
|
ACV30 JPP 4FC | — | |
| 89661-06A10 note |
Computer, Engine Control
2003-07 → 2004-01
ended
|
MCV30 JPP | — | |
| 89661-06A11 note |
Computer, Engine Control
2004-01 → 2004-06
ended
|
MCV30 JPP | — | |
| 89661-0X030 note |
Computer, Engine Control
2002-12 → 2003-07
ended
|
ACV30 JPP 4FC | — | |
| 89661-0X040 note |
Computer, Engine Control
2002-08 → 2003-07
ended
|
ACV30 JPP (LE,SE) 4FC | — | |
| 89661-0X050 note |
Computer, Engine Control
2002-08 → 2003-07
ended
|
ACV30 JPP 4FC | — | |
| 89661-33780 |
Computer, Engine Control
2003-07 → 2004-06
ended
|
ACV30 JPP 5F | — | |
| 89661-33A10 |
Computer, Engine Control
2003-07 → 2004-03
ended
|
MCV31 JPP | — | |
| 89661-33A11 |
Computer, Engine Control
2004-04 → 2004-06
ended
|
MCV31 JPP | — | |
| 89661-33A70 note |
Computer, Engine Control
2003-07 → 2003-12
ended
|
ACV30 JPP 4FC | — | |
| 89661-33A71 note |
Computer, Engine Control
2003-12 → 2004-01
ended
|
ACV30 JPP 4FC | — | |
| 89661-33A72 note |
Computer, Engine Control
2004-02 → 2004-06
ended
|
ACV30 JPP 4FC | — | |
| 89661-3T170 note |
Computer, Engine Control
2001-07 → 2002-08
ended
|
ACV30 JPP 5F | — | |
| 89661-3T530 note |
Computer, Engine Control
2001-07 → 2002-08
ended
|
ACV30 JPP (LE,SE) 4FC | — | |
| 89661-3T540 note |
Computer, Engine Control
2001-07 → 2002-08
ended
|
ACV30 JPP 5F | — | |
| 89661-3T550 note |
Computer, Engine Control
2001-07 → 2002-08
ended
|
ACV30 JPP 4FC | — | |
| 89661-3T660 note |
Computer, Engine Control
2001-07 → 2001-09
ended
|
MCV30 JPP | — | |
| 89661-3T661 note |
Computer, Engine Control
2001-09 → 2001-10
ended
|
MCV30 JPP | — | |
| 89661-3T663 note |
Computer, Engine Control
2001-10 → 2002-03
ended
|
MCV30 JPP | — | |
| 89661-3T664 note |
Computer, Engine Control
2002-03 → 2002-08
ended
|
MCV30 JPP | — | |
| 89661-3T750 note |
Computer, Engine Control
2002-12 → 2003-07
ended
|
ACV30 JPP 4FC | — | |
| 89661-3T760 |
Computer, Engine Control
2002-08 → 2003-07
ended
|
ACV30 JPP 5F | — | |
| 89661-3T770 note |
Computer, Engine Control
2002-08 → 2003-07
ended
|
ACV30 JPP (LE,SE) 4FC | — | |
| 89661-3T780 note |
Computer, Engine Control
2002-08 → 2003-07
ended
|
ACV30 JPP 5F | — | |
| 89661-3T790 note |
Computer, Engine Control
2002-08 → 2003-07
ended
|
ACV30 JPP 4FC | — | |
| 89666-06210 note |
Computer, Engine Control
2003-01 → 2003-02
ended
|
MCV30 JPP | — | |
| 89666-06211 note |
Computer, Engine Control
2003-02 → 2003-07
ended
|
MCV30 JPP | — | |
| 89666-06220 note |
Computer, Engine Control
2001-07 → 2002-08
ended
|
ACV30 JPP (LE,SE) 4FC | — | |
| 89666-06240 note |
Computer, Engine Control
2001-07 → 2002-08
ended
|
ACV30 JPP 4FC | — | |
| 89666-06250 note |
Computer, Engine Control
2001-07 → 2001-09
ended
|
MCV30 JPP | — | |
| 89666-06251 note |
Computer, Engine Control
2001-09 → 2001-10
ended
|
MCV30 JPP | — | |
| 89666-06253 note |
Computer, Engine Control
2001-10 → 2002-03
ended
|
MCV30 JPP | — | |
| 89666-06254 note |
Computer, Engine Control
2002-03 → 2002-08
ended
|
MCV30 JPP | — | |
| 89666-06510 note |
Computer, Engine Control
2003-07 → 2003-11
ended
|
ACV30 JPP 4FC | — | |
| 89666-06511 note |
Computer, Engine Control
2003-11 → 2004-06
ended
|
ACV30 JPP 4FC | — | |
| 89666-06530 note |
Computer, Engine Control
2002-08 → 2002-10
ended
|
MCV30 JPP | — | |
| 89666-06531 note |
Computer, Engine Control
2002-10 → 2003-01
ended
|
MCV30 JPP | — | |
| 89666-33400 note |
Computer, Engine Control
2003-07 → 2003-11
ended
|
ACV30 JPP 4FC | — | |
| 89666-33401 note |
Computer, Engine Control
2003-11 → 2004-06
ended
|
ACV30 JPP 4FC | — | |
| 89666-33420 note |
Computer, Engine Control
2003-07 → 2004-01
ended
|
MCV30 JPP | — | |
| 89666-33421 note |
Computer, Engine Control
2004-01 → 2004-06
ended
|
MCV30 JPP | — | |
| 89666-33430 note |
Computer, Engine Control
2002-08 → 2002-10
ended
|
MCV30 JPP | — | |
| 89666-33431 note |
Computer, Engine Control
2002-10 → 2003-01
ended
|
MCV30 JPP | — | |
| 89666-33460 note |
Computer, Engine Control
2003-01 → 2003-02
ended
|
MCV30 JPP | — | |
| 89666-33461 note |
Computer, Engine Control
2003-02 → 2003-07
ended
|
MCV30 JPP | — | |
| 89661-06B10 note |
Computer, Engine Control
2004-06 → 2004-10
ended
|
MCV30 JPP | — | |
| 89661-06B11 note |
Computer, Engine Control
2004-10 → 2005-07
ended
|
MCV30 JPP | — | |
| 89661-06B30 note |
Computer, Engine Control
2004-06 → 2005-07
ended
|
ACV30 JPP 5FC | — | |
| 89661-06B50 note |
Computer, Engine Control
2004-06 → 2005-07
ended
|
ACV30 JPP 5FC | — | |
| 89661-06D90 note |
Computer, Engine Control
2005-07 → 2005-08
ended
|
ACV30 JPP 5FC | — | |
| 89661-06D91 note |
Computer, Engine Control
2005-08 → —
|
ACV30 JPP 5FC | — | |
| 89661-06E00 note |
Computer, Engine Control
2005-07 → 2005-08
ended
|
ACV30 JPP 5FC | — | |
| 89661-06E01 note |
Computer, Engine Control
2005-08 → —
|
ACV30 JPP 5FC | — | |
| 89661-06F30 note |
Computer, Engine Control
2005-07 → —
|
MCV30 JPP | — | |
| 89661-33A80 |
Computer, Engine Control
2004-06 → 2004-11
ended
|
MCV31 JPP | — | |
| 89661-33A81 |
Computer, Engine Control
2004-11 → 2005-07
ended
|
MCV31 JPP | — | |
| 89661-33A90 note |
Computer, Engine Control
2004-06 → 2004-10
ended
|
MCV30 JPP | — | |
| 89661-33A91 note |
Computer, Engine Control
2004-10 → 2005-07
ended
|
MCV30 JPP | — | |
| 89661-33B00 |
Computer, Engine Control
2004-06 → 2005-07
ended
|
ACV30 JPP 5F | — | |
| 89661-33B10 note |
Computer, Engine Control
2004-06 → 2005-07
ended
|
ACV30 JPP 5FC | — | |
| 89661-33B20 note |
Computer, Engine Control
2004-06 → 2005-07
ended
|
ACV30 JPP 5FC | — | |
| 89661-33C90 |
Computer, Engine Control
2005-07 → —
|
ACV30 JPP 5F | — | |
| 89661-33D00 note |
Computer, Engine Control
2005-07 → 2005-08
ended
|
ACV30 JPP 5FC | — | |
| 89661-33D01 note |
Computer, Engine Control
2005-08 → —
|
ACV30 JPP 5FC | — | |
| 89661-33D10 note |
Computer, Engine Control
2005-07 → 2005-08
ended
|
ACV30 JPP 5FC | — | |
| 89661-33D11 note |
Computer, Engine Control
2005-08 → —
|
ACV30 JPP 5FC | — | |
| 89661-33D50 |
Computer, Engine Control
2005-07 → —
|
MCV31 JPP | — | |
| 89661-33D60 note |
Computer, Engine Control
2005-07 → —
|
MCV30 JPP | — | |
| 89667 — Bracket, Engine Control Computer | ||||
| 89667-06080 note |
Bracket, Engine Control Computer
2001-07 → 2004-06
ended
|
ACV30,MCV30 JPP ATM | — | |
| 89667-06080 |
Bracket, Engine Control Computer
2003-07 → 2004-06
ended
|
MCV31 JPP | — | |
| 89667-33120 |
Bracket, Engine Control Computer
2001-07 → 2004-06
ended
|
ACV30 JPP 5F | — | |
| 89667-33120 note |
Bracket, Engine Control Computer
2001-07 → 2004-06
ended
|
ACV30,MCV30 JPP ATM | — | |
| 89667-06080 note |
Bracket, Engine Control Computer
2004-06 → —
|
MCV30 JPP | — | |
| 89667-06090 note |
Bracket, Engine Control Computer
2004-06 → —
|
ACV30 JPP 5FC | — | |
| 89667-33110 |
Bracket, Engine Control Computer
2004-06 → —
|
ACV30 JPP 5F | — | |
| 89667-33110 note |
Bracket, Engine Control Computer
2004-06 → —
|
ACV30 JPP 5FC | — | |
| 89667-33120 note |
Bracket, Engine Control Computer
2004-06 → —
|
MCV30 JPP | — | |
| 89667-33120 |
Bracket, Engine Control Computer
2004-06 → —
|
MCV31 JPP | — | |
| 89668 — Bracket, Engine Control Computer, NO.2 | ||||
| 89668-06080 note |
Bracket, Engine Control Computer, NO.2
2001-07 → 2004-06
ended
|
ACV30,MCV30 JPP ATM | — | |
| 89668-06080 |
Bracket, Engine Control Computer, NO.2
2003-07 → 2004-06
ended
|
MCV31 JPP | — | |
| 89668-33140 |
Bracket, Engine Control Computer, NO.2
2001-07 → 2004-06
ended
|
ACV30 JPP 5F | — | |
| 89668-33140 note |
Bracket, Engine Control Computer, NO.2
2001-07 → 2004-06
ended
|
ACV30,MCV30 JPP ATM | — | |
| 89668-06080 note |
Bracket, Engine Control Computer, NO.2
2004-06 → —
|
MCV30 JPP | — | |
| 89668-06090 note |
Bracket, Engine Control Computer, NO.2
2004-06 → —
|
ACV30 JPP 5FC | — | |
| 89668-33140 |
Bracket, Engine Control Computer, NO.2
2004-06 → —
|
MCV31 JPP | — | |
| 89668-33140 note |
Bracket, Engine Control Computer, NO.2
2004-06 → —
|
MCV30 JPP | — | |
| 89668-33180 |
Bracket, Engine Control Computer, NO.2
2004-06 → —
|
ACV30 JPP 5F | — | |
| 89668-33180 note |
Bracket, Engine Control Computer, NO.2
2004-06 → —
|
ACV30 JPP 5FC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
