Toyota Camry (JPP)
2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States
Discontinued model
Data version 2006-08

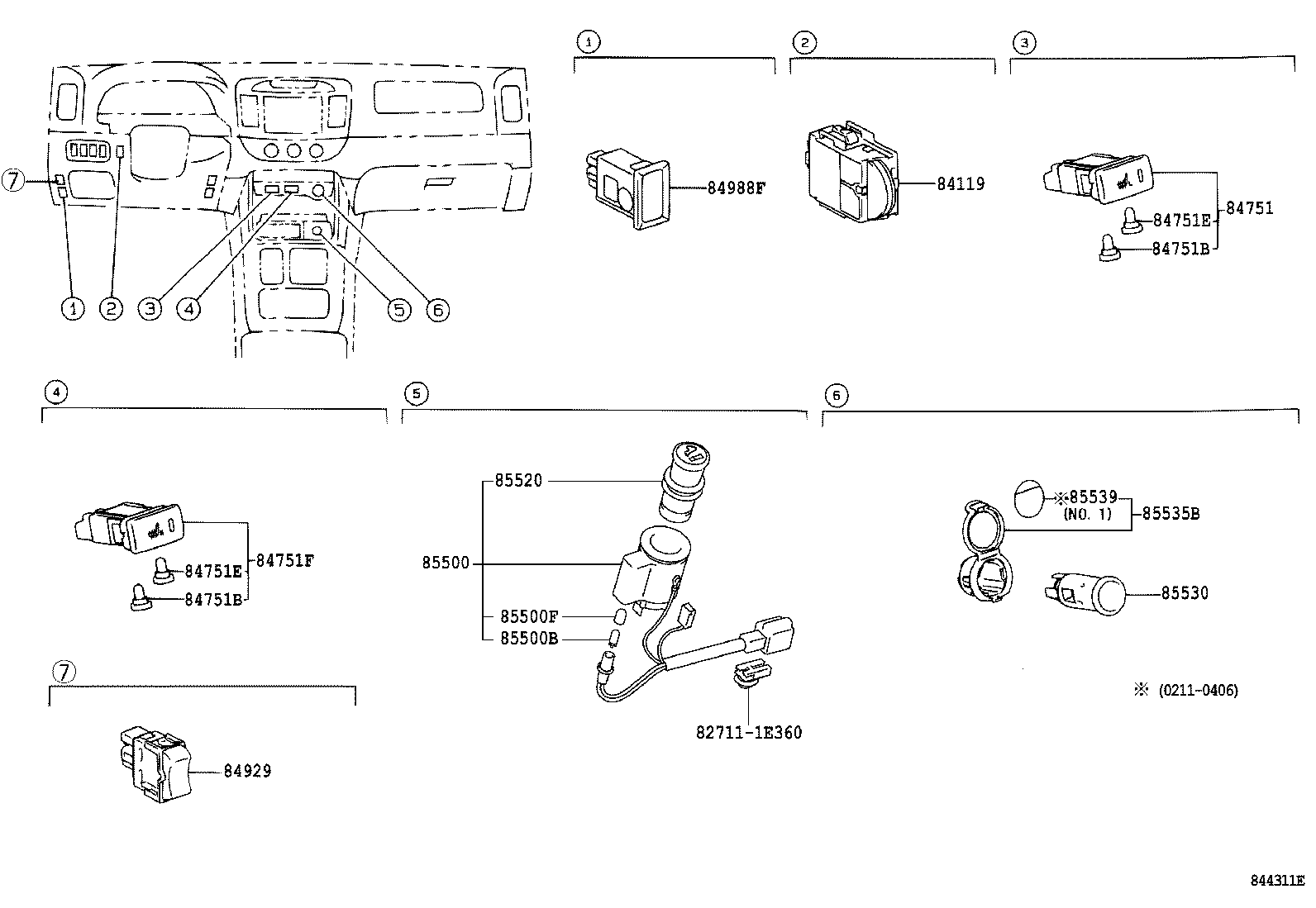

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84119 — Rheostat, Light Control | ||||
| 84119-33120 |
Rheostat, Light Control
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 84119-33160 |
Rheostat, Light Control
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 84751 — Switch, Seat Heater | ||||
| 84751-48060 |
Switch, Seat Heater
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP (SE,XLE) | — | |
| 84751-48060 |
Switch, Seat Heater
2004-06 → —
|
ACV30,MCV3# JPP (SE,XLE) | — | |
| 84751B — Bulb, Seat Heater Switch | ||||
| 84999-10310 note |
Bulb, Seat Heater Switch
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP (SE,XLE) | — | |
| 84999-10310 note |
Bulb, Seat Heater Switch
2004-06 → —
|
ACV30,MCV3# JPP (SE,XLE) | — | |
| 84751E — Bulb, Seat Heater Switch(FRONT) | ||||
| 90010-01061 note |
Bulb, Seat Heater Switch(FRONT)
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP (SE,XLE) | — | |
| 90010-01061 note |
Bulb, Seat Heater Switch(FRONT)
2004-06 → —
|
ACV30,MCV3# JPP (SE,XLE) | — | |
| 84751F — Switch, Seat Heater | ||||
| 84751-48070 |
Switch, Seat Heater
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP (SE,XLE) | — | |
| 84751-48070 |
Switch, Seat Heater
2004-06 → —
|
ACV30,MCV3# JPP (SE,XLE) | — | |
| 84929 — Switch, Adjustable Pedal | ||||
| 84929-33010 |
Switch, Adjustable Pedal
2002-08 → 2004-06
ended
|
ACV30,MCV3# JPP ATM | — | |
| 84929-33010 |
Switch, Adjustable Pedal
2004-06 → —
|
ACV30,MCV3# JPP 5FC | — | |
| 84988F — Switch, Traction Control | ||||
| 84988-33030 |
Switch, Traction Control
2001-07 → 2004-06
ended
|
MCV3# JPP | — | |
| 84988-33030 |
Switch, Traction Control
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 85500 — Lighter Assy, Cigarette | ||||
| 85500-41030 |
Lighter Assy, Cigarette
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 85500-33040 |
Lighter Assy, Cigarette
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 85500B — Bulb, Cigarette Lighter | ||||
| 90981-11018 note |
Bulb, Cigarette Lighter
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 90981-11018 note |
Bulb, Cigarette Lighter
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 85500F — Cap, Cigarette Lighter Bulb | ||||
| 84998-10510 |
Cap, Cigarette Lighter Bulb
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 84998-10510 |
Cap, Cigarette Lighter Bulb
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 85520 — Knob And Element Assy, Cigarette Lighter | ||||
| 85520-28010 |
Knob And Element Assy, Cigarette Lighter
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 85520-28010 |
Knob And Element Assy, Cigarette Lighter
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 85530 — Socket Assy, Power Outlet, NO.1 | ||||
| 85530-33020 |
Socket Assy, Power Outlet, NO.1
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 85530-33020 |
Socket Assy, Power Outlet, NO.1
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 85535B — Cover, Power Outlet Socket, NO.1 | ||||
| 85535-26050 |
Cover, Power Outlet Socket, NO.1
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 85535-48060 |
Cover, Power Outlet Socket, NO.1
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 85539 — Label, Power Outlet Notice | ||||
| 85539-33010 note |
Label, Power Outlet Notice
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 85539-60020 note |
Label, Power Outlet Notice
2002-11 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 85539-33010 |
Label, Power Outlet Notice
2004-06 → —
|
ACV30,MCV3# JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
