Toyota Camry (JPP)
2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States
Discontinued model
Data version 2006-08

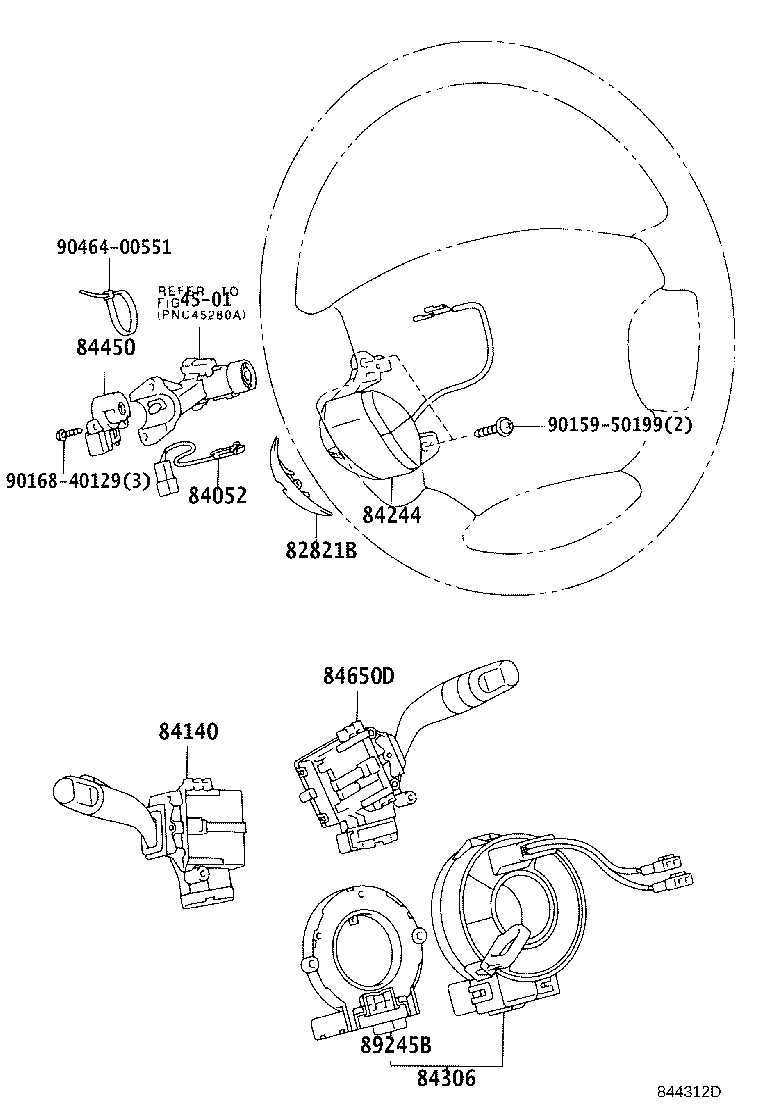

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82821B — Cover, Connector | ||||
| 82821-33200 |
Cover, Connector
2001-07 → 2004-06
ended
|
ACV30,MCV30 JPP XLE | — | |
| 84052 — Switch Assy, Un-lock Warning | ||||
| 84052-32030 |
Switch Assy, Un-lock Warning
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 84052-32030 |
Switch Assy, Un-lock Warning
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-33140 note |
Switch Assy, Headlamp Dimmer
2001-07 → 2003-07
ended
|
ACV30 JPP XLE;MCV30 JPP +2 | — | |
| 84140-33140 note |
Switch Assy, Headlamp Dimmer
2001-07 → 2004-06
ended
|
ACV30 JPP LE;MCV30 JPP +5 | — | |
| 84140-33150 note |
Switch Assy, Headlamp Dimmer
2003-07 → 2004-03
ended
|
ACV30 JPP LE 4FC | — | |
| 84140-33150 note |
Switch Assy, Headlamp Dimmer
2001-07 → 2004-06
ended
|
ACV30,MCV30 JPP (SE,XLE) | — | |
| 84140-33150 |
Switch Assy, Headlamp Dimmer
2003-07 → 2004-06
ended
|
MCV31 JPP | — | |
| 84140-33170 note |
Switch Assy, Headlamp Dimmer
2001-07 → 2004-06
ended
|
ACV30,MCV30 JPP (LE,XLE) (4FC,5F) | — | |
| 84140-33170 |
Switch Assy, Headlamp Dimmer
2003-01 → 2004-06
ended
|
MCV30 JPP (LE,XLE) | — | |
| 84140-48020 note |
Switch Assy, Headlamp Dimmer
2001-07 → 2004-06
ended
|
ACV30 JPP XLE;MCV30 JPP +1 | — | |
| 84140-48020 note |
Switch Assy, Headlamp Dimmer
2002-08 → 2004-06
ended
|
ACV30 JPP SE | — | |
| 84140-48020 note |
Switch Assy, Headlamp Dimmer
2003-07 → 2004-06
ended
|
MCV31 JPP | — | |
| 84140-33170 note |
Switch Assy, Headlamp Dimmer
2004-06 → —
|
ACV30 JPP LE 5F | — | |
| 84140-33180 |
Switch Assy, Headlamp Dimmer
2004-06 → —
|
ACV30,MCV3# JPP (SE,XLE) | — | |
| 84140-33190 |
Switch Assy, Headlamp Dimmer
2004-06 → —
|
ACV30,MCV30 JPP LE | — | |
| 84140-48020 note |
Switch Assy, Headlamp Dimmer
2004-06 → —
|
ACV30 JPP SE 5F | — | |
| 84244 — Switch, Steering Pad | ||||
| 84244-06010 note |
Switch, Steering Pad
2001-07 → 2004-06
ended
|
ACV30,MCV30 JPP XLE | — | |
| 84244-33010 |
Switch, Steering Pad
2001-07 → 2004-06
ended
|
ACV30,MCV30 JPP XLE | — | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84306-33080 note |
Cable Sub-assy, Spiral
2003-07 → 2004-03
ended
|
ACV30 JPP LE 4FC | — | |
| 84306-33080 |
Cable Sub-assy, Spiral
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 84307-33010 note |
Cable Sub-assy, Spiral
2001-07 → 2003-07
ended
|
MCV30 JPP | — | |
| 84307-33020 note |
Cable Sub-assy, Spiral
2003-07 → 2004-06
ended
|
MCV3# JPP | — | |
| 84306-33080 |
Cable Sub-assy, Spiral
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-12200 |
Switch Assy, Ignition OR Starter
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 84450-12200 |
Switch Assy, Ignition OR Starter
2004-06 → —
|
ACV30,MCV3# JPP | — | |
| 84650D — Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) | ||||
| 84652-17120 note |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2003-07 → 2004-03
ended
|
ACV30 JPP LE 4FC | — | |
| 84652-17120 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2001-07 → 2004-06
ended
|
ACV30,MCV3# JPP | — | |
| 84652-17120 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2004-06 → 2004-09
ended
|
ACV30,MCV3# JPP | — | |
| 84652-21030 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2004-09 → 2006-01
ended
|
ACV30,MCV3# JPP | — | |
| 89245B — Sensor, Steering | ||||
| 89245-33030 |
Sensor, Steering
2003-07 → 2004-06
ended
|
MCV3# JPP | — | |
| 89245-50030 |
Sensor, Steering
2001-07 → 2003-07
ended
|
MCV30 JPP | — | |
| 89245-33030 |
Sensor, Steering
2004-06 → 2004-07
ended
|
ACV30,MCV3# JPP | — | |
| 89245-33031 |
Sensor, Steering
2004-07 → —
|
ACV30,MCV3# JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
