Toyota Camry (JPP)

2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 16 illustrations

Illustrations

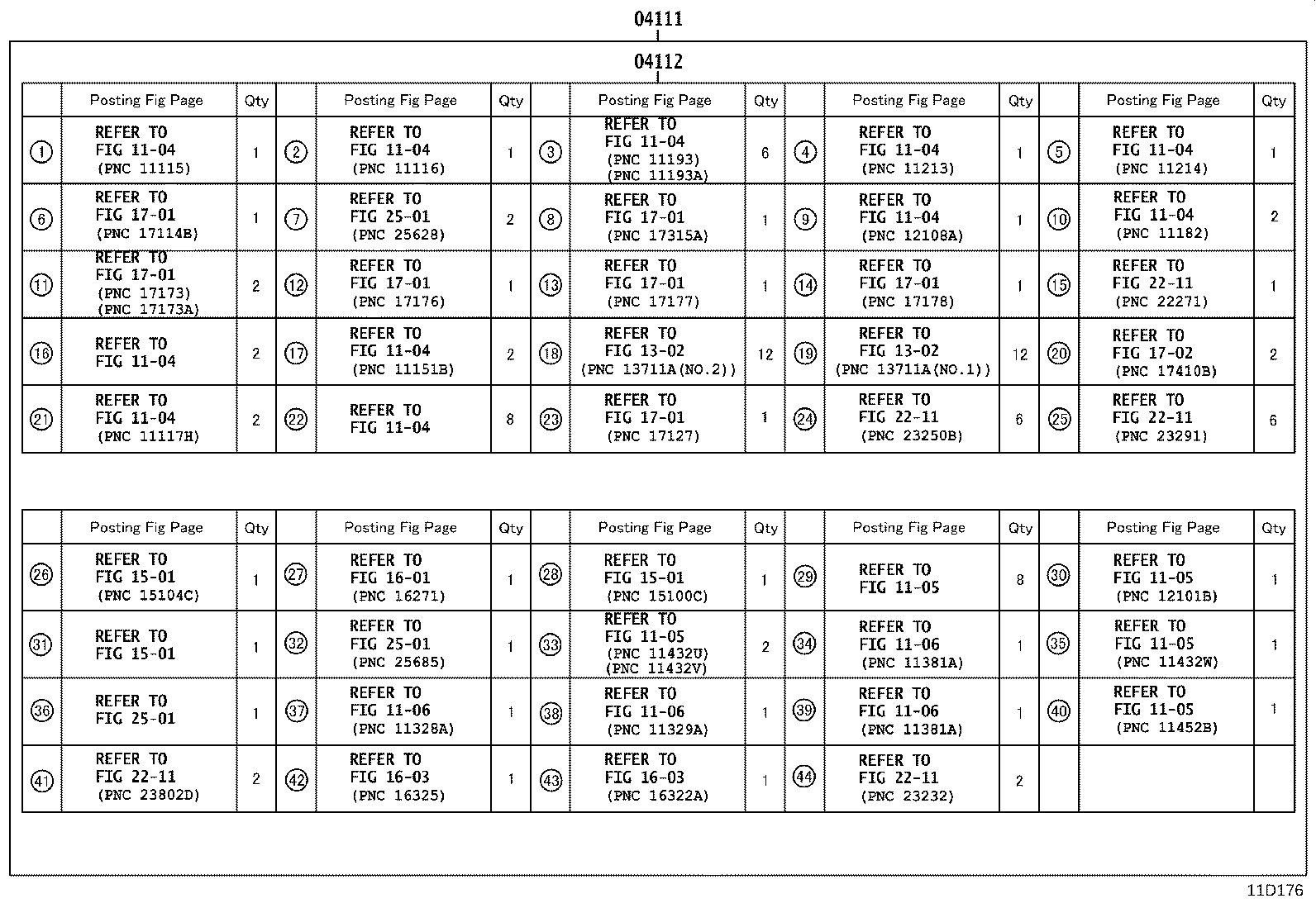

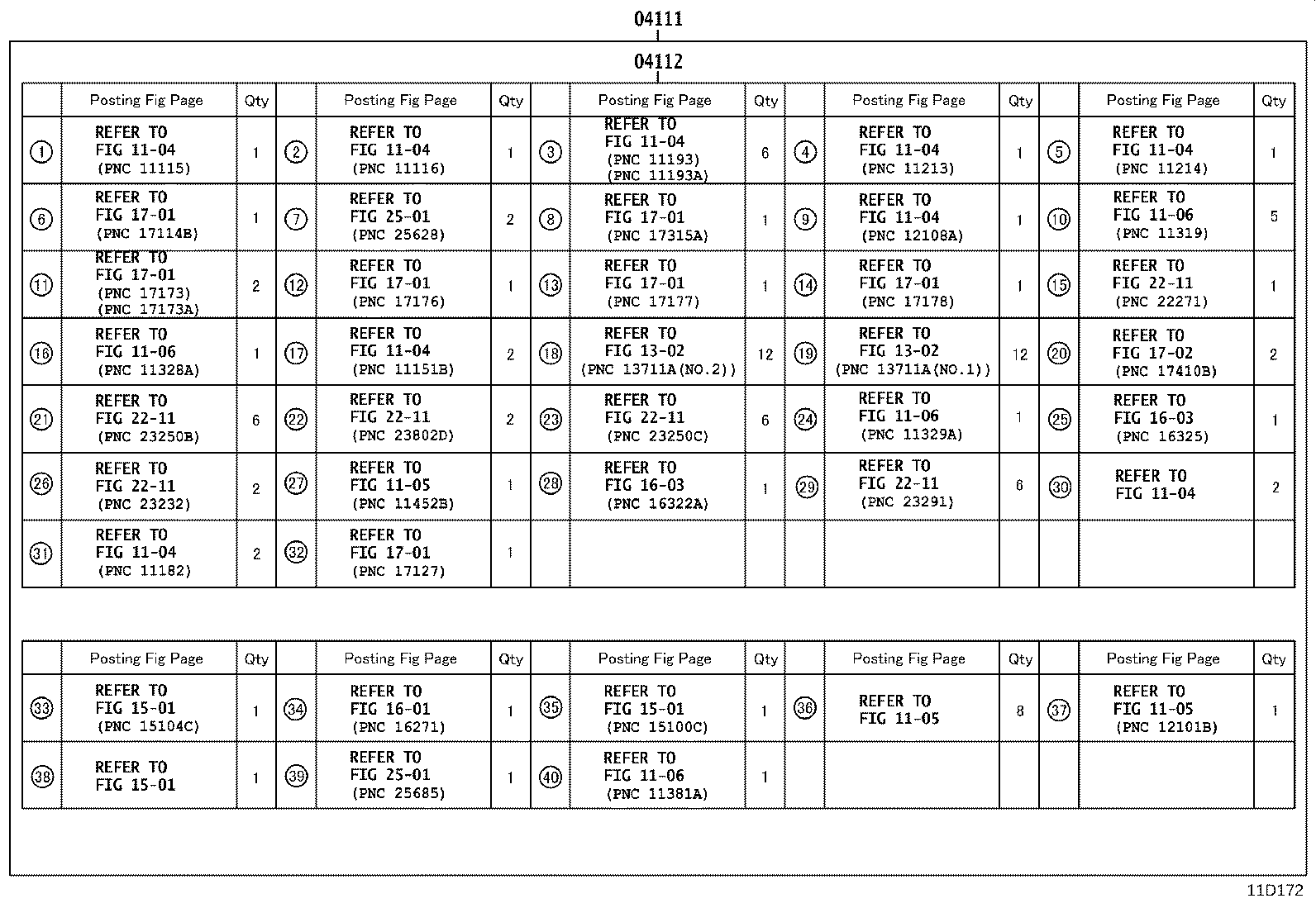

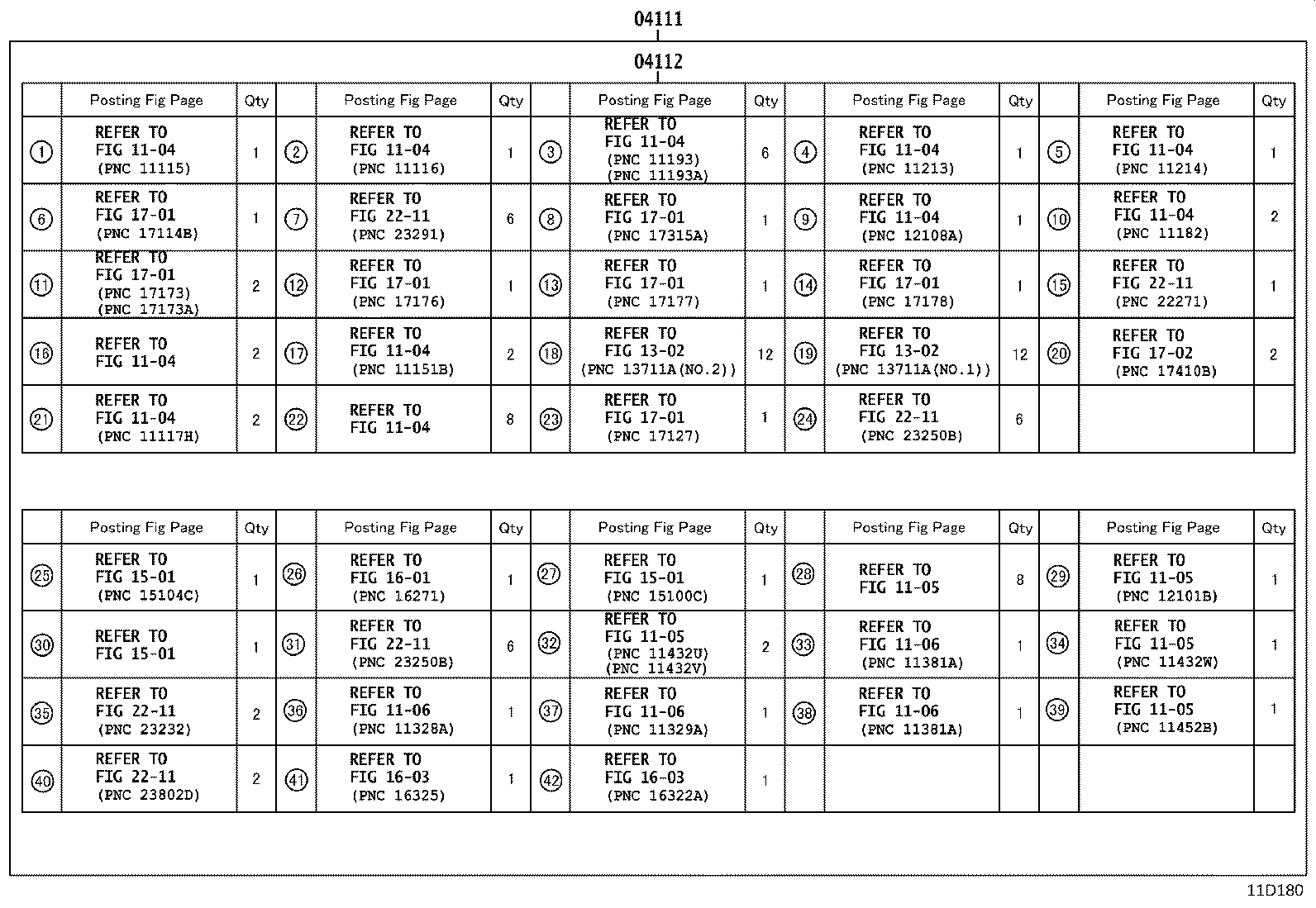

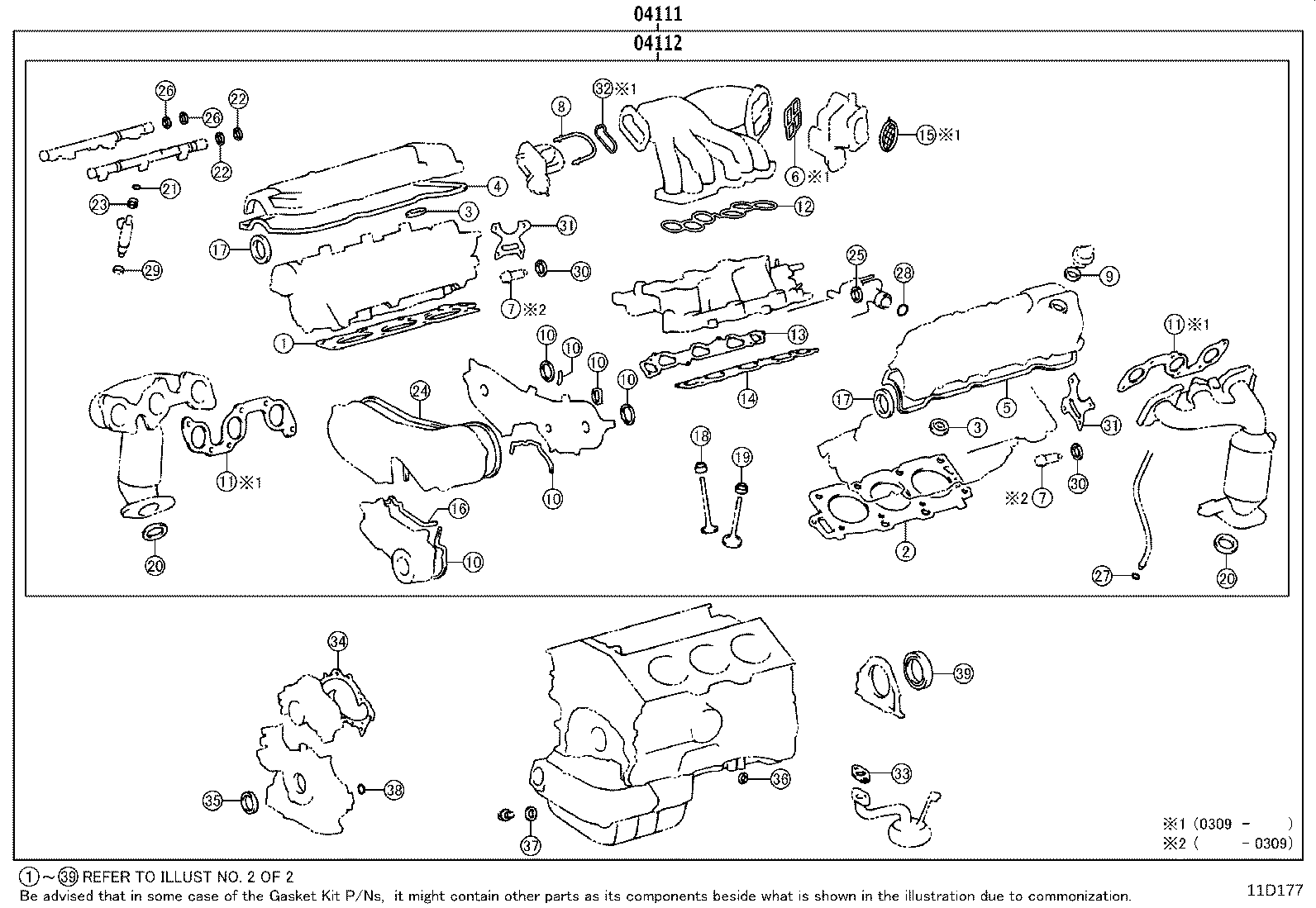

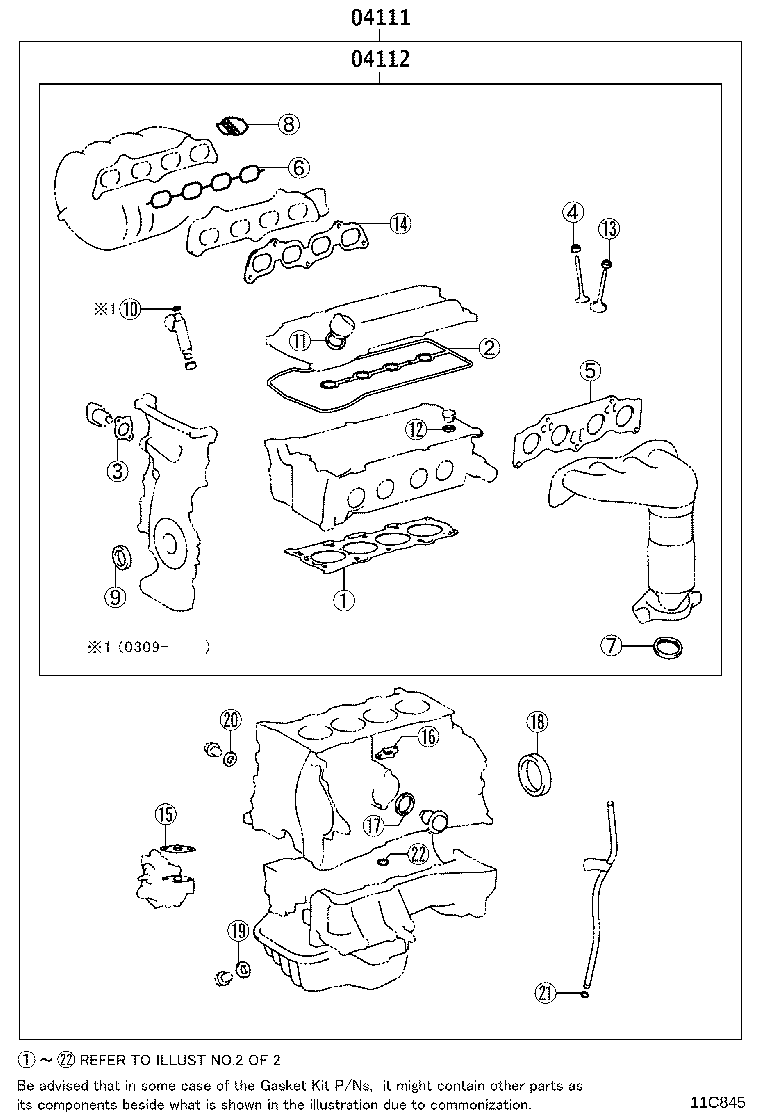

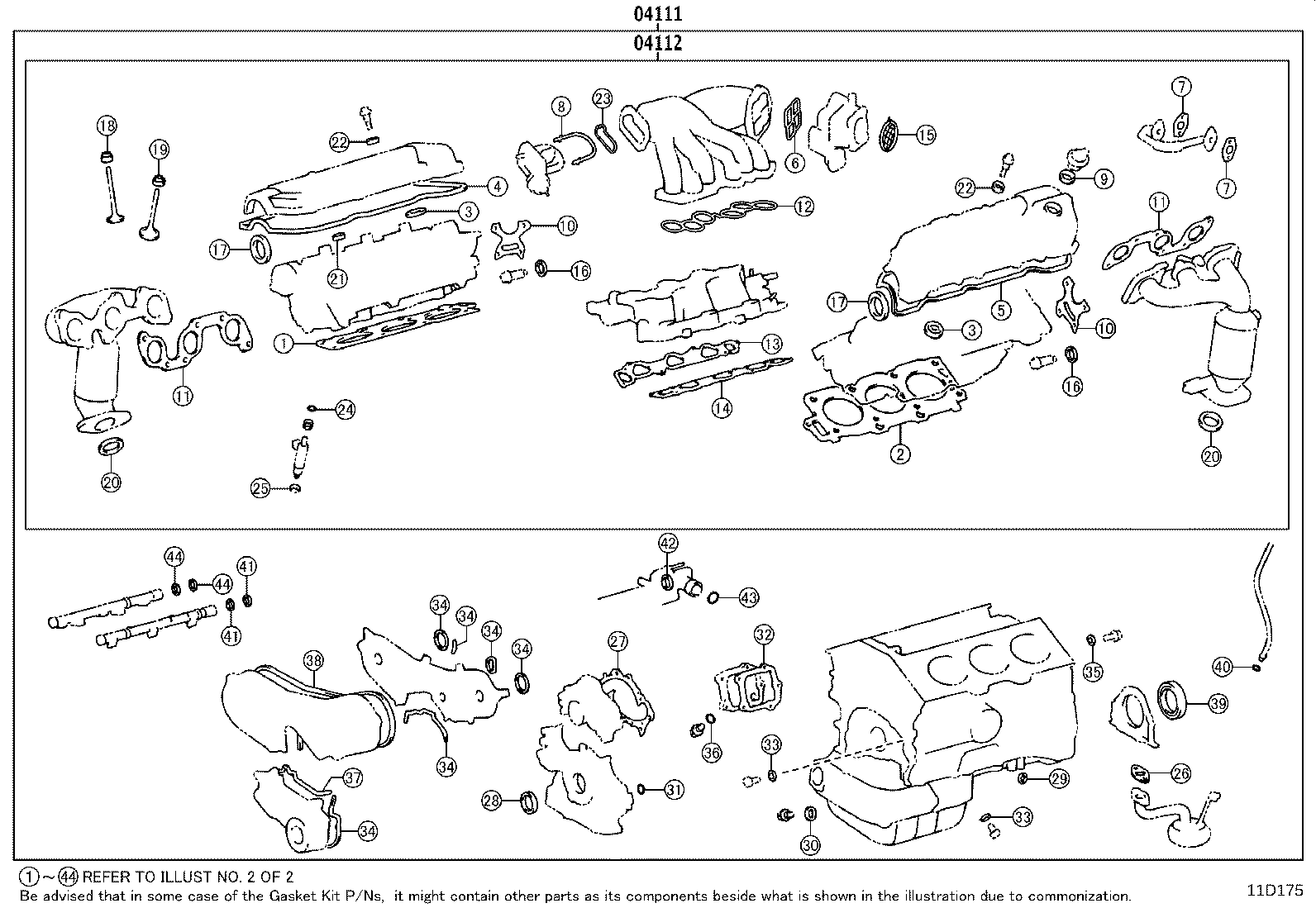

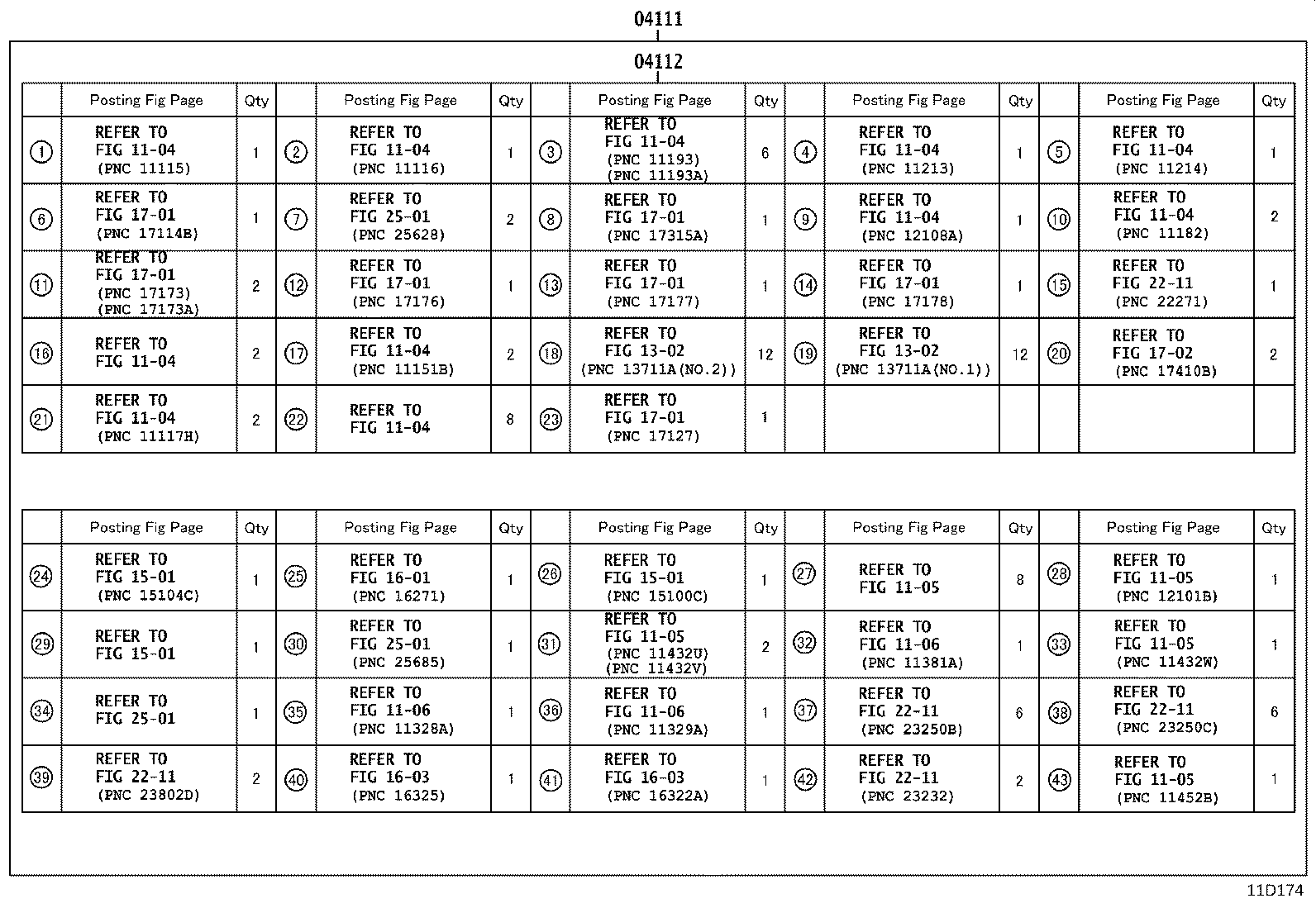

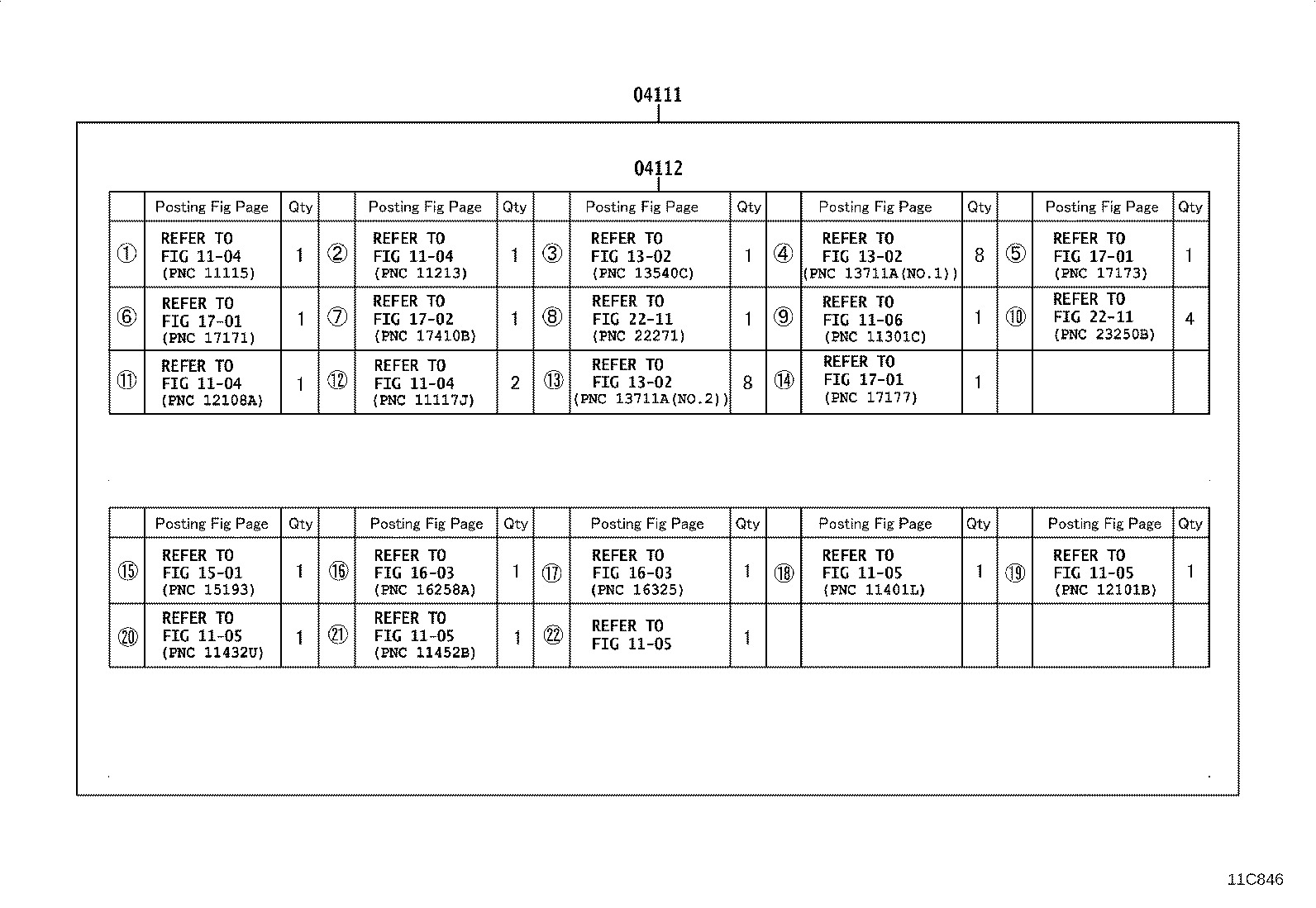

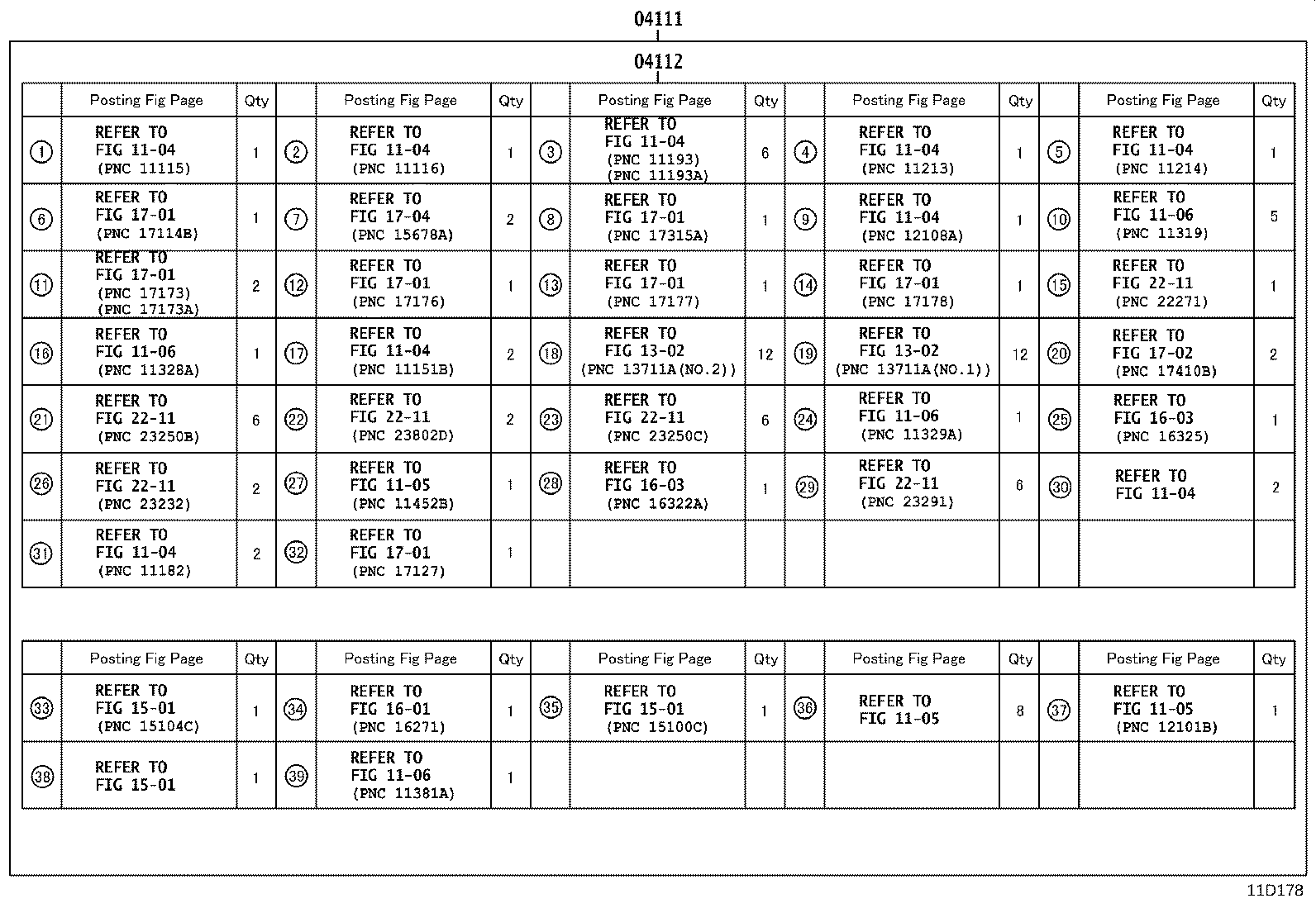

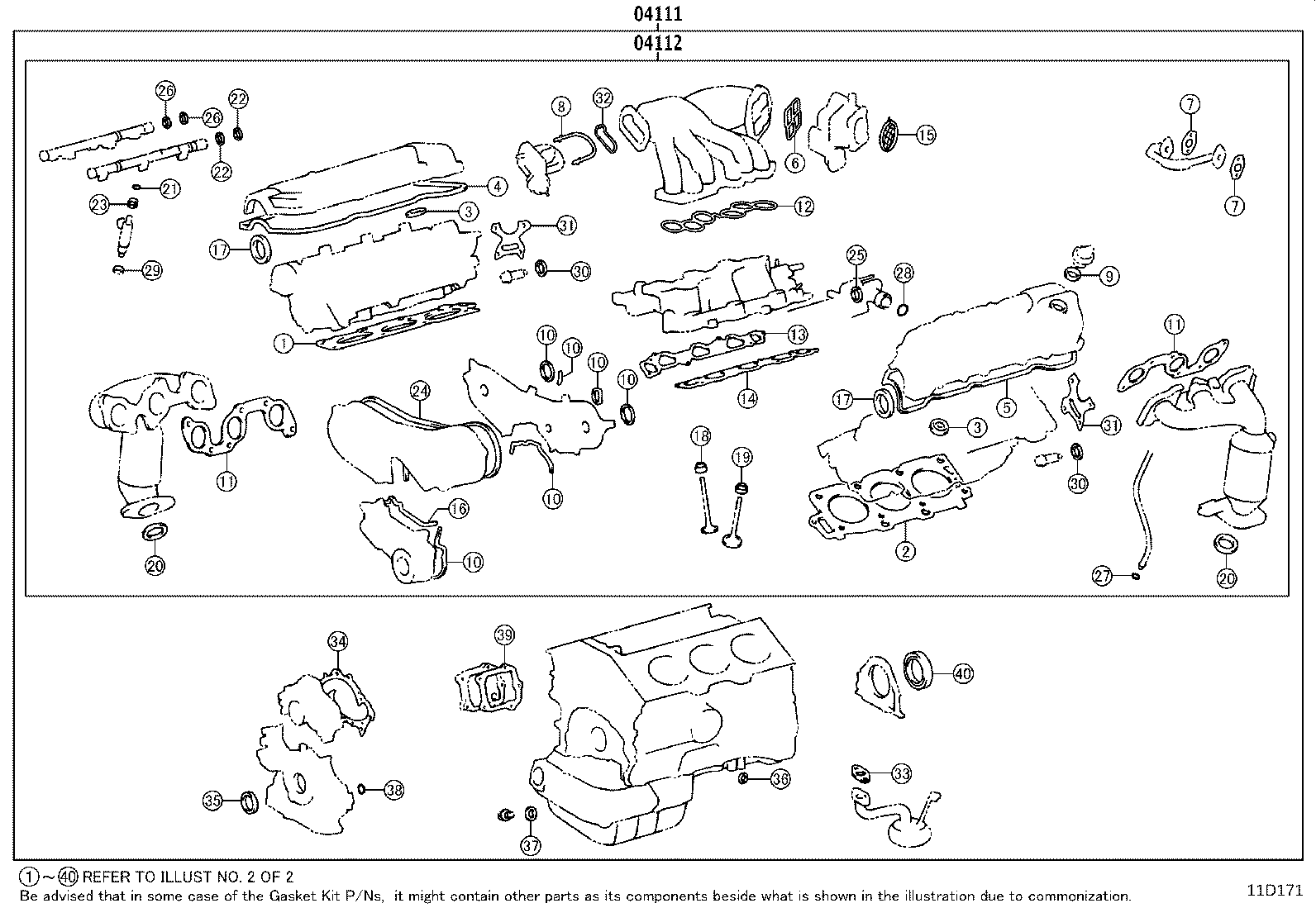

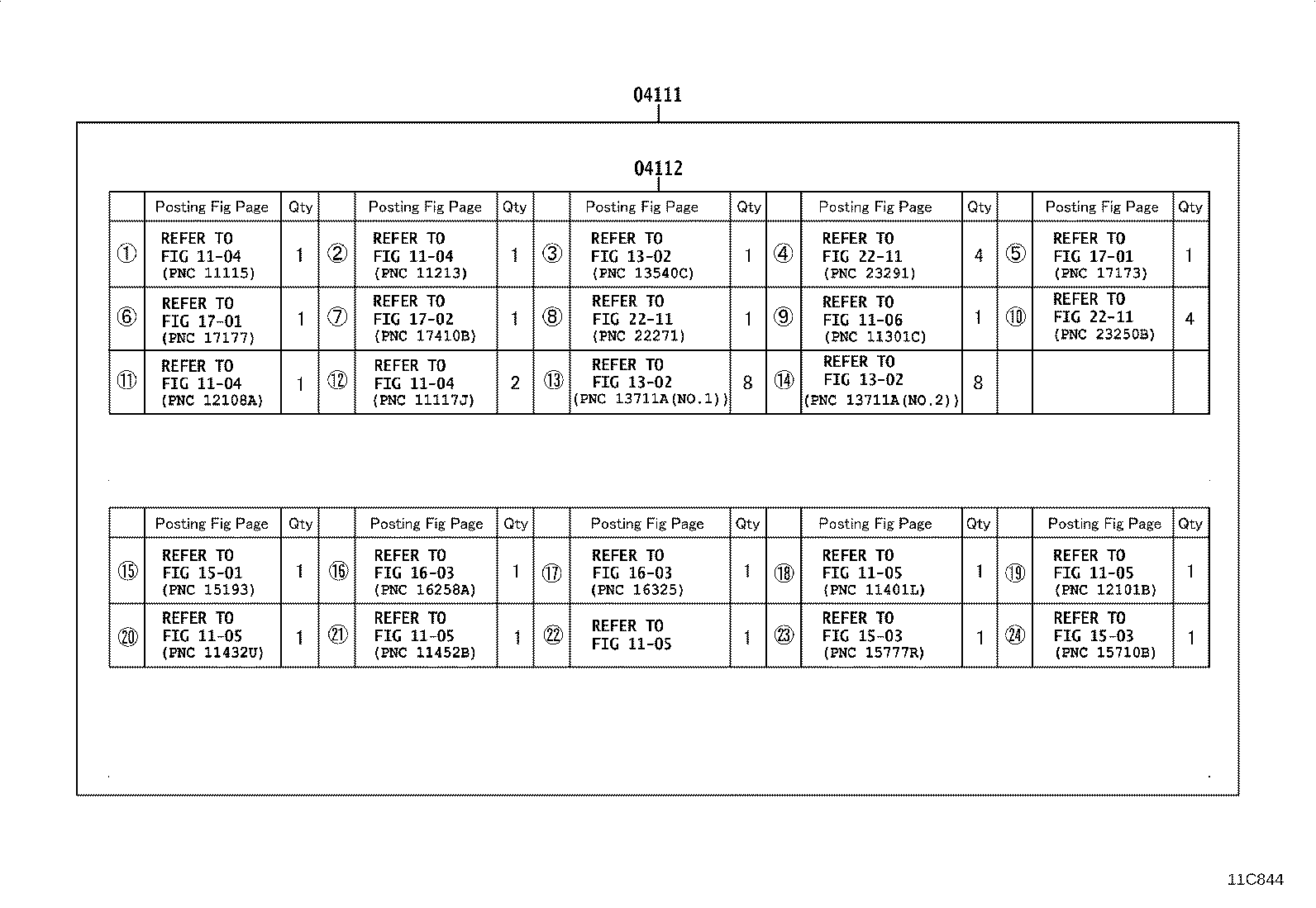

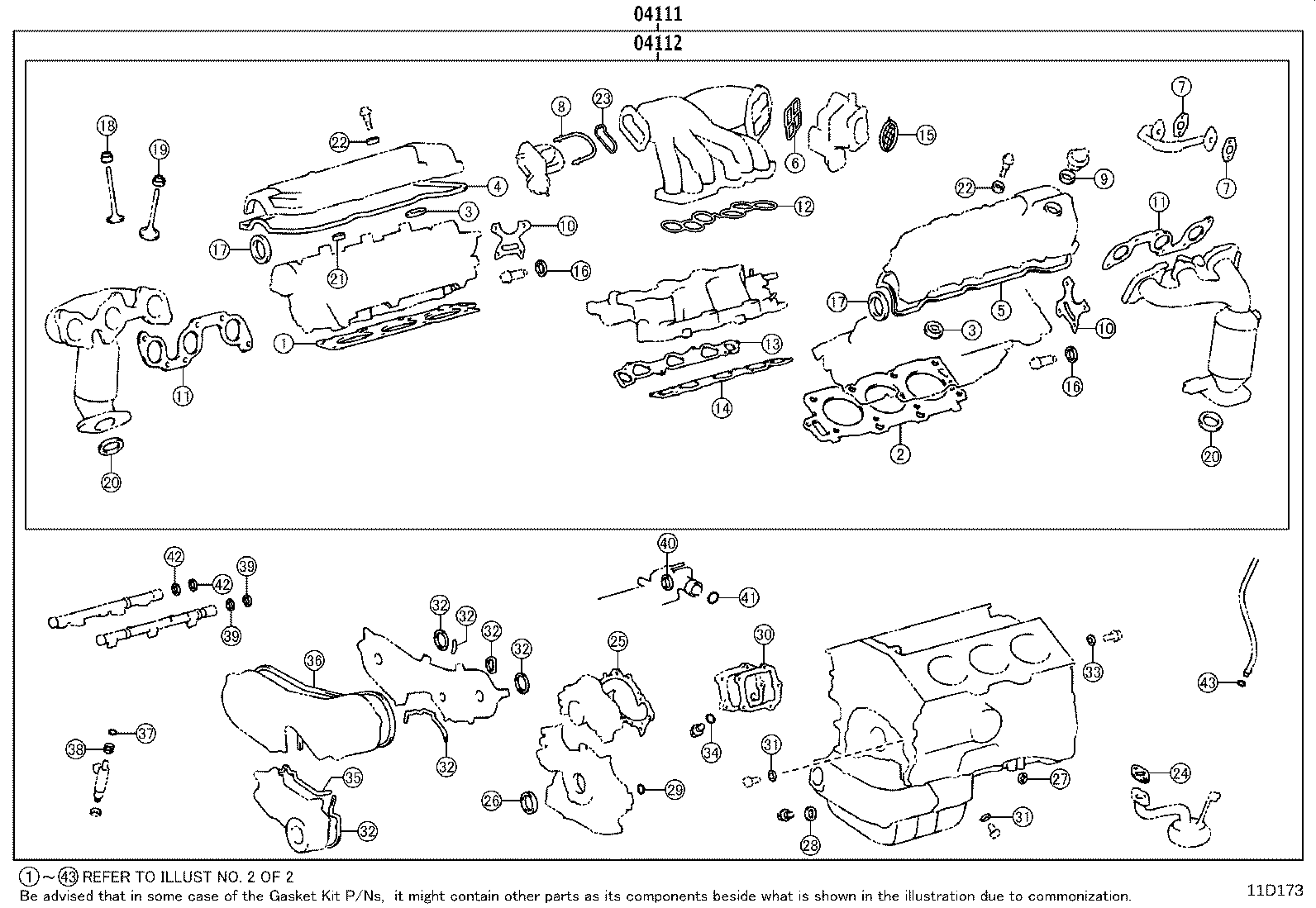

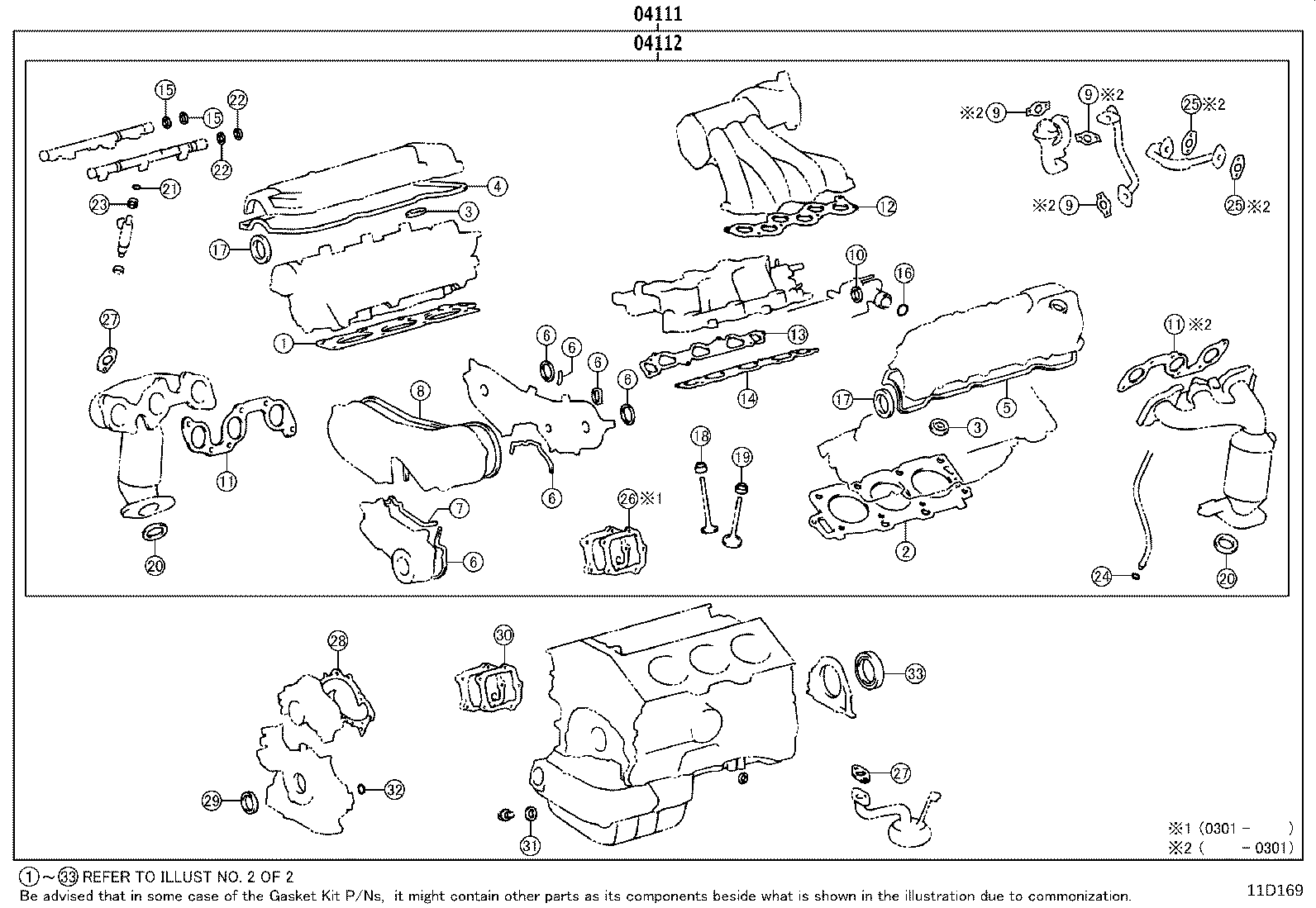

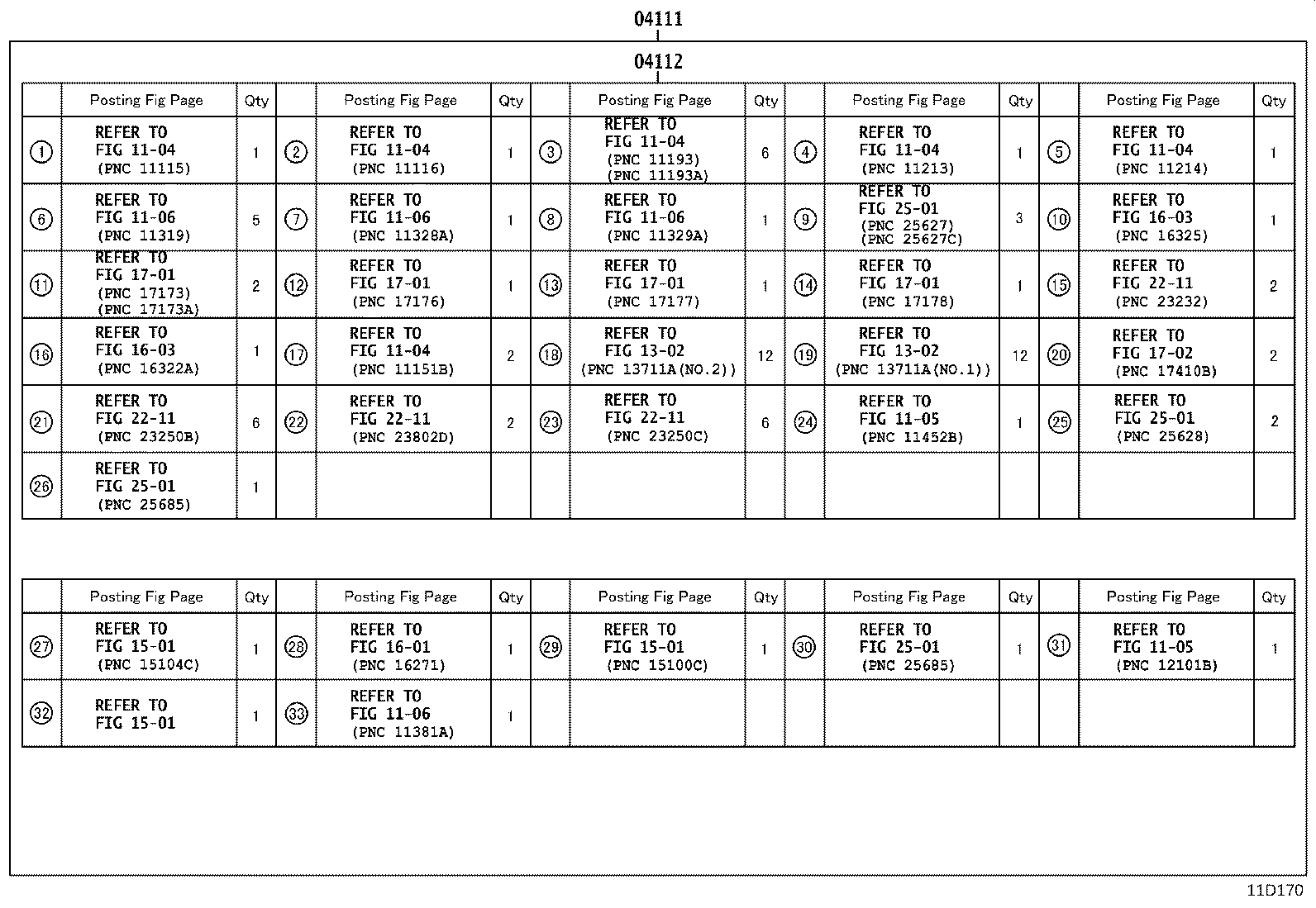

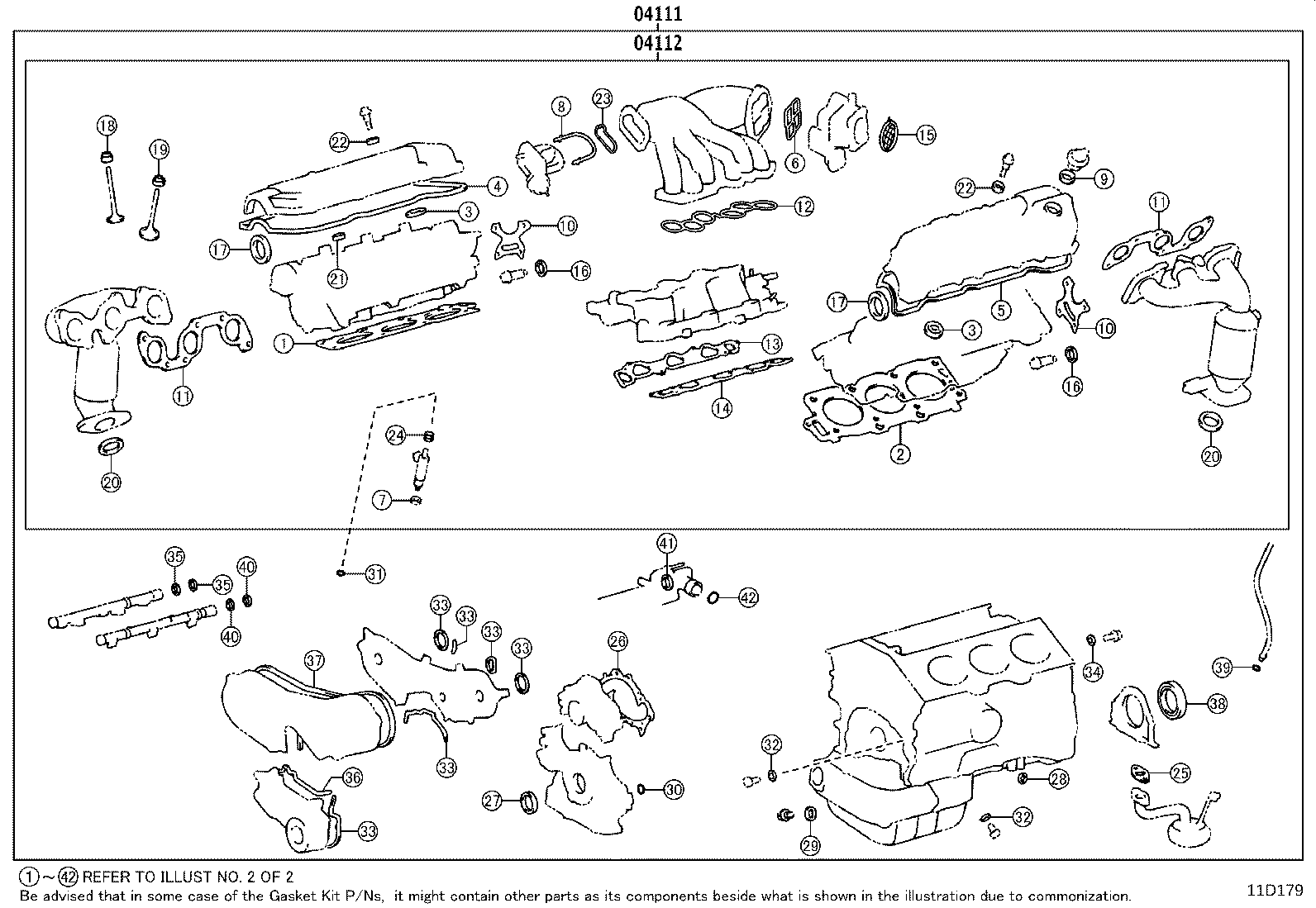

Figure 11C843 11C843 2001-07 → 2006-01 Figure 11C844 11C844 2001-07 → 2006-01 Figure 11C845 11C845 2002-12 → 2006-01 Figure 11C846 11C846 2002-12 → 2006-01 Figure 11D169 11D169 2001-07 → 2003-09 Figure 11D170 11D170 2001-07 → 2003-09 Figure 11D171 11D171 2003-09 → 2004-06 Figure 11D172 11D172 2003-09 → 2004-06 Figure 11D173 11D173 2004-06 → 2004-08 Figure 11D174 11D174 2004-06 → 2004-08 Figure 11D175 11D175 2004-08 → 2006-01 Figure 11D176 11D176 2004-08 → 2006-01 Figure 11D177 11D177 2003-07 → 2004-06 Figure 11D178 11D178 2003-07 → 2004-06 Figure 11D179 11D179 2004-06 → 2006-01 Figure 11D180 11D180 2004-06 → 2006-01

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
