Toyota Camry (JPP)

2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States

Discontinued model Data version 2006-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

5 part groups · 4 illustrations

Illustrations

Figure 164009B

164009B 2001-07 → —

Figure 161361B

161361B 2001-07 → 2002-10

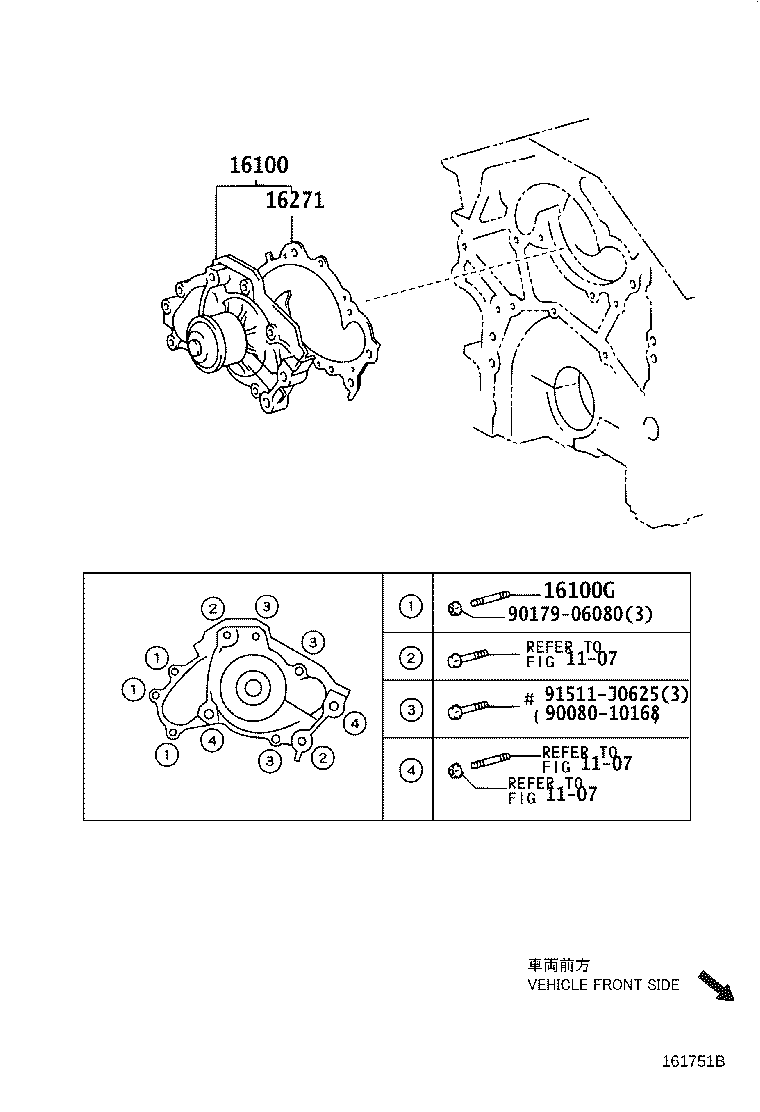

Figure 161751B

161751B 2002-10 → 2004-06

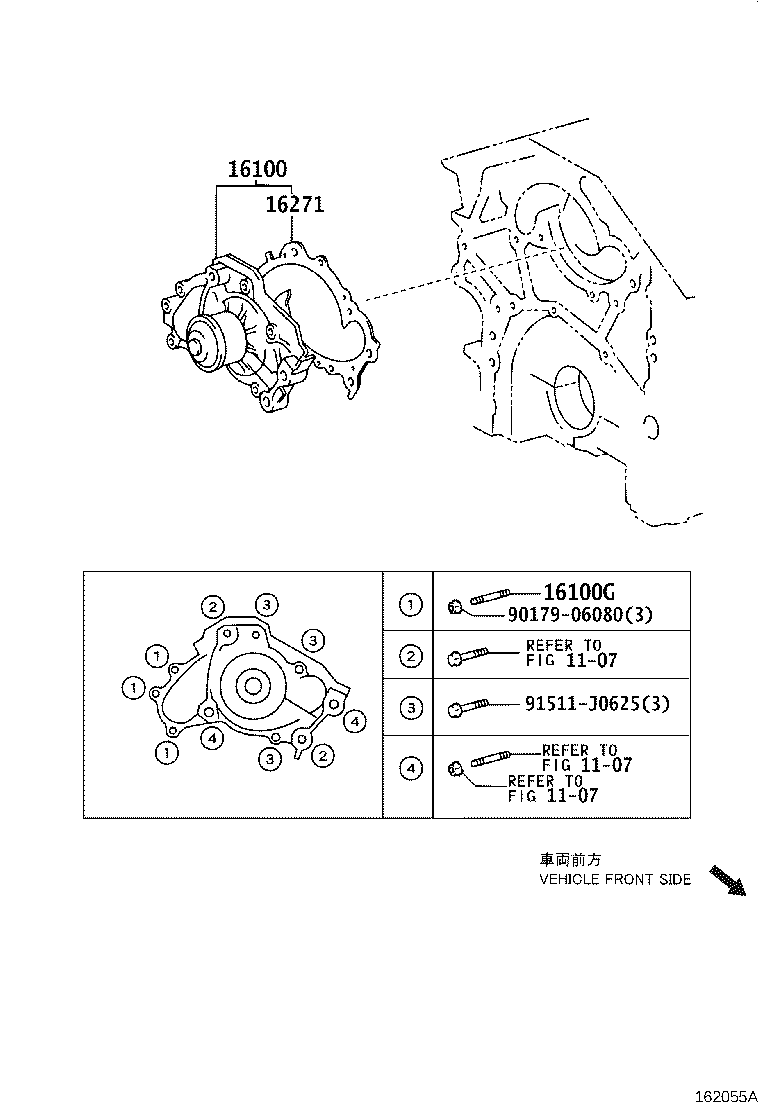

Figure 162055A

162055A 2004-06 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16100G	Bolt, Stud(FOR WATER PUMP SET)
16173	Pulley, Water Pump
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
