Toyota Camry (JPP)

2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

13 part groups · 7 illustrations

Illustrations

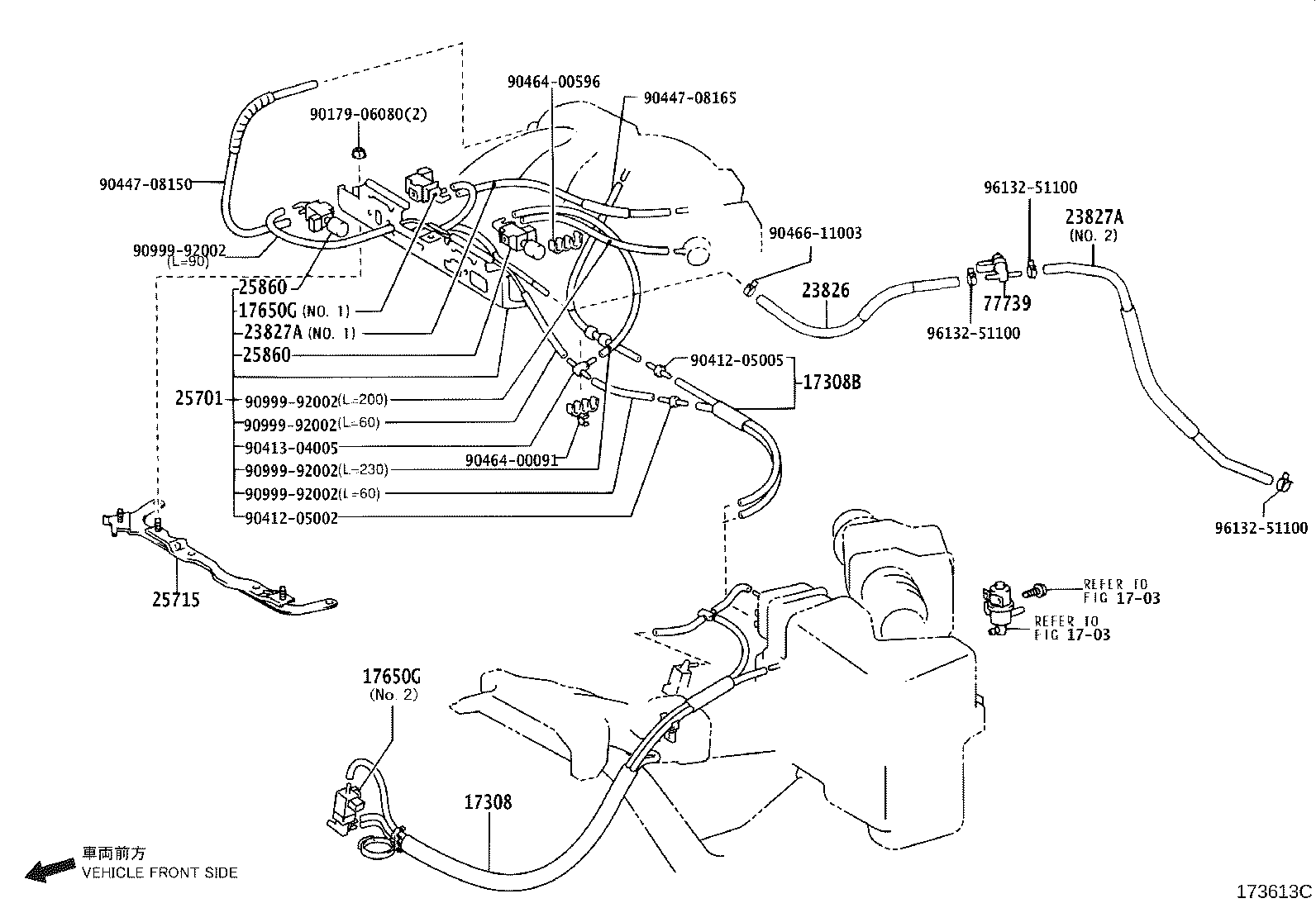

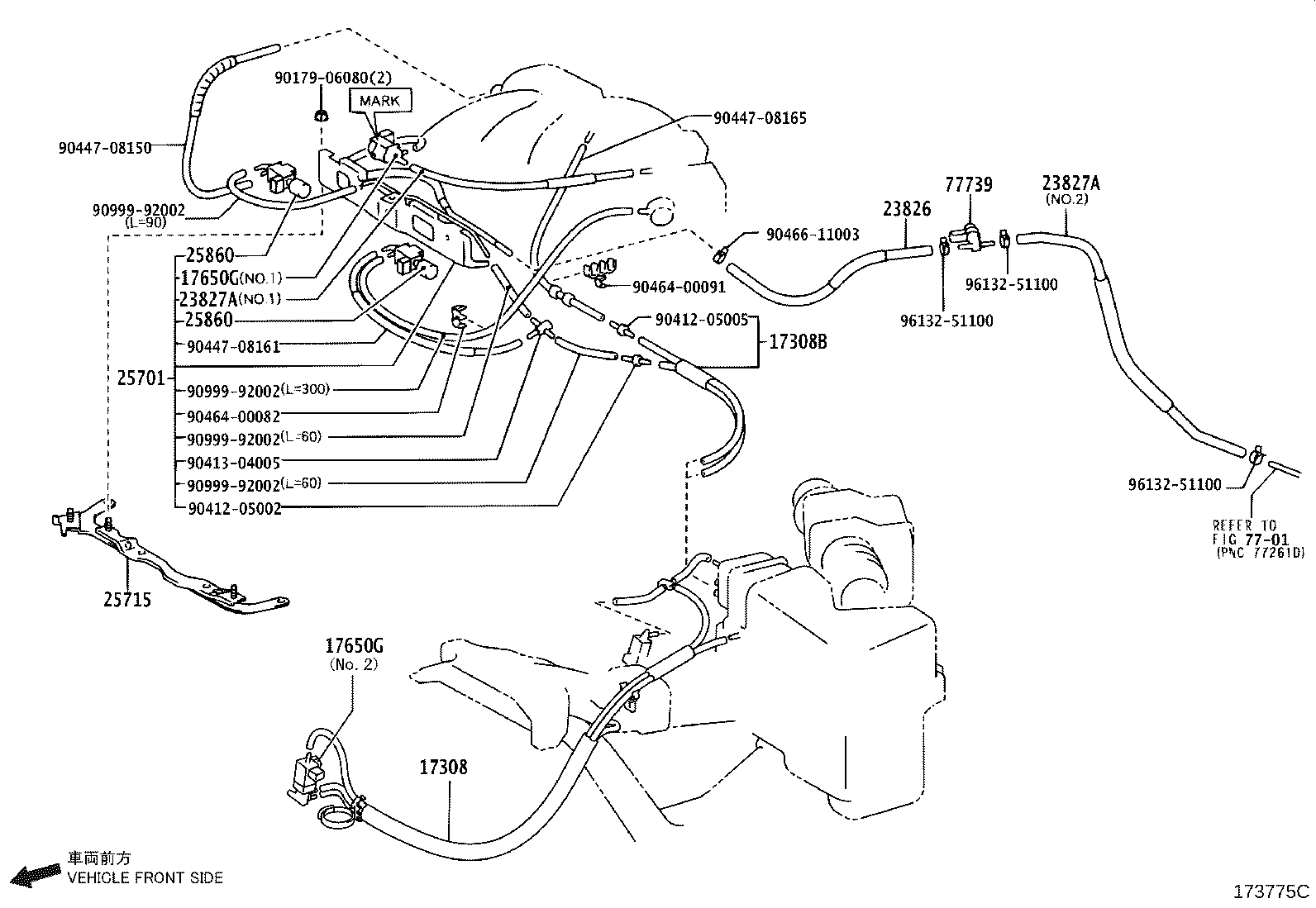

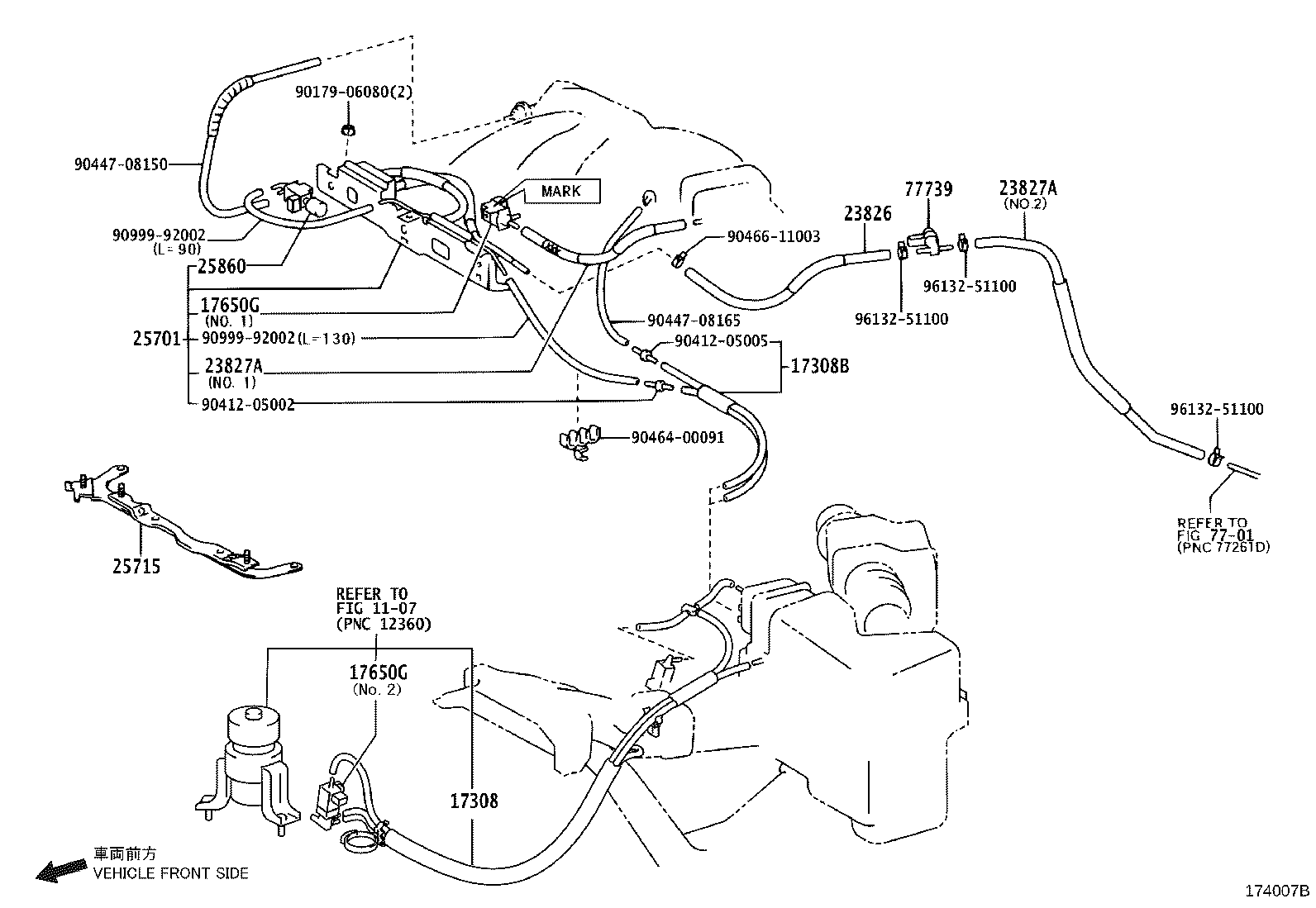

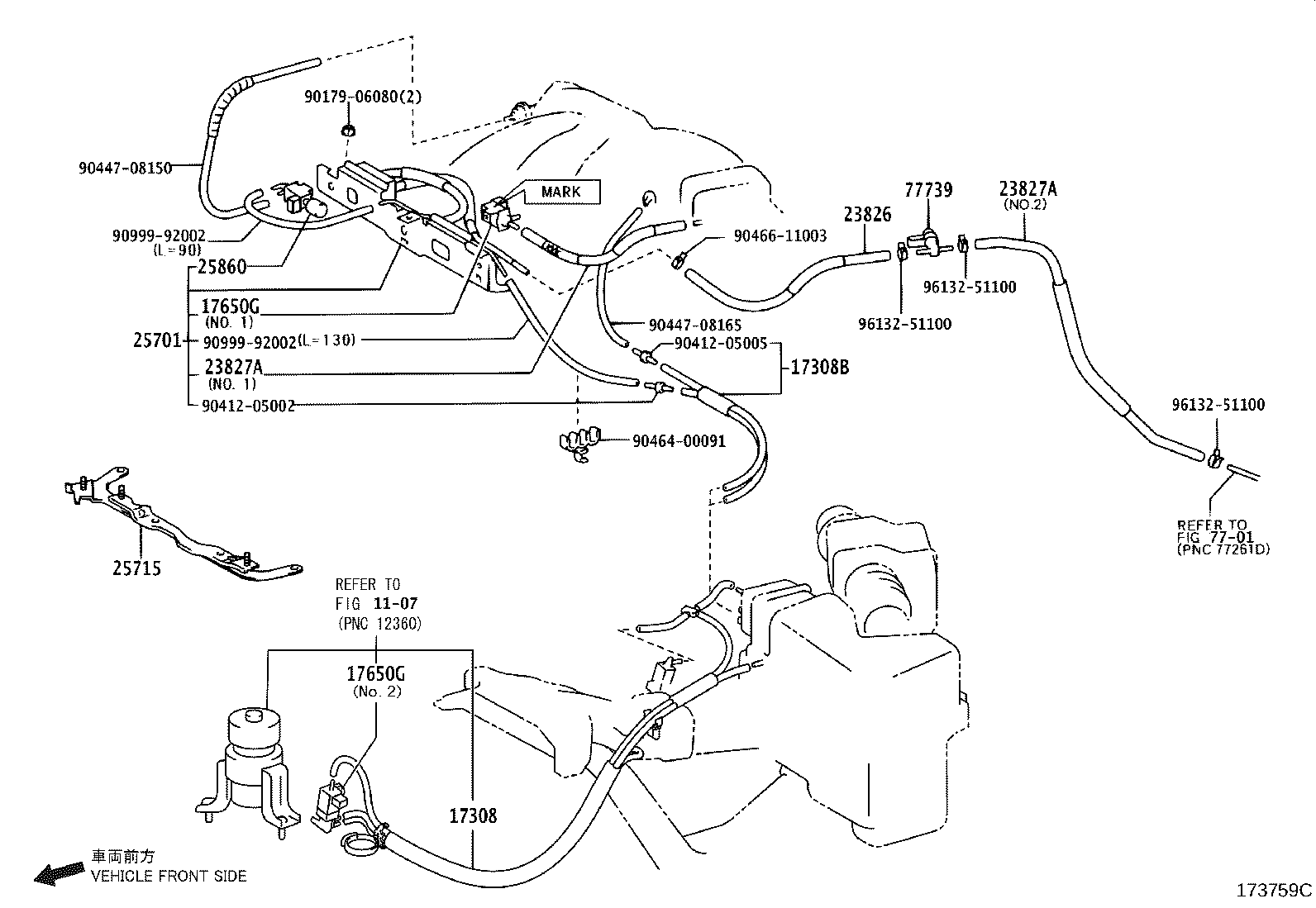

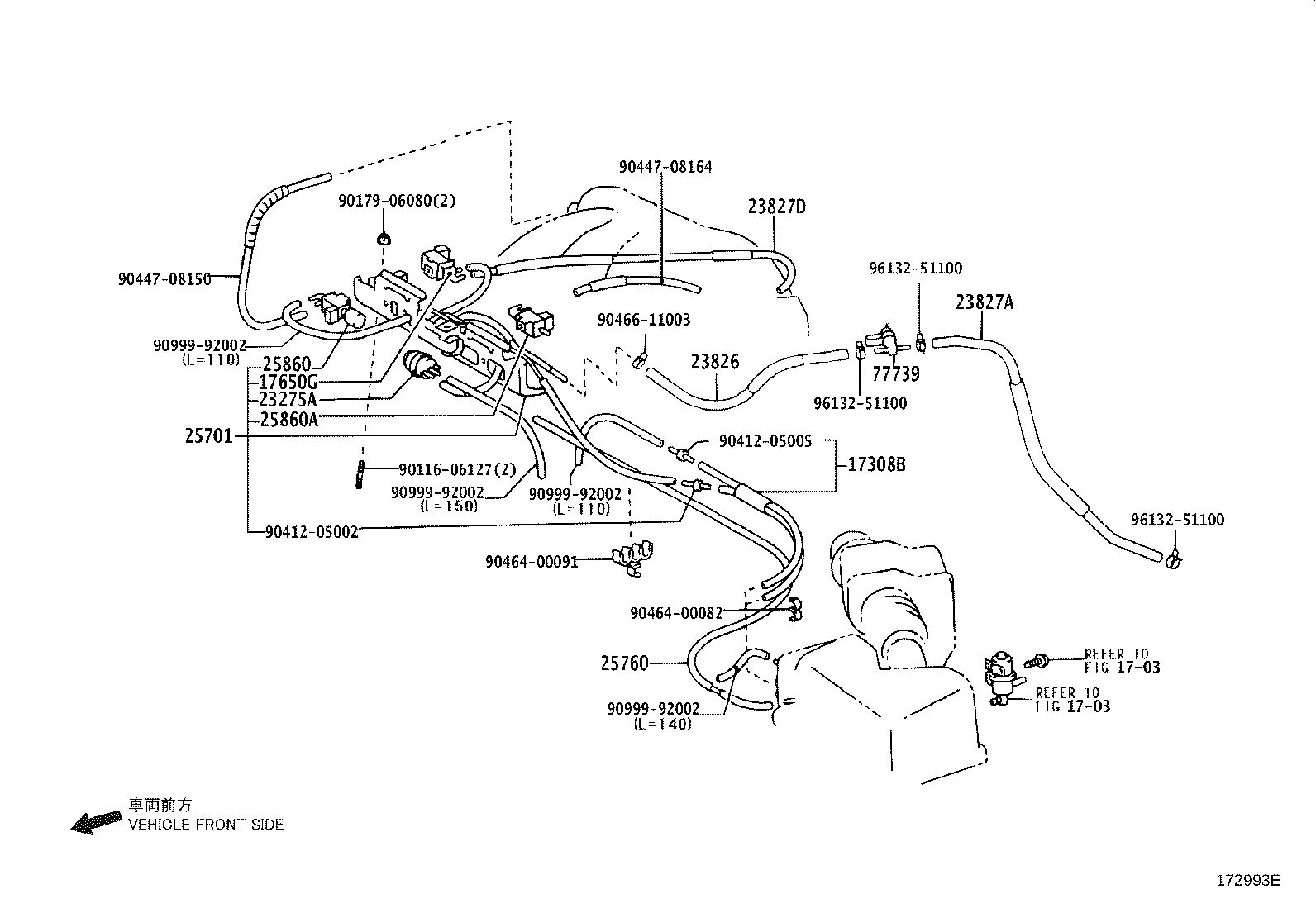

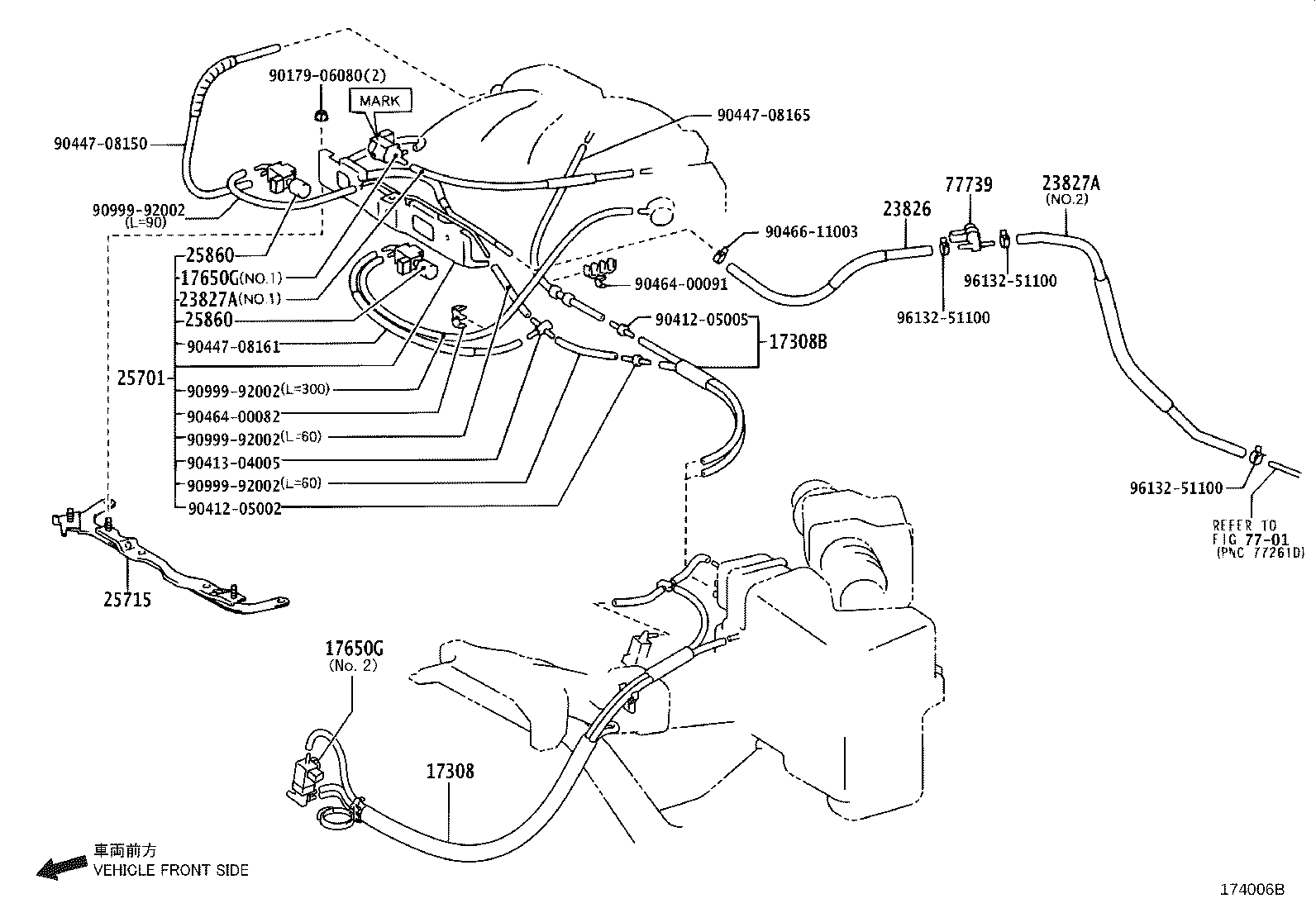

Figure 172964C 172964C 2001-07 → — Figure 172993E 172993E 2001-07 → 2003-01 Figure 173613C 173613C 2003-01 → 2003-07 Figure 173775C 173775C 2003-07 → 2004-06 Figure 173759C 173759C 2003-07 → 2004-06 Figure 174006B 174006B 2004-06 → — Figure 174007B 174007B 2004-06 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17308B Hose Sub-assy, Vacuum
17650G Valve, Duty Vacuum Switching
23275A Valve, Vacuum Control
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827D Hose, Fuel Vapor Feed, NO.2
25701 Valve Set, Emission Control
25715 Bracket, Emission Control Valve
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
77739 Valve, Evap Service Port
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
