Toyota Camry (JPP)
2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States
Discontinued model
Data version 2006-08

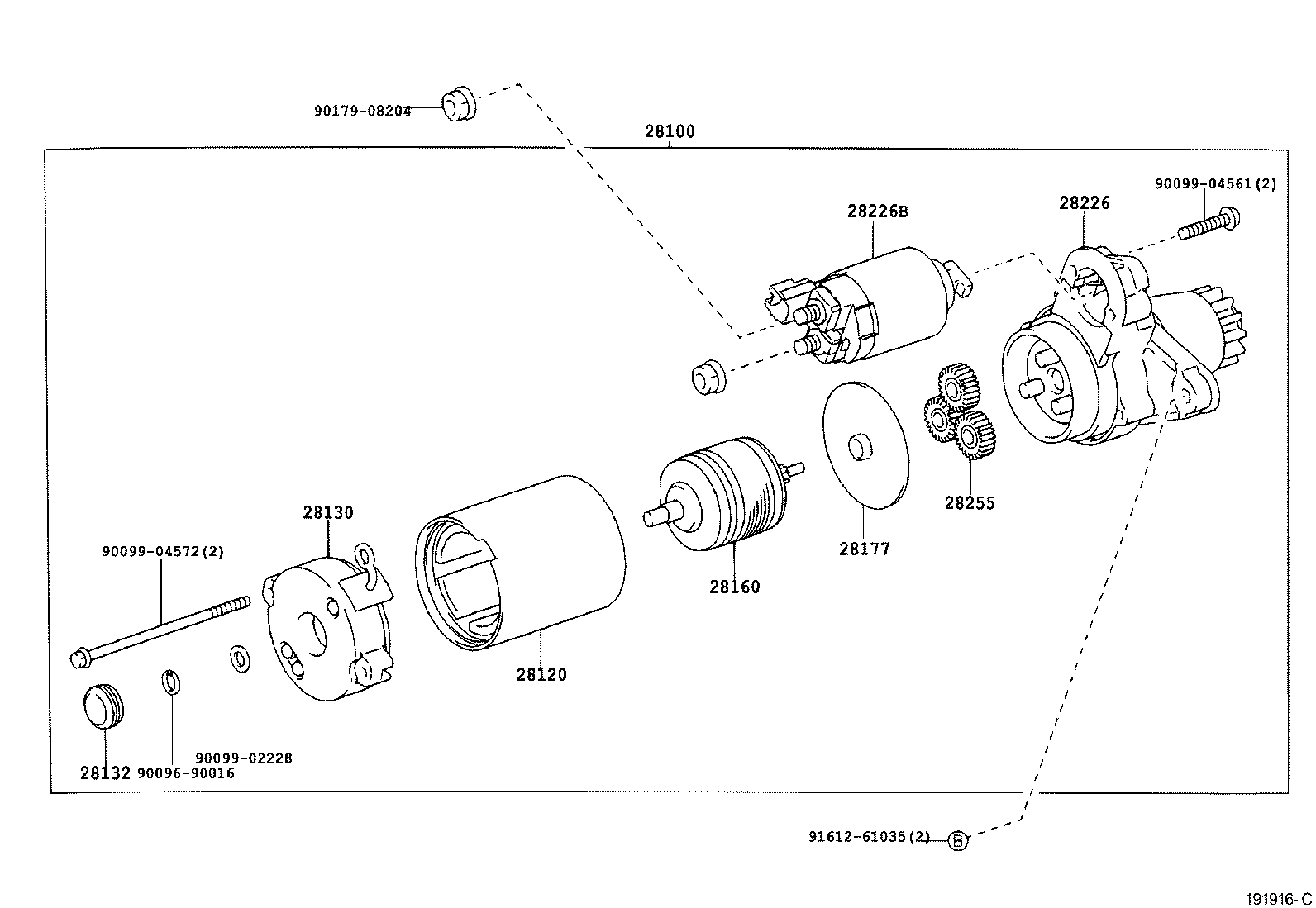

Starter
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28100 | Starter Assy |
| 28120 | Yoke Assy, Starter |
| 28130 | Frame Assy, Starter Commutator End |
| 28132 | Cover, Starter Bearing(FOR DRIVE HOUSING) |
| 28160 | Armature Assy, Starter |
| 28177 | Plate(FOR STARTER ARMATURE) |
| 28226 | Starter Kit, Battery Terminal |
| 28226B | Starter Kit, Repair Service |
| 28255 | Gear, Planet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
