Toyota Camry (JPP)

2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

11 part groups · 7 illustrations

Illustrations

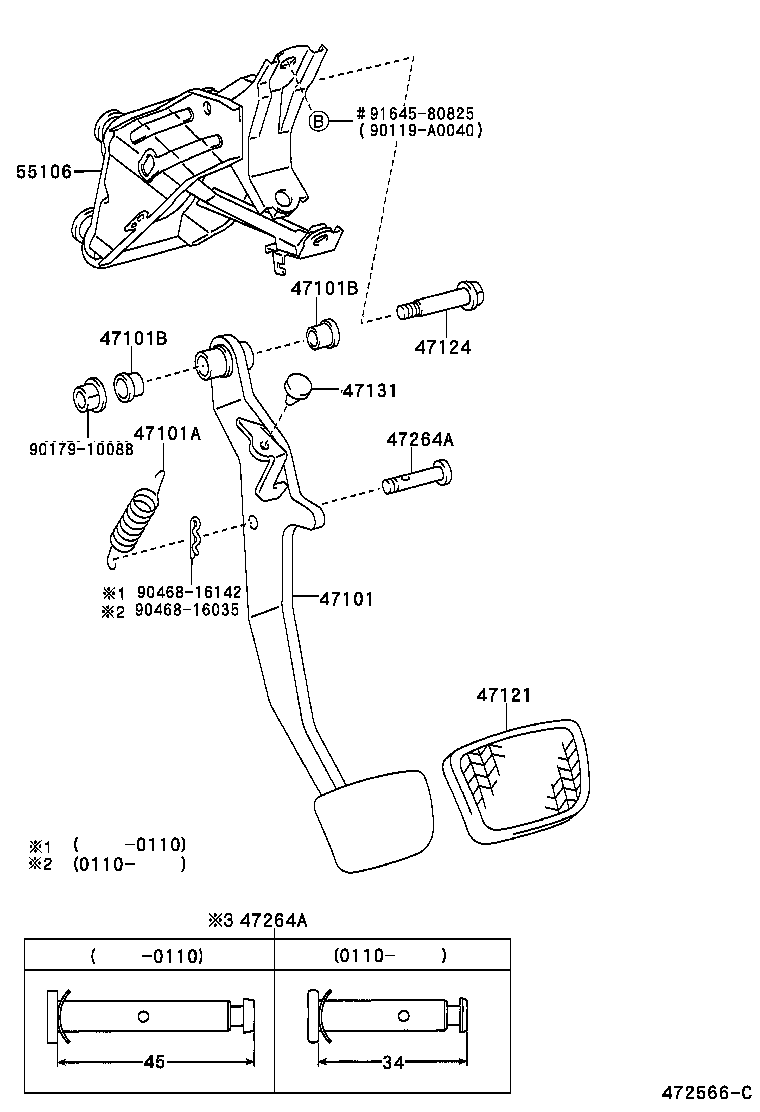

Figure 472565B 472565B 2001-07 → 2002-08 Figure 473294 473294 2002-08 → 2003-01 Figure 473294 473294 2002-08 → — Figure 473294 473294 2003-01 → — Figure 472566C 472566C 2001-07 → 2003-01 Figure 472566C 472566C 2003-01 → — Figure 473314 473314 2002-08 → —

Part groups

PNCDescription
47101 Pedal Sub-assy, Brake
47101A Spring(FOR BRAKE PEDAL RETURN)
47101B Bush(FOR BRAKE PEDAL)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47124 Shaft, Brake Pedal
47131 Cushion(FOR STOP LAMP SWITCH)
47264A Pin(FOR PUSH ROD)
55106 Support Sub-assy, Brake Pedal
55108 Bracket Sub-assy, Brake Pedal, NO.3
55159 Stay, Pedal Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
