Toyota Camry (JPP)

2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

14 part groups · 3 illustrations

Illustrations

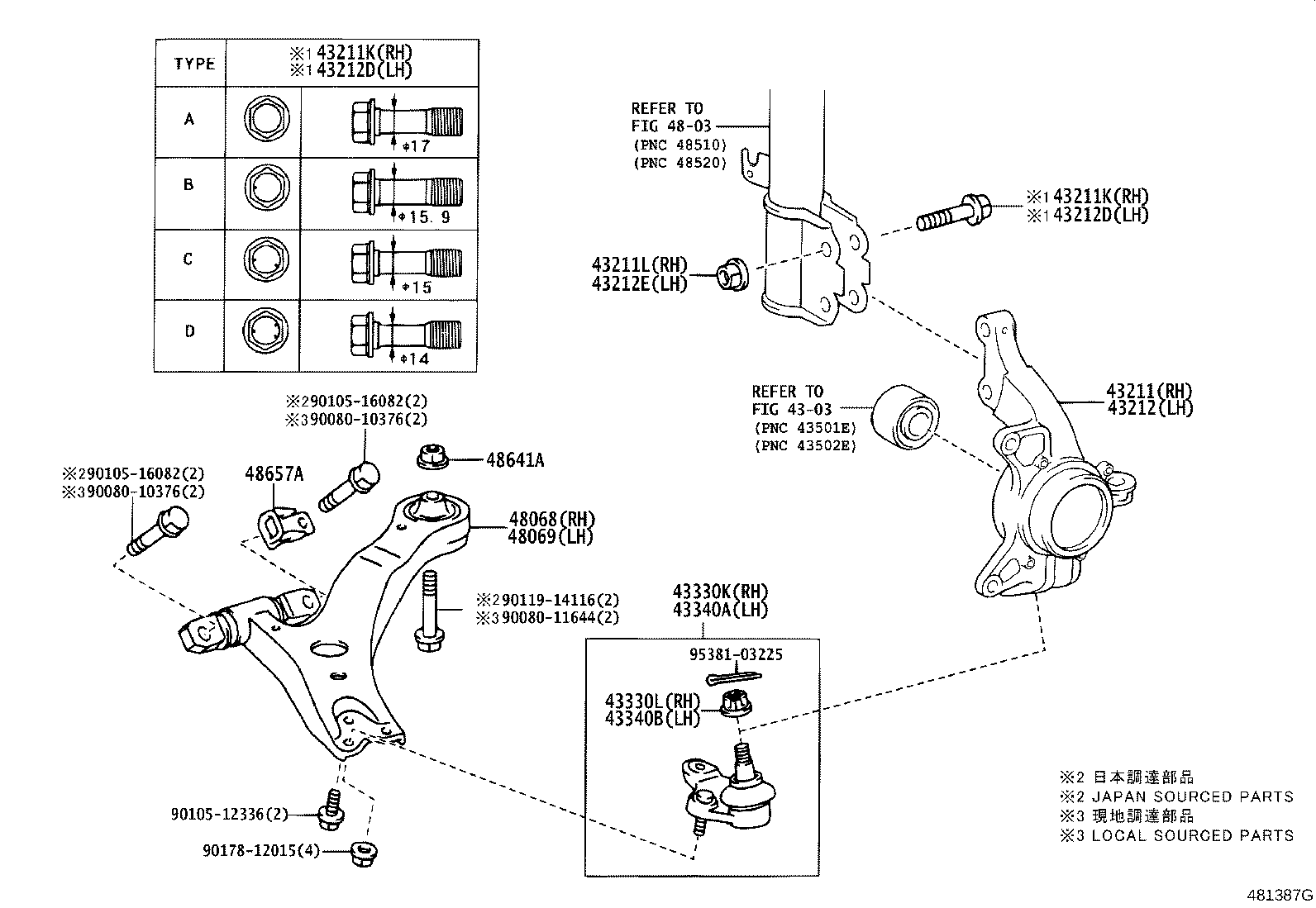

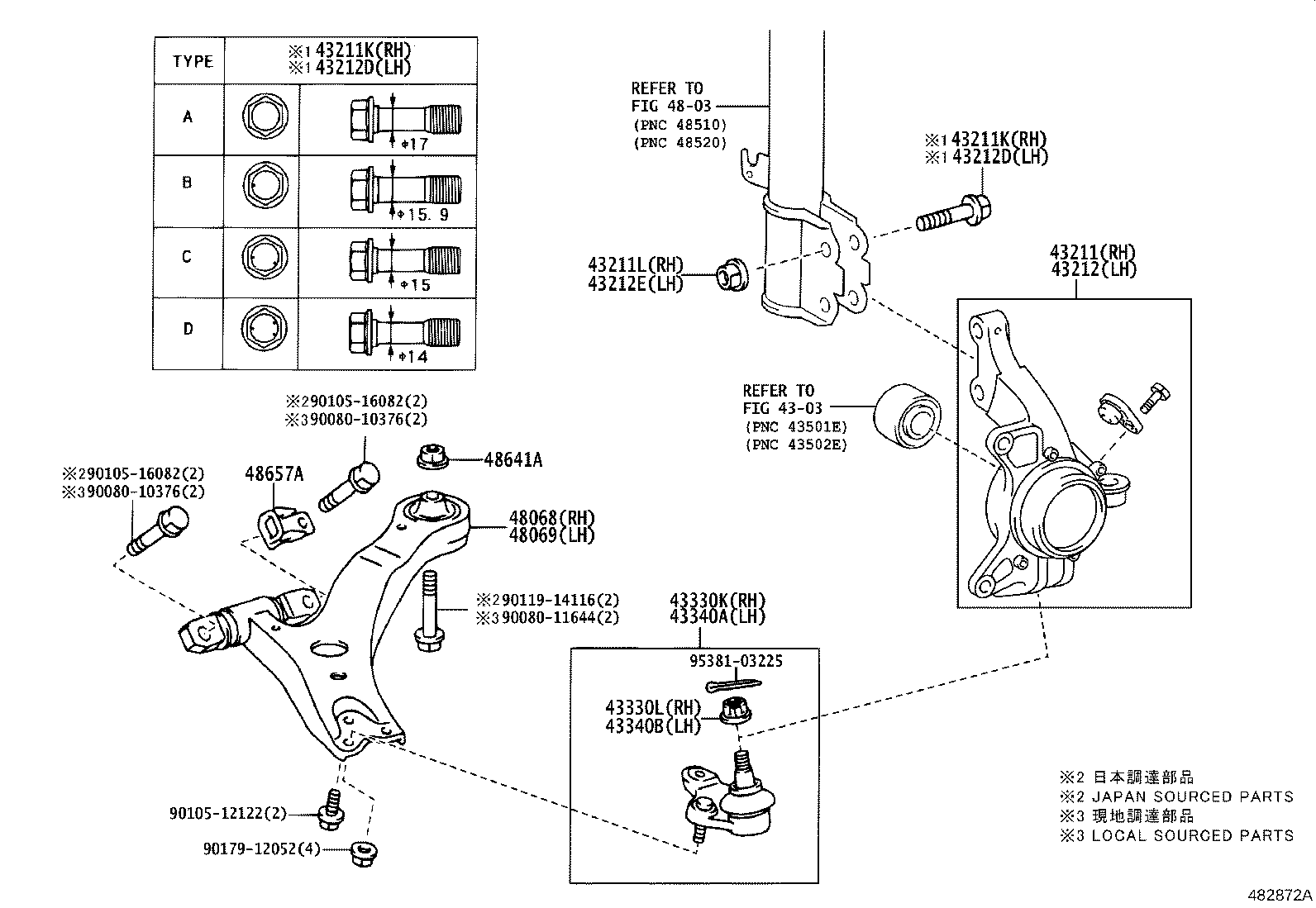

Figure 482871A 482871A 2001-07 → 2003-07 Figure 482872A 482872A 2001-07 → 2003-07 Figure 481387G 481387G 2003-07 → —

Part groups

PNCDescription
43211 Knuckle, Steering, RH
43211K Bolt (FOR STEERING KNUCKLE RH)
43211L Nut (FOR STEERING KNUCKLE RH)
43212 Knuckle, Steering, LH
43212D Bolt (FOR STEERING KNUCKLE LH)
43212E Nut (FOR STEERING KNUCKLE LH)
43330K Joint Assy, Lower Ball, Front RH
43330L Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
43340A Joint Assy, Lower Ball, Front LH
43340B Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
48068 Arm Sub-assy, Front Suspension, Lower NO.1 RH
48069 Arm Sub-assy, Front Suspension, Lower NO.1 LH
48641A Nut(FOR SUSPENSION LOWER ARM SHAFT)
48657A Stopper, Front Lower Arm Bush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
