Toyota Camry (JPP)

2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

22 part groups · 2 illustrations

Illustrations

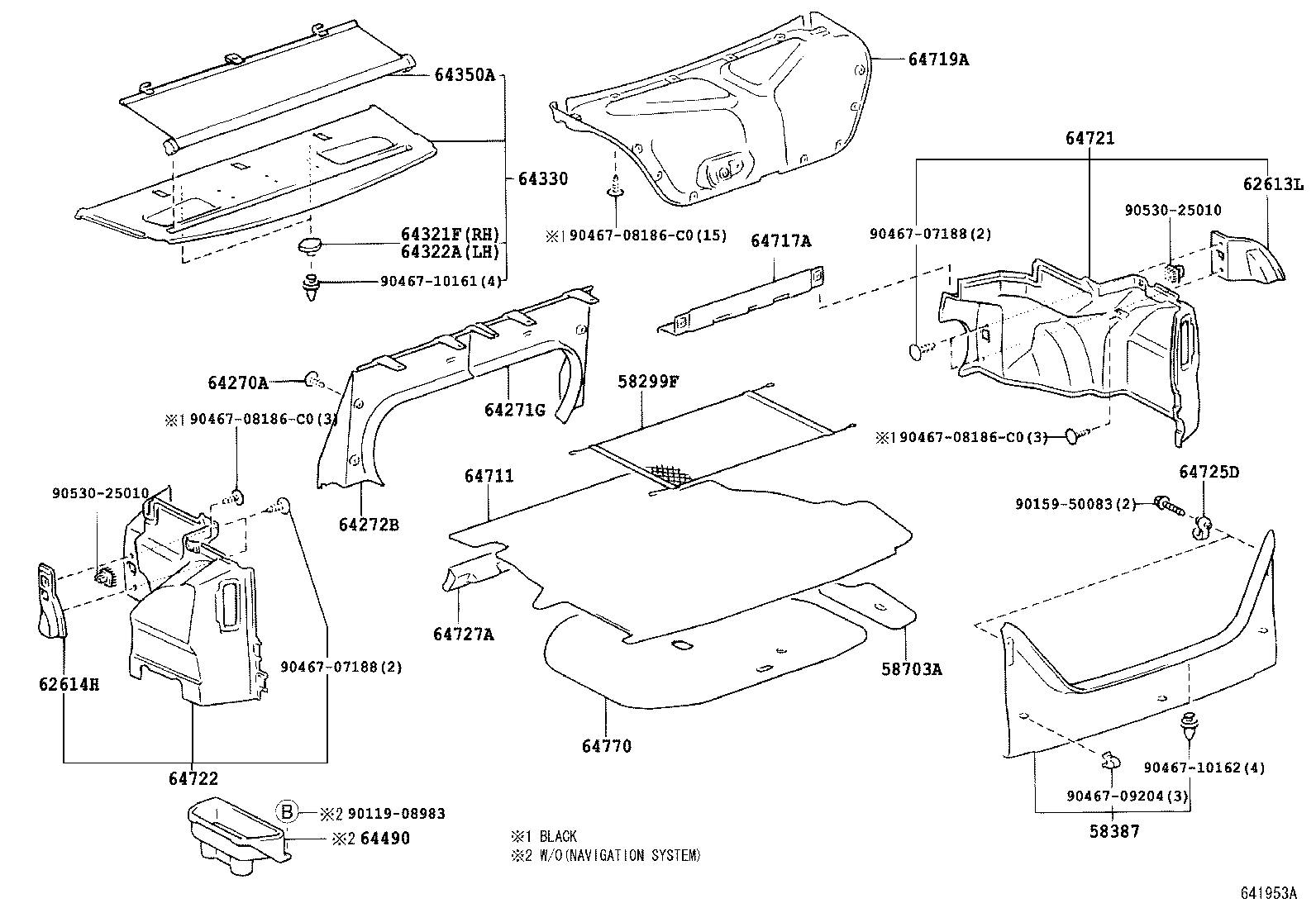

Figure 640928F 640928F 2001-07 → 2004-05 Figure 641953A 641953A 2004-05 → —

Part groups

PNCDescription
58299F Net, Baggage Holder
58387 Plate, Rear Floor Finish
58703A Cover Sub-assy, Luggage Compartment Side, RH
62613L Insulator, Quarter Wheel House, NO.2 RH
62614H Insulator, Quarter Wheel House, NO.2 LH
64270A Clip(FOR ROOM PARTITION BOARD SETTING)
64271G Board, Room Partition, RH
64272B Board, Room Partition, LH
64321F Bracket, Package Tray Trim, RH
64322A Bracket, Package Tray Trim, LH
64330 Panel Assy, Package Tray Trim
64350A Shade Assy, Rear Window
64490 Tray Assy, Luggage Compartment Side
64711 Mat, Luggage Compartment Floor
64717A Cover, Luggage Compartment Trim, Front
64719A Cover, Luggage Compartment Door
64721 Cover, Luggage Compartment Trim, Inner RH
64722 Cover, Luggage Compartment Trim, Inner LH
64723A Cover, Luggage Compartment Trim, Inner Lower
64725D Hook, Luggage Compartment Trim, NO.1
64727A Pad, Luggage Compartment Trim, Inner
64770 Cover Assy, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
