Toyota Camry (JPP)

2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

13 part groups · 2 illustrations

Illustrations

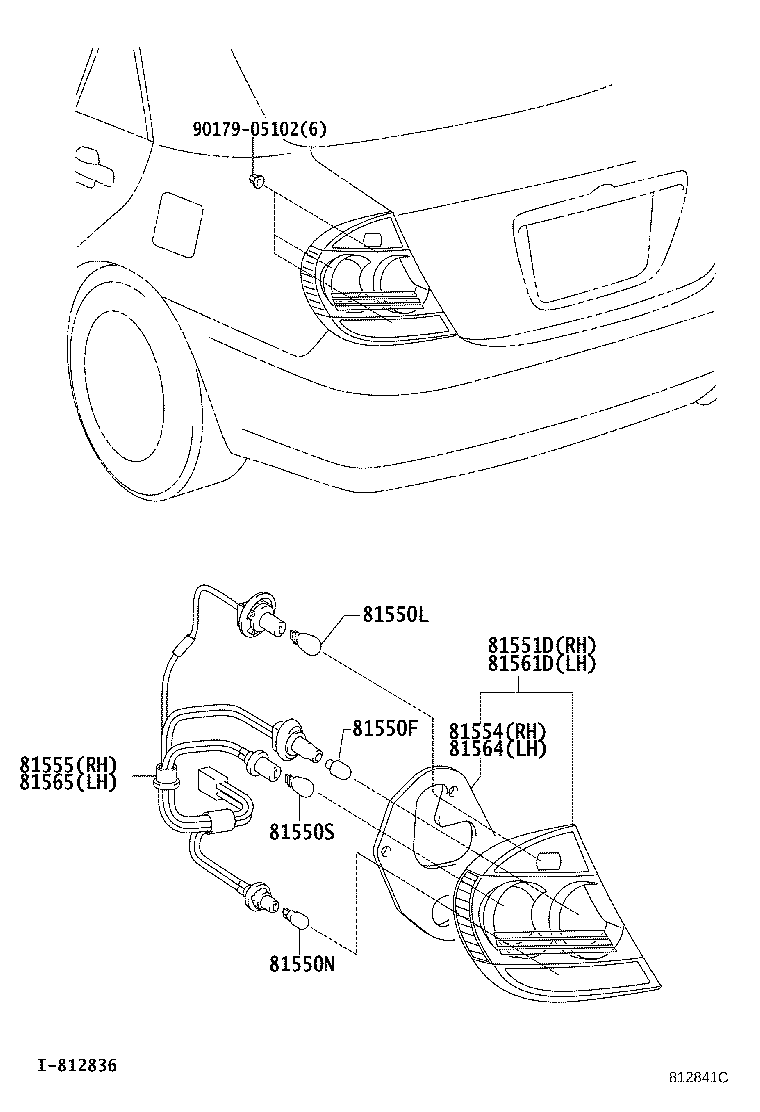

Figure 811877C 811877C 2001-07 → 2004-06 Figure 812841C 812841C 2004-06 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550F Bulb, Taillamp
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550S Bulb, Rear Side Marker Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
