Toyota Camry (JPP)
2001-07 → 2006-01 · chassis ACV30,MCV3# · catalogue 284470 · United States
Discontinued model
Data version 2006-08
Wiring & Clamp
39 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 74596B | Label, Passenger Airbag Caution, NO.2 |

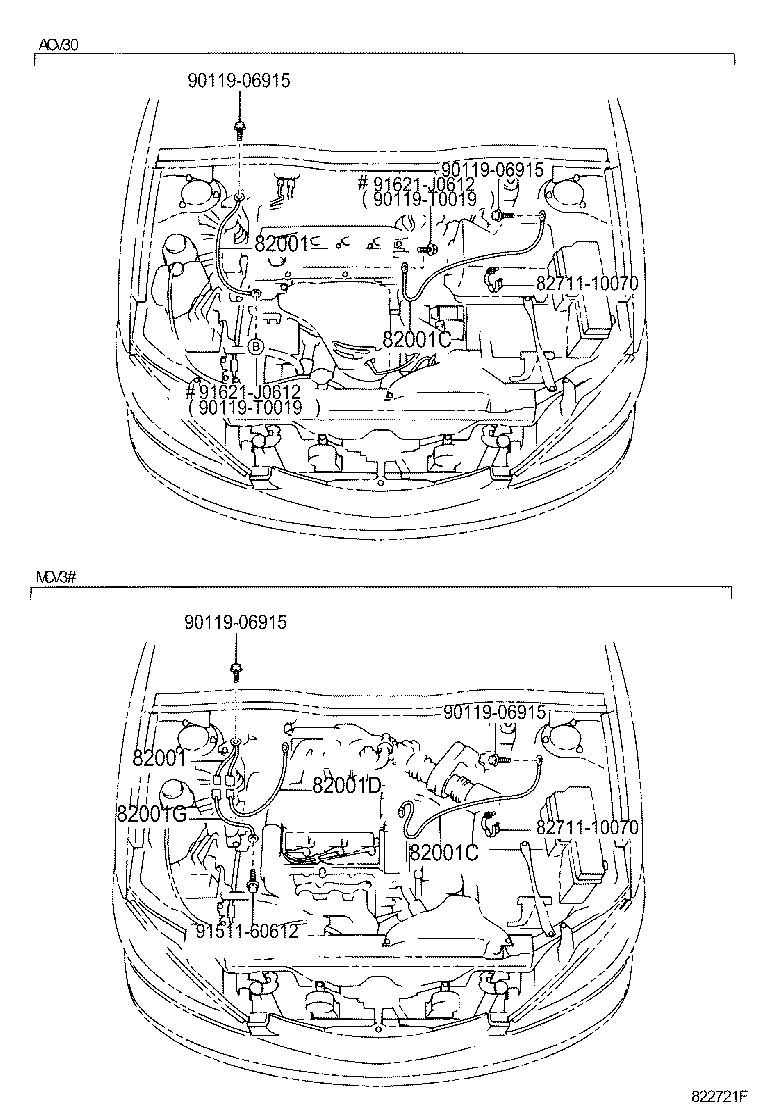

| 82001 | Cable, Bond, NO.1 |
| 82001C | Cable, Bond, NO.2 |
| 82001D | Cable, Bond, NO.3 |
| 82001G | Cable, Bond, NO.4 |

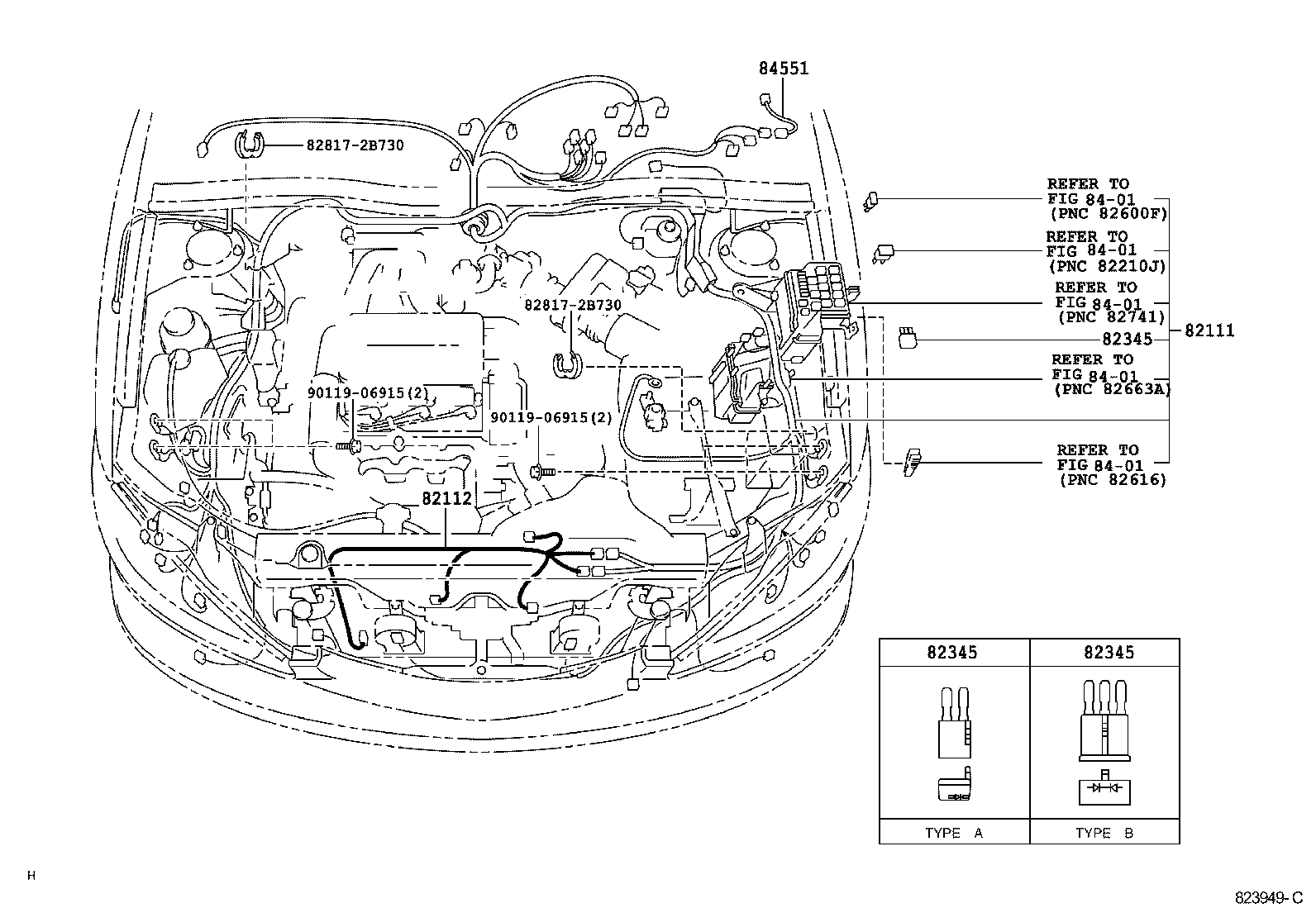

| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |

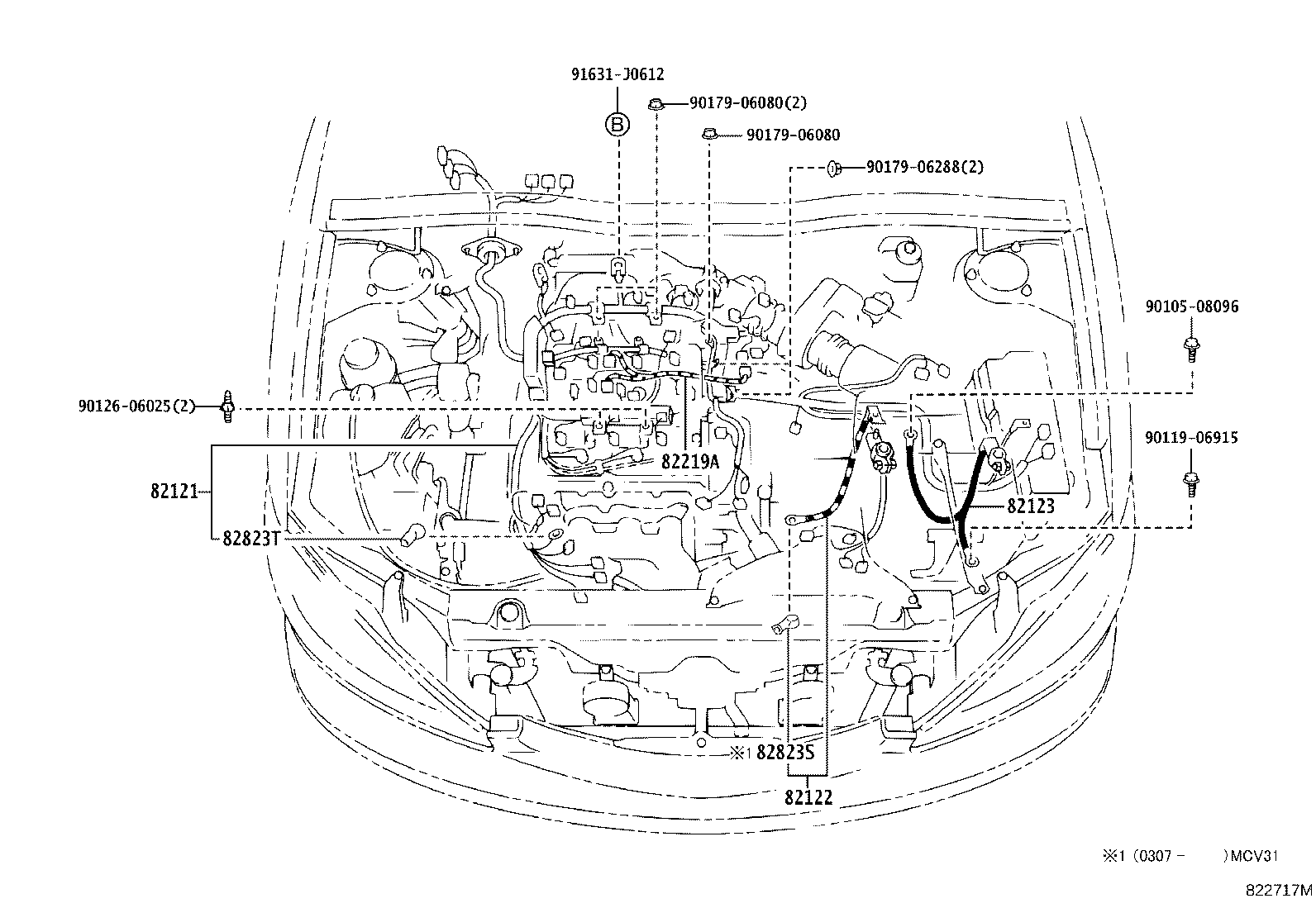

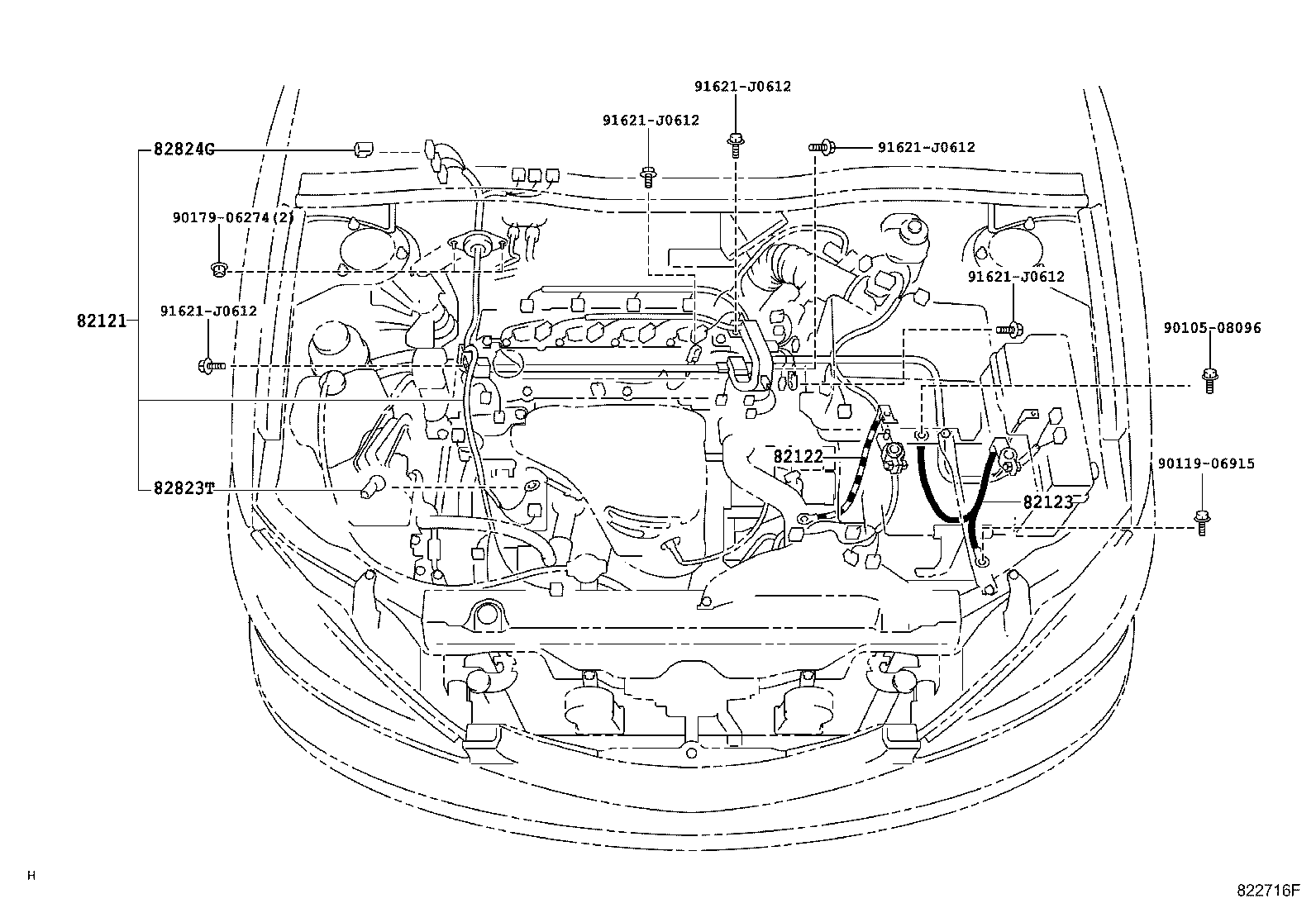

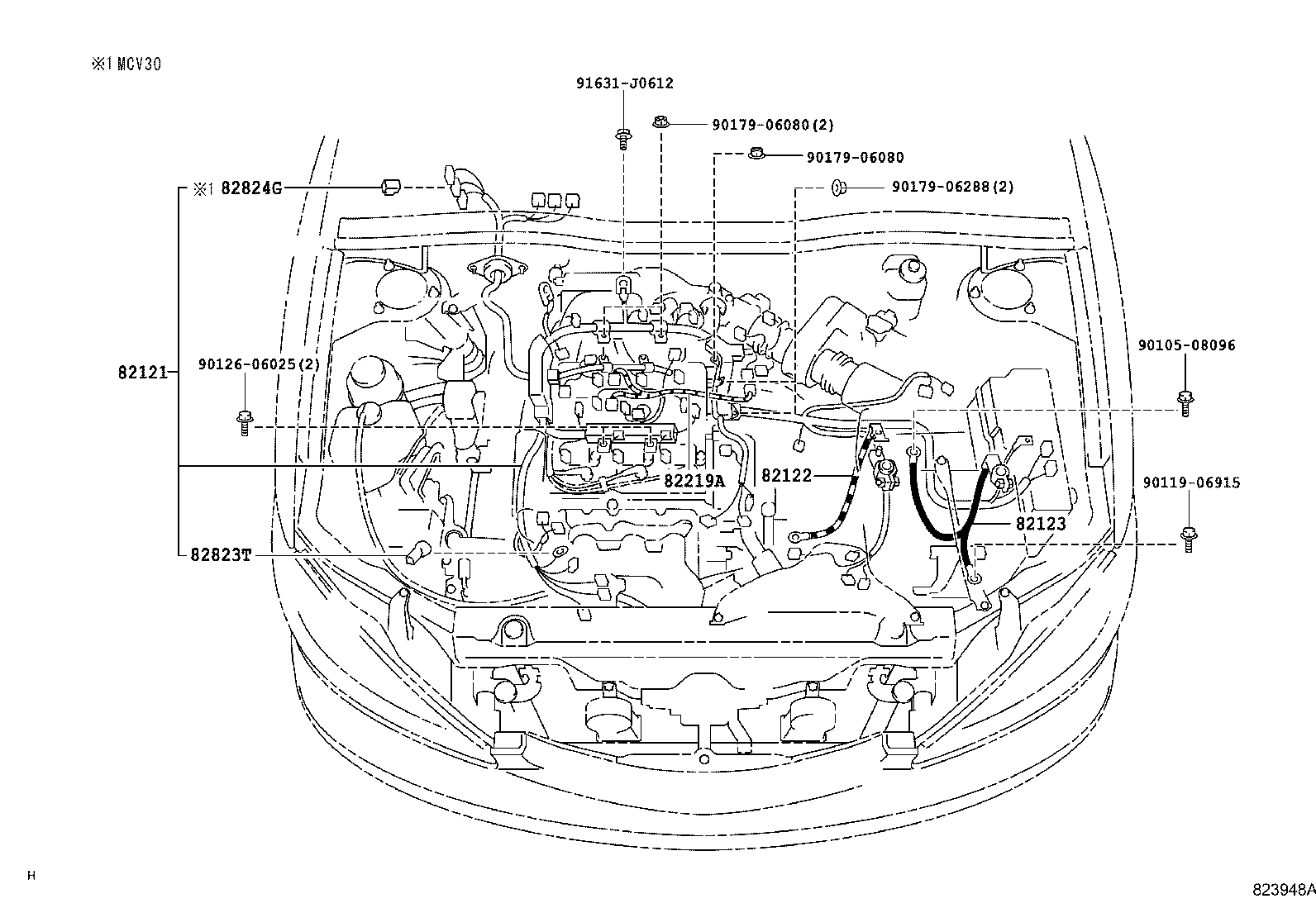

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82132 | Wire, Cowl, NO.2 |

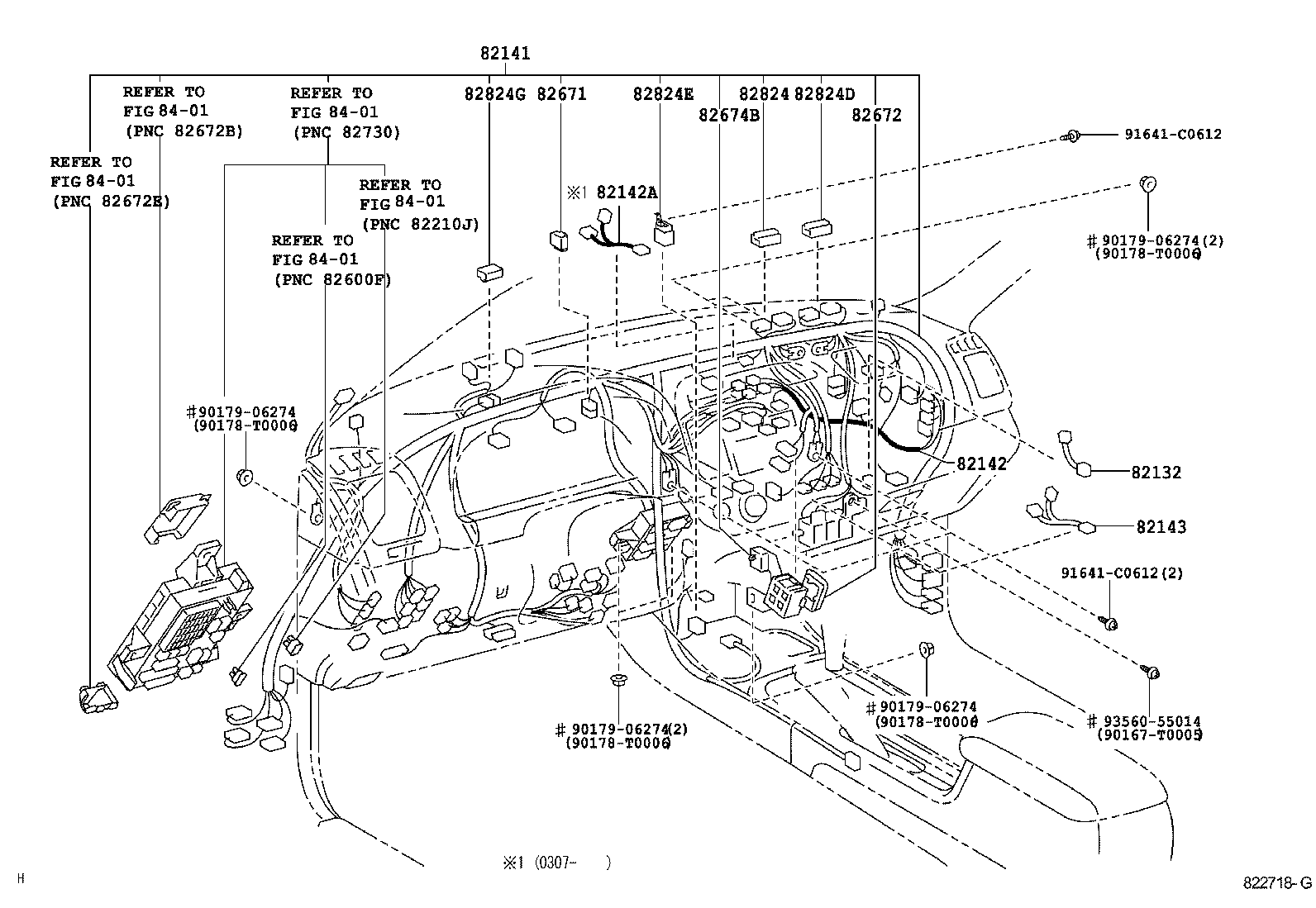

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82143 | Wire, Instrument Panel, NO.3 |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

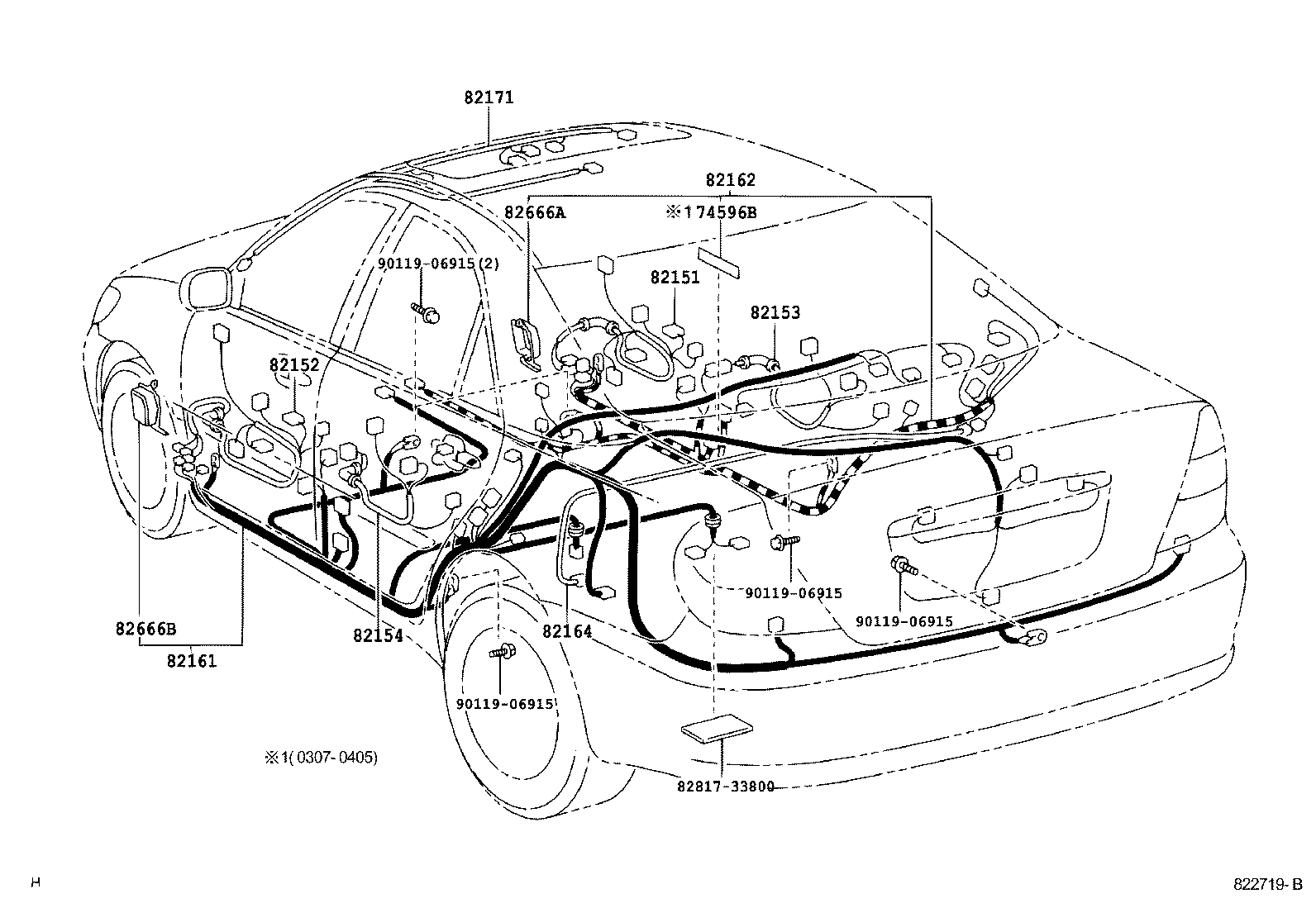

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82164 | Wire, Frame |
| 82171 | Wire, Roof, NO.1 |

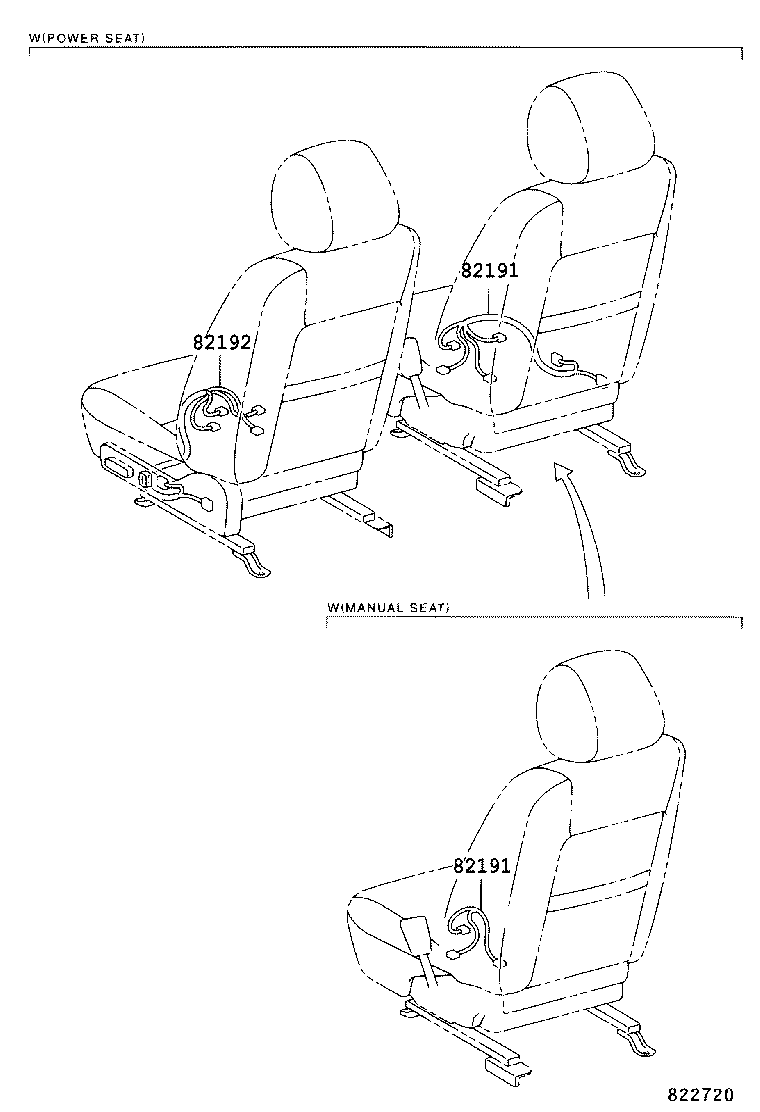

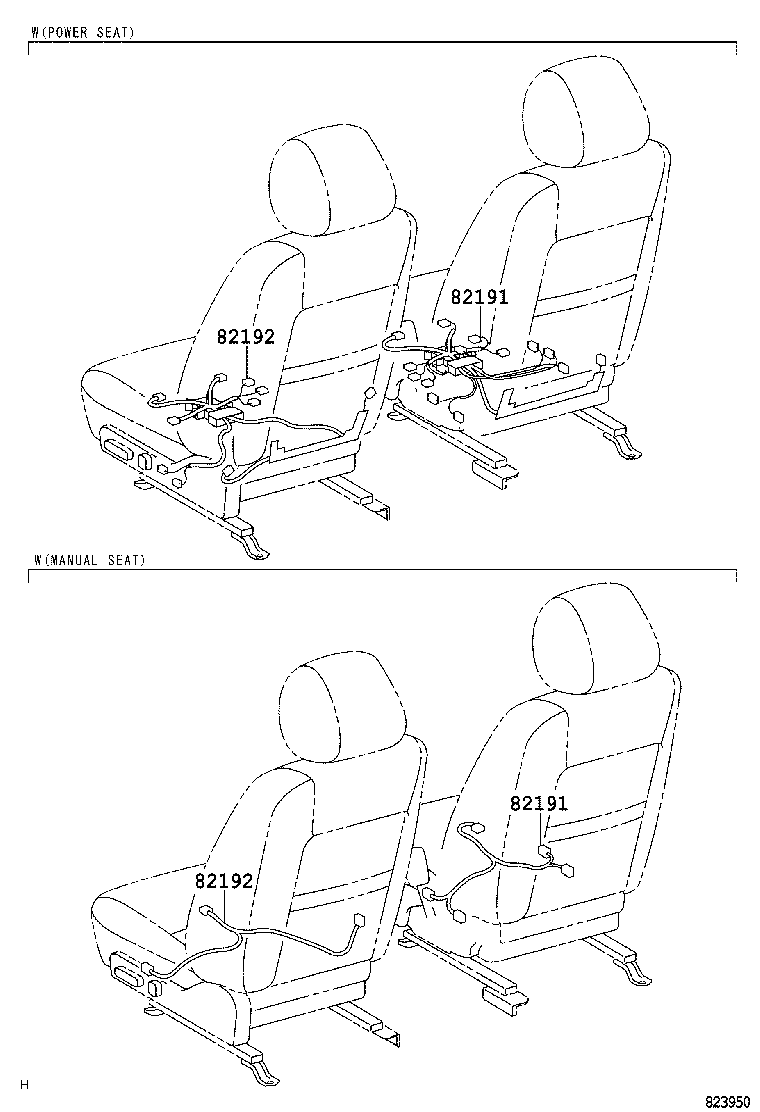

| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82219A | Wire, Sensor |
| 82345 | Diode |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82671 | Block, Junction |
| 82672 | Cover, Junktion Block |
| 82674B | Cover, Junction Block, Lower |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |

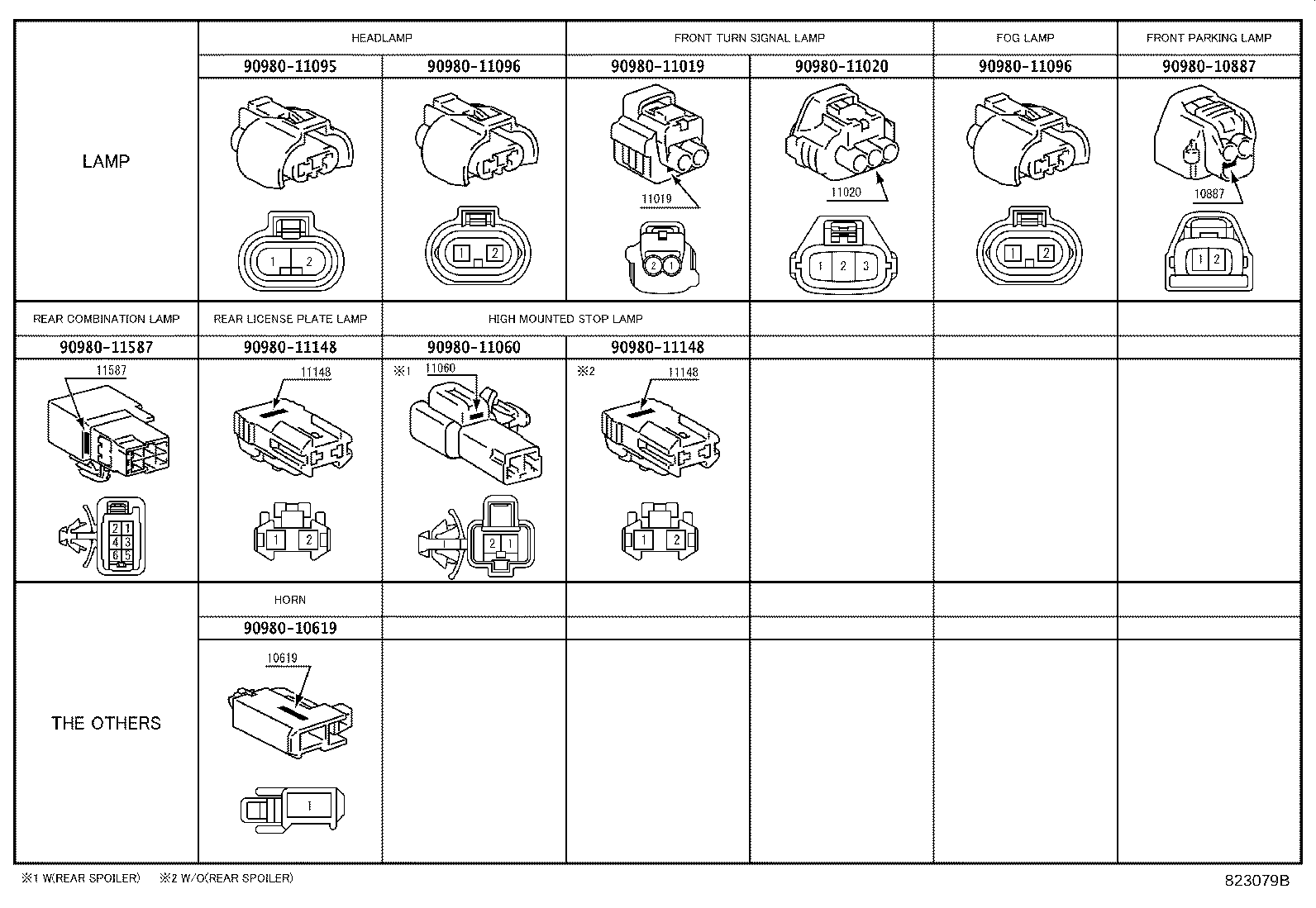

| 82824 | Connector, Wiring Harness |
| 82824D | Connector, Wiring Harness |
| 82824E | Connector, Wiring Harness |
| 82824G | Connector, Wiring Harness |
| 84551 | Wire, Parking Brake Switch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
